Description
Reviews(/5)

undefined

Note:

1: Please do not work under high temperature, high magnetic field and strong light.

2: only use the specified power adapter and battery to avoid serious damage to this product.

3: do not expose this product to extremely low or high temperatures.

4: please turn off the power when you do not use this product

5: please avoid water and dust.

6:: Do not use thinner or other chemical washing to wipe the machine.

7: This product is specially designed for baby monitoring. Please try your best to use it indoors. Using it under strong light will reduce the display effect.

8:AC adapter can only be used indoors

Main functions

● Use 2.4GHz frequency transmission, in line with FCC and CE standards

● use high-definition 5-inch display

● Display with Operation Menu

● Support 1 master and multiple slave: 1 receiver can be connected to 4 transmitters;

● long-distance transmission: The transmission distance in open area can reach 150-200m

● Clear Night Vision: 24-hour monitoring

● half duplex voice transmission: clear sound quality

● With VOX (voice control) wake-up function, the volume of the Baby terminal exceeds a certain value, which will trigger the LCD receiver to work (the sound will light up after the screen is automatically turned off), reminding parents to check the Baby status

● The receiver is powered by lithium battery, which is convenient for mobile use.

● It has the code matching function to improve security and privacy.

● support playing music for babies

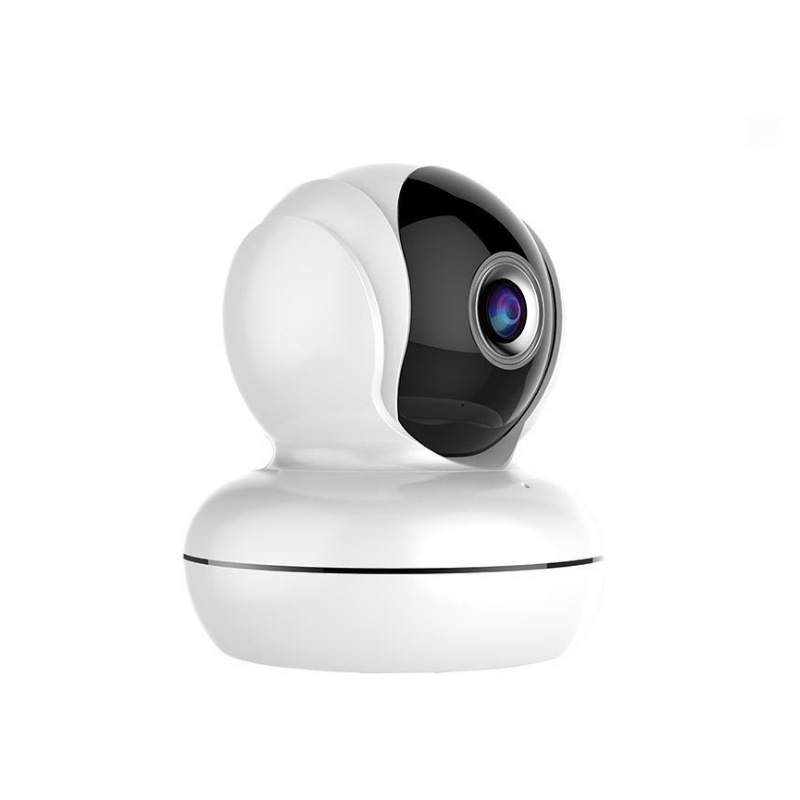

● Camera with PTZ function

Function	Description
Frame rate	15-25 frames
Signal strength indicator	5 levels
Volume control	10 levels
Intercom	Bidirectional, half duplex
Voice control function	Automatic screen opening with sound, and alarm sound at the receiving end

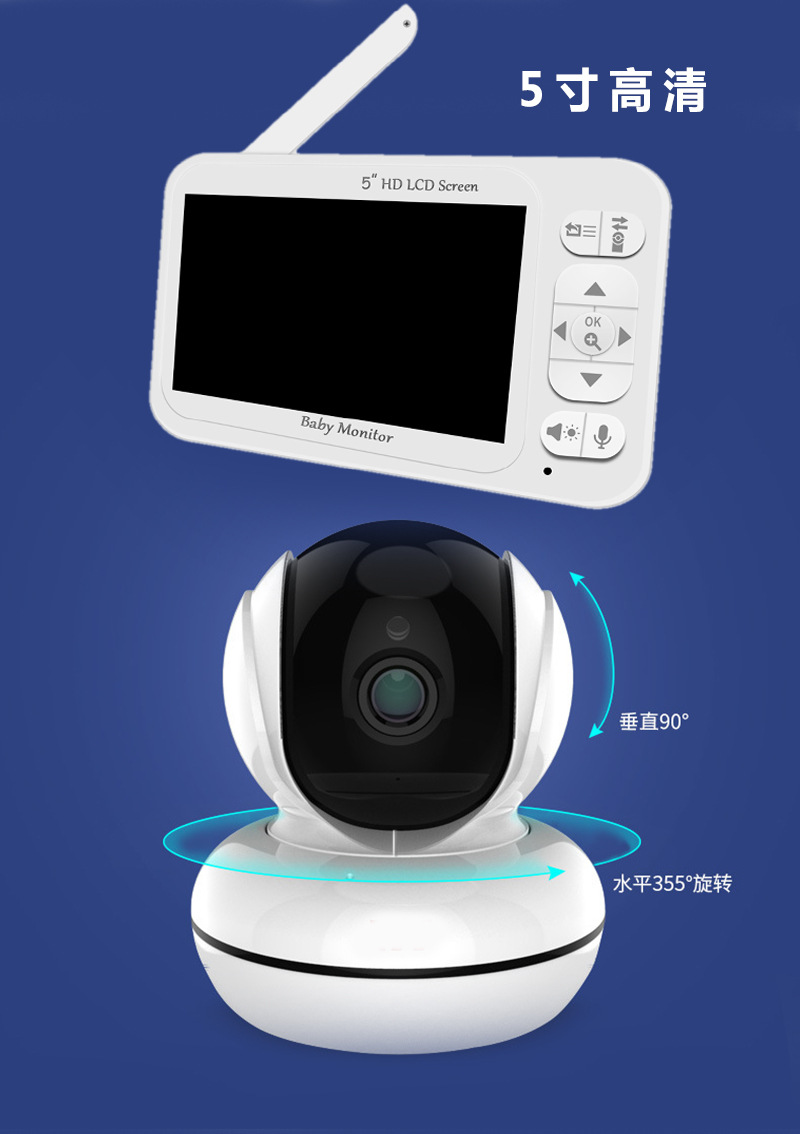

Camera rotation function	Select 110 degrees up and down, rotate 350 degrees left and right
Multiple	One receiver can be equipped with four transmitters, which can be switched and automatically cyclically displayed.
LCD size	5 Inch 720*1280 RGB color LCD
Transmission Security	The code must be matched to each other before it can be used.

B: Electrical parameters

LCD receiving voltage	DC:5V/1000MA;Battery: Built-in 3.6(3.7V)/3000mAh lithium Battery
Battery discharge time	Continuous Discharge for 5 hours, screen off sleep mode for 8 hours
Transmission frequency	2.4GHz ISM Band
Wireless working mode	FHSS
Transmit power	17 +-1dBm
Transmission rate	4MHz BER<1E-3
Transmission distance	Open Area: 150-200 meters
Work current (transmitting and receiving)	TX:520mA MAX,RX:500mA MAX, normal standby 340MA does not calculate the charging current
Charging current	300-400ma
Camera resolution	720p
Image resolution	720p
Video transmission rate	15-25FPS
Total harmonic distortion	<5.0%
Signal-to-noise ratio	46dB
Receiving sensitivity	-89dBm(Typ.)@4MHz BER<1E-3
Night vision light and night vision distance	6 night vision lights, night vision distance 3-5 meters
Humidity Range	20--80%RH
Temperature Range	0 ℃-45 ℃
