Wholesale 2.4G Wireless Digital Baby Monitoring Intercom Infrared Night Vision Built-in Lithium Battery Open 200 M19487

Yiwu Sanqi Electronic Monitor Firm 14yr.

Contacts:

蓝岩敏Chat

Mobile:

86-13373825691

E-mail:

61610307@qq.com

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email： yiwubuy@yiwugo.com

Description
Reviews(/5)

Product Introduction

- Product Information
- Name: 2.4g wireless digital baby monitoring intercom infrared night vision built-in lithium battery Open 200 m
- Brand: Neutral
- Color: White
- Product Features
- 1: digital wireless video surveillance, vivid picture.

  2:LED indicates the volume, which can flash with the volume.

  3: digital wireless audio monitoring, with adjustable sound size.

  4: audio intercom between the display end and the camera end is very convenient.

  5: external audio and video output.

  6: If no key is pressed for 30 seconds during video menu debugging, the menu interface will automatically disappear and return to the monitoring state.

  7: If the product is outside the transmission range, the antenna indication will flash

  8: external power supply or battery can be supported.

  9: Display battery low power or charging indication.
- This product can transmit 200 meters in the open space theoretically based on the calculated data. In actual use, it will be shorter than the theoretical distance due to interference and obstacles in the actual environment. The specific distance needs to be subject to the actual environment, and the distance between different environments will vary.

defaec1d79e6dc04ae2e29cb8baad5 964afe9ca57735c9ba002453c2f443 4450f8b48bab2f254660898aa90205

Product electronic parameters

This product is mainly exported to developed countries such as Europe and America, passed ce testing, FCC,ROHS certification, safe and convenient for infants and young children, suitable for ages 0-10. This monitor not only allows you to hear the child's voice, but also can see the child's video images in real time. In foreign countries, parents and children usually sleep in separate rooms. In order to better understand when the child sleeps at night, the mother often needs to climb out of the warm bed to see the child next door, which is a happy and painful thing. With China's economic development and changes in family structure, our families are also facing the same situation. With baby monitor, mothers don't have to climb out of the warm bed. They can also read newspapers, rest, surf the Internet and do housework at ease.

● stable signal and anti-interference.
● The transmission distance is 100 meters open, and obstacles depend on the actual situation. Please contact the seller before purchasing!
● reliable communication confidentiality.
● can see children anytime and anywhere, which plays a very good role in monitoring children..

Project		Parameter
Receiving frequency		2.400GHz to 2.483GHz
Video format		PAL/NTSC automatic switching
Modulation mode		FSK
Operating temperature		-20~60 ℃/-10~50 ℃
View angle (U/D/L/R) (CR>10)		10/30/45/45(Min)
Definition (dot)		480(W)x240(H)
Camera	Signal system	PAL	NTSC
	Effective pixel	628(H) x 582(V)	510(H) x 492(V)
	Imaging device	1/4 "CMOS image sensor
	Horizontal definition	380TV Line
	Send Signal	Image and Sound
	Minimum illuminance	3Lux/F1.2
	Scanning frequency	PAL/CCIR: 50Hz NTSC/EIA:60Hz
	Open transmission distance	200m
	Adaptive power supply	DC5V/800mA
	Transmit power	17dBm
	Emission frequency	2.400GHz to 2.483GHz
Receiver	Receiving sensitivity	≤-85dBm
	LCD	2.4'' TFT LCD
	Low voltage shutdown	Automatic shutdown when the battery is less than 3.3V
	Adaptive power supply	DC5V/800mA
	Product Size	123x72 x 24mm
	Product Weight	200g
	Received Signal	Image and Sound
	Battery	Built-in 3.7V/350mAh lithium battery
	Power consumption	≤ 3W

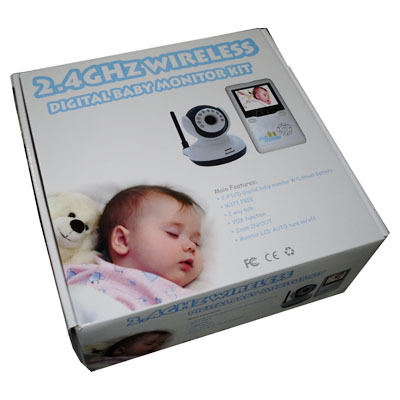

Product packaging drawing

9020D original packing box
9020D original packing box

Product real shot

9020D digital display

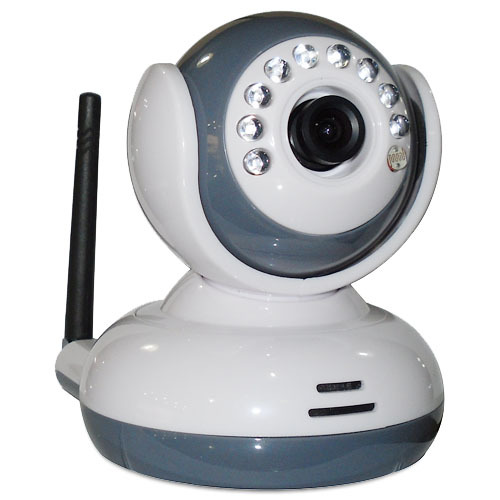

9020D digital camera

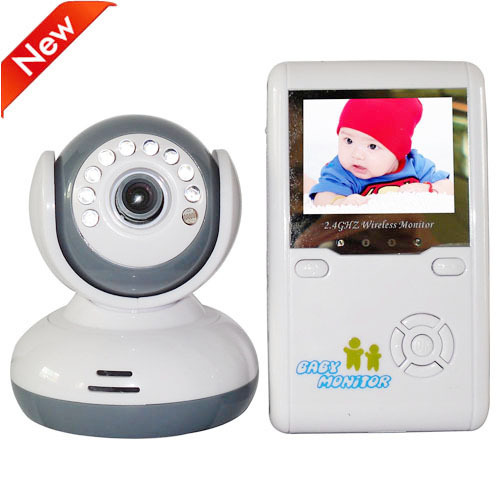

Overall picture

9020D baby monitor overall picture
9020D baby monitor outer packing box

Product Details

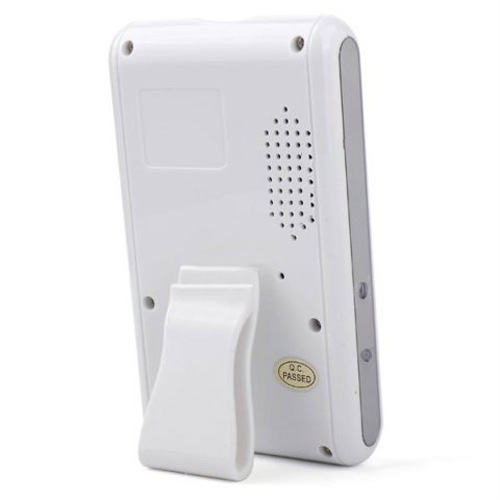

9020D display back picture

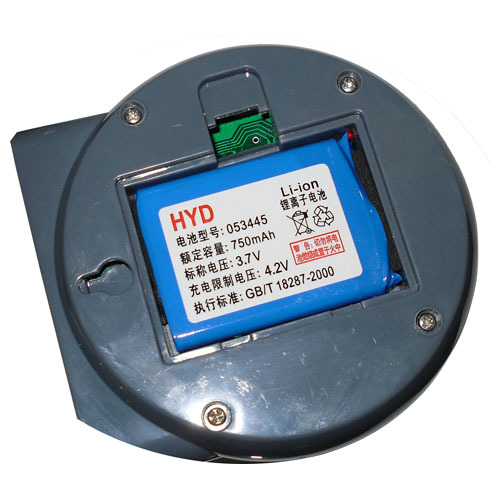

9020D camera built-in battery diagram

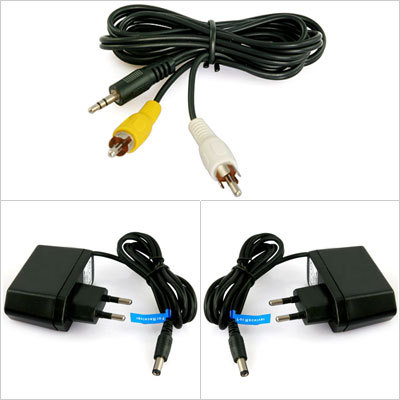

Accessories (another antenna is not shown in the picture)

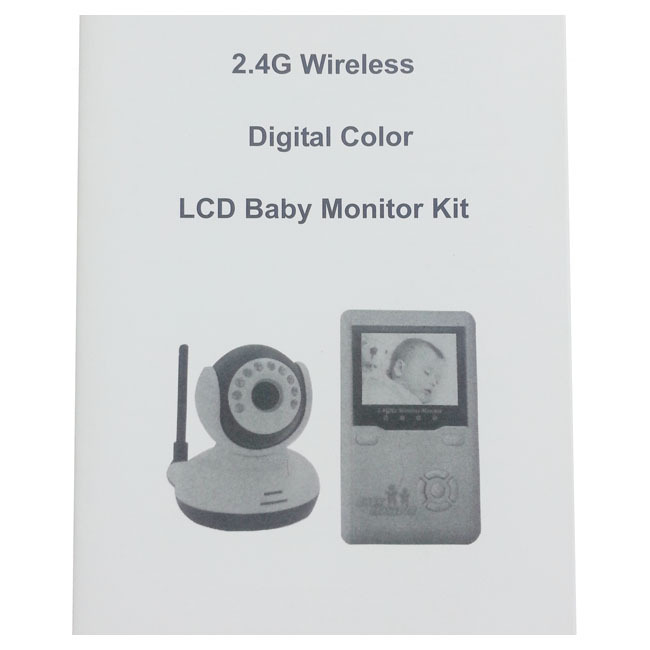

Manual
