Receiver product parameters:

Receiving frequency: 2.400GHz to 2.480GHz
Automatic switching of video system PAL/NTSC
Operating temperature-20~60 ℃/-10~50 ℃
Definition (dot) 320(W) x 240(H)
Receiving sensitivity ≤-85dBm
LCD 3.5'' TFT LCD
Low voltage shutdown when the battery is lower than 3.3V, automatic shutdown
Adapter power supply DC5V/1000MA
Built-in battery 700MA for receiving signal Image and Sound
Power consumption ≤ 3W product weight 130g

Camera product parameters:

Transmitting frequency: 2.400GHz ~ 2.480GHz transmitting power: 17dBm
Imaging device 1/4 "CMOS image sensor
Horizontal definition 380TV Line
Send Signal images and sounds
Minimum illumination 0Lux (Infrared LED on)/ 5LUX(IR off)
Open transmission distance 300 m adaptive power supply DC5V/1000MA product weight 70g

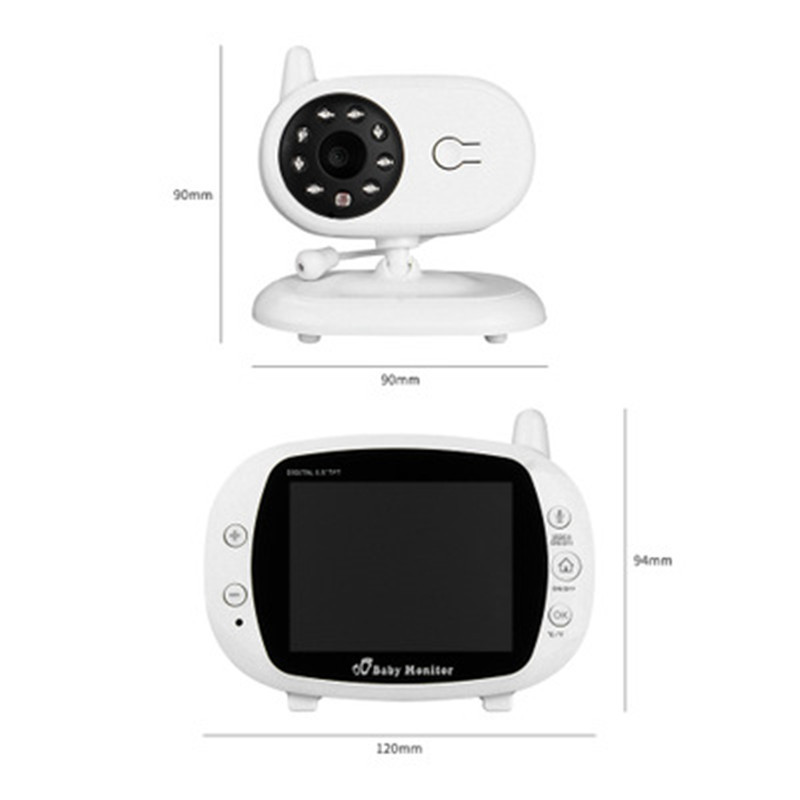

Product Size and list

Packing weight: 0.430kg

Packing size: 25*17.00 * 6.5cm

Package content: 1 2.4 GHz wireless baby monitor
1 wireless baby camera
2 power adapters
1 User Manual

Packing specification and weight

Quantity: 20 units/box

Weight: 10KG

Packing size: 60*40 * 30cm
