led light board

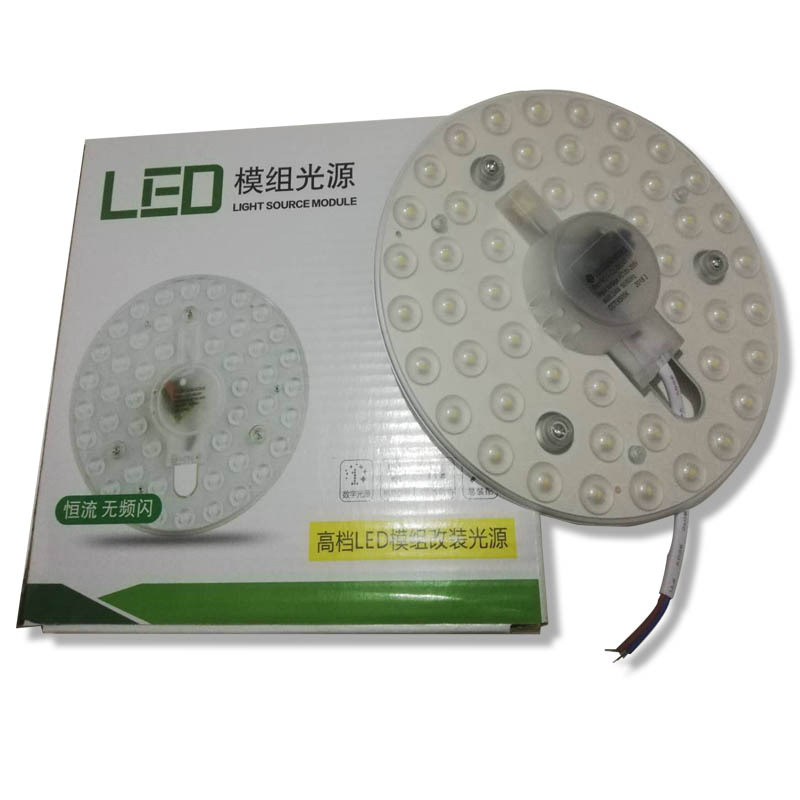

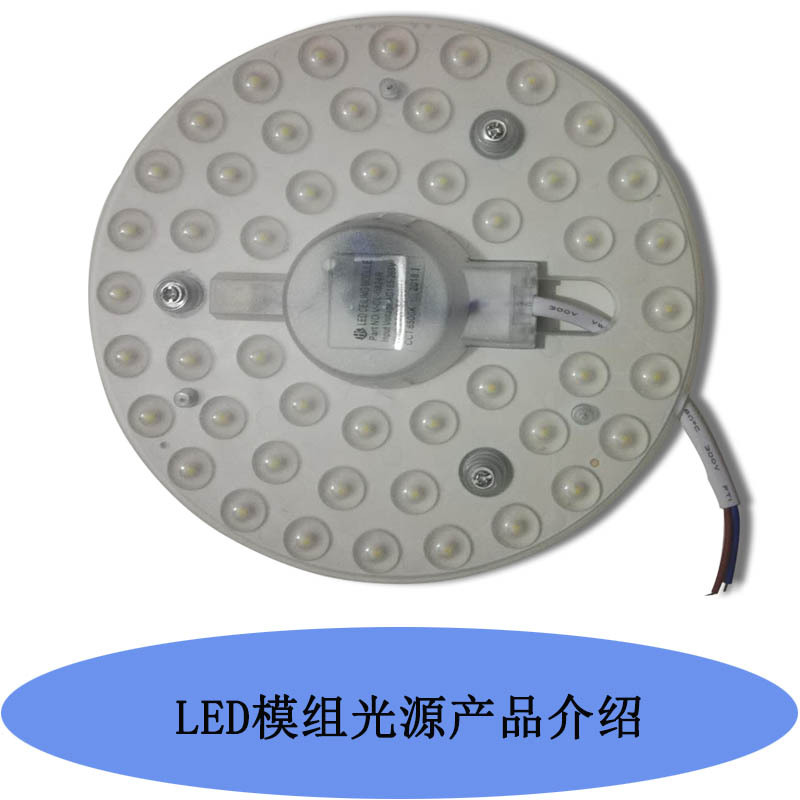

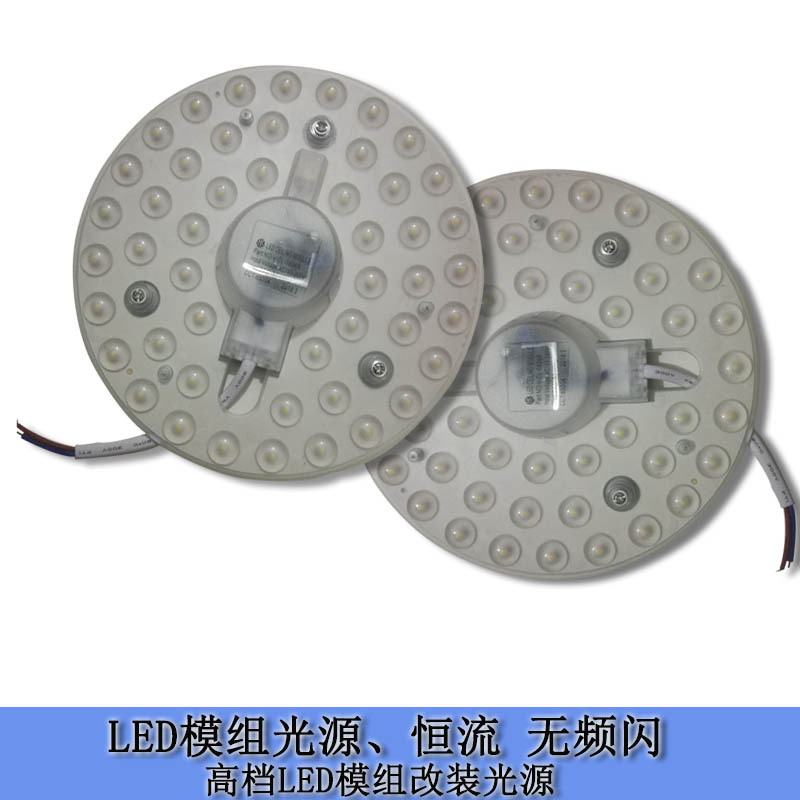

<product name> led module light source

<shell color> white

<luminous color temperature> 6500k

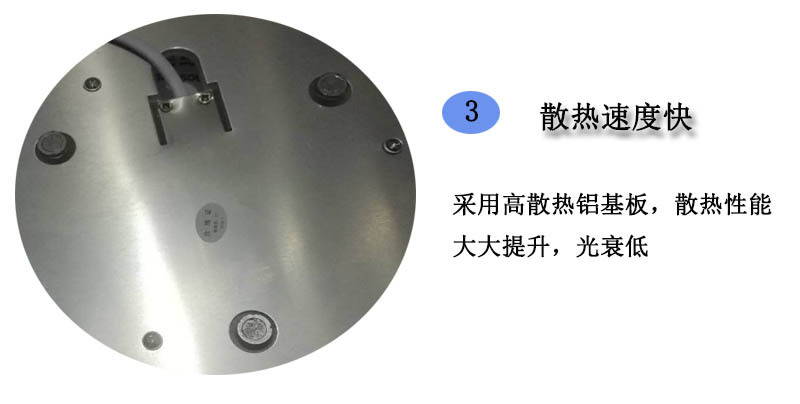

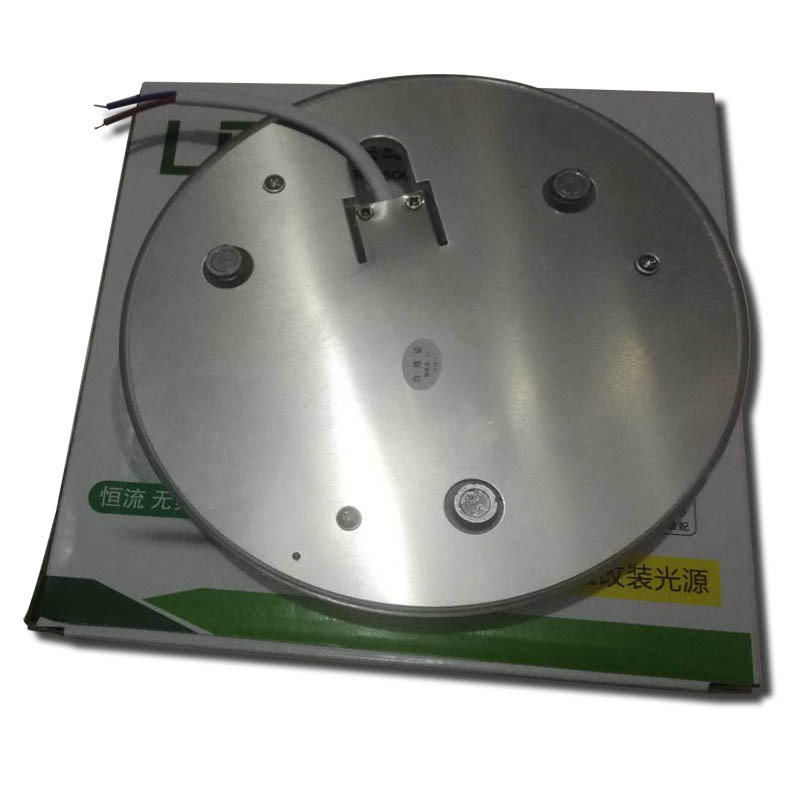

<shell material> aluminum + plastic

<power> 12w,18w,24w,36w,24w two-color, 36w two-color

<input voltage> ac185-265v

<scope of use> indoor lighting

<packaging> color box

installation instructions:

1. power off, remove the lampshade, remove the lamp tube, ballast, circlip, screws and other parts.

2. remove the original lamp tube, leaving only the lampshade and chassis.

3. rotate the led module outlet to the chassis inlet hole cover to absorb the led module in the middle of the chassis.

4. after checking that the lamps are installed correctly, install the lampshade and turn on the power supply.

note:

1. please pay attention to the rated voltage and current of the lamp to avoid damaging the lamp;

2. do not use combustibles or heat proof mat or similar materials;

3. when installing and replacing lamps, the power supply must be cut off to ensure personal safety;

4. it is forbidden to use it outdoors or in places caught in rainy days;

5. it cannot be used for electronic dimming circuit;
