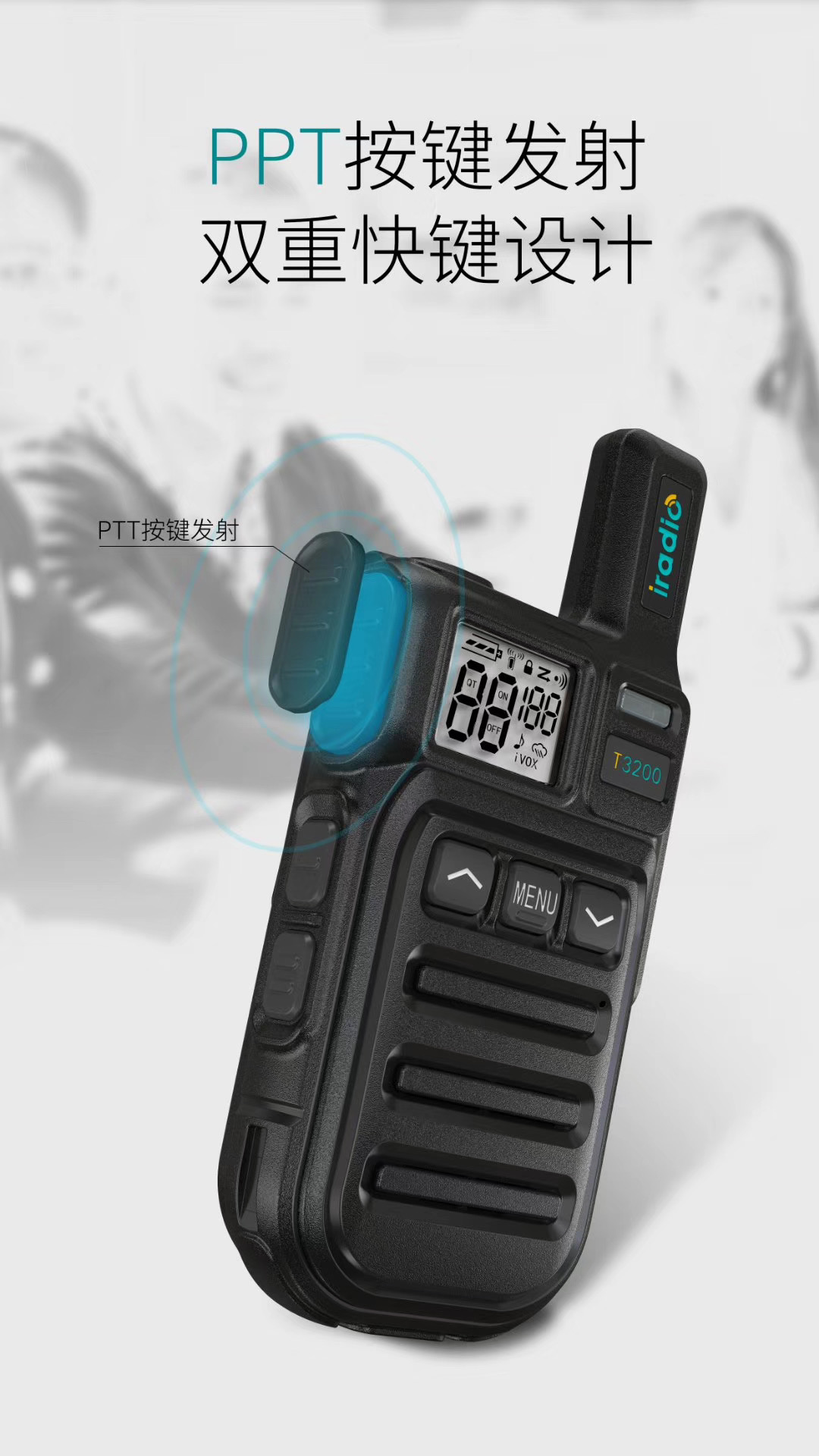

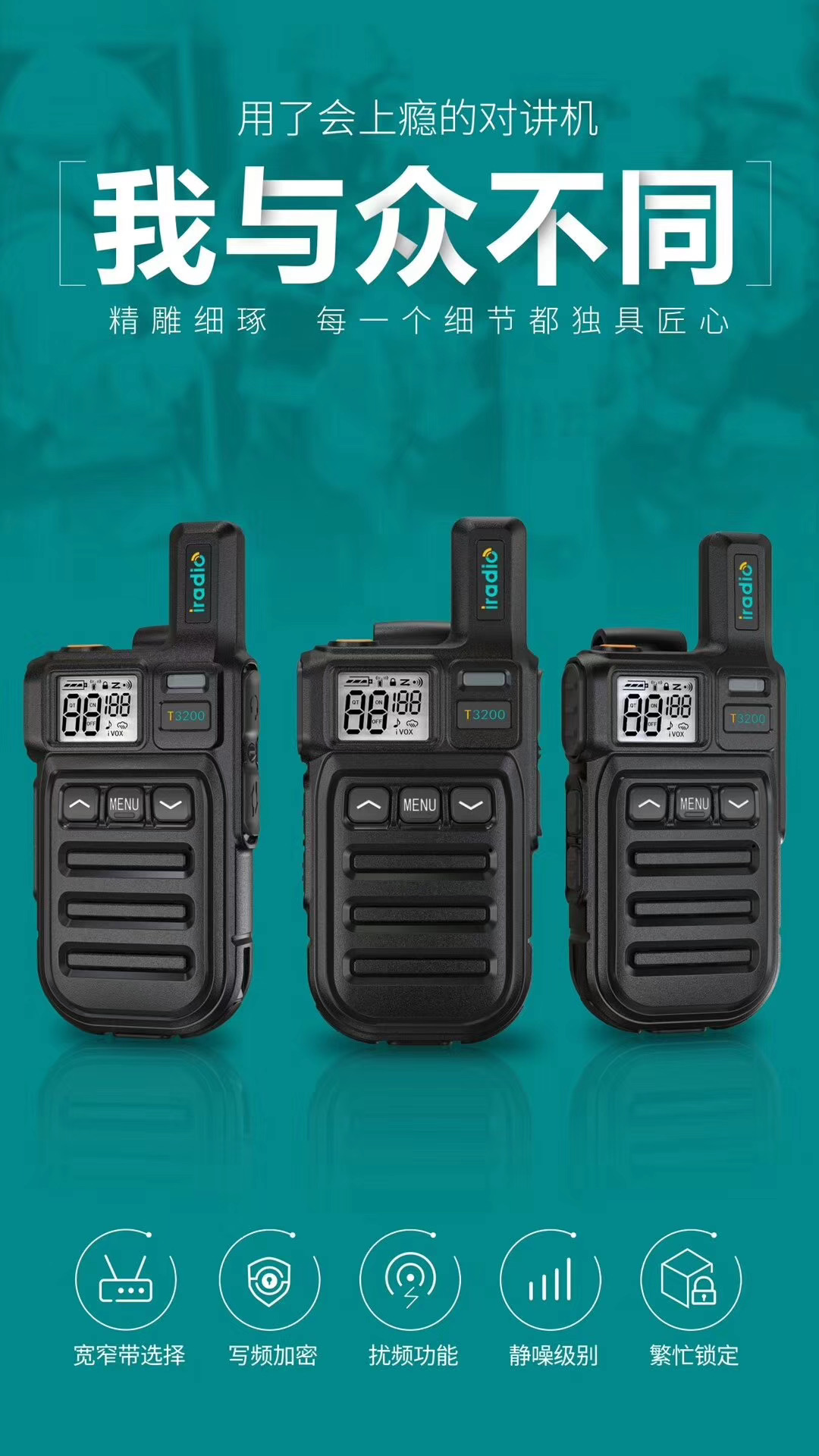

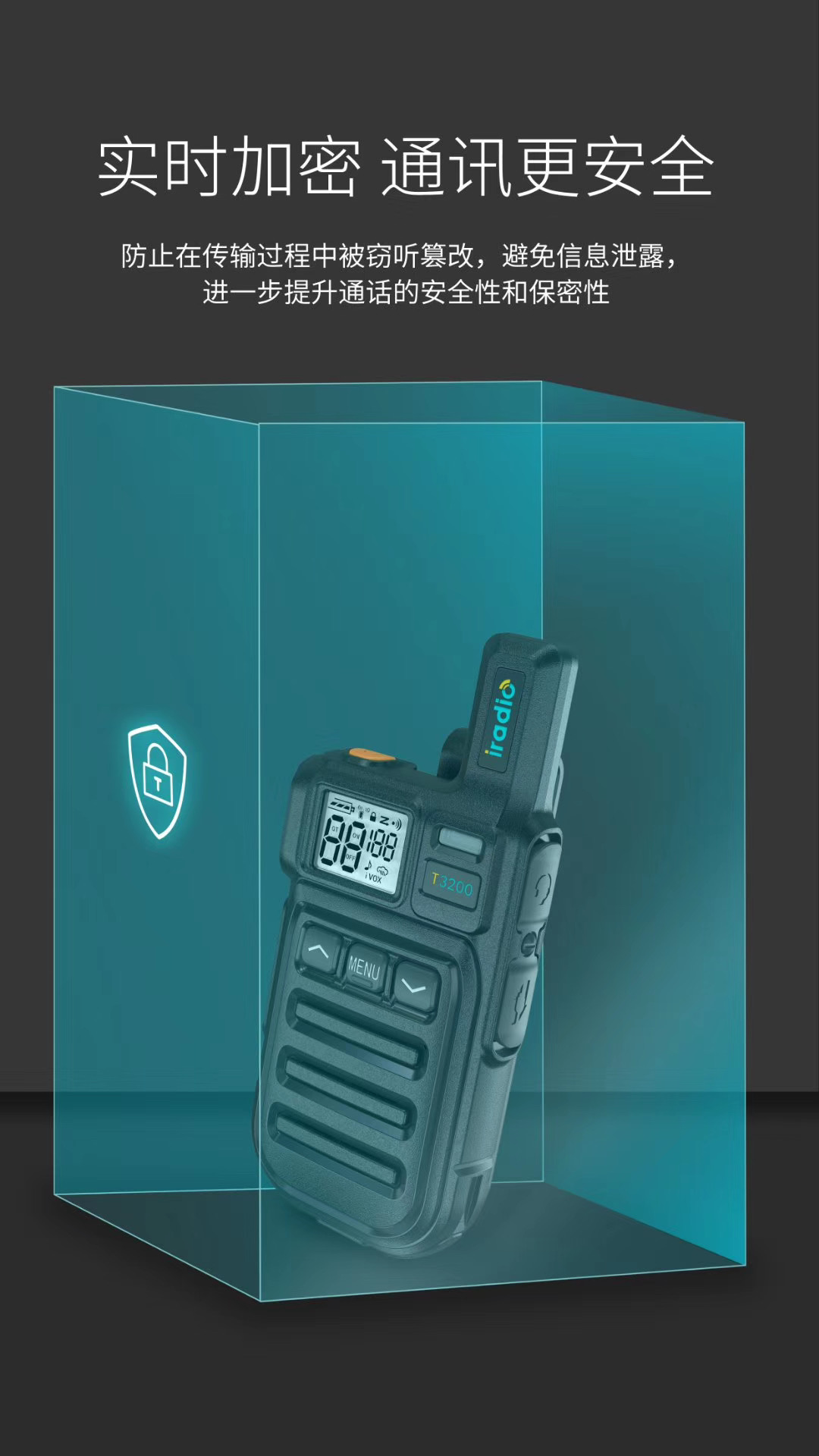

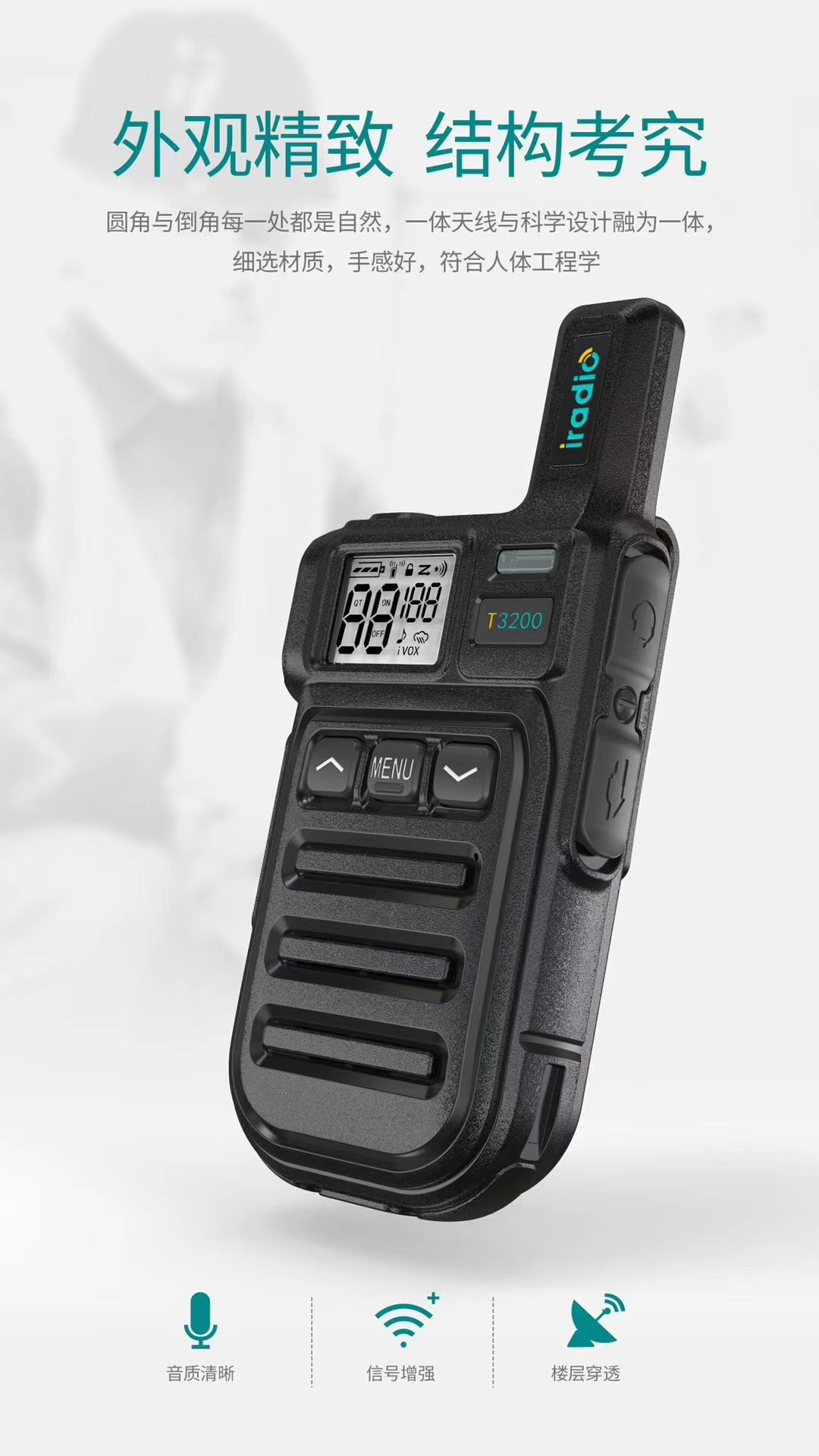

0.5W/2W MINI PMR446 FRS GMRS vibration license free radios
T-3200 is the best seller of vibration mini radio and cost-effective commercial two way radio. The radio features compact design, super lightweight, the swivel bely clip allows users to attach the radio by different orientation. The vibration feature can notice users when receive signal in case missing the conversation. It allows users to enjoy the best performance of crystal-clear audio, benefits of realtime conversation and cost-effective price.
Features
99 channel capacity
CTCSS/DCS
Power save
Squelch level
Hands free VOX
TOT
Roger
Call tone
Keypad lock
Scanning
Wide/narrow band switching
Non-standard DCS encode
Emergency alarm
Programmable side keys
Technical parameters
|
General |
|
|
Frequency |
UHF： 400-480MHz |
|
Channel capacity |
99 |
|
Channel spacing |
25kHz/12.5kHz |
|
Voltage |
3.7 V DC ±20% |
|
Working mode |
Same frequency simplex or different frequency simplex |
|
Antenna |
Integrated antenna |
|
Frequency stability |
±2.5ppm |
|
Temperature |
－20 ~ ＋60℃ |
|
Dimension |
119mm X 55mm X 23mm（doesn’t include belt clip） |
|
Weight |
93g（doesn’t include belt clip） |
|
Transmitter |
|
|
RF output power |
1.5W/0.5W |
|
Modulation mode |
F3E |
|
Maximum frequency deviation（W/N） |
≤5KHz /≤2.5KHz |
|
Adjacent channel power（W/N） |
70dB/ 60dB |
|
SNR ratio（W/N） |
-45dB/ -40dB |
|
Stray power |
≤7.5uW |
|
TX current |
1.0A |
|
Receiver |
|
|
RX sensitivity（W/N） |
0.22μV/ 0.25μV 12dB SINAD |
|
Adjacent channel selectivity（W/N） |
65dB/ 60dB |
|
Inter-modulation（W/N） |
65dB/ 60dB |
|
Audio distortion |
≤10％ |
|
Audio output power |
≤1W（8 Ω） |
|
RX current |
≤350mA |
|
Standby current |
≤60mA |
Note: The above parameters are subject to change without prior notice!
PMR446/ FRS Frequency list checking:
