solid diode450nm laser module

3.1 application scope:

for industrial laser, lawn lamp, stage lighting, instrumentation

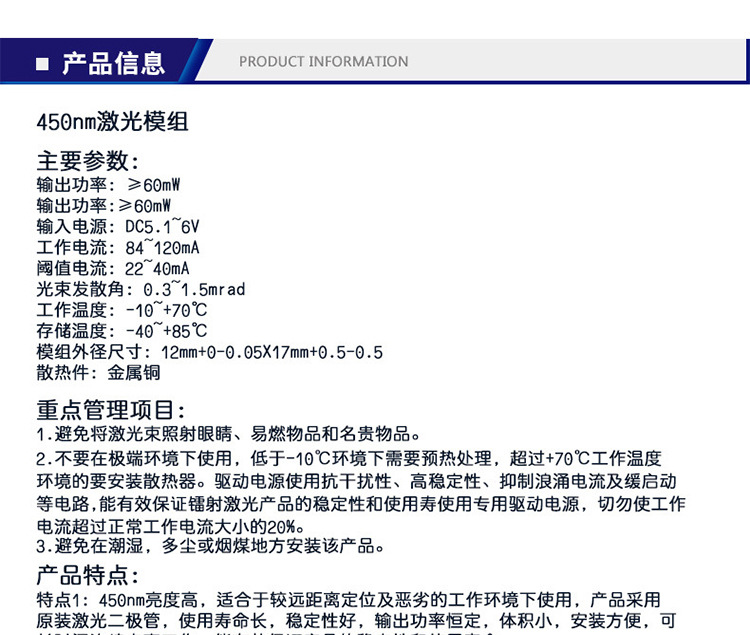

4 main parameters:

output power: ≥ 60mw

input power supply: dc5.1 ~ 6v

work current: 84 ~ 120ma

threshold current: 22 to 40ma

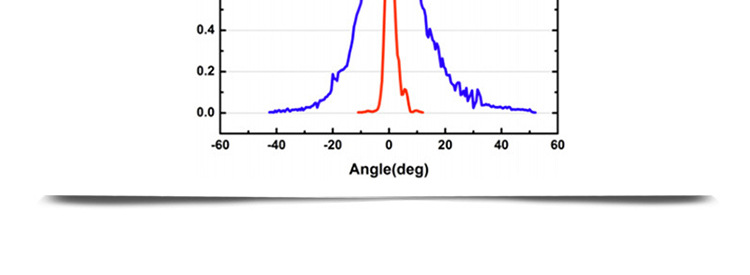

beam divergence angle: 0.3 ~ 1.5mrad

operating temperature: -10 ~ +70 ℃

storage temperature: -40 ~ + 85℃

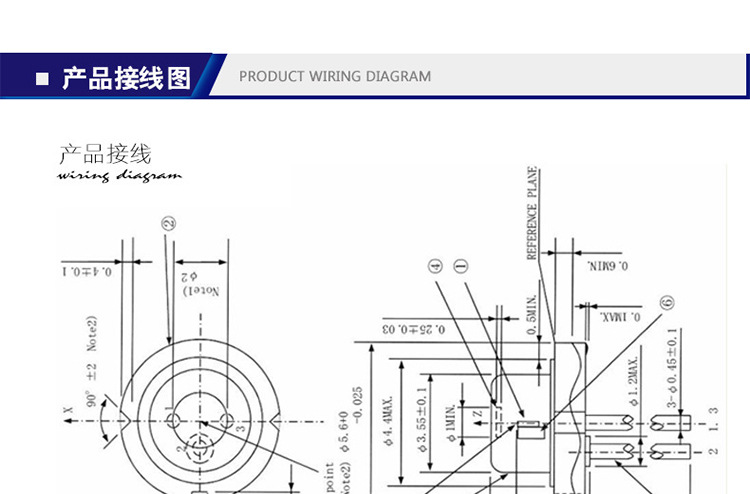

module outer diameter size: 12mm + 0-0.05x17mm +0.5-0.5

radiator: metal copper

4.1 key management projects:

avoid irradiating the laser beam to the eyes, flammable goods and precious goods.

do not use in extreme environments. pre-heat treatment is required in environments below-10℃, and radiator should be installed in environments beyond working + 70℃.

the driving power supply uses circuits such as anti-interference, high stability, suppression of surge current and soft start, which can effectively ensure the stability and service life of laser products.

use a dedicated drive power supply. do not make the work current exceed 20% of the normal work current size.

avoid installing this product in damp, dusty or bituminous coal places.

4.2 product features:

feature 1:450nm high brightness, suitable for long-distance positioning and harsh working environment. the product adopts original japanese laser diode, long service life, good stability, constant output power, small volume, easy installation, continuous lighting for a long time, can effectively ensure the stability and service life of the product.

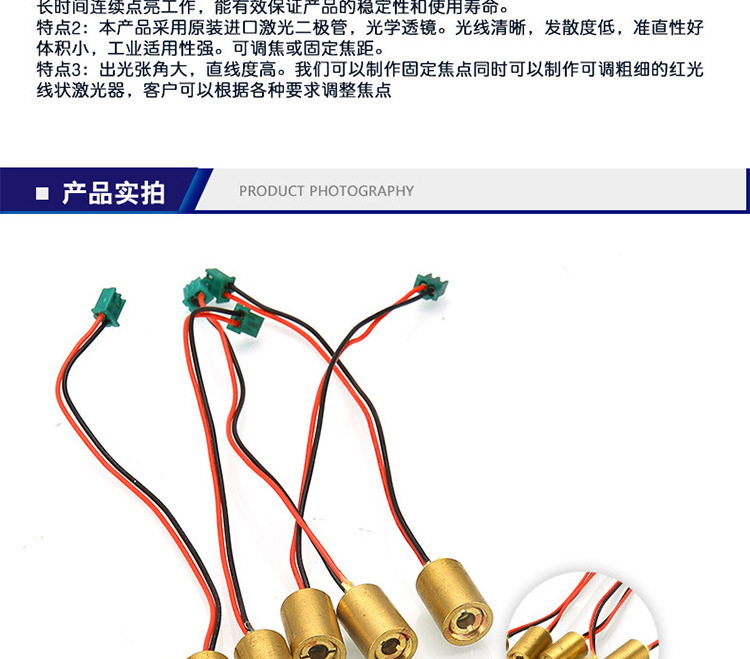

feature 2: this product adopts original imported laser diode, optical lens. clear light, low divergence, good collimability, small size and strong industrial applicability. adjustable focus or fixed focal length.

feature 3: the light opening angle is large and the linear degree is high. we can make fixed focus and blue ray linear laser with adjustable thickness at the same time. customers can adjust the focus according to various requirements.
