Packing data:67*43*35cm/50pcs

Usage Method

Press the remote control to enter the anti-theft state, and when someone enters the anti-theft range, an alarm sound of about 120 decibels will be emitted. Press the remote control again to deactivate the alarm, and it can also be used at night.

Before going to bed at night, use the remote control to spread it out, and you can sleep peacefully at night. You can withdraw it the next morning after getting up with the remote control.

Product Features

1. Body temperature detection.

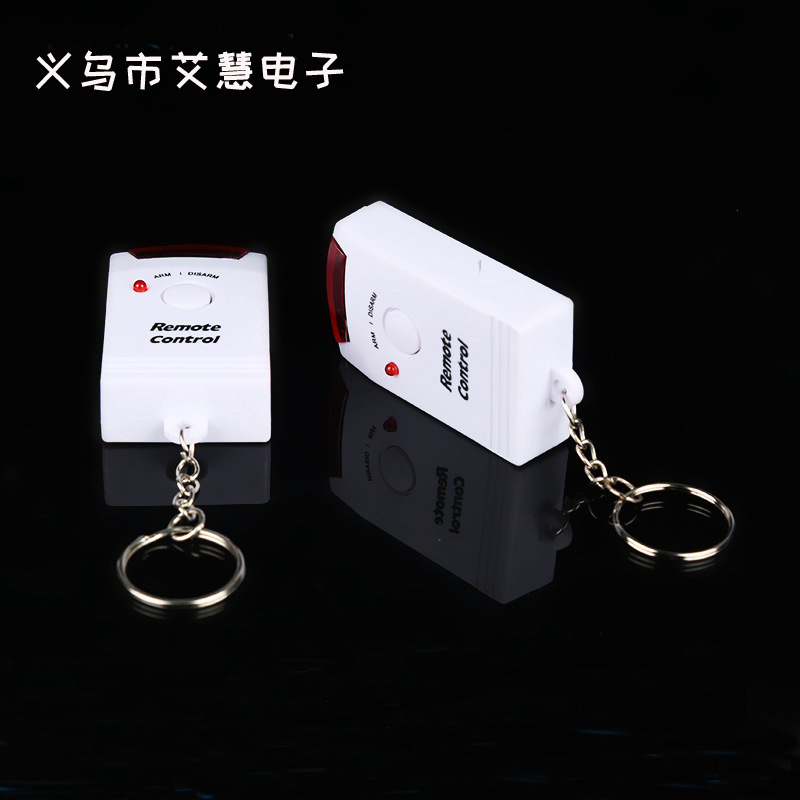

2. The infrared receiver uses an infrared connector with a metal shell shield to reduce misoperations. It is recommended to be equipped with two remote controls, which have the same principle as the television remote control.

3. Loud Alarm (120-decibel alarm)

4. Using a microcomputer dedicated module consumes less power.

Technical parameters

Alarm Level: 120 dB

Remote control distance: 5-12 meters (open area)

Detection Range: 110 degrees

Detection range: 5-10 meters

Working voltage: DC6V (4 AA batteries required, please provide yourself) or with an adapter.

Installation Guide

1. The probe should avoid directly facing the door and window to avoid false alarms.

2. Adjust the detector's tilt angle to extend its detection range.

3. The probe's lens should be kept clean and there should be no obstructive objects.

4. The probe should be kept away from heat and cold sources, such as air conditioner outlets, heaters, air conditioning units, etc.

5. The system enters a guard state within 10 seconds after power-on, and if an intrusion is detected, it will alert within 30 to 50 seconds.

6. Open the battery cover and insert the 4 AA batteries according to the markings on the inside of the battery compartment.

7. When installing and using the device, avoid direct sunlight and car headlights, as the movement of curtains may cause false alarms.

8. Install it at the corner of the wall or on the wall surface, and it is recommended to install at a height of 2 meters from the ground. Adjust the down-looking angle to prevent false alarms caused by small animals.

9. Fix the remote infrared alarm device on the universal base, rotate the infrared alarm device to meet the installation requirements and detection needs.

Notes

When the remote control distance shortens, please replace the battery.

● When installing batteries in the detector, it is necessary to regularly check whether the battery leaks.

● Suggest you regularly check the infrared alarm system to ensure it is functioning normally to avoid false alarms.

● Detectors should be waterproof, windproof, and protected from direct sunlight exposure. They should be kept away from indoor sources of heat, such as air conditioners and fireplaces, to prevent false alarms.

● When the power-on indicator light is dim, the alarm sound becomes softer, and the infrared alarm device has a high false alarm rate, it is generally due to insufficient battery voltage. In this case, it is necessary to replace the battery in time.
