1. Function Overview:

1. LCD display

2. Dimensions: 48*28*15mm (Measurement may have a slight error)

3. LCD Size: 35.7*16.8mm (Measurement has a small error)

Weight: 25g (excluding battery)

Humidity Display

6. Humidity measurement range: 20% to 90%

7. Humidity display resolution: 1%

8. Humidity sampling cycle: 10 seconds (1 minute)

9. Humidity measurement accuracy ±5%

10. Rated voltage: DC 1.5V (2 x AG13 button cells)

Temperature measurement range: -50 to 70 degrees Celsius

12. Temperature measurement accuracy ±1 degree (under normal temperature)

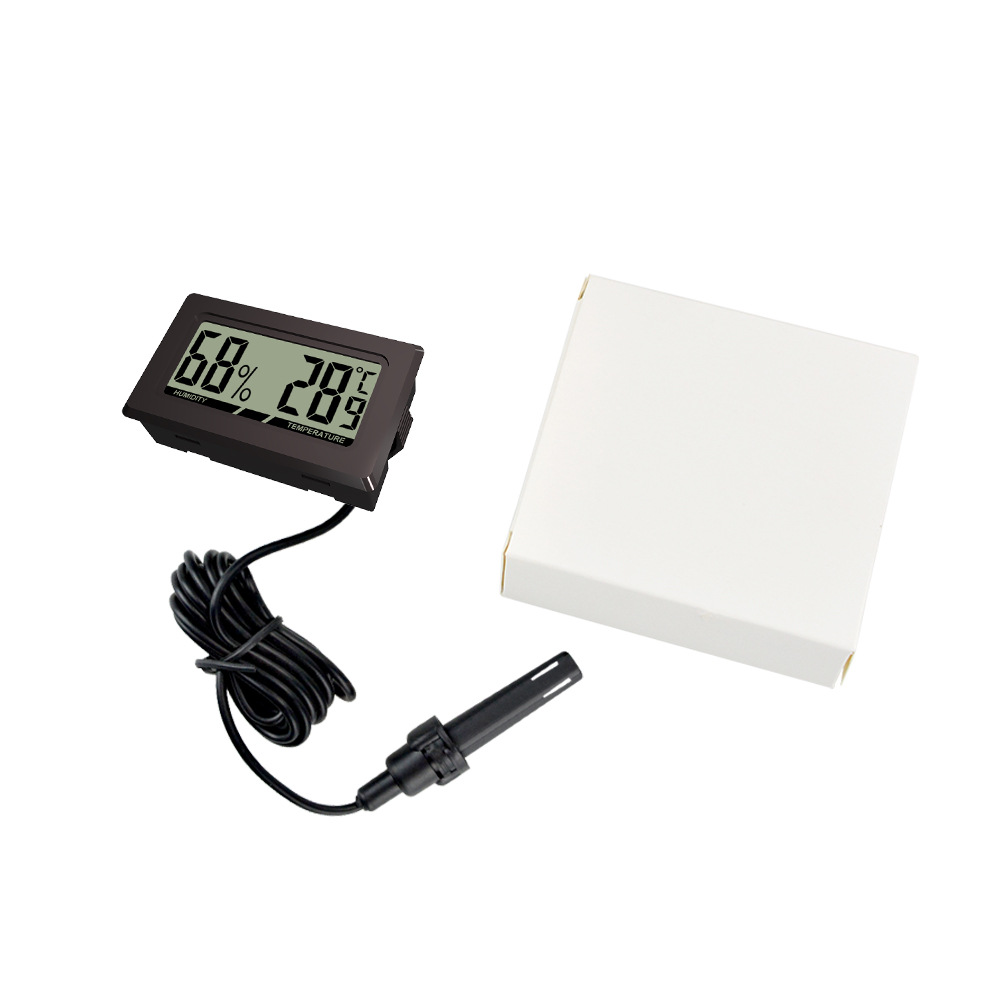

13. Product Packaging: White Box

14. Packing data: 30*58*23cm/250pcs

Gross Weight: 10.25kgs

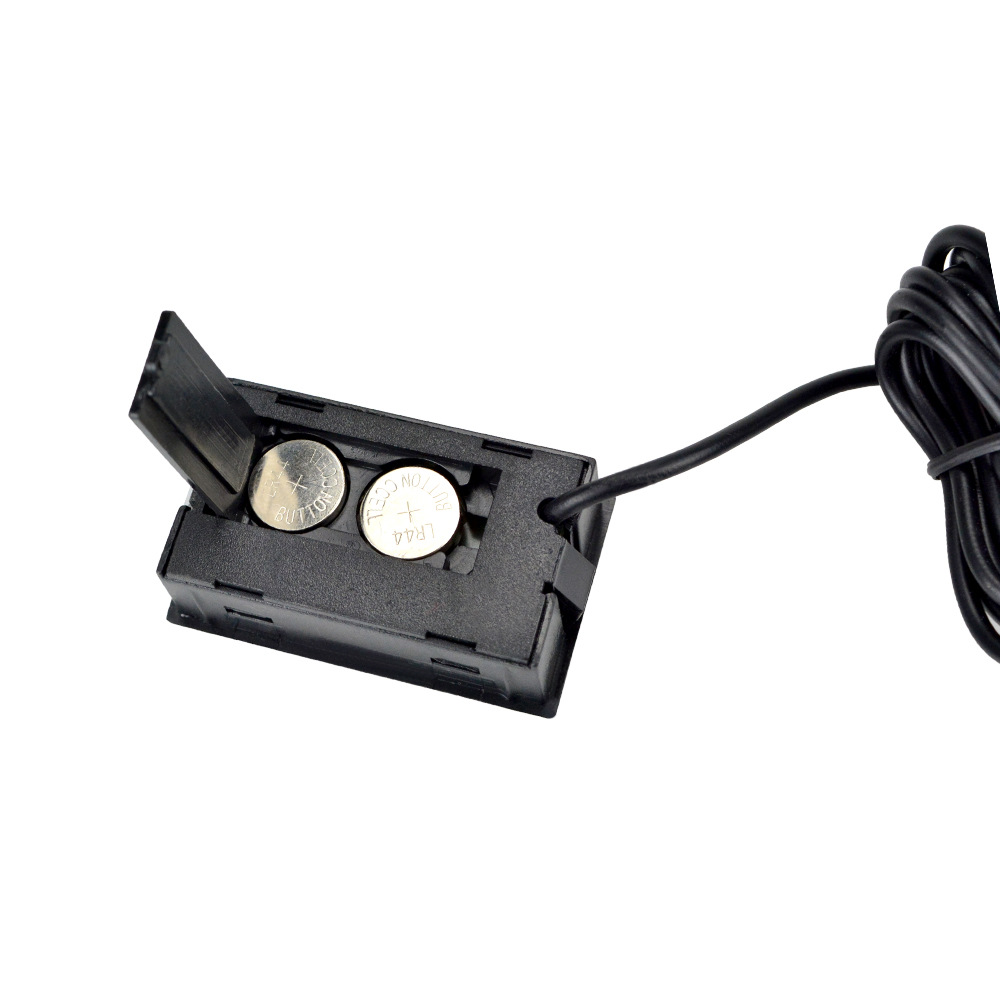

Section 2: Installing the Battery

Turn to the back of this product;

Push the battery cover open in the direction indicated by the arrow.

Insert two LR44 button batteries into the battery slot.

Section 3: Installation and Operation

1. Embedded installation
