Attention: For the need of graffiti Zigbee system, please contact customer service to place an order.

Packing Specification: 1 set 5kg; 470*130*270MM; 5 sets/case; 680*490*290MM 28kg including lock body

Product Parameters:

Locking Method: Face Recognition + Palmar Vein Recognition + Fingerprint Recognition + Card Recognition + Password + (Combination Mode Locking) WeChat Mini Program Dynamic Password + Key

Static current:

Working current: less than 300mA (high driving capability)

Number of door faces: ＜＝100

Number of veins in the palm: ＜＝100

Fingerprint number for opening the door: ＜＝100

Number of door codes: ＜＝5

Card quantity: ＜＝20

Camera: Infrared + Color Camera

Display: 3.5-inch TFT touch-screen LCD

Start time:

False recognition rate:

Rejection rate:

识别速度：0.5秒

Low Voltage Alarm:

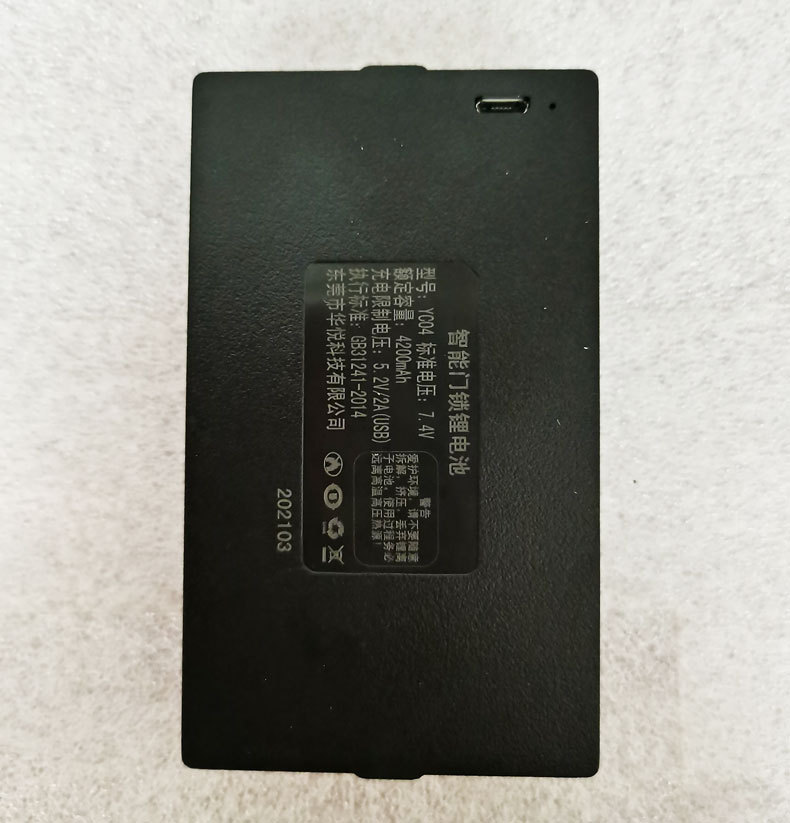

Supply Voltage: 8.4V Lithium Battery

Emergency Power Supply: 5V/2A (Portable Battery Available)

Work environment: Identification distance: 30-80CM

 Humidity:

 Temperature: -10 to 60°C

Suitable door thickness: 45-90MM

Unlock method: Face + palm vein + fingerprint + card + password + (combination mode unlock) WeChat Mini Program dynamic password + key

Static current:<50 microampere

Operating current:

Number of open faces : 100

Number of palmar veins opened: ↑ = 100

Number of door fingerprints : $ = 100

Number of opening passwords: **= 5

NNumber of opening cards: **= 20

Camera: infrared + color camera

Display screen: 3.5-inch TFT touch LCD screen

Sstartup Time:<1 second

False awareness rate:

Rejection rate:

Recognition speed: 0.5 seconds

Low voltage alarm:<6.8V

Power supply voltage: 8.4v lithium battery power supply

Emergency power supply: 5V/2A (available for charging Treasure)

Working environment: identification distance: 30-80cm

Humidity:

Temperature: -10 to 60°C

Applicable door thickness: 45-90mm

------------------------------------------------------------------------------------------------------------------------

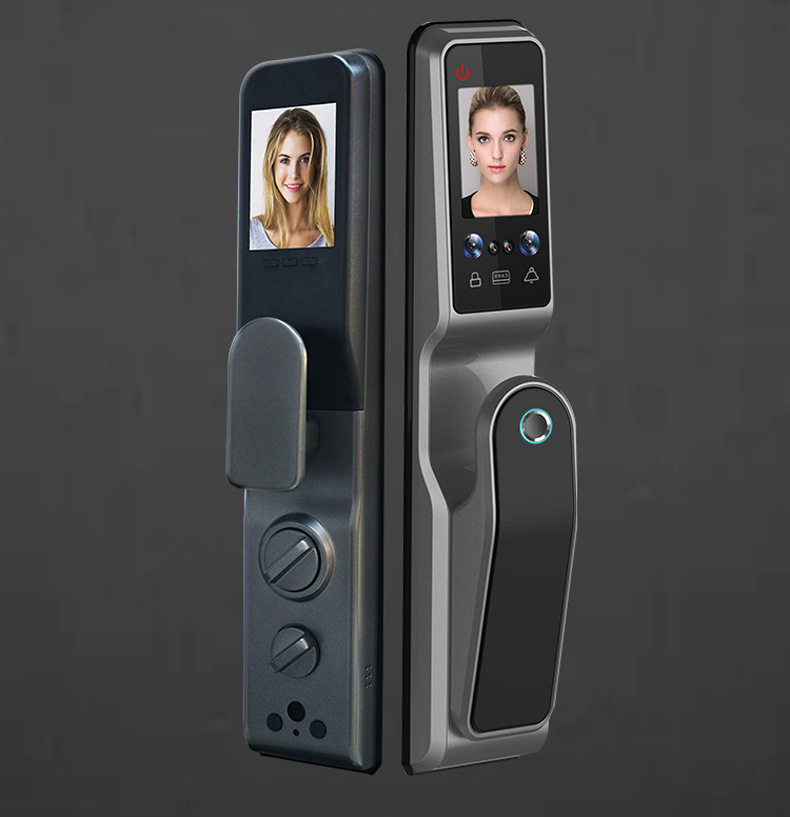

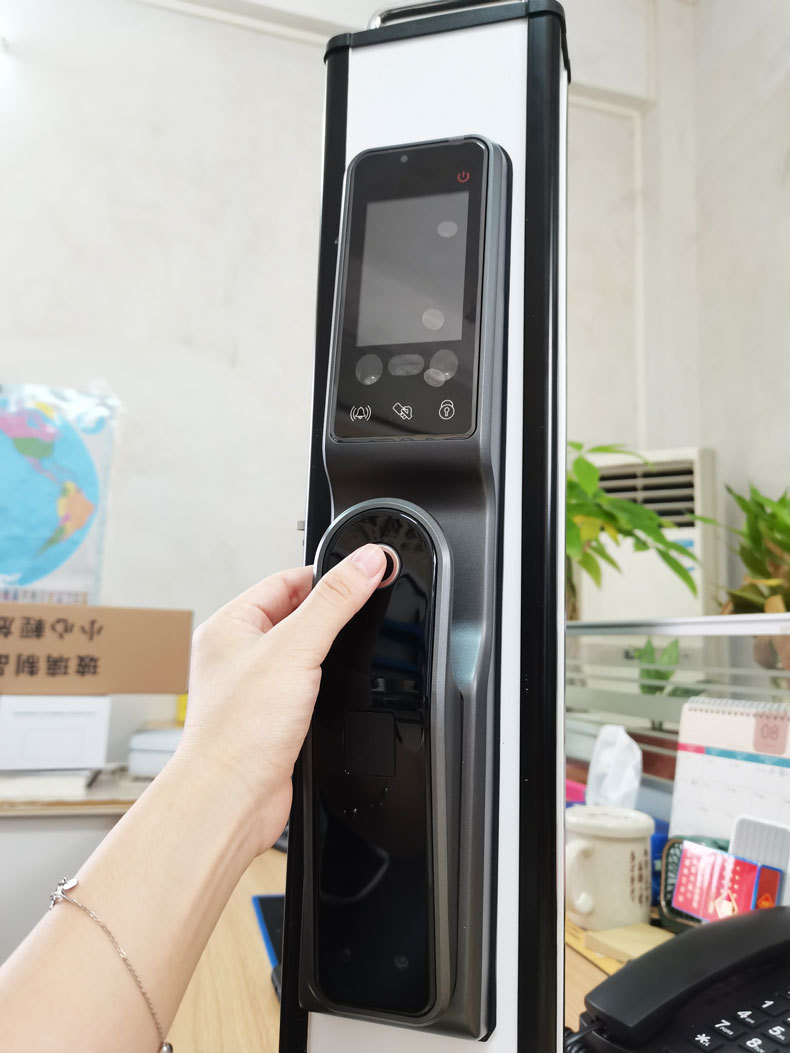

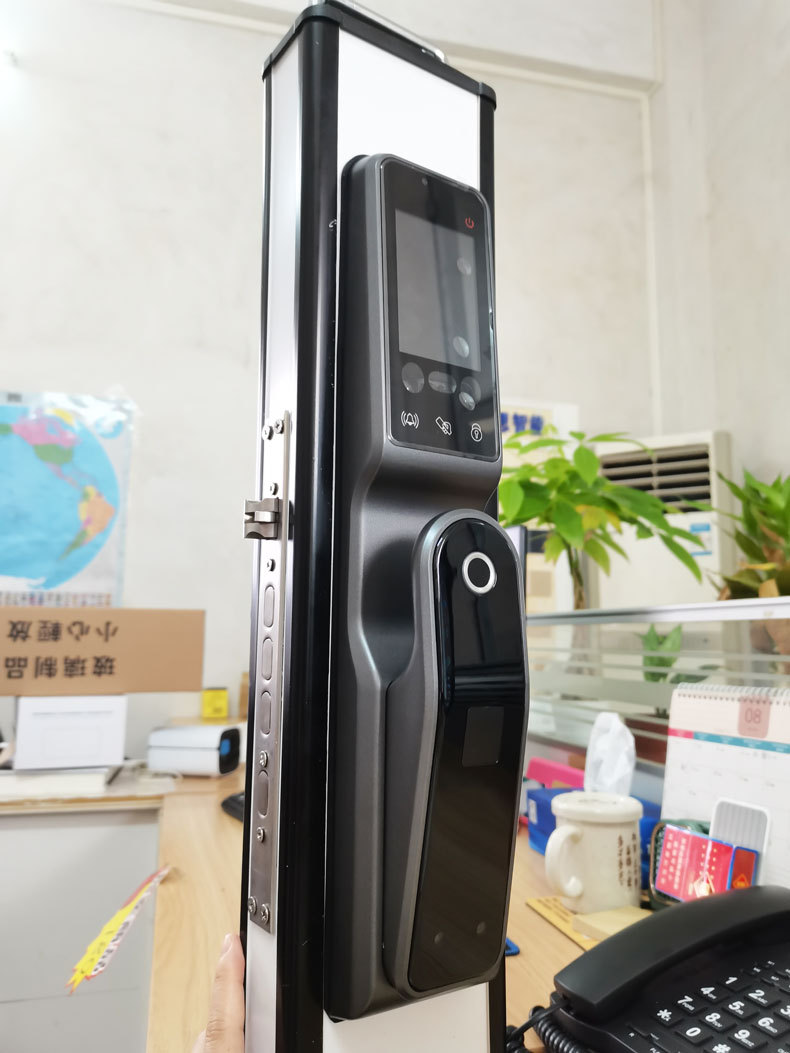

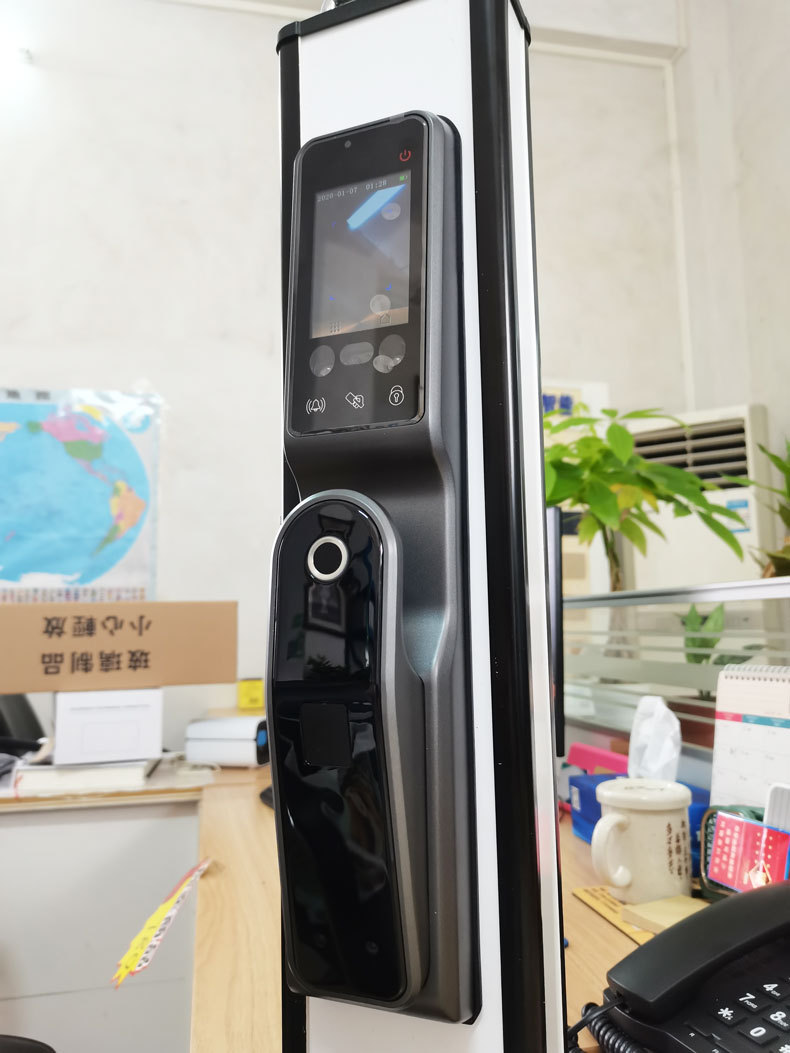

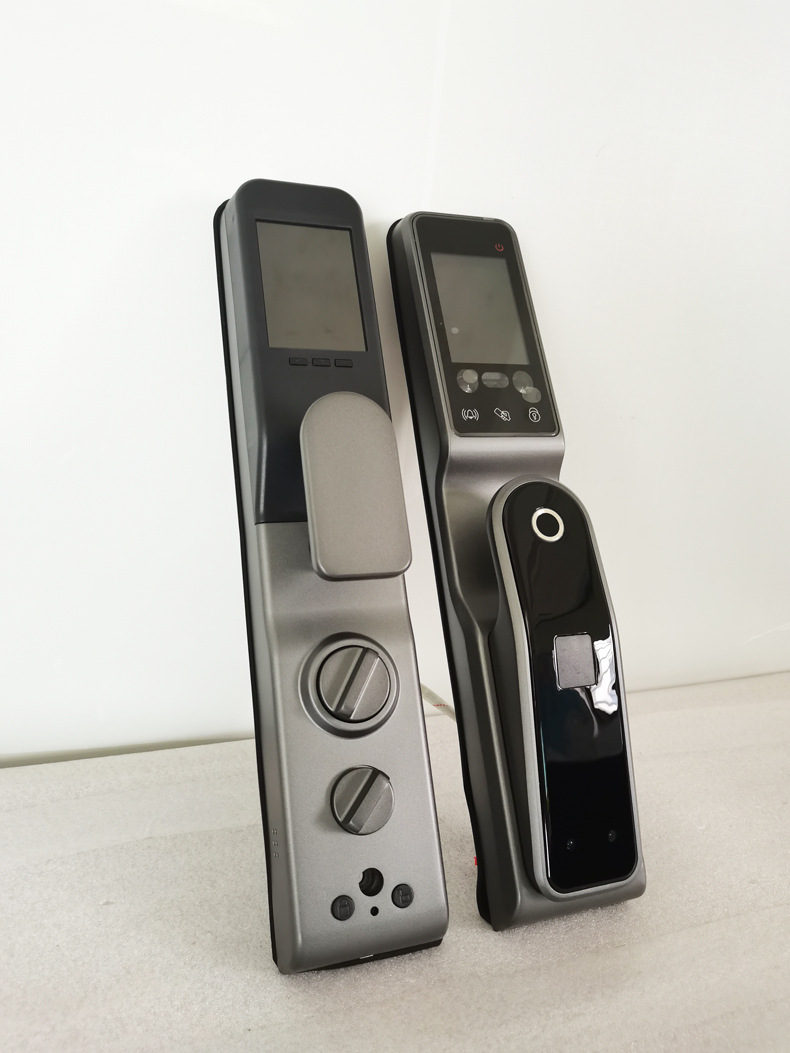

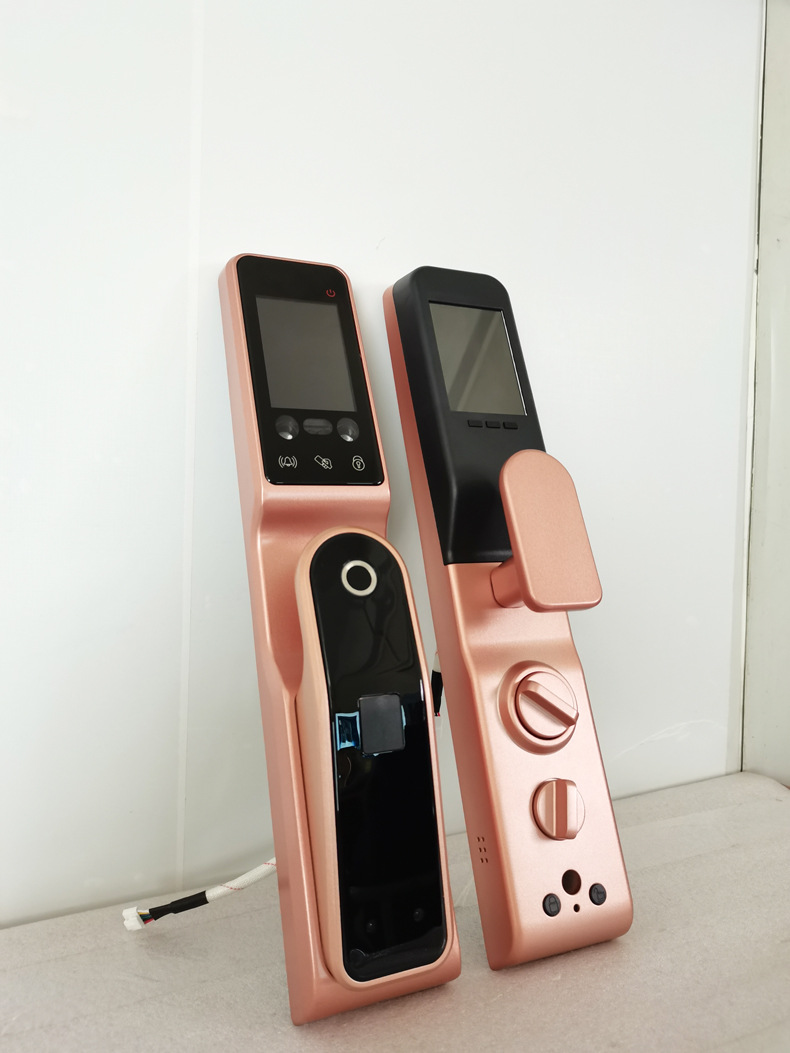

EF20 Model --- Real-Photo

Introduction:

Function: Infrared human body induction + cat's eye + face recognition + palm print + fingerprint + password + card + key.

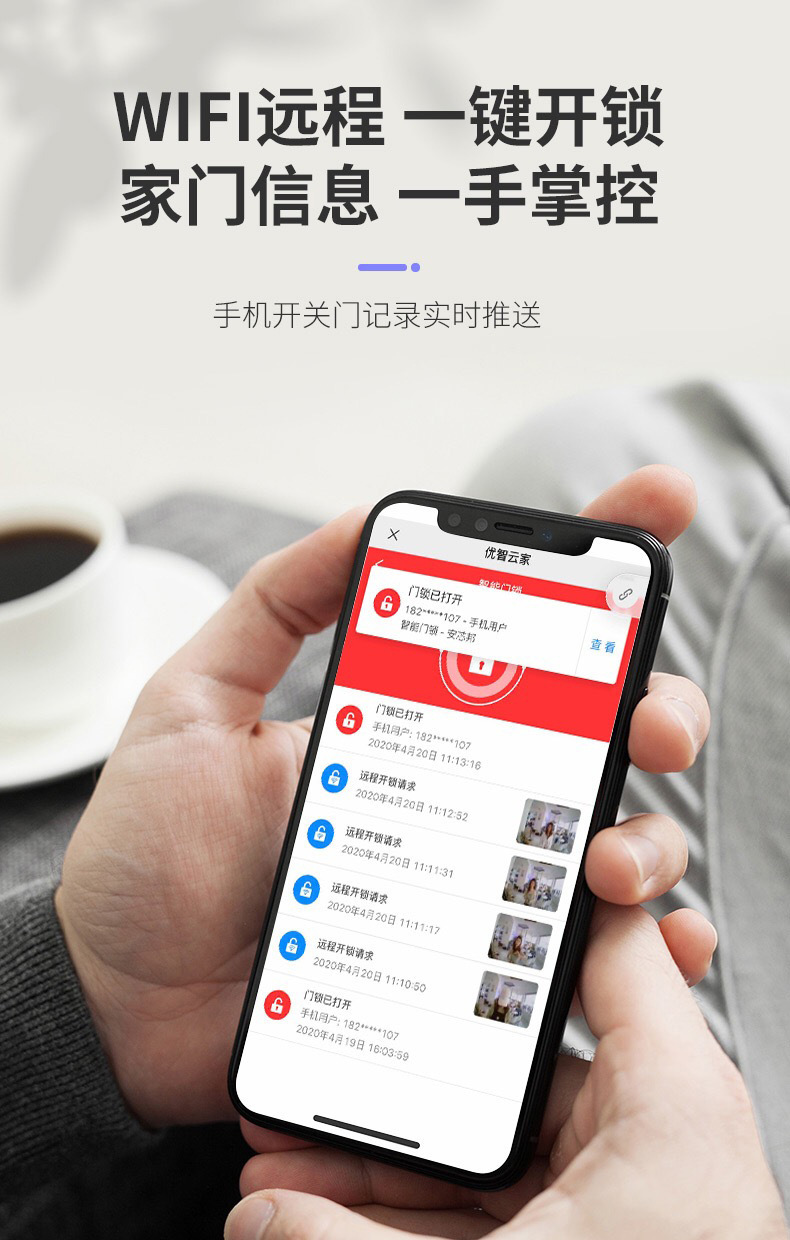

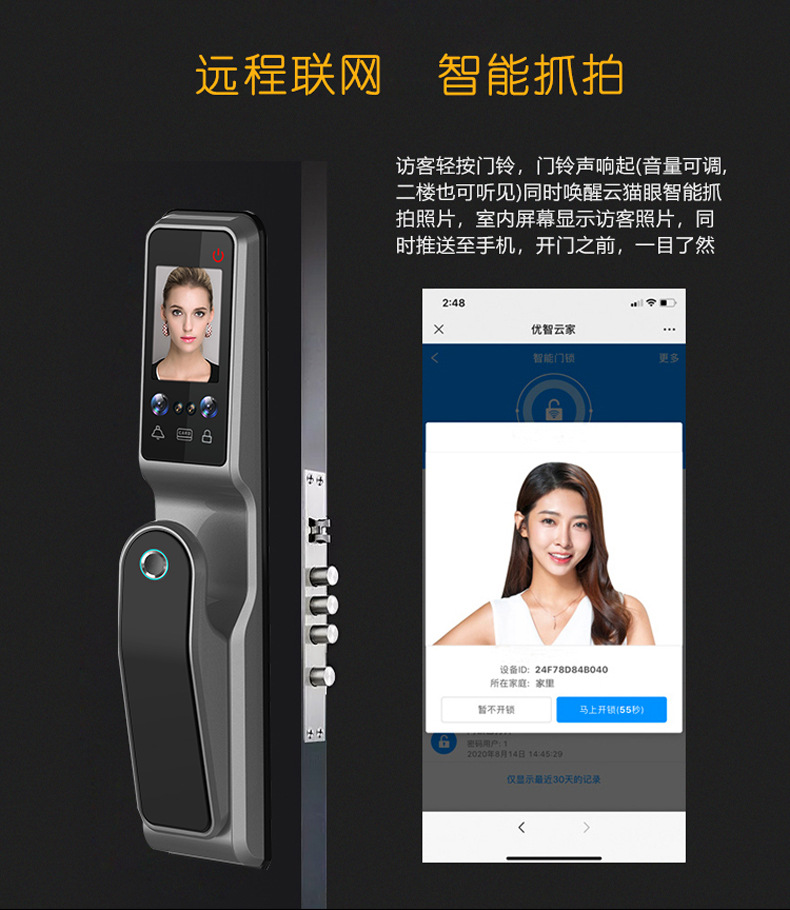

Features: Two large screens, abbreviated: Dual Screen Edition. The graffiti WIFI system can capture images and upload them to the phone.

Connected version options: Graffiti WiFi, Graffiti Zigbee, Youzhi Cloud Home APP

-----------------------------------------------------------------------------------------------------------------------------------------

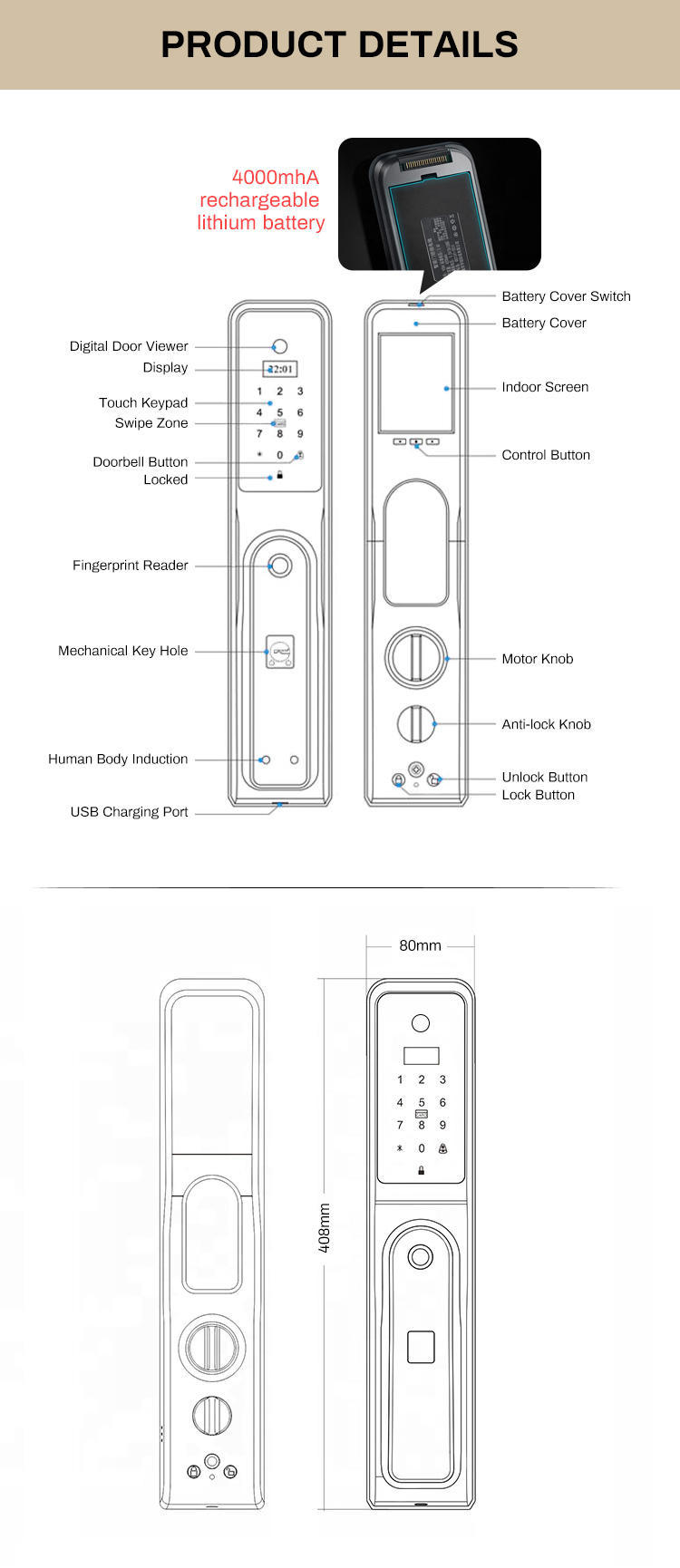

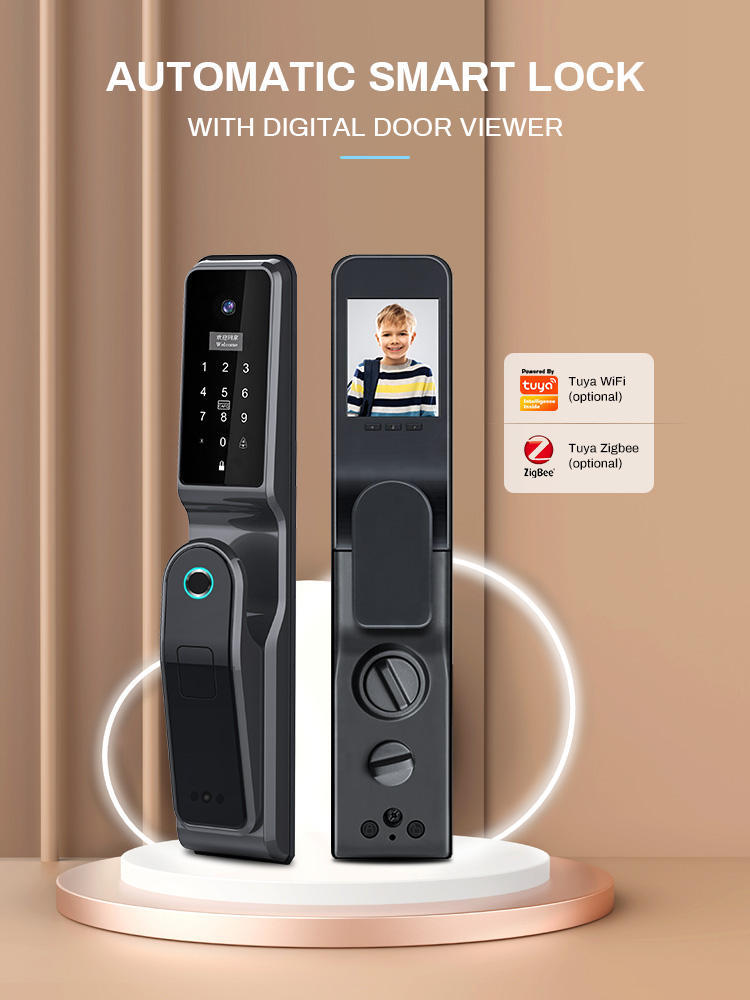

EF20-P Model Introduction:

Function: Cat's Eye + Fingerprint + Password + Card + Key.

Connected version options: Graffiti WiFi, Graffiti Zigbee, Youzhi Cloud Home APP

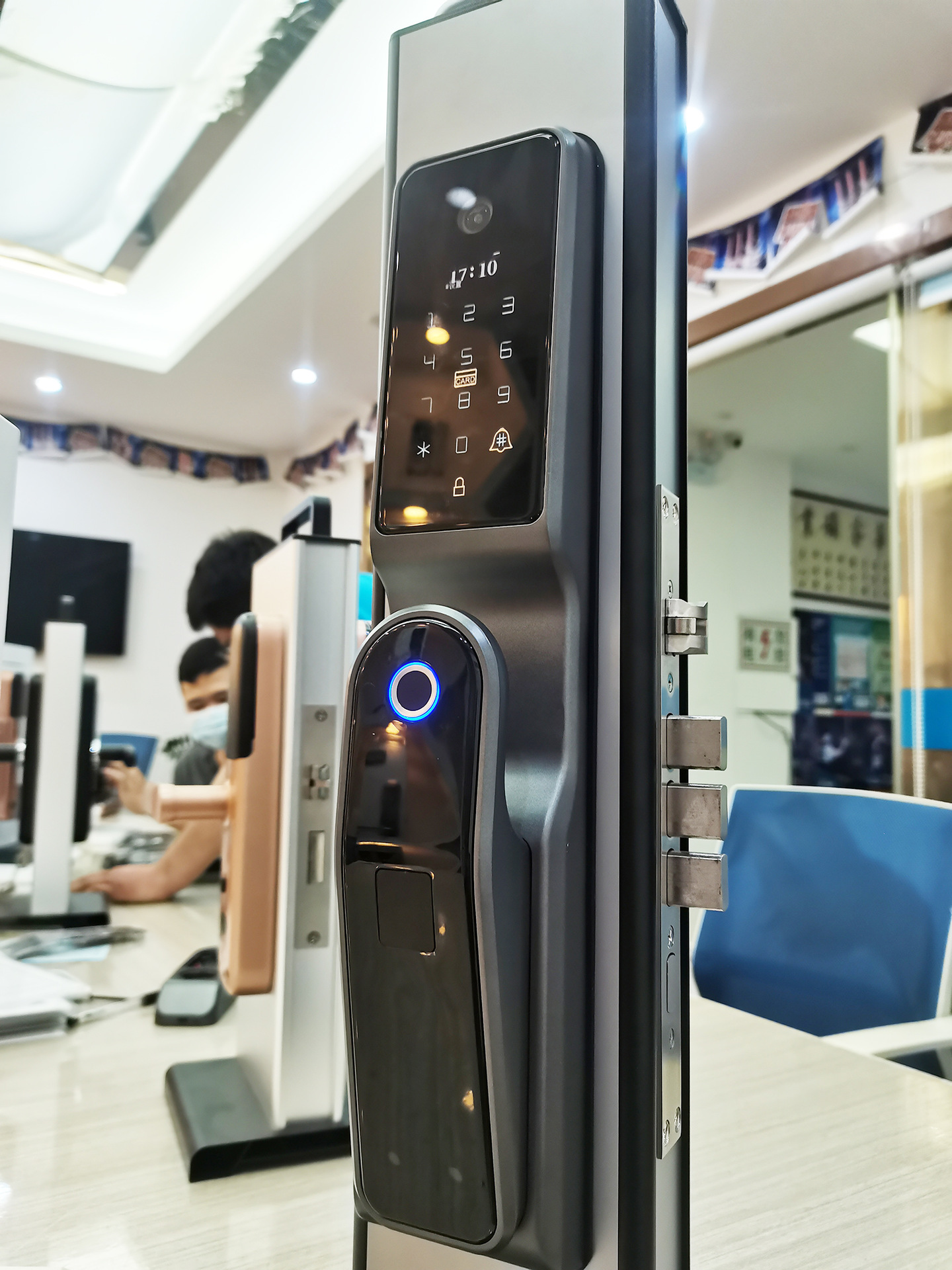

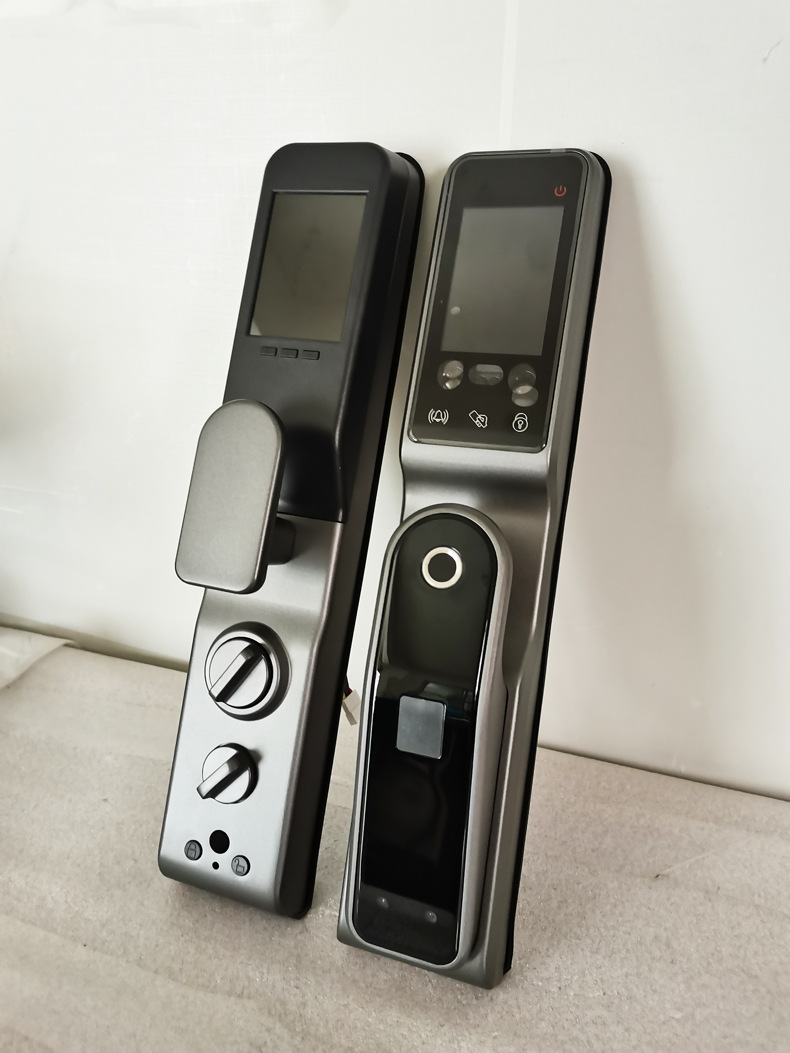

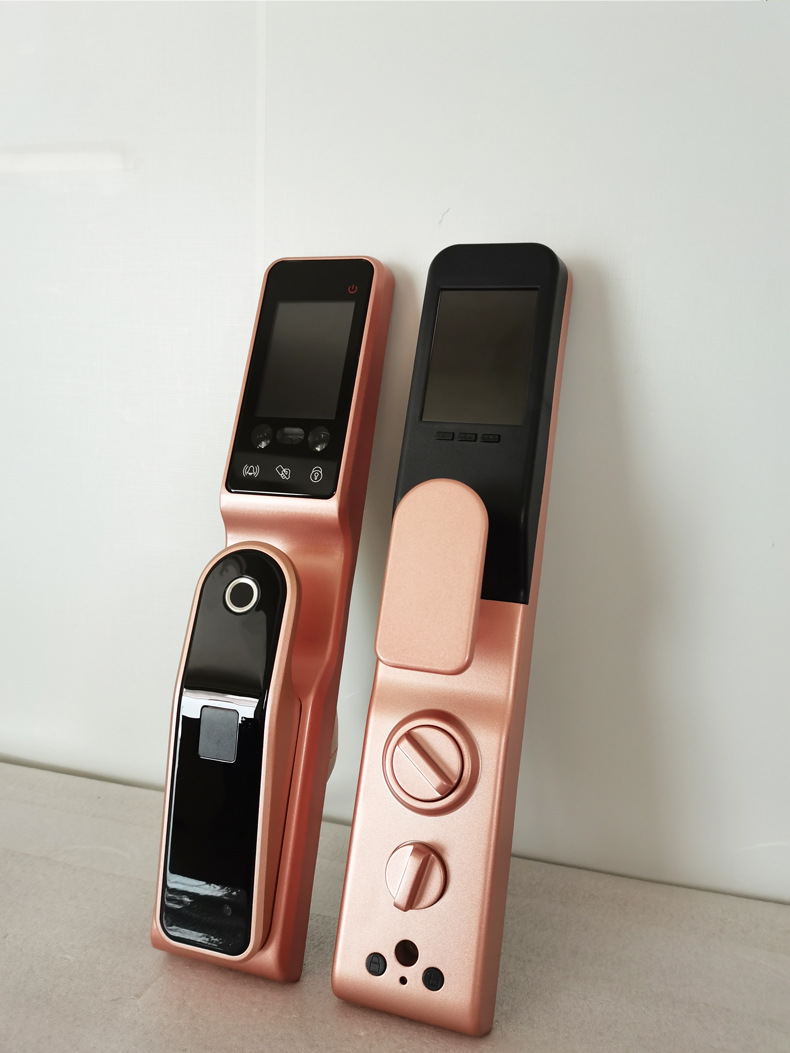

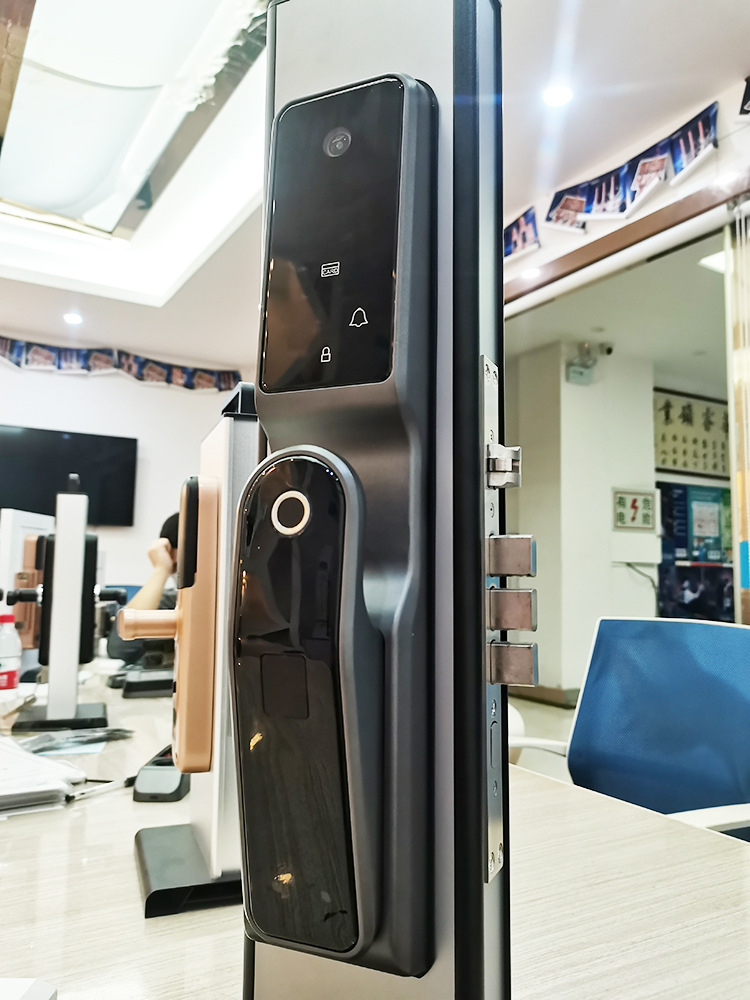

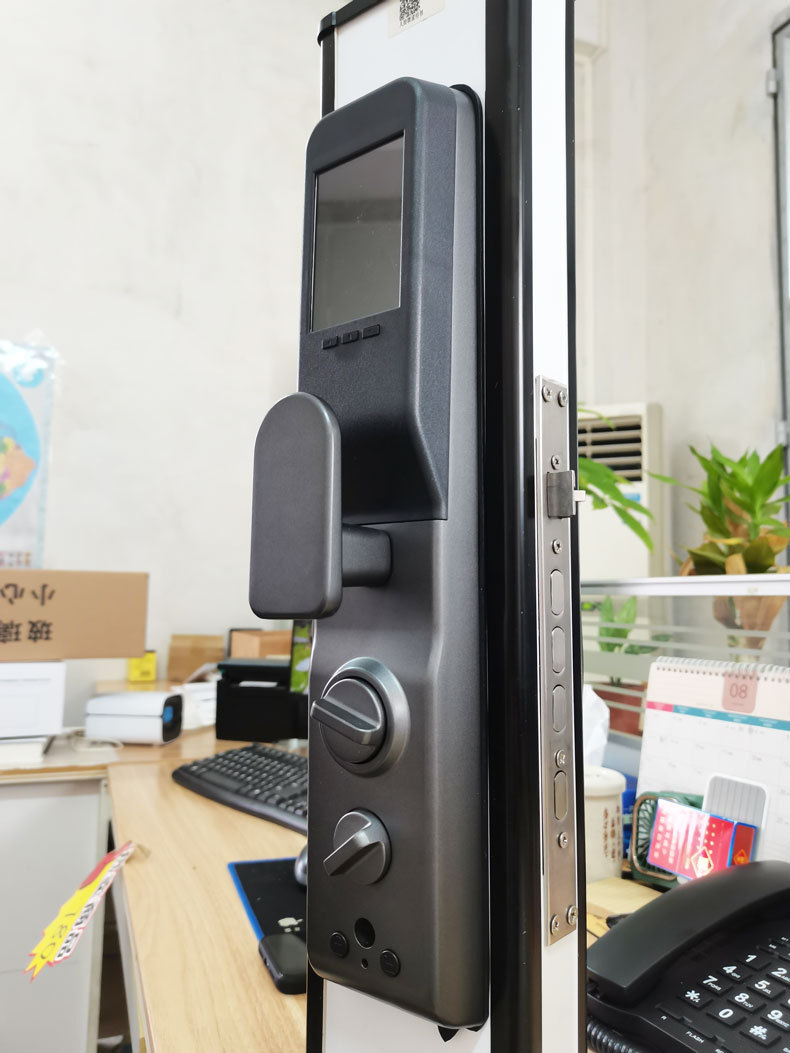

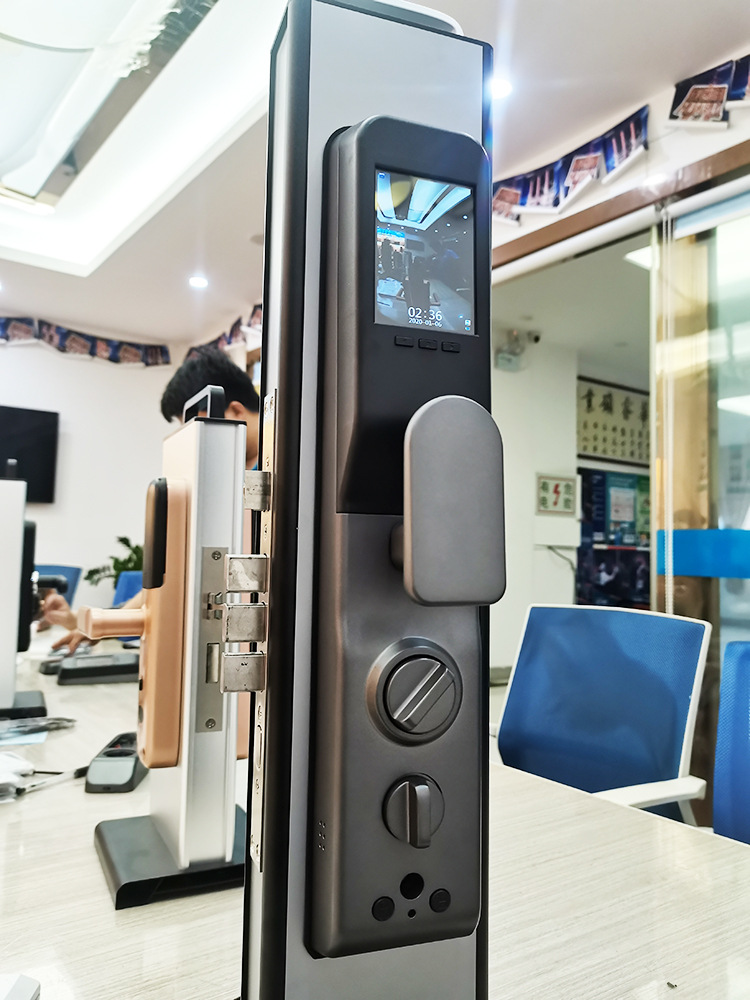

EF20-P Model --- Real-photo

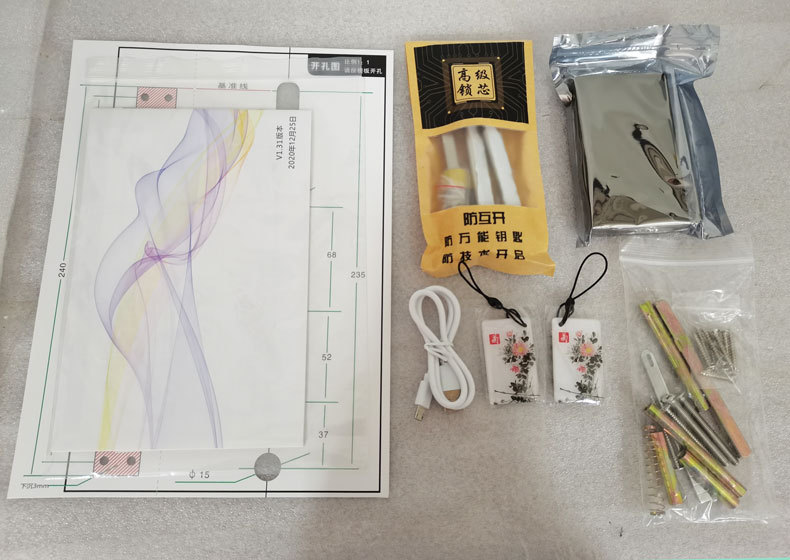

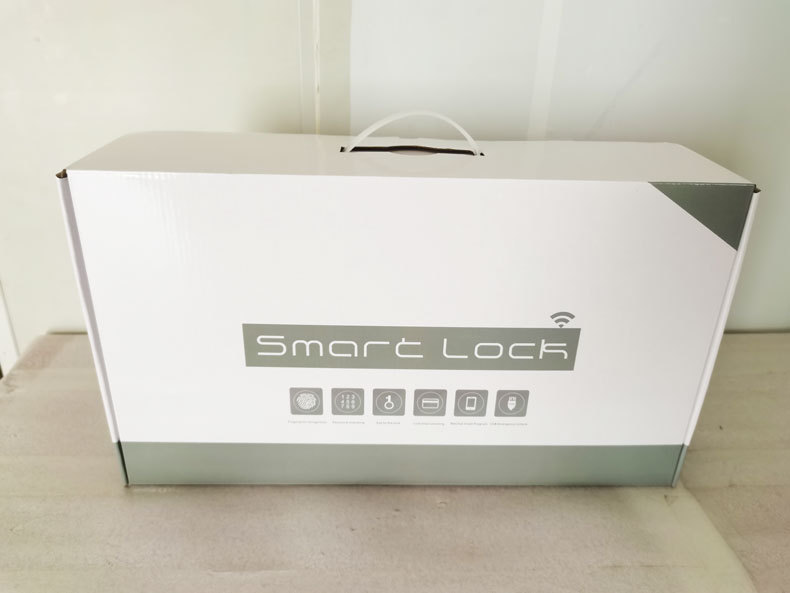

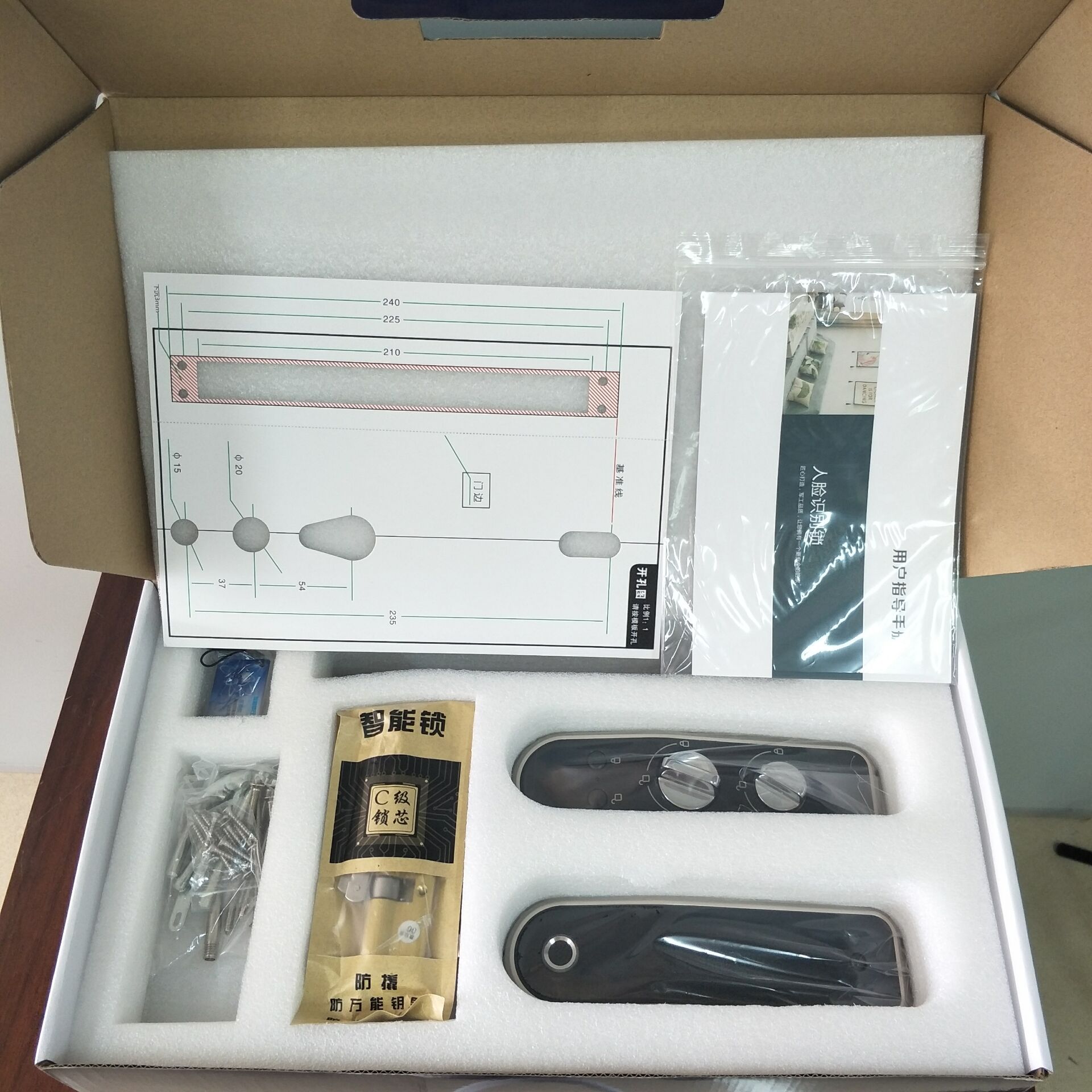

Here are the packaging accessories for the product:
