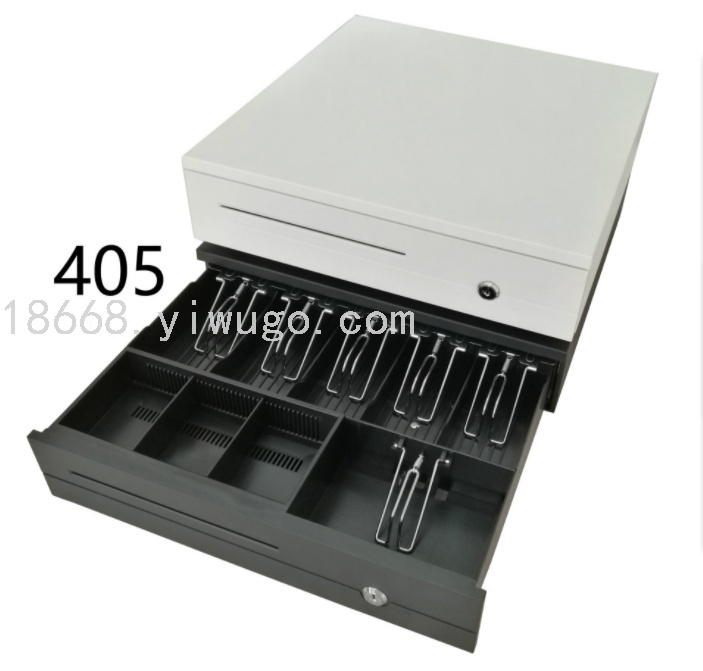

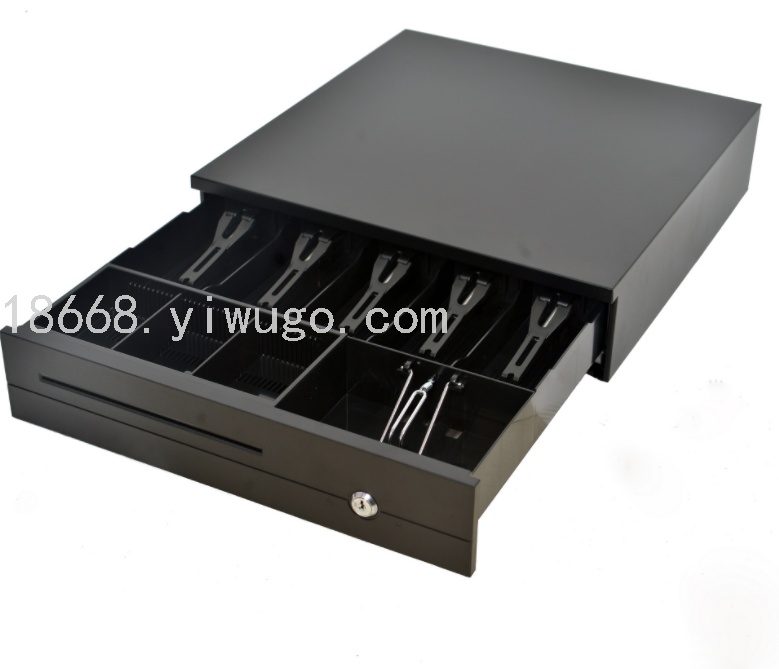

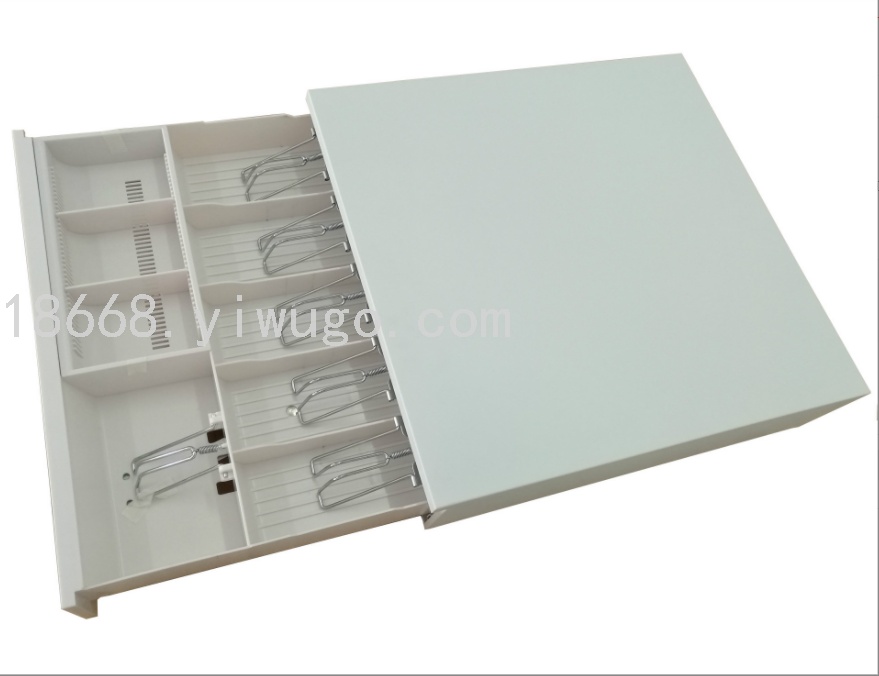

HER - 405 Cash Box

Features: Innovative design, compact and simple structure, high cost performance.

      The motion pair uses precision plastic bearings in contact with smooth guides, ensuring smooth and flexible movement.

Adopting a dual locking structure, the front end is opened and closed by a turning tongue lock, and the rear end is controlled by a screw tube, making operation convenient.

Drawer boxes can be adjusted to divide the space freely.

The material selection is meticulous and the material selection is reasonable: the shell is made of SPCC cold-rolled steel plate, and the bottom plate is made of galvanized steel plate, which has high strength, solid structure, and strong bearing capacity.

Mechanical Specifications:

      Dimensions: 405mm (W) X 420mm (D) X 100mm (H), Foot height: 9mm.

      Banknote compartment with 5+1 compartments (dimension: 100mm x 3 compartments), coin compartment with 3 compartments (customizable).

Electrical Specifications

Electromagnetic iron coil input signal:

Pulse Amplitude: 12VDC / 24VDC Pulse Width: 50ms-200ms

      The pulse duty ratio is maximum 10%, and the peak current is ≤1.85A.

Job Description: When the POS application software sends a special command to the POS printer, the printer will output an electrical pulse to open the drawer. This special command is determined by the type of POS printer used, or the cash register host directly outputs a pulse to open the drawer.
