The Structure of EL Cold Light

The core of an EL (Electroluminescent) cold light is a copper wire, which is covered by an insulating layer and a fluorescent layer. The fluorescent layer is further covered by a transparent layer on the outside, and these layers together form the basic structure of the cold light.

The Characteristics of EL Cold Light
● Without any interruptions, 360-degree full-body illumination
● Free-curved lighting design (non-foldable)
● Because it does not generate heat when lit, it is non-hazardous.
● Three-dimensional light emission can also be achieved on straight or curved lines.
● Waterproof performance is excellent, suitable for any humid environment indoors and outdoors.
The color of EL cold light:

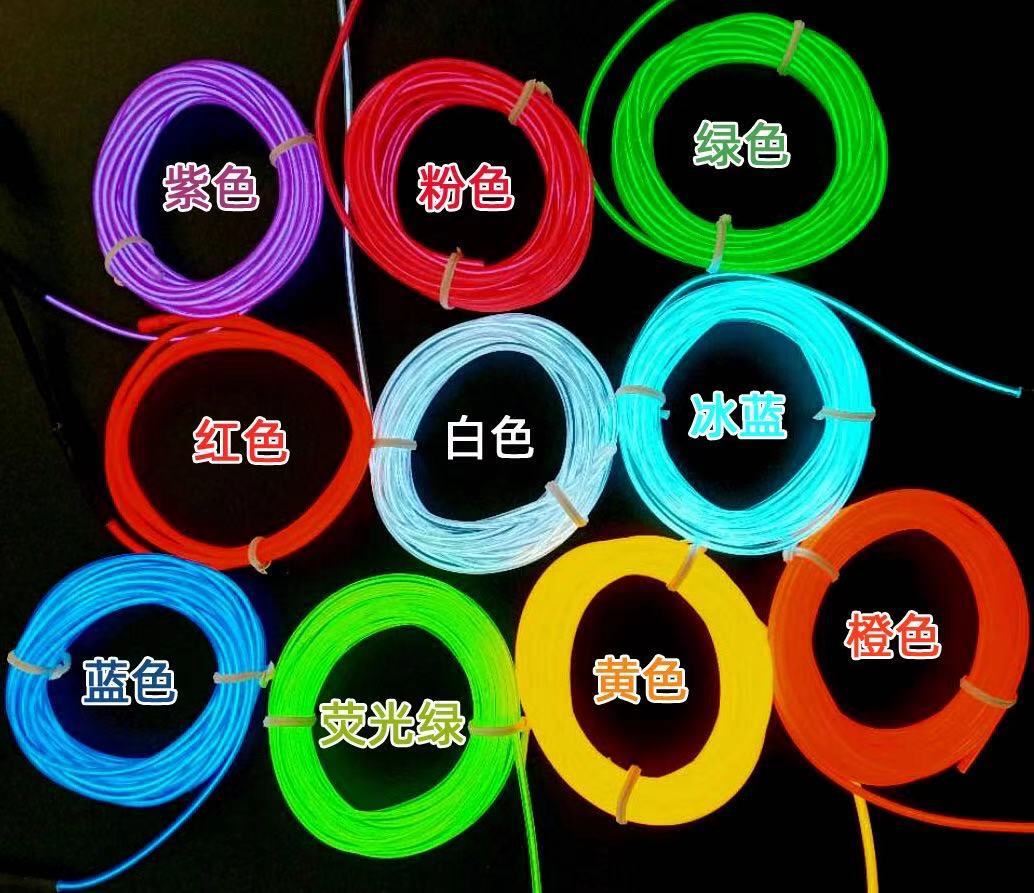

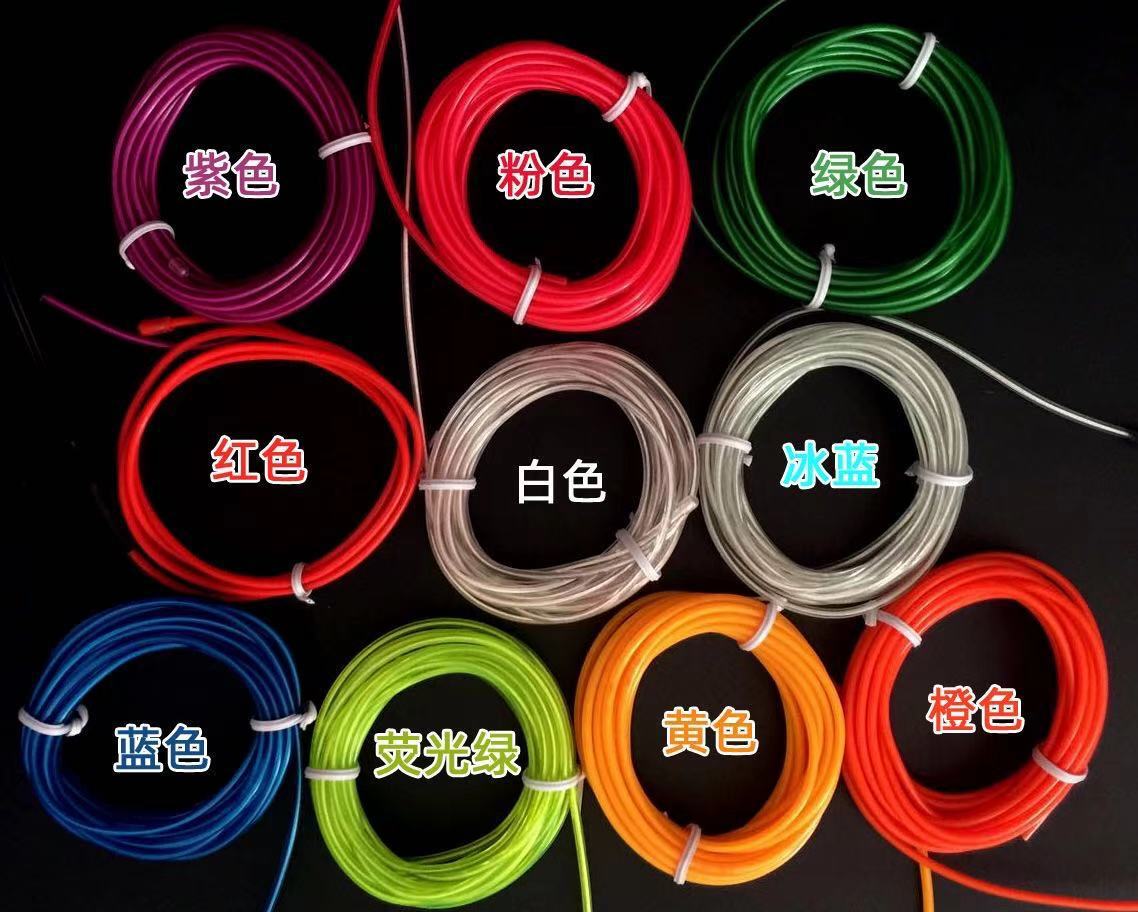

Color options: red, pink, fluorescent red, blue, ice blue, green, fluorescent yellow, yellow, purple, white, orange.

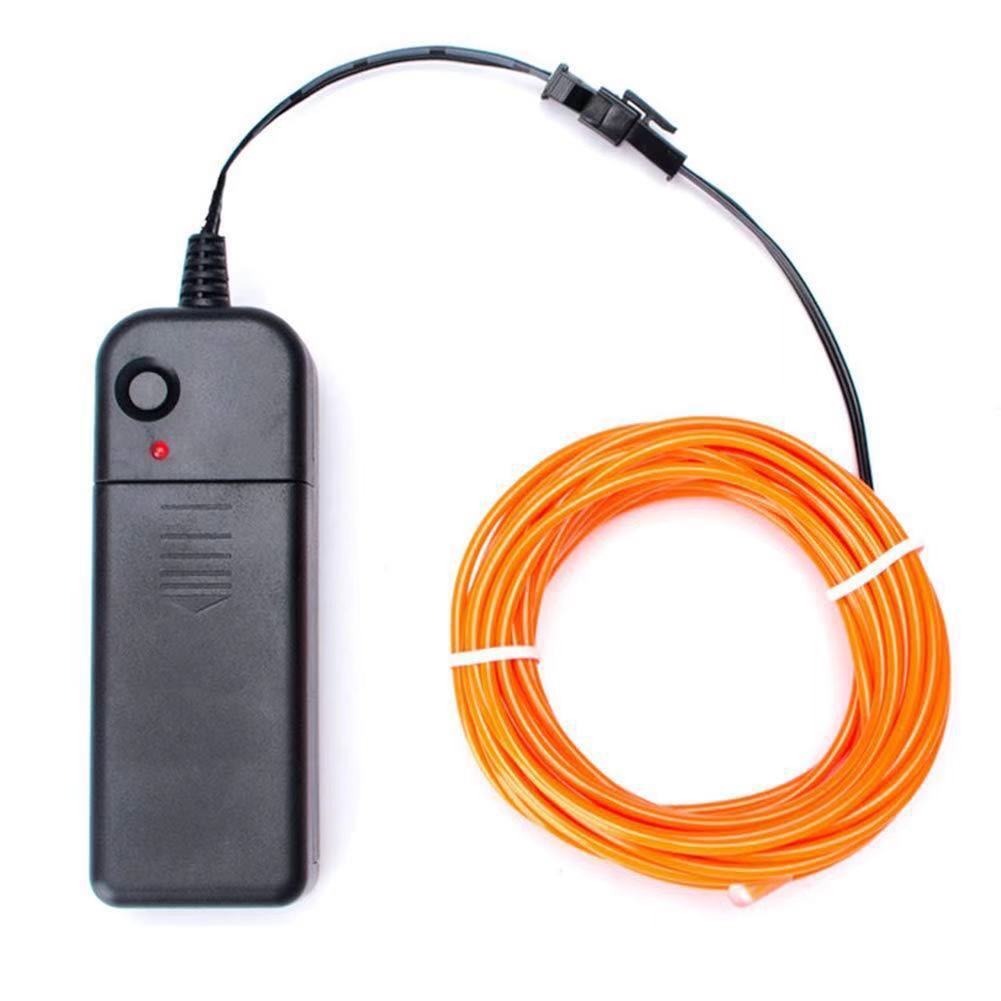

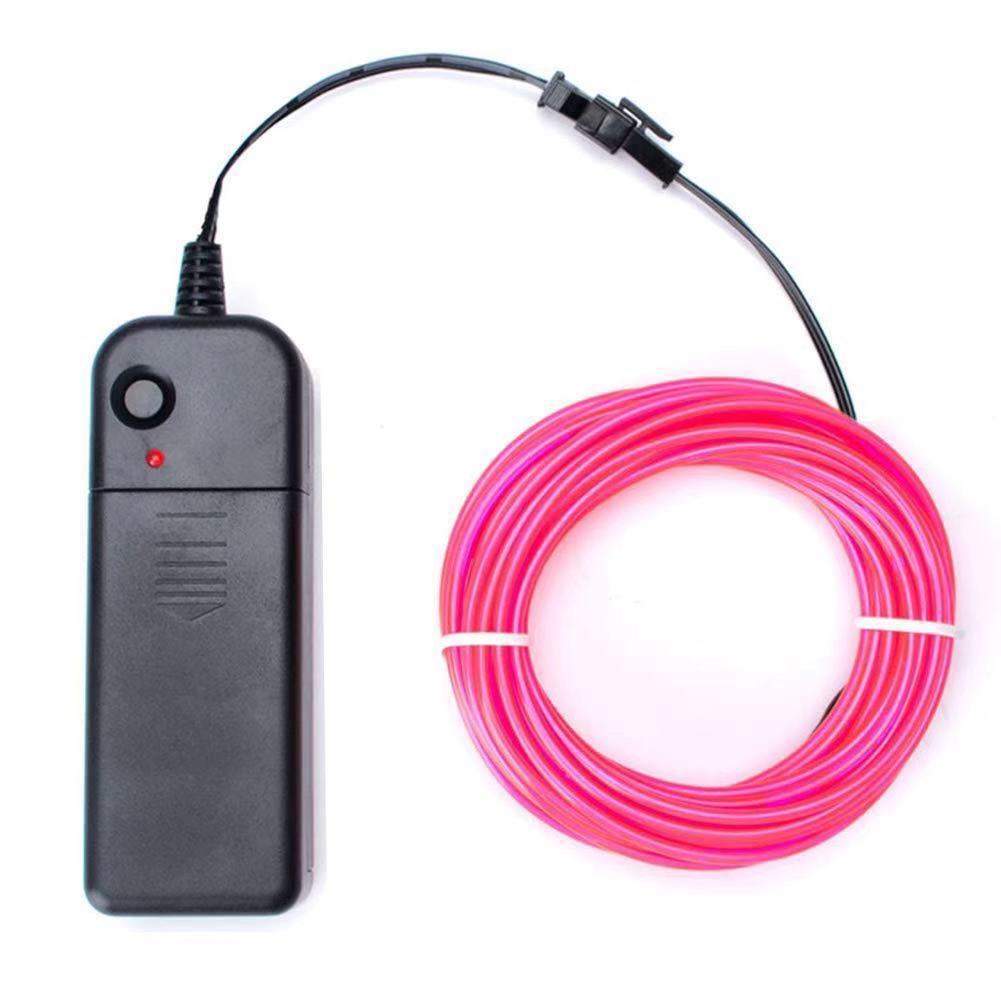

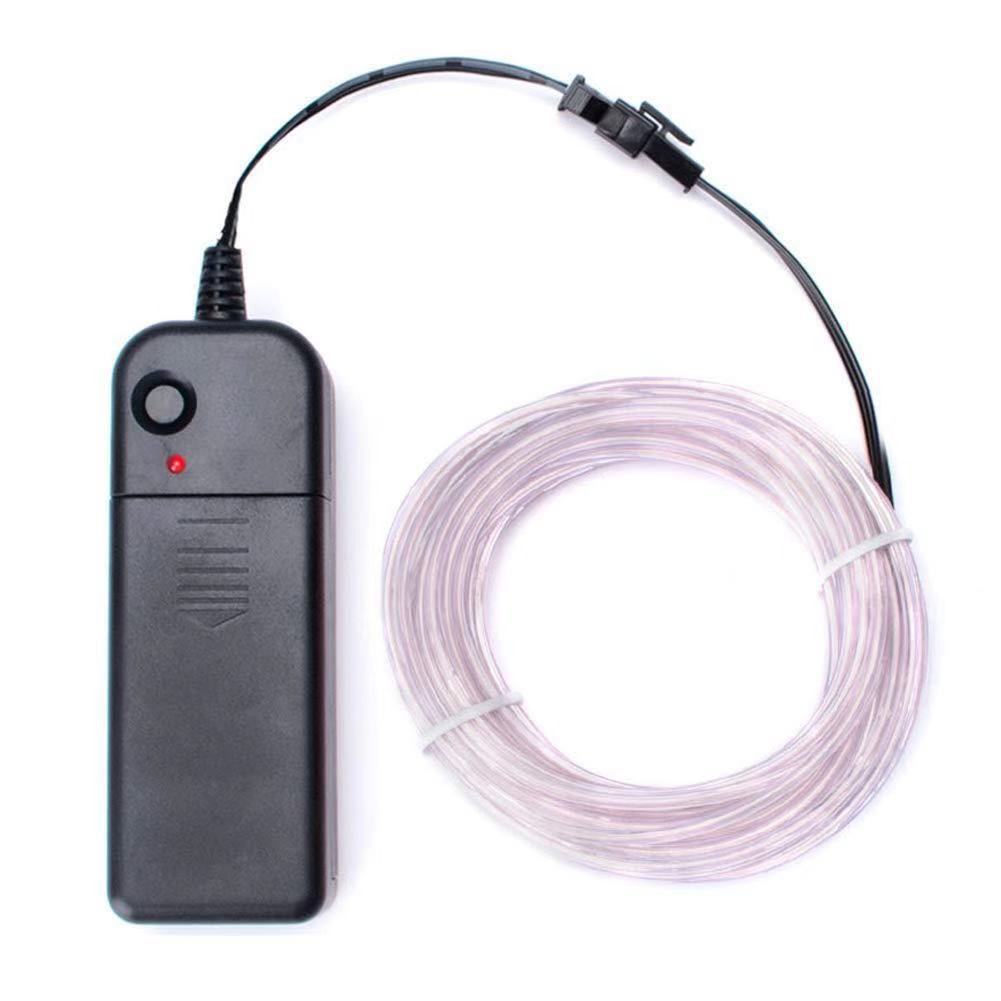

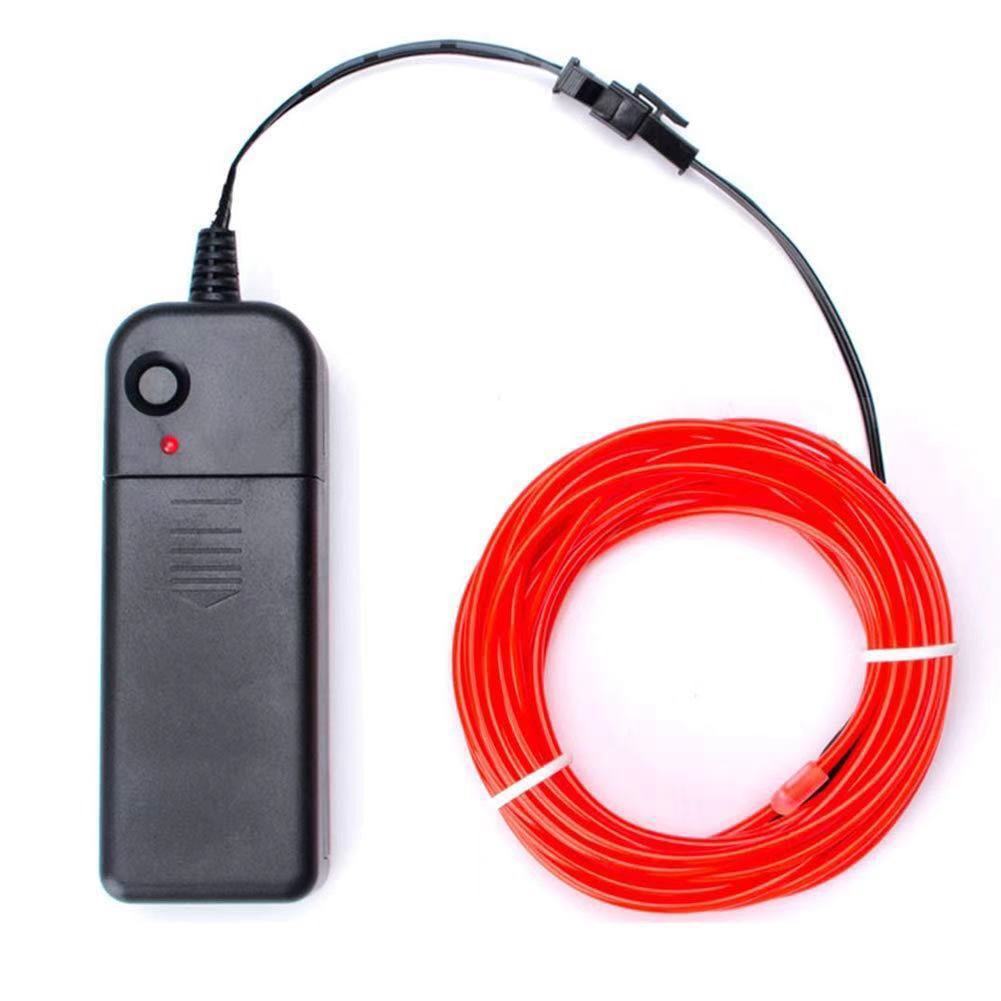

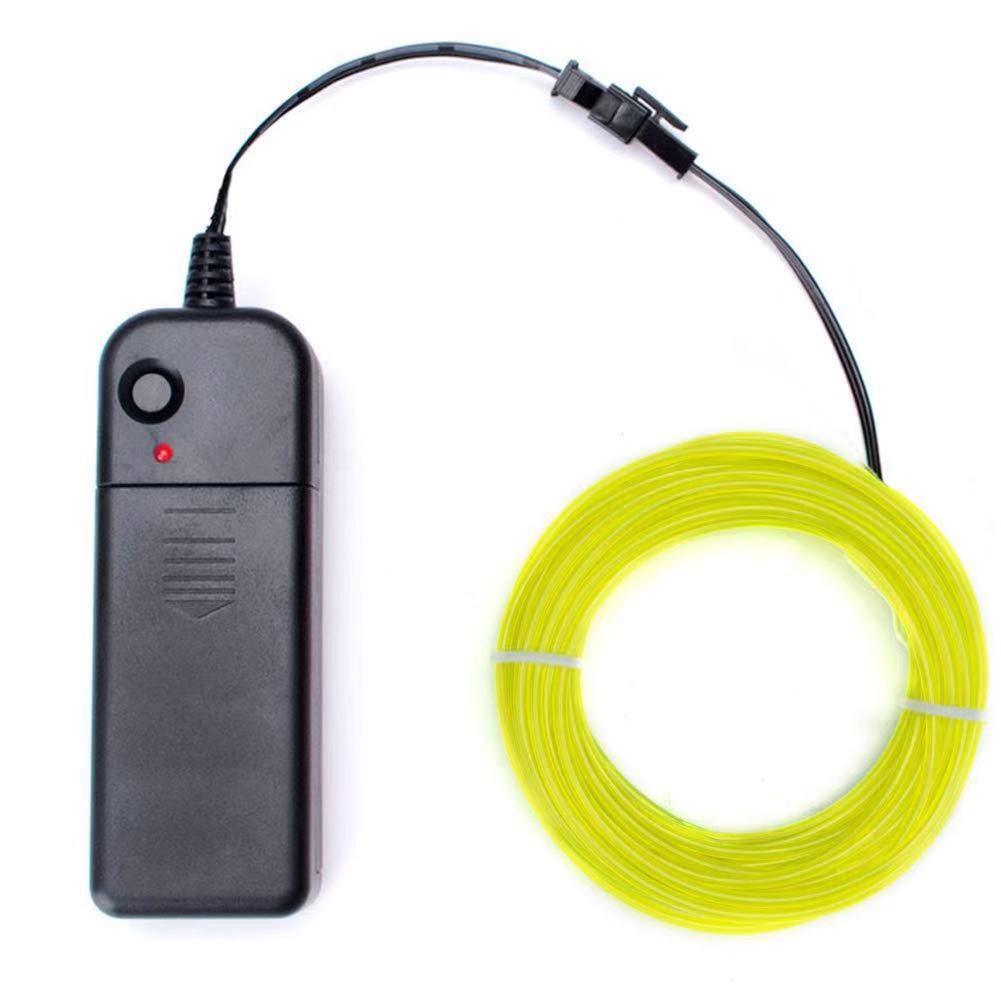

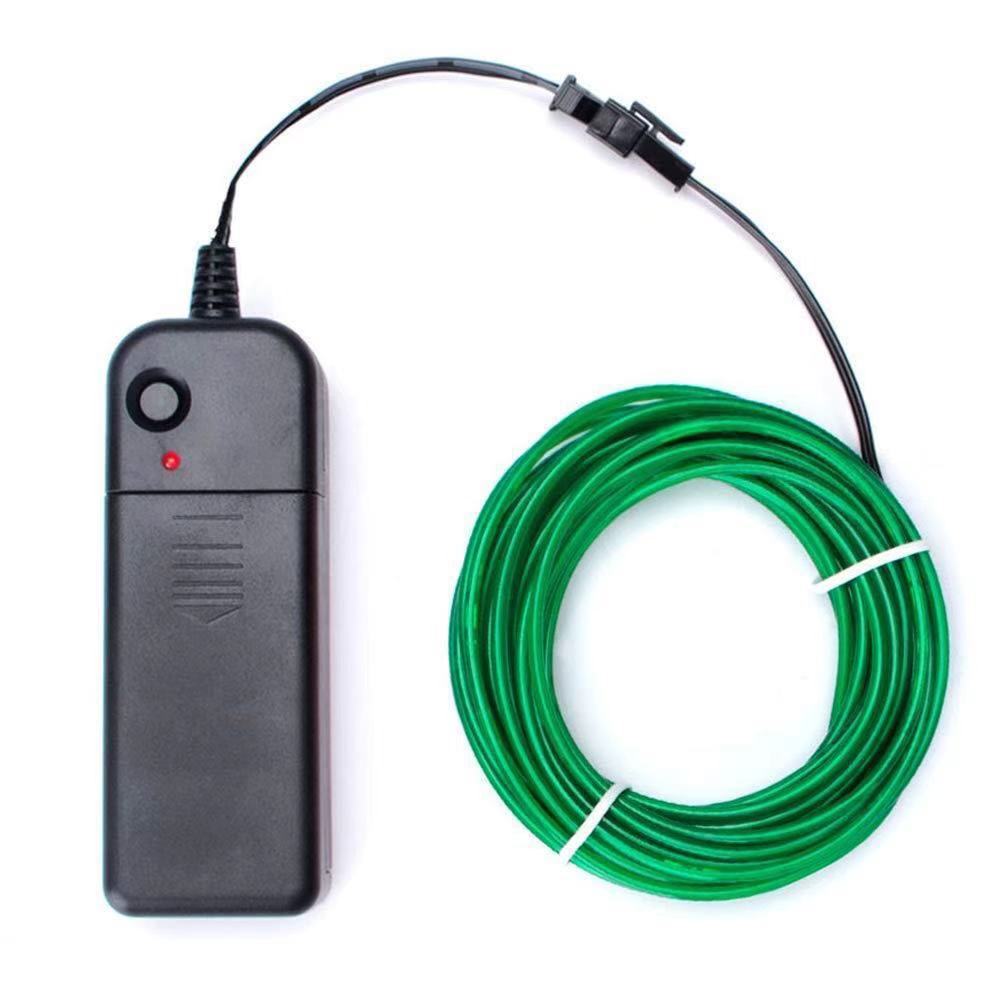

Specifications: (The product specification refers to a set with a battery box and connecting wire, which can be directly driven by the battery box)
Diameter Specification: 2.3MM 3-meter Set
Dalian's length: 500 meters (all selections are measured in meters) Working current: 6mA/m Power: 0.4W/m
Capacitance: 4.5NF/M Tensile strength:
Line body working range AC 80-150V 50-4000Hz
User's Common Working Conditions: AC 220V, AC110V, DC33V, DC6V, DC12V, DC24V
Environmental Temperature Limit: -40°C to 60°C
Average Service Life: 8000 Hours
Waterproof: Advertising products can operate normally at room temperature water, ground use for one year without wear.
Other special specifications can be customized upon request.
