5m3V Battery Box Kit High-bright EL Cold Light - Clothing, Shoes, Hats, Fabric, Backpacks, Accessories, Prop EL Cold Light

The features of EL Cold Light (Light-emitting Line) are also known as cold neon tubes. They do not generate heat, are waterproof, and can be bent into various shapes or patterns.The light emits a rich color spectrum, including red, green, blue, yellow, purple, orange, transparent, pink, orange yellow, and white light, among others.MasterThe wire diameter specifications are (units: mm) ф0.9, ф1.3, ф2.3, ф3.2, ф4.3, ф5.0 is a high-tech product that provides a 360-degree segmented light source. Its light is bright and soft, without radiation, providing a versatile, practical, safe, and energy-saving latest choice for designing new products. It has advantages that other line light sources cannot compare: 1. Can bend, paste or hang, can be made into any pattern.The material is flexible and can be cut and installed according to the desired length and width, making it lightweight and convenient.Extremely low power consumption (cold light source, 97% of electrical energy converted into light energy, no thermal energy loss); 3. Contains no ultraviolet light, soft light, eco-friendly and greenProduct. The basic principle of EL (electroluminescent) is a physical phenomenon where light is produced when an electric field is applied between two electrodes, which excites electrons to collide with the luminescent center, causing transitions, changes, and recombinations in the electron energy levels, i.e., electroluminescence.

 EL Cold Light Parameters:

1. Working Voltage: 20～220V Suggested Operating Voltage: 120V

Working frequency: 50～5000Hz Suggested working frequency: 1500-2000Hz
3. Static Capacitance: 6nF/m (20°C, RH < 80%)
Luminous brightness: Voltage: 120V, Frequency: 200Hz～2000Hz: 30cd/m2～126 cd/m2
5. Power Consumption: Voltage: 120V, Frequency: 200Hz～2000Hz: 108mw/m～1032mw/m
Service Life: Voltage: 100V, Frequency: 400Hz, Normal Temperature and Humidity, About 8000 Hours
7. Continuous operating temperature/relative humidity: -10℃ to +60℃; RH
8. Storage temperature/relative humidity: -10℃ to +60℃; RH
9. Wire Specifications: Φ0.9, Φ1.3, Φ2.3, Φ3.2, Φ4.3, Φ5.0Online price for 2.3mm diameter 5m long, with battery box included. For other diameter, please contact the sales representative.
10. Main colors: Red, Yellow, Blue, Fluorescent Green, Orange, Purple, Pink, Blue-Green, White. The application industry range of cold light.

11. Product features: button switch, constant brightness/slow flash/fast flash/off

12. Product Packaging: OPP bag sealed packaging (absorbent plastic card packaging, plus 2 Yuan/set)

Product Features:

★ Uniform and delicate light emission, vibrant colors, a rich color palette, strong sense of depth and perspective, suitable for night vision observation, soft light emission, without causing eye irritation or blinding.

★ Soft, foldable and bendable, can be tied, cut, and joined at will without affecting the light-emitting performance. It can be directly fixed to the decorative surface with transparent tape, glue, pins, or thread nails.
Energy-saving, environmental protection, and safety: This product has low power consumption. It does not cause any environmental pollution during use or disposal, and it does not pose any danger to the human body.

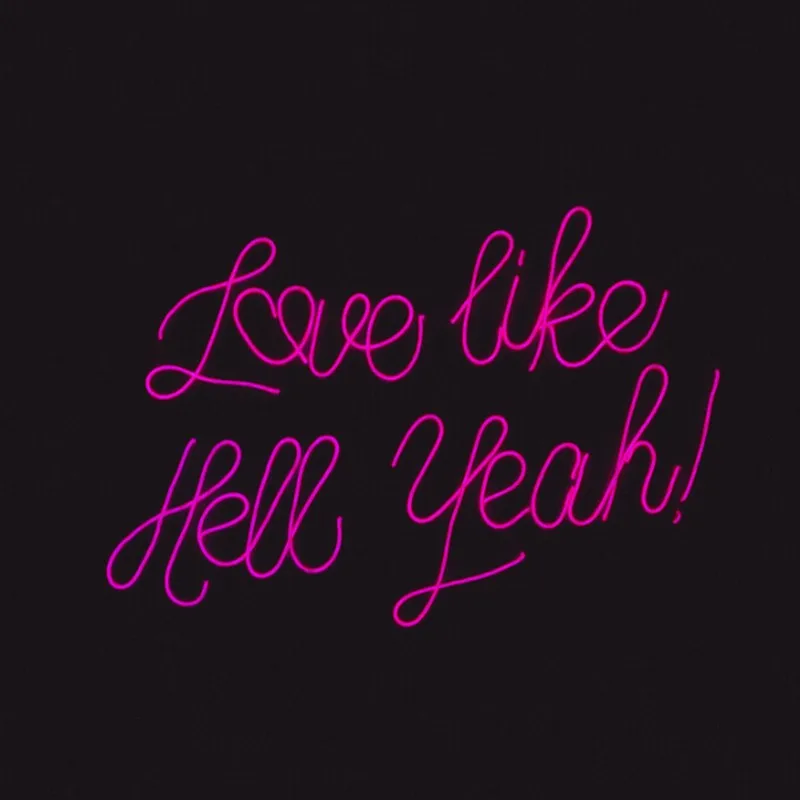

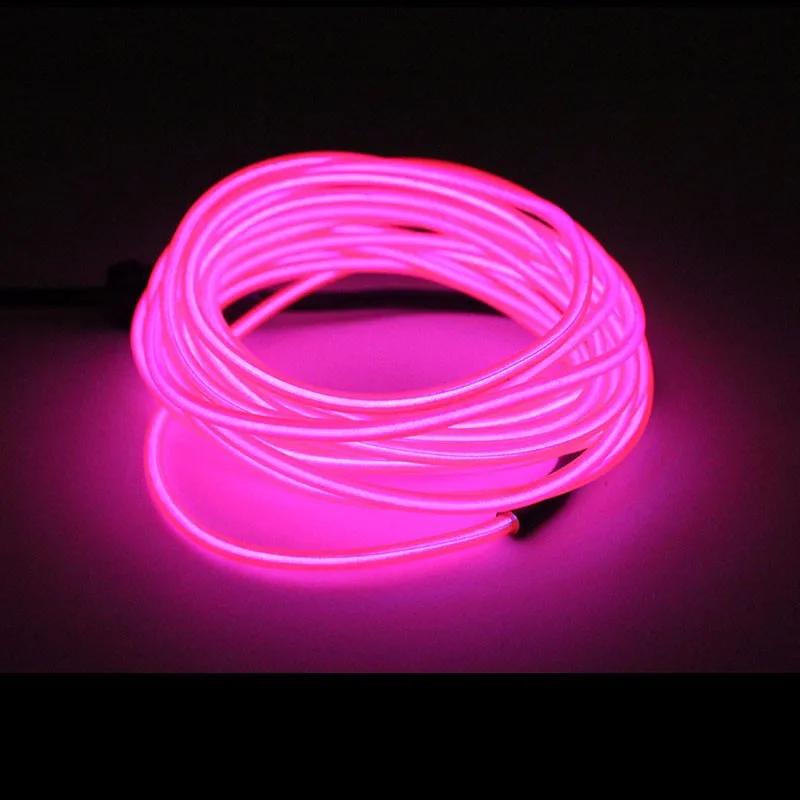

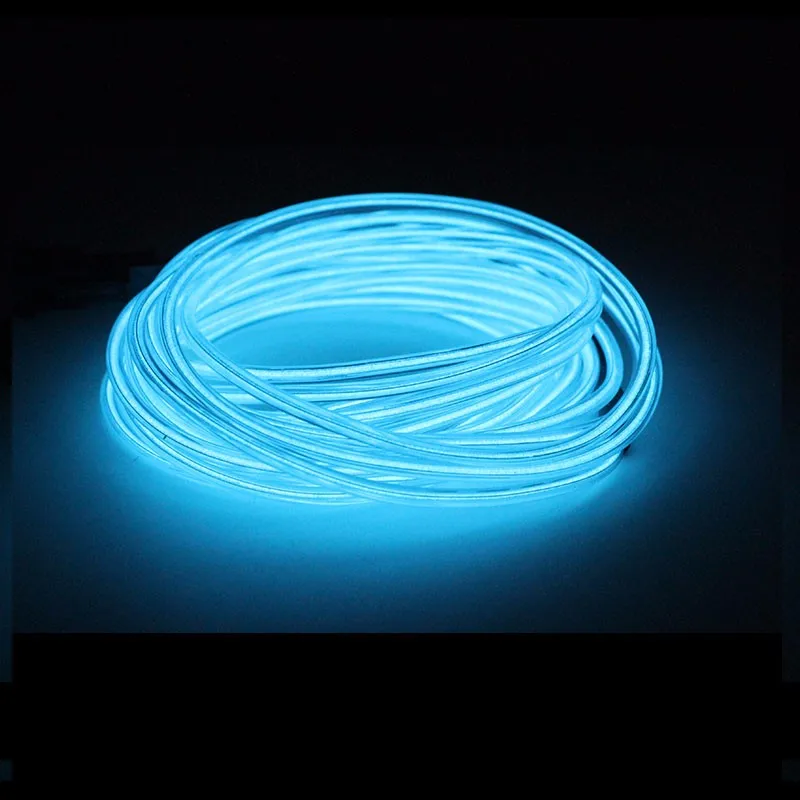

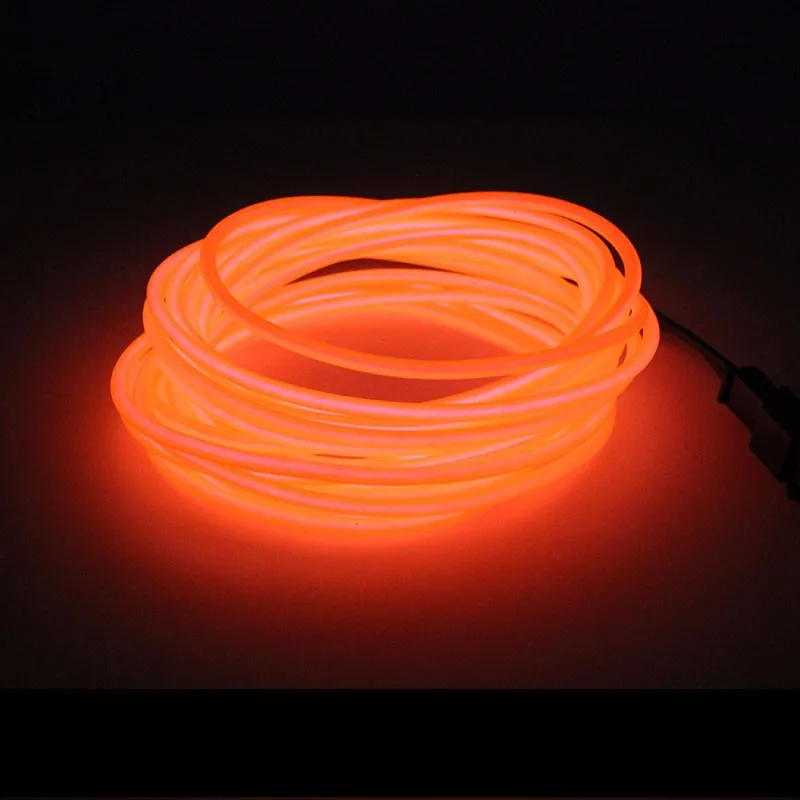

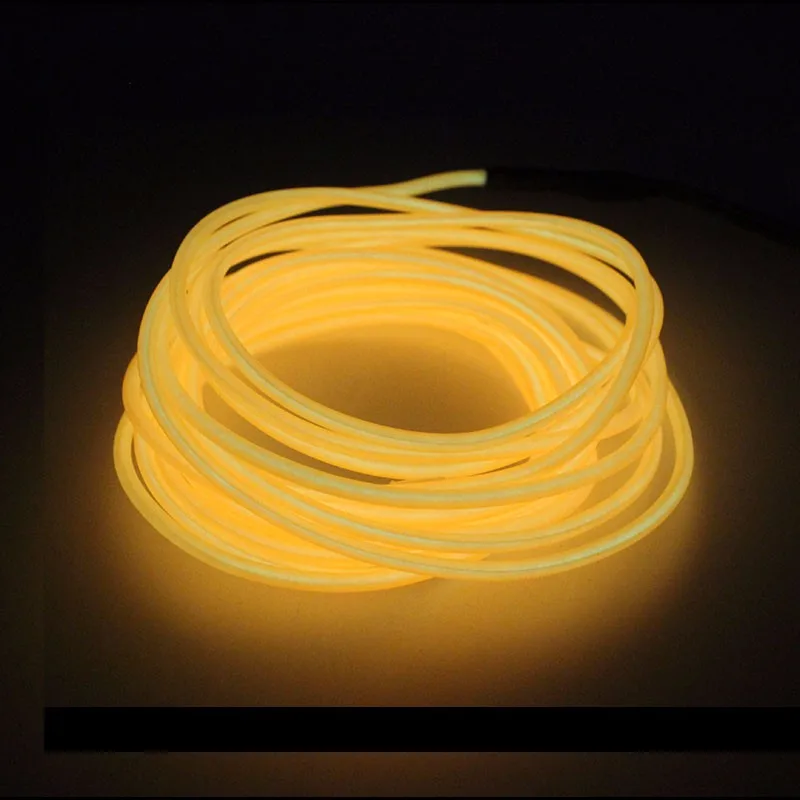

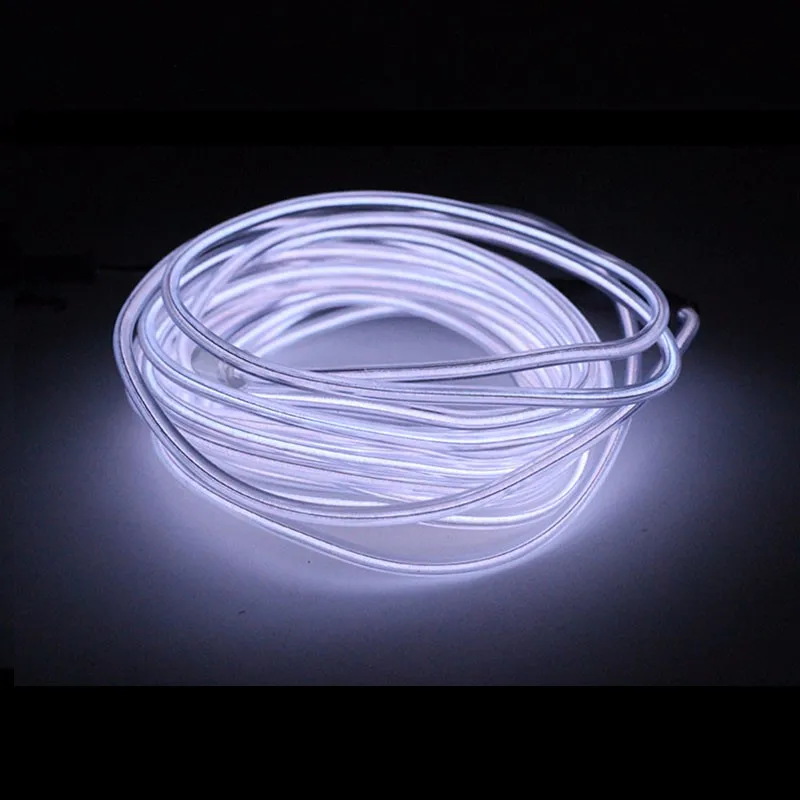

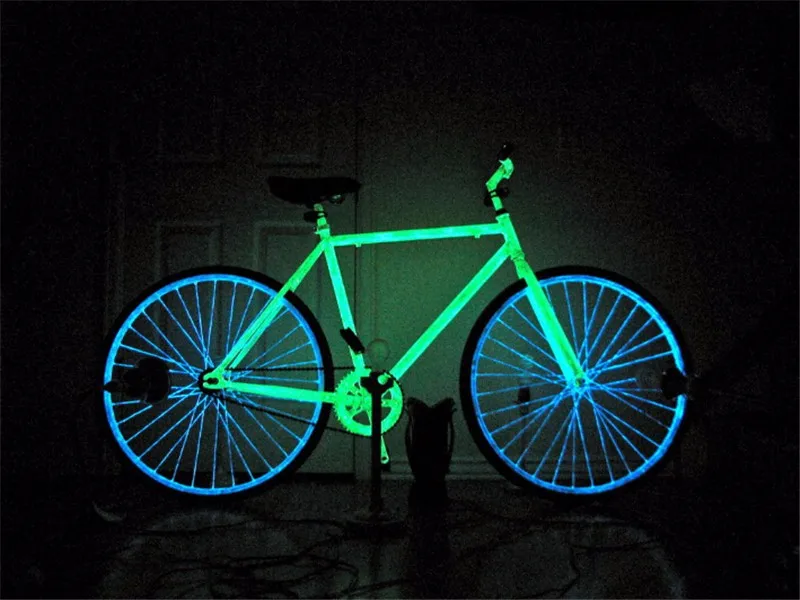

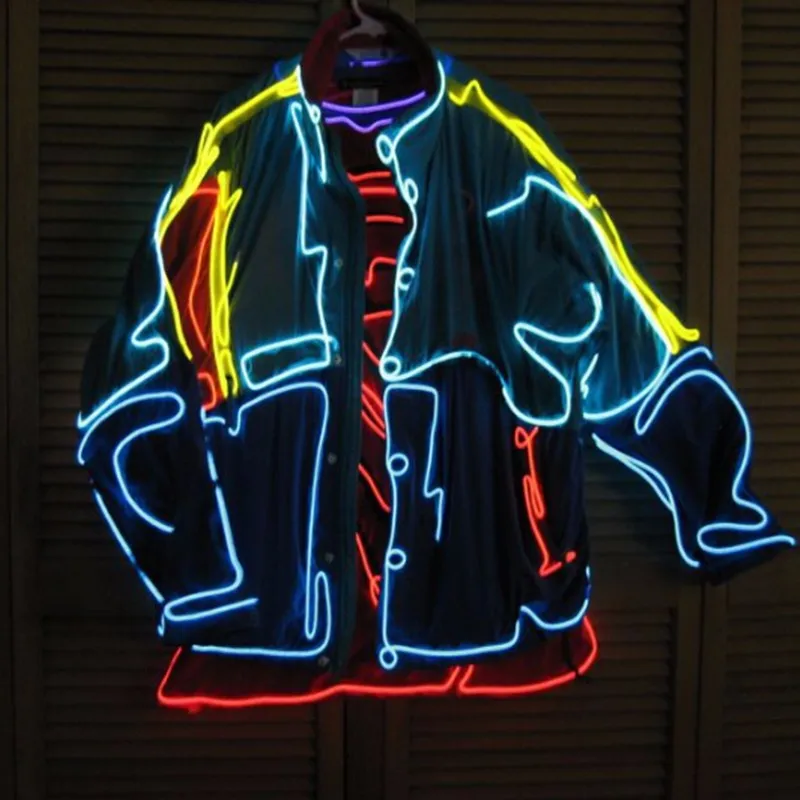

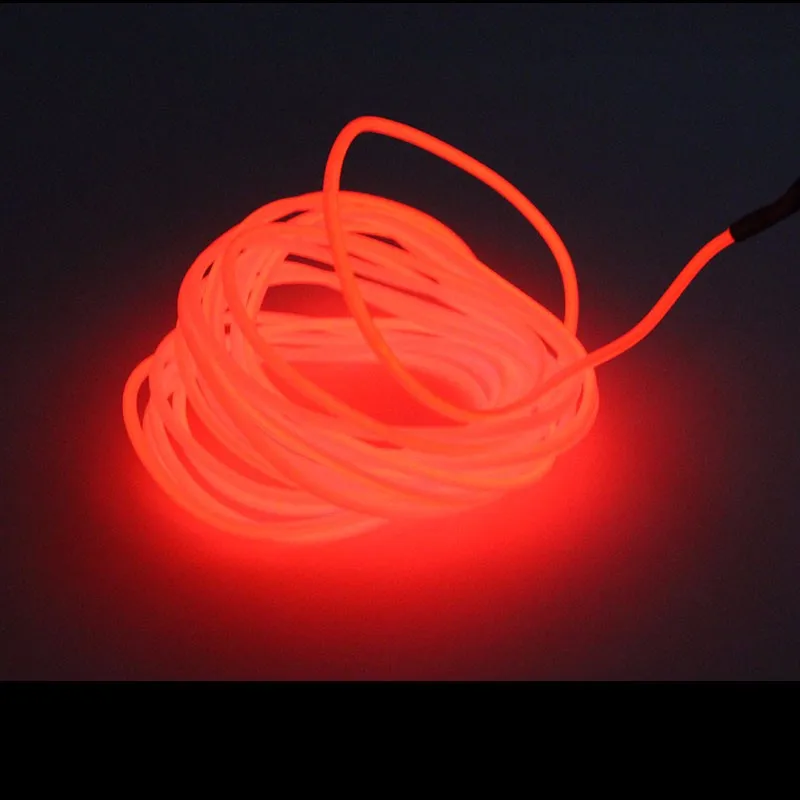

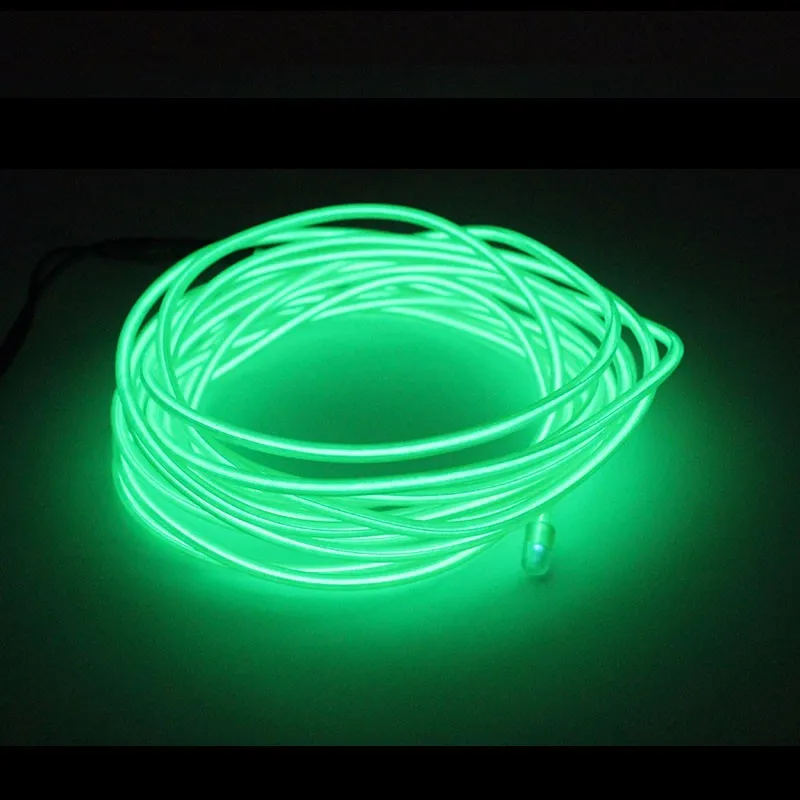

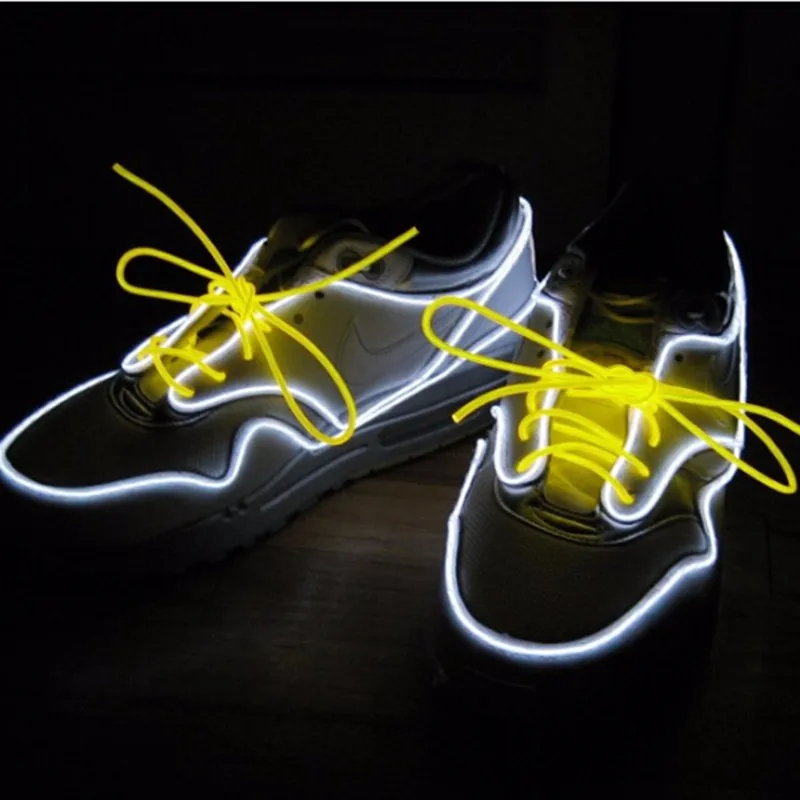

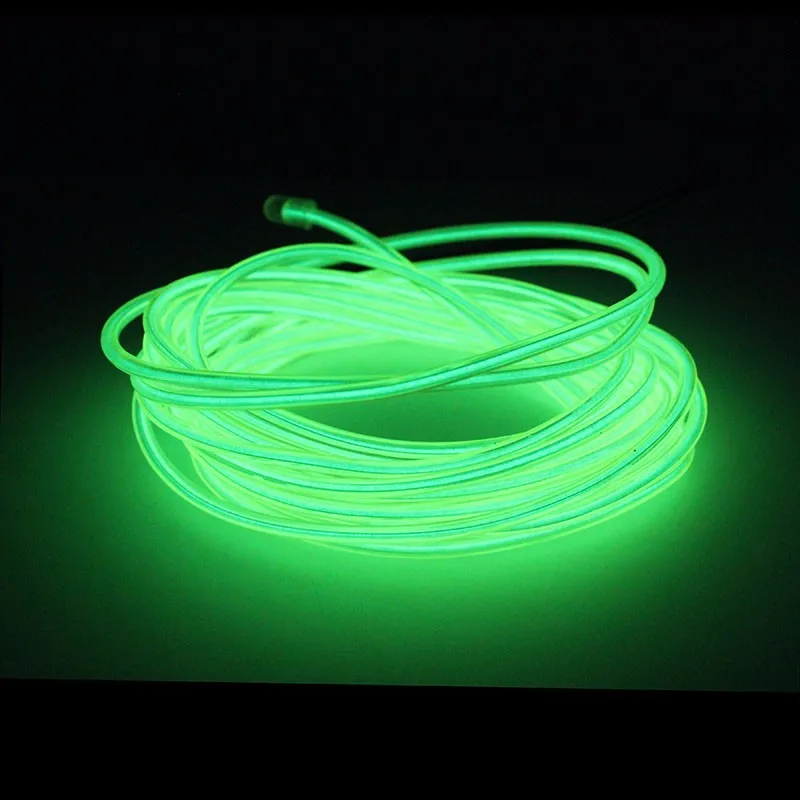

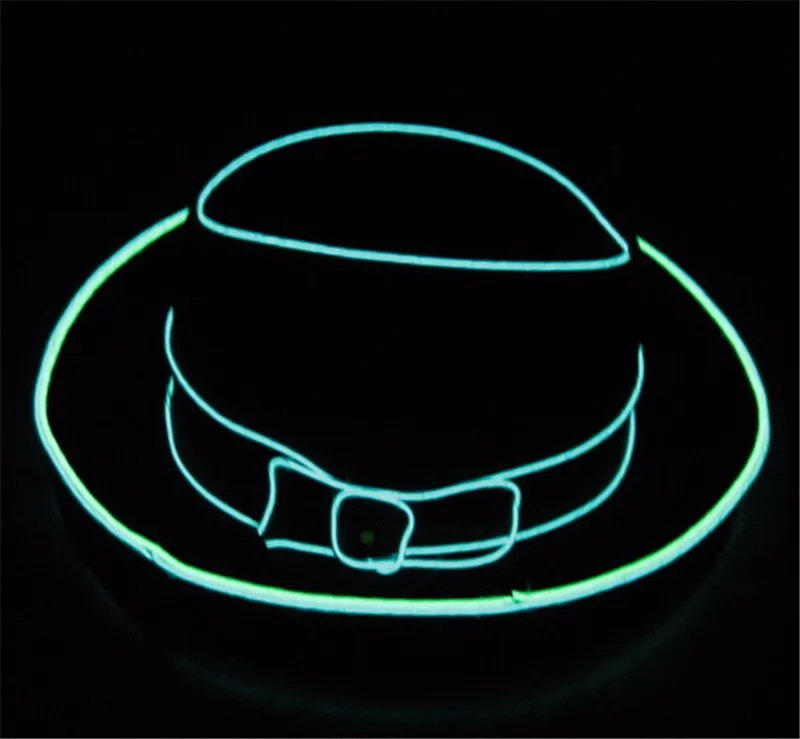

EL Cold Light High-Definition Images:
