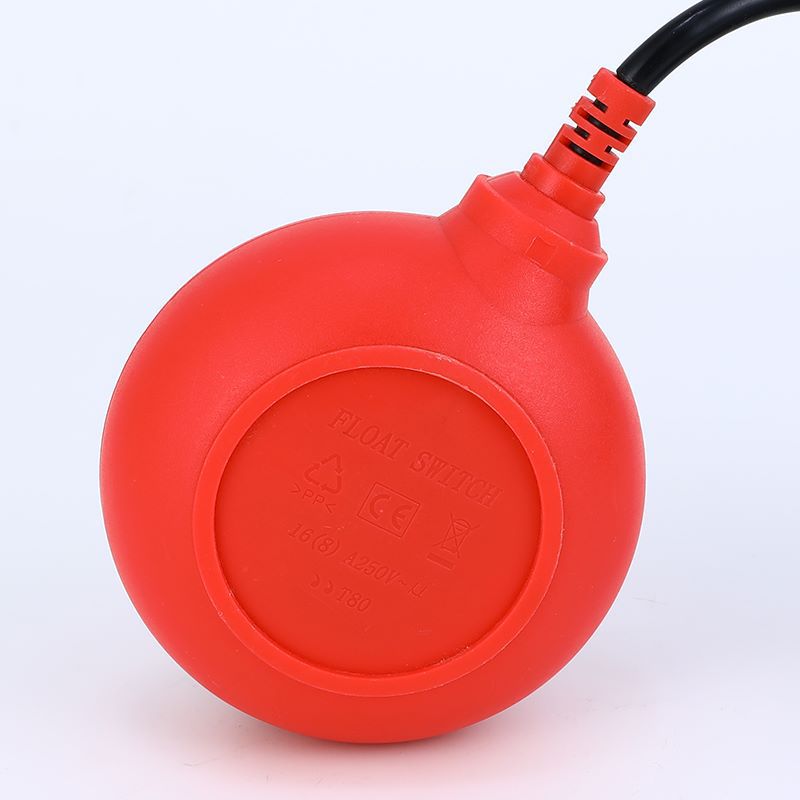

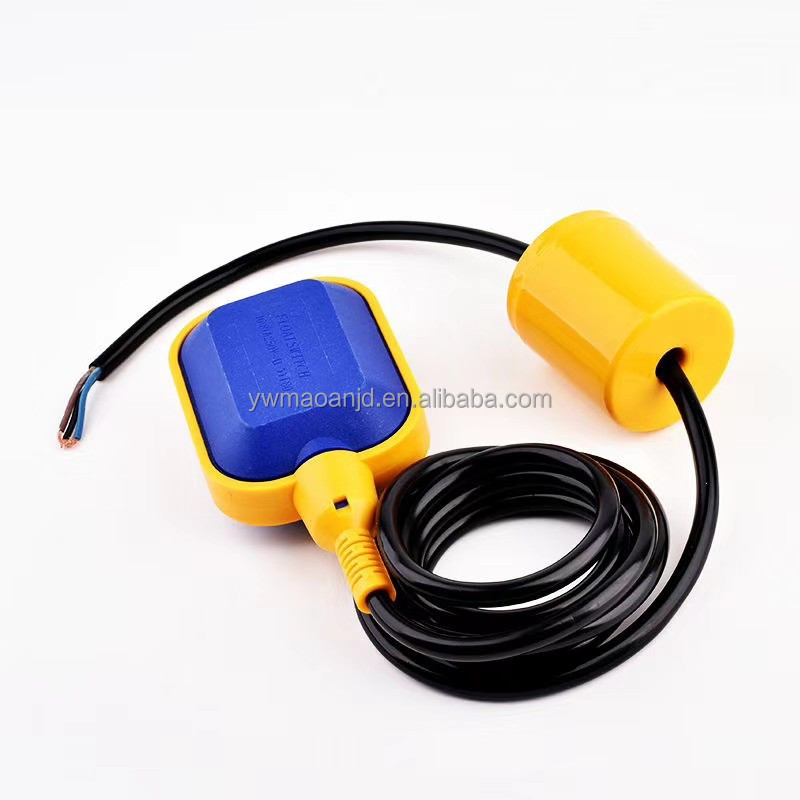

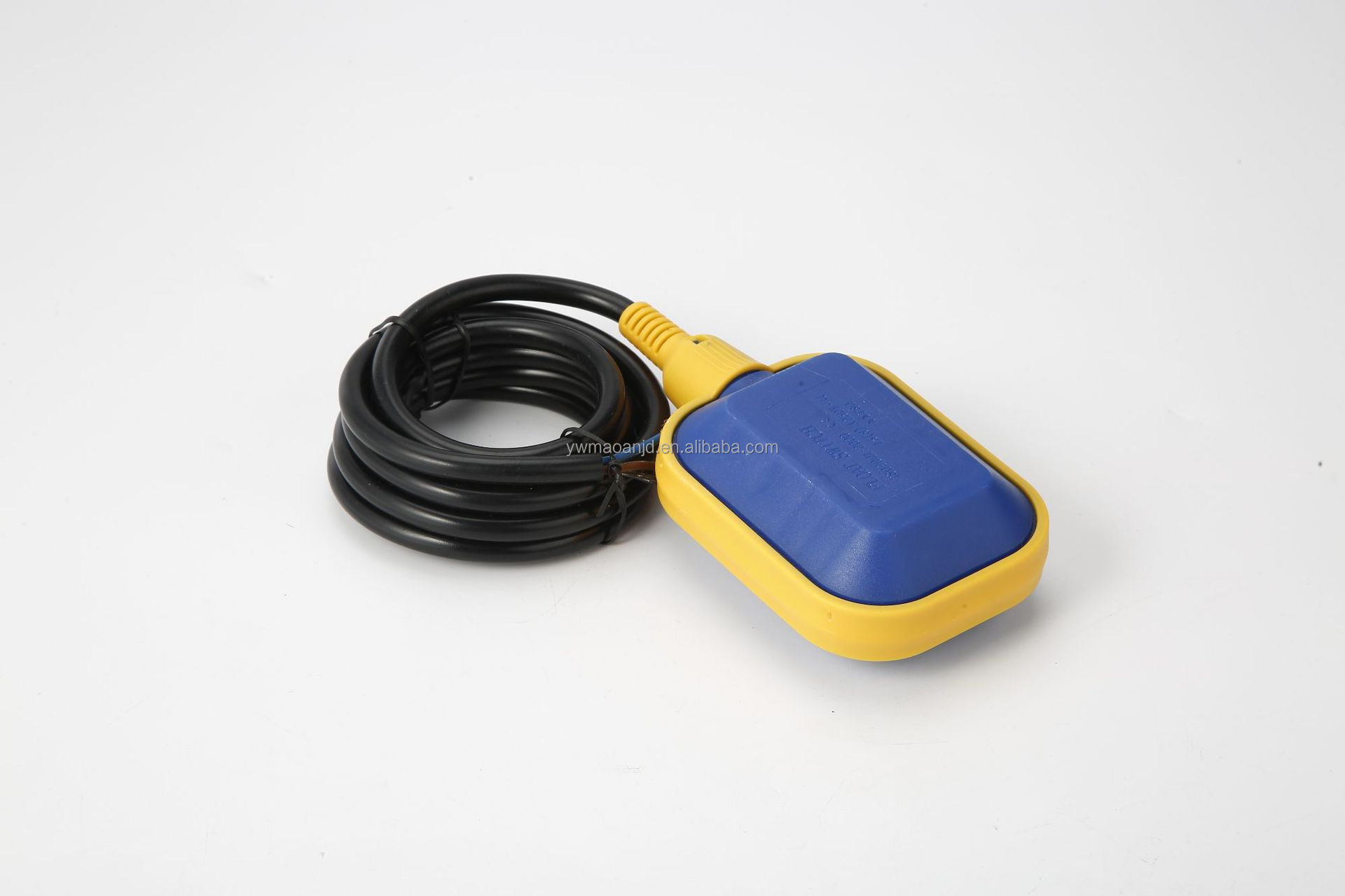

Simplicity in structure, convenience in operation, long service life, easiness in maintenance and environment friendly. It can resist sewage,so that widely used in pool in resident,factories and mines ect., and ponds, barrel, manger and pot with oil, acidand alkali as well as the vessel with high viscosity and suspended substance.
Mechanical life is up to 50,000 times.
Good conductivity and longer life.

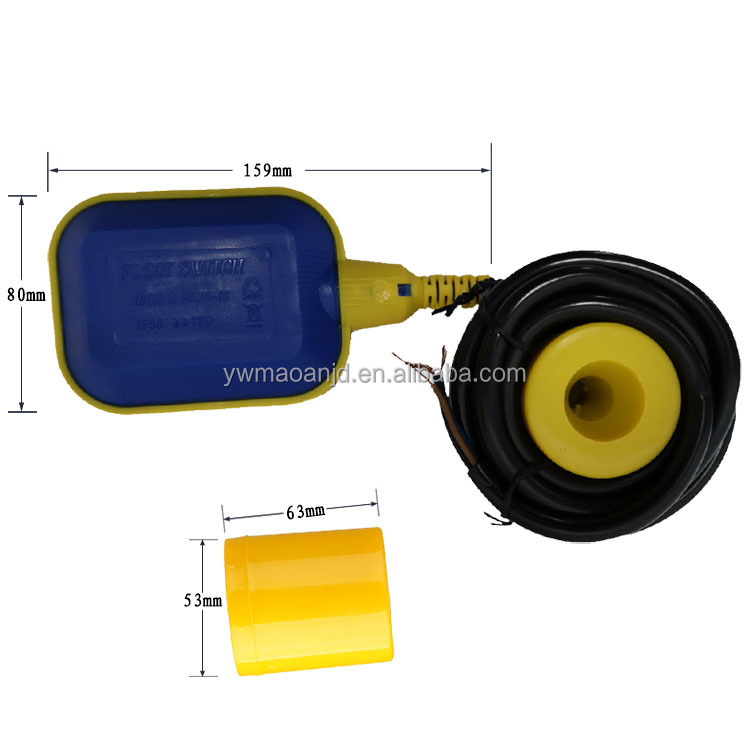

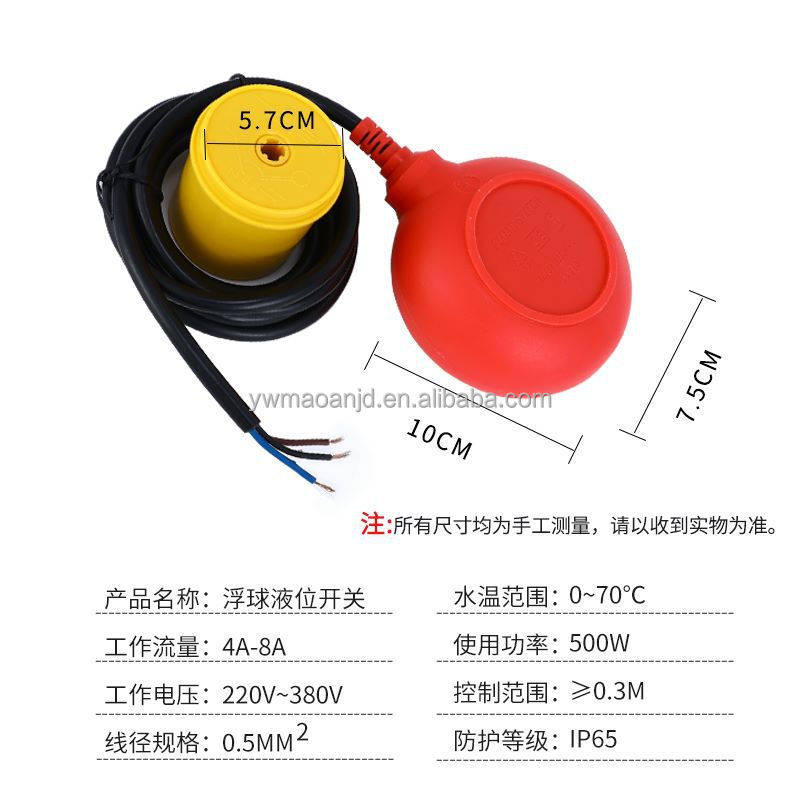

Conductor Size:3.*0.5mm / 3.*1.0mm
Cable length:1m/ 2m/ 3m/ 4m/5m;customized.
-Contact capacity: AC250V/10(4)A
-Output signal: SPDT
-Protection grade: IP68
-Float Material: PP
-Cable material: PVC/Rubber
Ultrasonic welding sealing CE and RoHS approval PP material.
|
Model
|
MA-1
|
|
Power supply
|
24VDC, 110VAC, 220VAC
|
|
Output
|
SPDT Relay, PNP
|
|
Output capacity
|
220VAC 5A/24VDC 3A
|
|
Power consumption
|
0.5W
|
|
Working pressure
|
2Mpa
|
|
Medium temp
|
-30~150℃
|
|
Medium density
|
≥0.6g/cm3
|
|
Response time
|
<0.5s
|
|
Output delay time
|
1~60s(optional)
|
|
Sensitive
|
Adjusttable
|
|
Alarm
|
HLFS(high level alarm); LLFS(low level alarm)
|
|
Protection grade
|
IP66
|
|
Electrical connection
|
NPT 1", customized
|
|
Explosion proof
|
Exd II CT4
|
