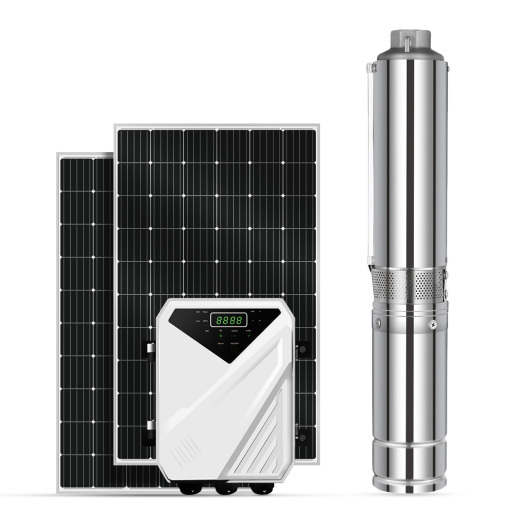

Sunpal Deep Well Submersible Solar Water Pump 1Hp 2Hp 3Hp Wi

maoan electric appliance co. LTD 11yr.

Contacts:guoshifanChat

Mobile:86-13586969218

E-mail:620786934@qq.com

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email： yiwubuy@yiwugo.com

Description
Reviews(/5)

Overview

Quick Details

Warranty:

3 Years, 3 Years

Customized support:

OEM

Brand Name:

Model Number:

3DPC3.8-180-110-1500

Place of Origin:

China

Application:

Family Homes, Irrigation and Agriculture

Horsepower:

2HP

Power Source:

Electric

Pressure:

2HP, High Pressure

Structure:

SCREW PUMP

Outlet Size:

Voltage:

110V

Power:

1500W, Solar Energy

Theory:

Centrifugal Pump

Motor:

100%Cooper Wire

Item:

Solar Deep Well Pump

Feature:

304 S/S Motor Shaft

Impeller:

Plastic

Model	Voltage	Power	Max.Flow	Max.Head	Outlet
3DPC3-25-24-200	24V	200W	3.0m3/h	25m	1.25''
3DPC3-35-24-300	24V	300W	3.0m3/h	35m	1.25''
3DPC3.5-47-48-400	48V	400W	3.5m3/h	47m	1.25''
3DPC3.5-80-48-600	48V	600W	3.5m3/h	80m	1.25''
3DPC3.5-80-72-750	72V	750W	3.5m3/h	80m	1.25''
3DPC3.5-95-48-750	48V	750W	3.5m3/h	95m	1.25''
3DPC3.5-95-72-750	72V	750W	3.5m3/h	95m	1.25''
3DPC3.8-123-72-1100	72V	1100W	3.5m3/h	123m	1.25''
3DPC3.8-123-110-1100	110V	1100W	3.8m3/h	123m	1.25''
3DPC3.8-155-110-1300	110V	1300W	3.8m3/h	155m	1.25''
3DPC3.8-180-110-1500	110V	1500W	3.8m3/h	180m	1.25''

Brass Outlet/Connector/Oil Cylinder

All series are made of brass or S/S(304)
Durable and high quality material

Permanent Magnet DC Brushless Synchronous Motor

Motor coil is made by automatic winding machine with centralized winding technology, motor efficiency is much improved by
15-20%;Save energy and reduce the consumption.

Pump Shaft And Magnetic Steel

The whole of pump shaft is made of 304 S/S with high quality Intelligent water shortage protection: The pump stops working
automatically when there is no water in the well and start working 30 minutes later.

NSK Bearing

Japanese NSK bearing's working life is 3-5 times longer than common brand

Water Pump Controller VOC Range

24V controller : 18V-50V
36V controller : 30V-96V
48V controller : 30V-96V
72V controller : 50V-150V
96V controller : 60V-180V
110V controller : 60V-180V
Max input current: 15A

Note: The Above packing information contained in this web is subject to change without notice.

FAQ

1. Q:What's your MOQ?
A:Trial sample order is OK.
2. What's your payment terms?
A: T/T,L/C,D/A,D/P
3. Q: What is the delivery time?
A: 25-30 days after receiving your advanced deposit.
4. Q:Can you we do OEM brand?
A:Yes,welcome your OEM.
5. Q: How to buy our pumps ?
A: Firstly we should know from you :
What is the fluid ?
Clean water(temperature), dirty water(temperature), particles,or slurry ?
What is the flow and head ? And the power?
What is the voltage and frequency of three phase electrcity ?
Other conditions from customer if possible : pump type , motor ?
With complete information, then we selected the pump and feedback to you.
