Software

System Structure

Embedded Linux system, ARM chip architecture

Chip

AK3918EAnKai Plan

Pixel

200W

sensorResolution

1/3 2.0M″ GS2265 1920x1080

lens

4MM

Field of view

80°

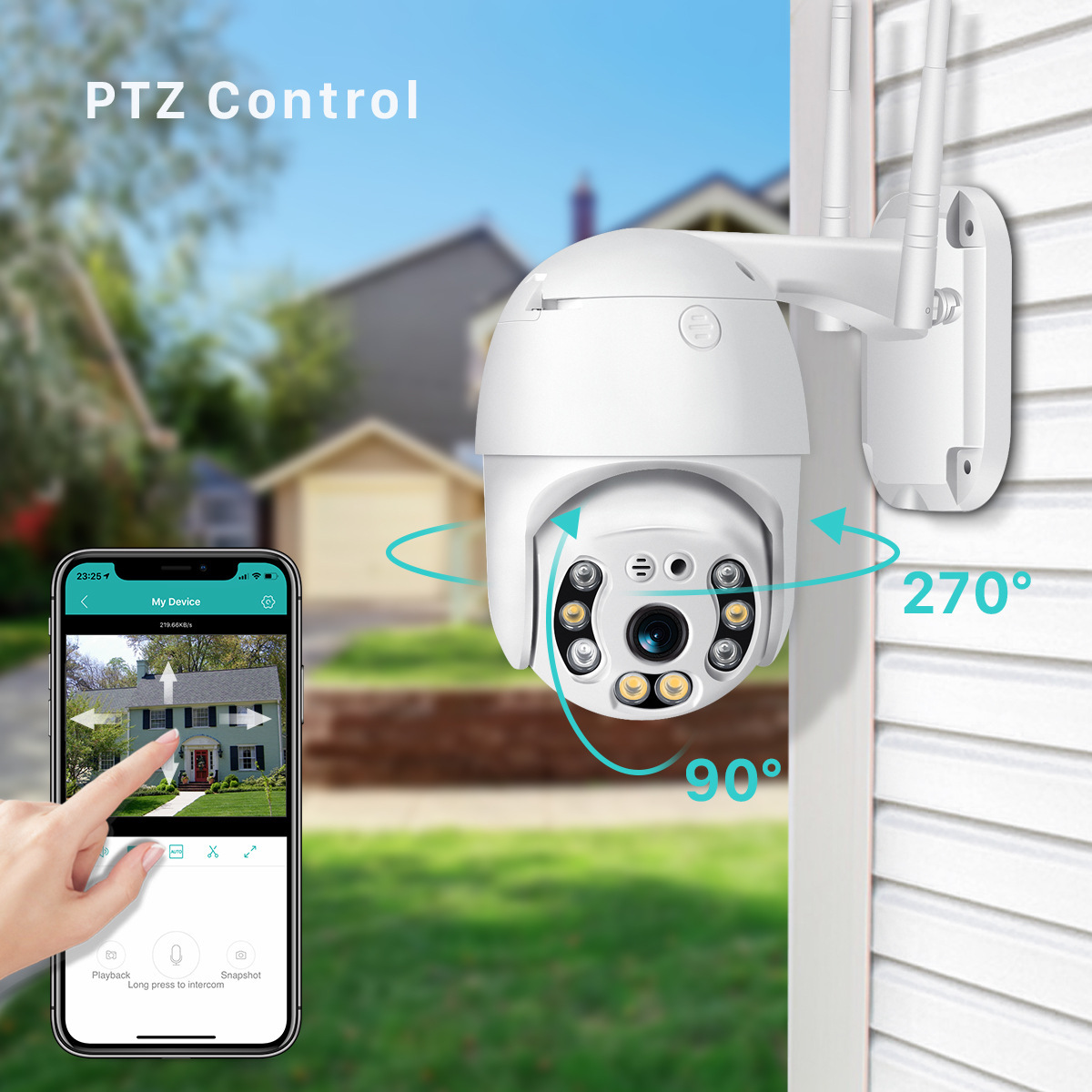

PTZAdjust the angle of the cloud platform

Horizontal direction: 355° Vertical direction: 90°

Set preset position

6个

Video Compression Standards

H.265/20FPS

Video format

PAL

Illuminance

0.01Lux@F2.0, VGC ON, O.Lux with IR

Electronic shutter

automatic

Digital Wide Dynamic

Support

noise reduction

2D3D

Infrared Light

4A white light with 6 infrared dot matrix lights

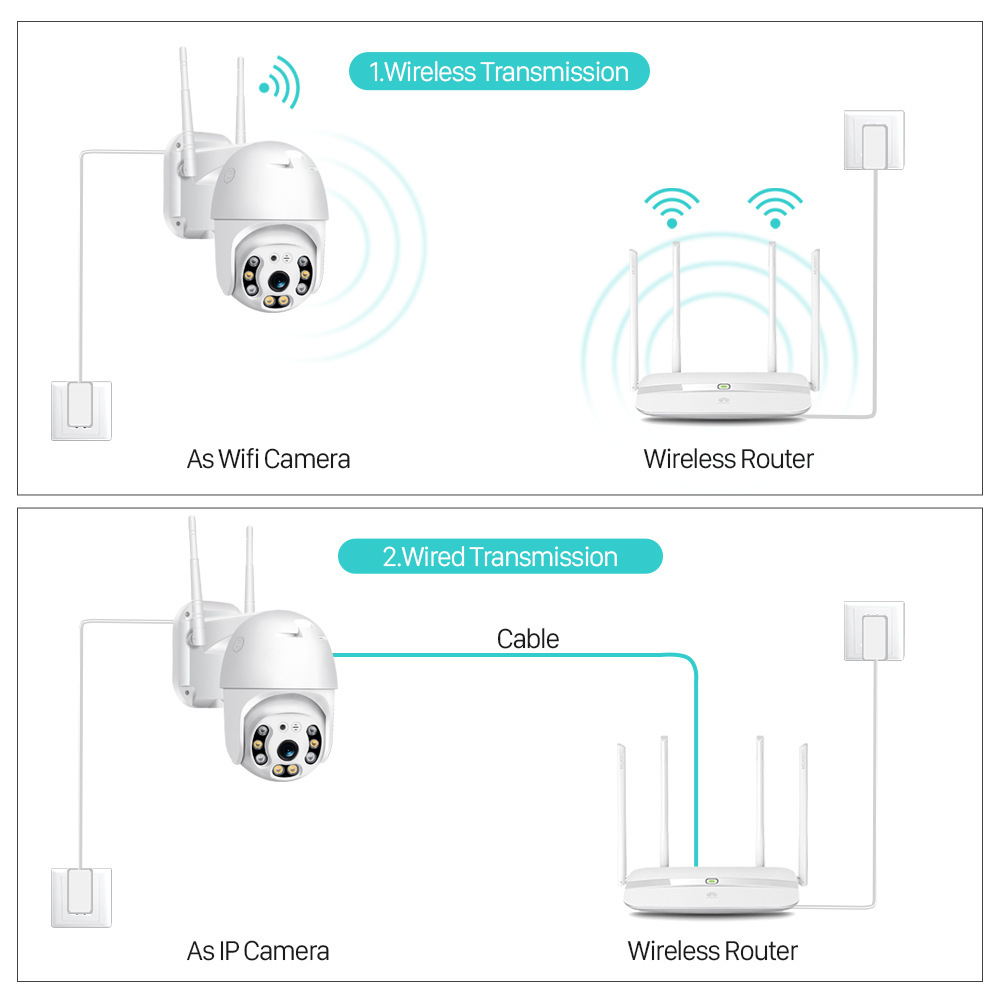

Network Connection

Wi-FiWireless Transmission (Supports IEEE802.11b/g/n Wireless Protocol)

Night vision

Automatic switching of dual filters, 5-10 meters (varies with the environment)
White light: APP control: ① Turn on ② Turn off ③ Auto
In automatic mode, the IR-CUT night vision will automatically turn on the infrared light after cutting night vision. The intelligent detection of the human body will automatically turn on or off the incandescent light.

Audio

Equipped with a full-directional noise-cancelling microphone and speaker, supporting two-way real-time audio transmission.
ADPCM (Adaptive Differential Pulse-Code Modulation) Audio Compression Standard, Adaptive Bitstream

Network Protocol

TCP/IPUDP, HTTP
DDNS、DHCP、FTP、NTP

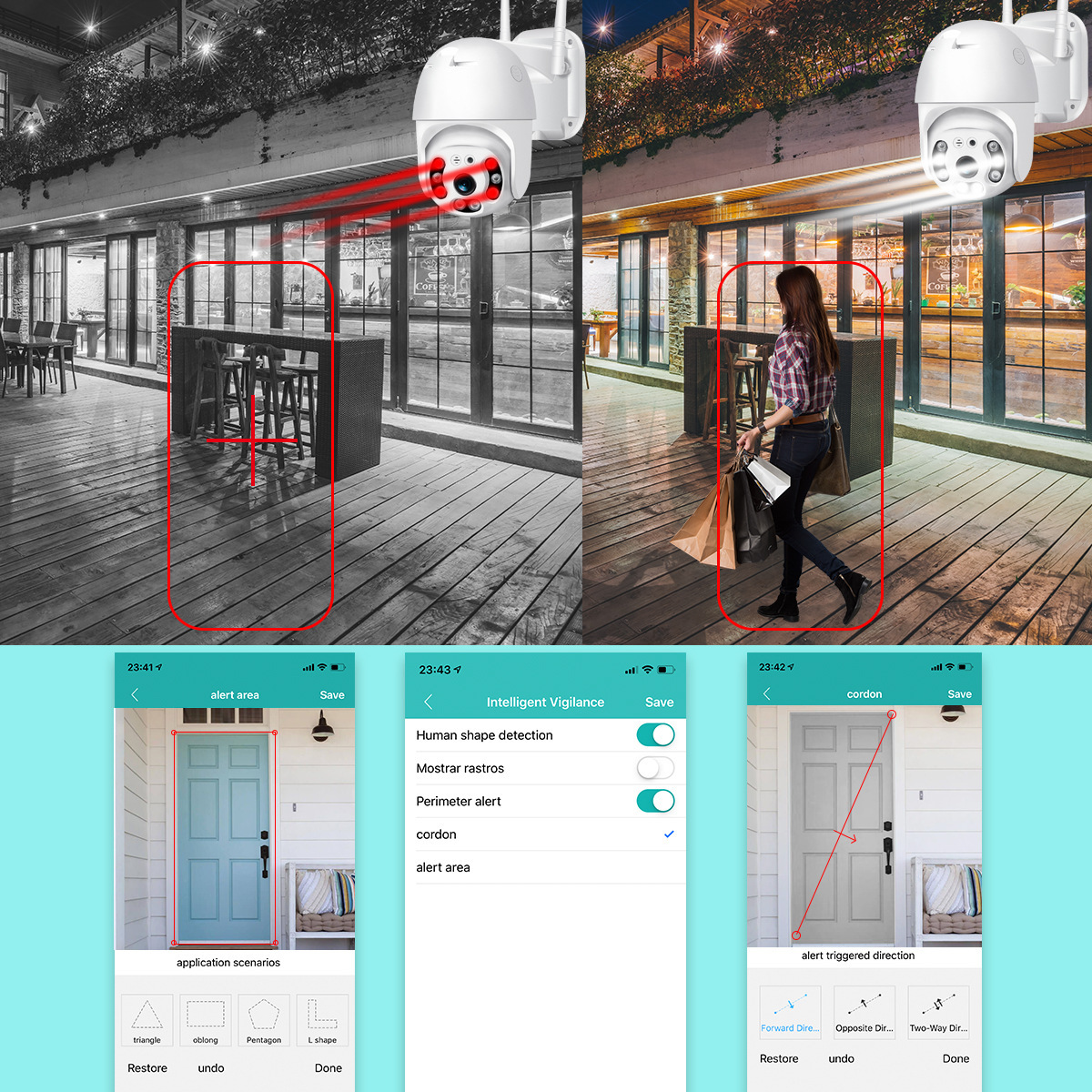

Alarm

①Mobile detection, supports image push
Artificial Intelligence, Intrusion Detection (Optional)

ONVIF

Supports ONVIF

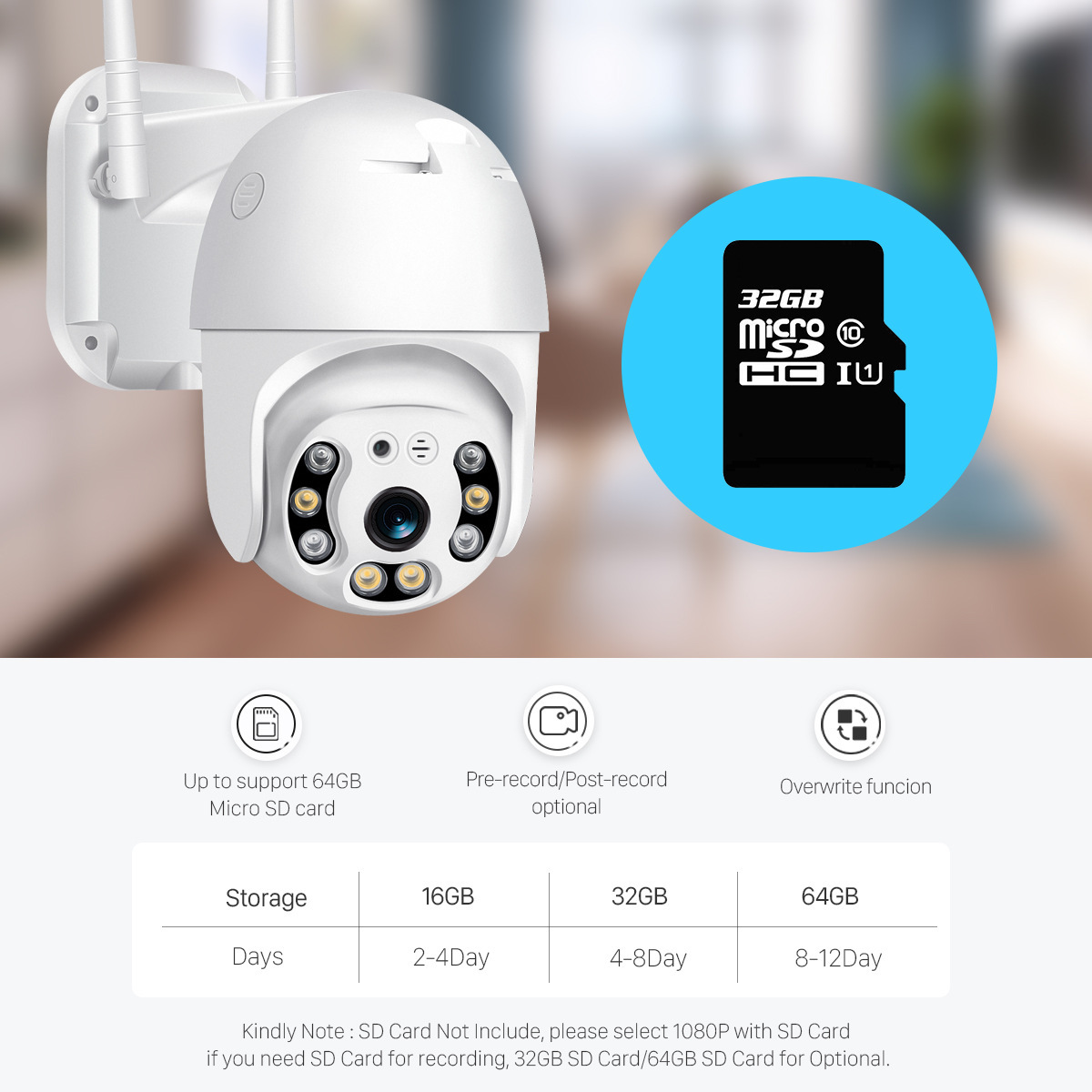

Storage

TFCard (128GB); Cloud Storage/Cloud Drive (optional)

Power supply

12V/2A

Working temperature: -10°C ~ +50°C Working humidity: ≤95%RH
