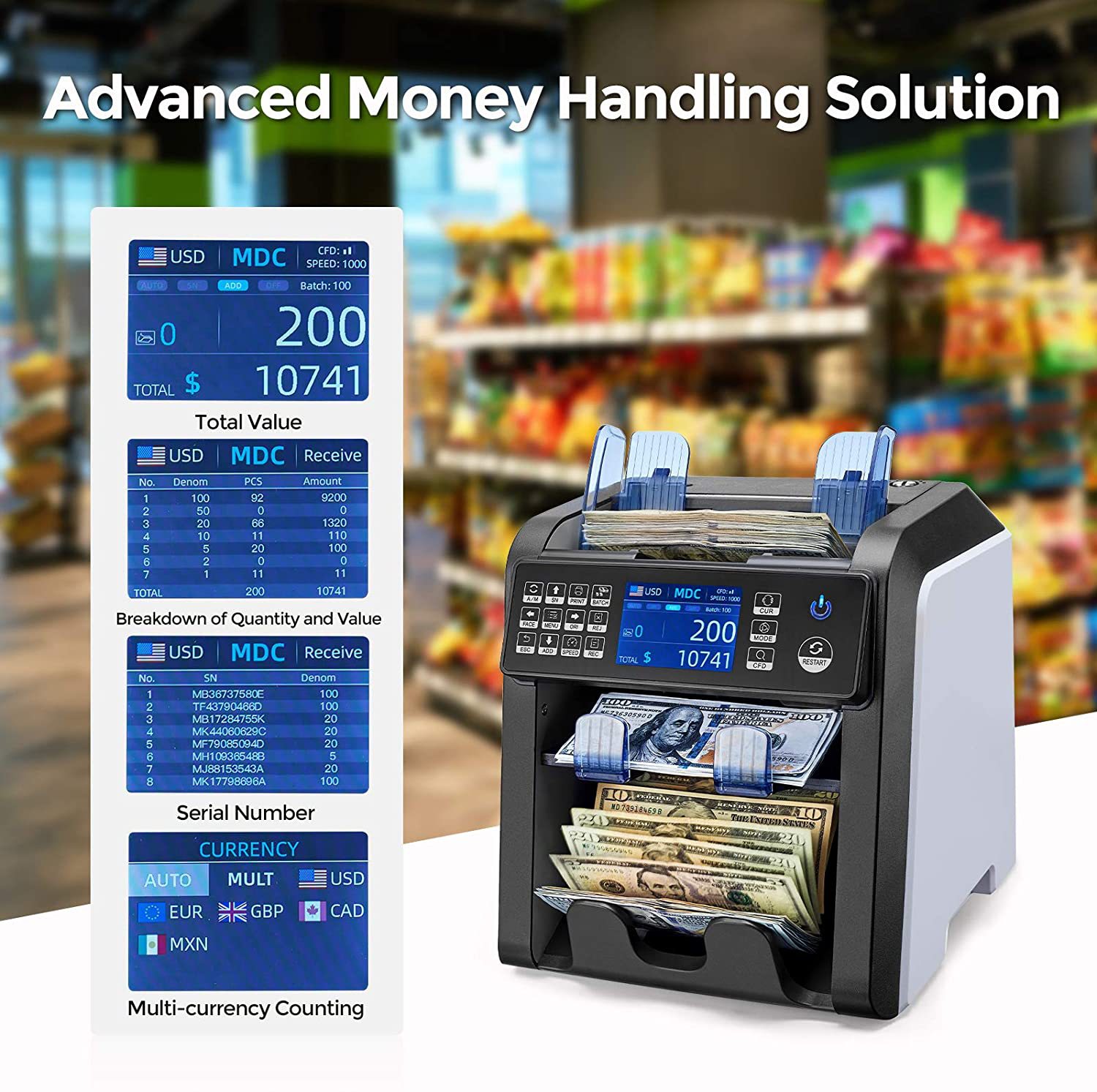

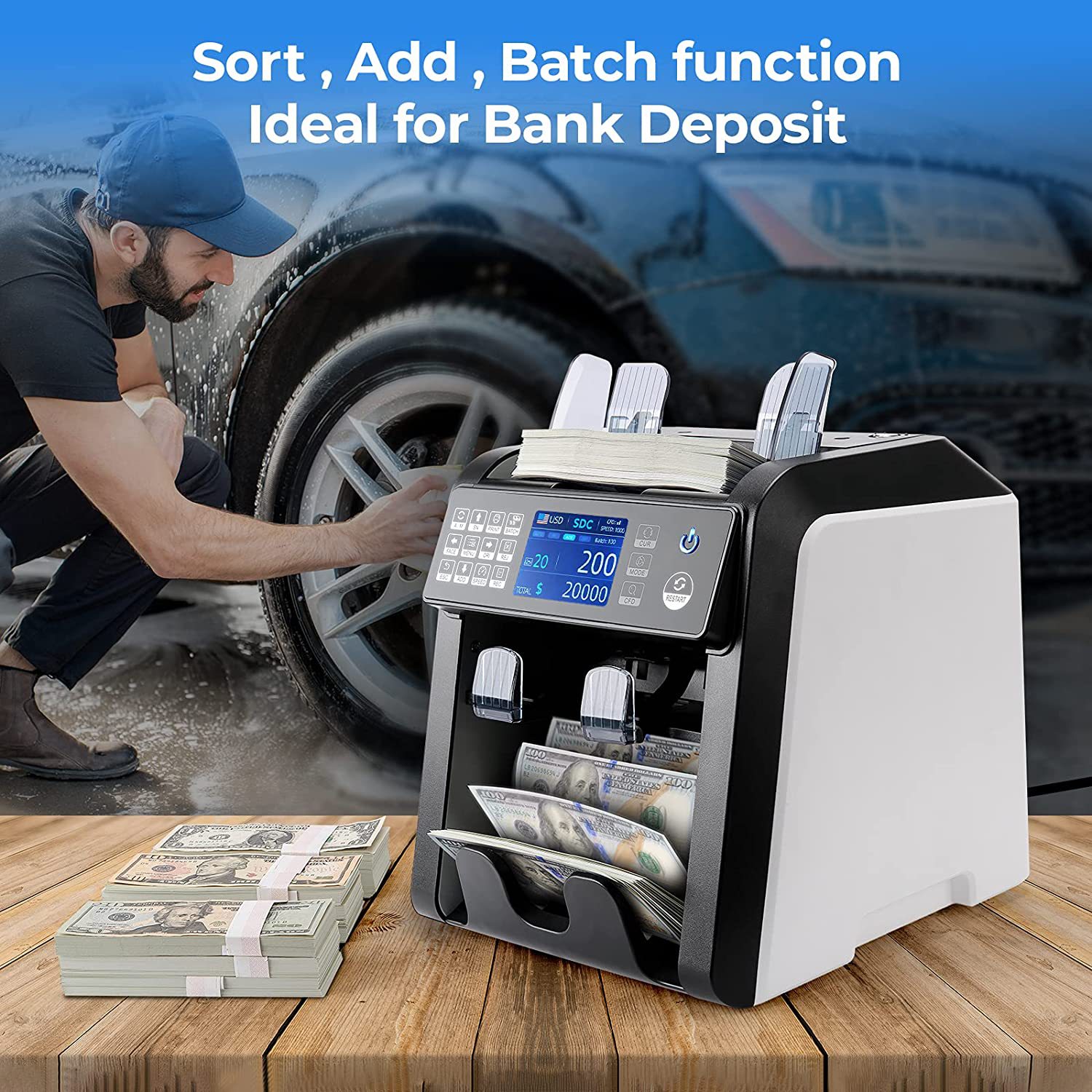

Physical picture display

features:

with dual CIS image scanning, multi-language switching, total amount, version clearing, facing clearing, facing clearing.

Multi-Currency Total one and a half score removal machine

automatic currency recognition

counterfeit money detect images, magnetism, infrared, ultraviolet, etc., automatic half-sheet, re-sheet, and continuous-sheet detection.

Currency selection: USD, EUR, GBP, RUB, CHF, THB, CAD, HKD, JPY, SGD, IDR, MXD, AED... Up to 60 currencies

interface: RS-232, USB, SD card

touch panel and large size TFT display



specifications:

size: 260*230 * 240mm

weight: net weight: 6.5kg, Gross weight: 7.5kg

counting speed: CNT mode 800/1000/1200/1500 sheets/minute, SDC and MDC mode 800/1000 sheets/minute.

Note counting size range: 50*110-90*190mm note counting thickness range: 0.075-0.15mm

power supply: AC 100~240V ± 10%,50/ 60Hz current: maximum 1.8A (100 ~ 240vac)

environment temperature: 0℃ ~ 35℃ (working) working environment:-10℃ ~ 60℃ environment humidity: 20% ~ 90% (no condensation)

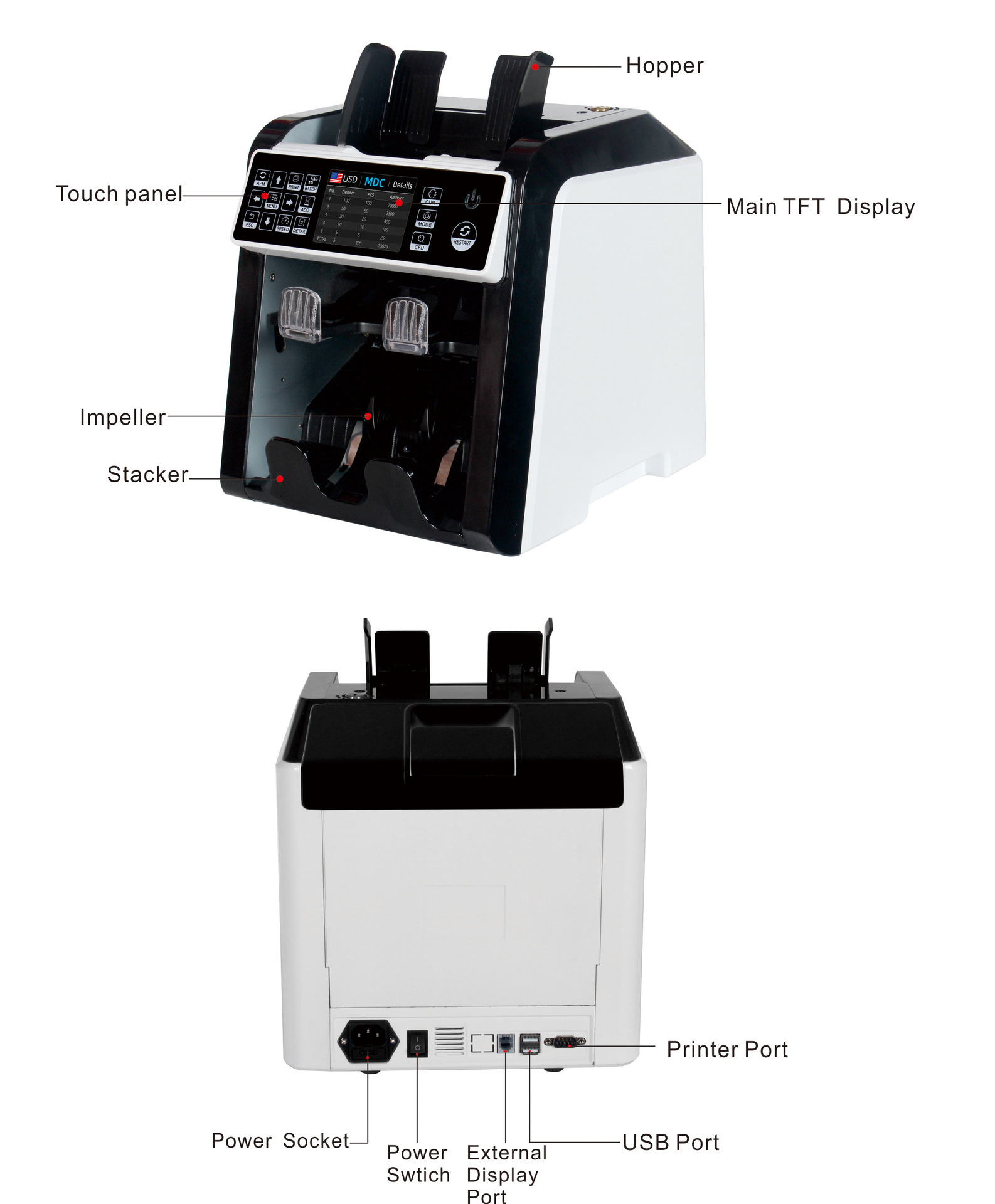

  detail picture

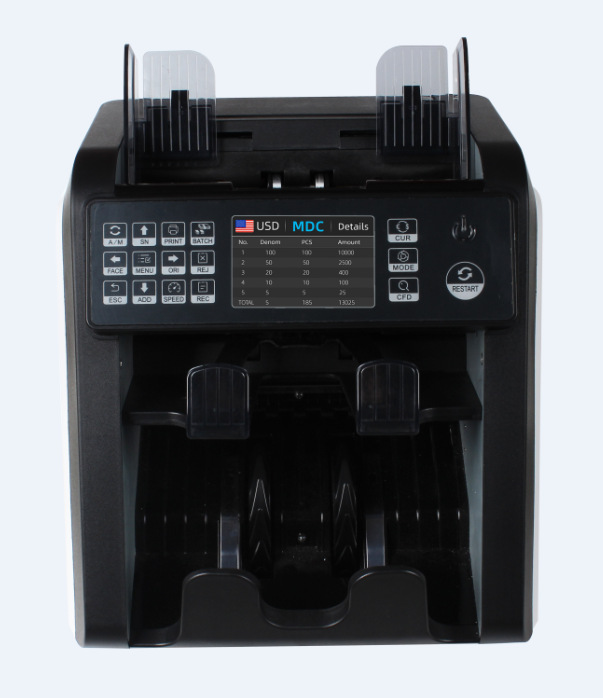

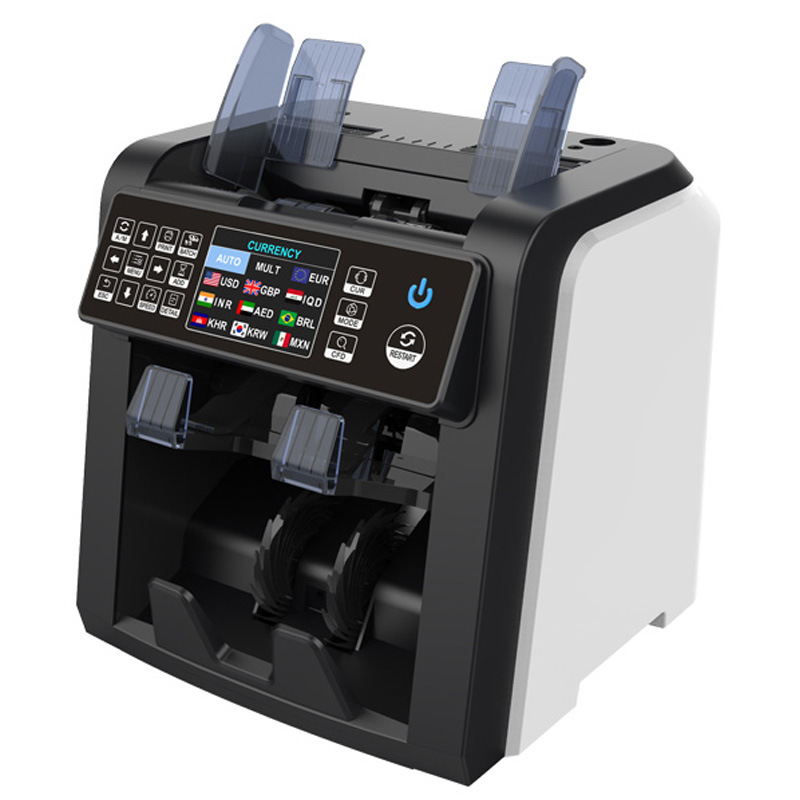

control panel introduction



Button A/M: Choose Auto or Manual Start

button A/M: select automatic or manual start



Button SN: Turn on serial number recognition function, in batch mode,press it to increase batch number by1, move cursor up in menu.

Enable serial number identification, under the button function, press this key to make increase in quantity1, move up in the menu function.

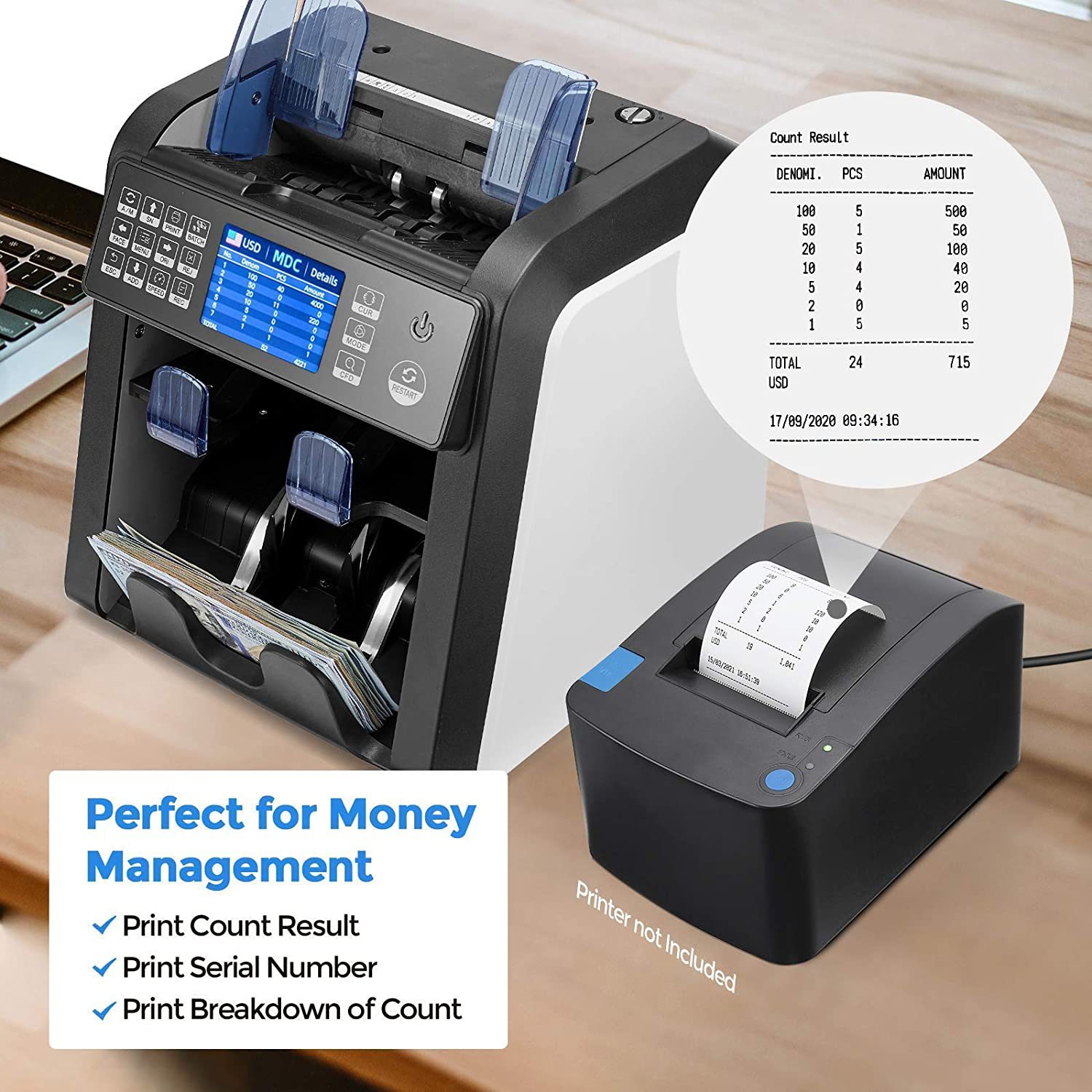

Button PRINT: When your value counter is connected with a printer, then in REPORT mode (press DETAIL to get in), press this PRINT button to print out the detail.

Button printing: when cash register when connecting to the printer, press this print button to print out the details.



Button BATCH: Switch on/off batch mode.

Select preset number of sheets: Open/ disable option

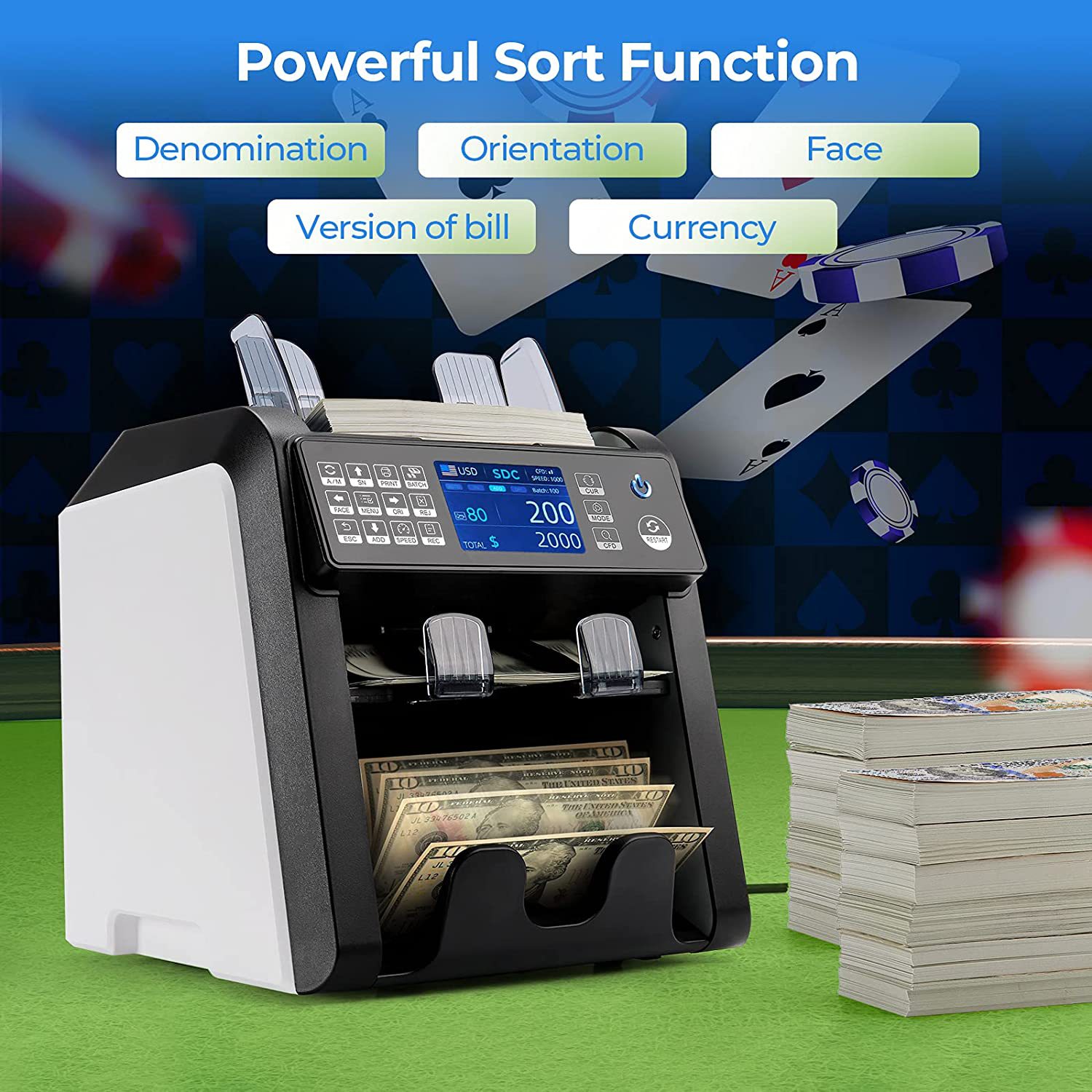

Button FACE: Face sorting function on/off in SDC mode,In BATCH mode,press it to increase batch number by 10,move cursor left in menu

in SDC in the mode, the switch is oriented to the function. In the preset mode, press this key to increase the number10 to move the function to the left in the menu.



Button menu:  Enter in to Menu while in main interface

enter on the main interface master menu, confirmation function



Button  ORJ: Orient sorting function on/off in SDC mode,In BATCH mode,press it to decrease batch number by 10,move cursor right in menu.

In SDC switch in mode orientation function, in preset mode, press this key to add the number decrement to10 multiple of, in the menu right the mobile function.

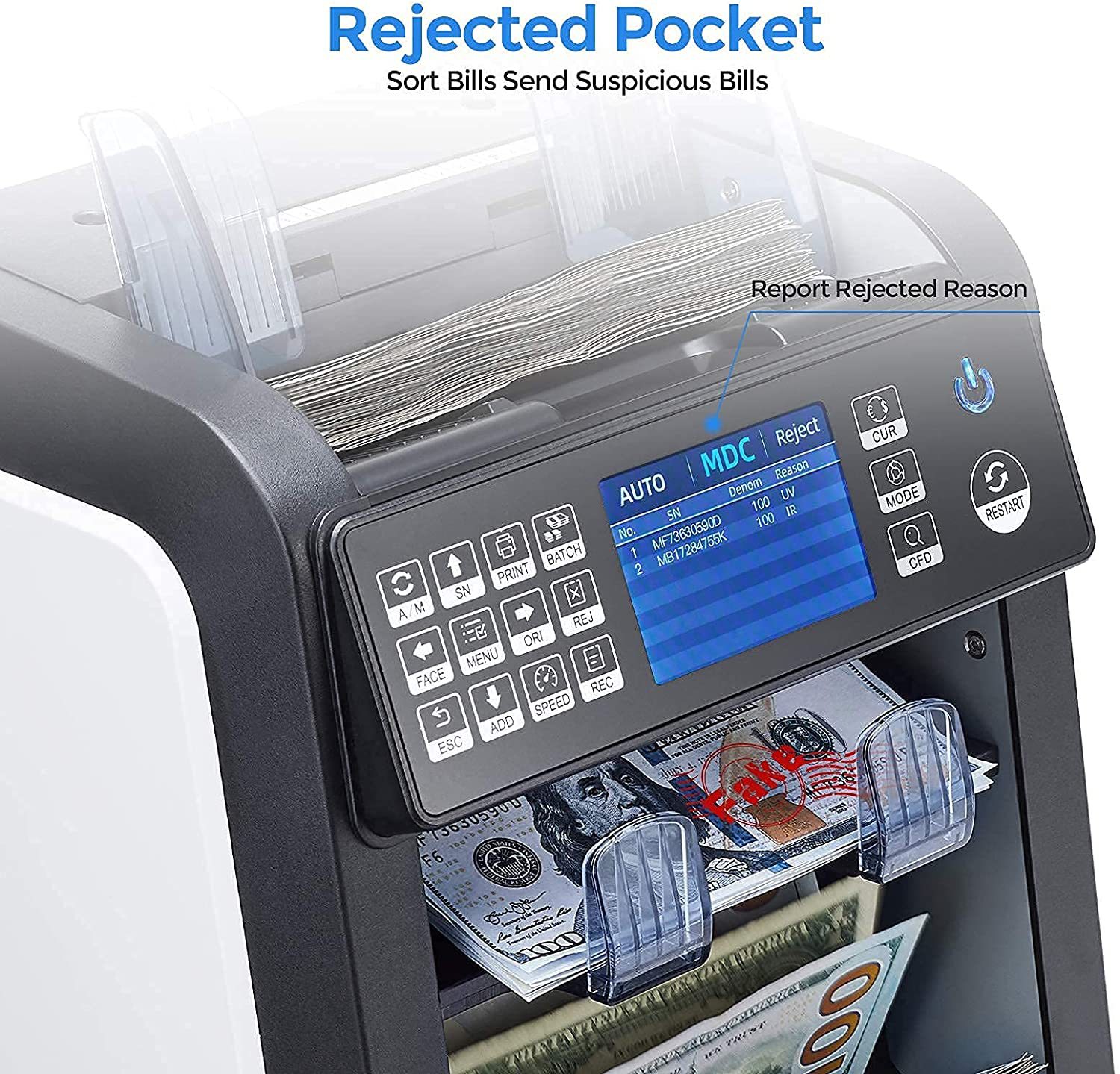

Button  REJ: Show the rejected bills and reason,long press to set the capacity of reject pocket (max.100bills).

Displays the rejected bill and its reason. Press long to set the capacity of the rejected pocket.( max100 A bill).



Button ESC: The default function is to clear the input or back to upper level.

Return Button: returns the parent button.



Button ADD: The default function is to switch on/off ADD function

cumulative quantity: The default function is on/ disable the add feature



Button SPEED: The default function is to select different available counting speeds.

Button speed: select different counting speed



Button REC: View the counting result report

view count results report



Button CUR: Show up the available currency names in your machine and press corresponding numeric button to select the currency you want.

  Select CUR: displays the currency names available on the machine, and then press the corresponding number button to select the desired currency.



Button MODE: Choose CNT mode (Count), SDC mode (Single Denomination Count) & MDC mode (Mixed Denomination Count).

Select CNT mode( count), SDC mode( single-sided count) and MDC mode( mixed denomination count).



Button CFD: Choose different Counterfeit Detection Sensitivity level

select CFD: select different detection sensitivity levels



Button→ ↓ ←: When BATCH is on, then use ↑→ ↓←buttons to input the batch number. And in Menu to choose currency type.

Arrow keys: select different directions and adjust the required national currency through the up, down, left and right arrow keys.



Button RESTART: This button is used to start counting, or back to upper level in MENU.

Button restart: cash register restart the initial state.

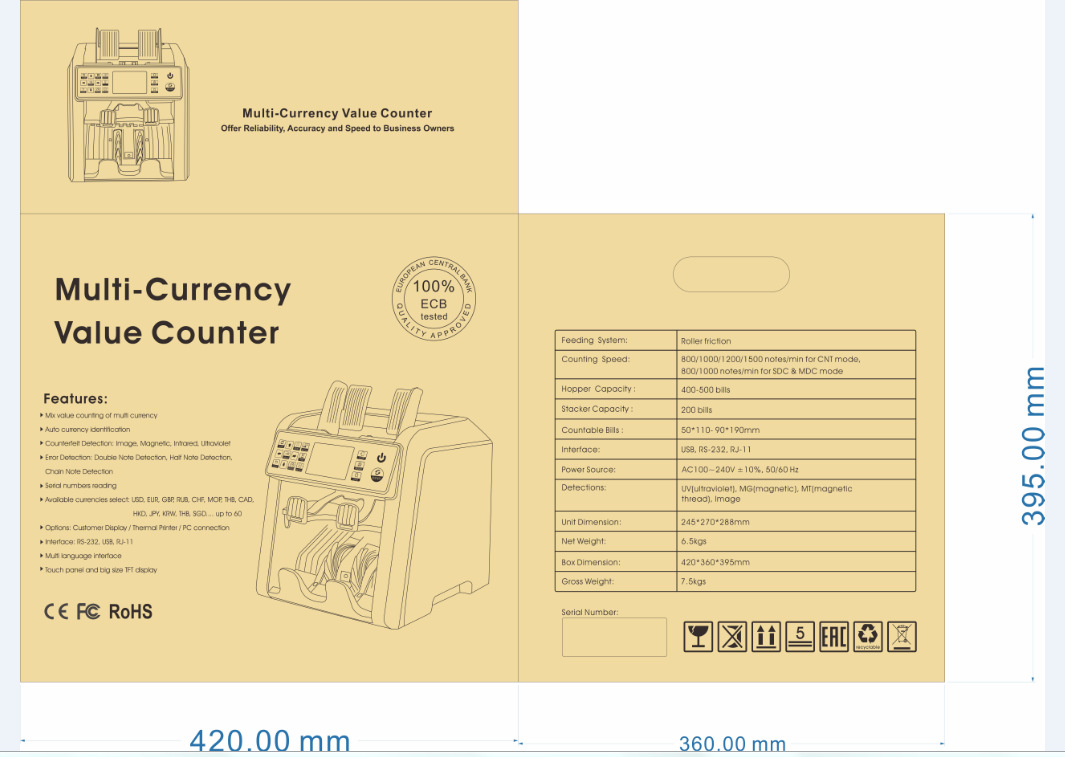

AL-950 color pages





inner box

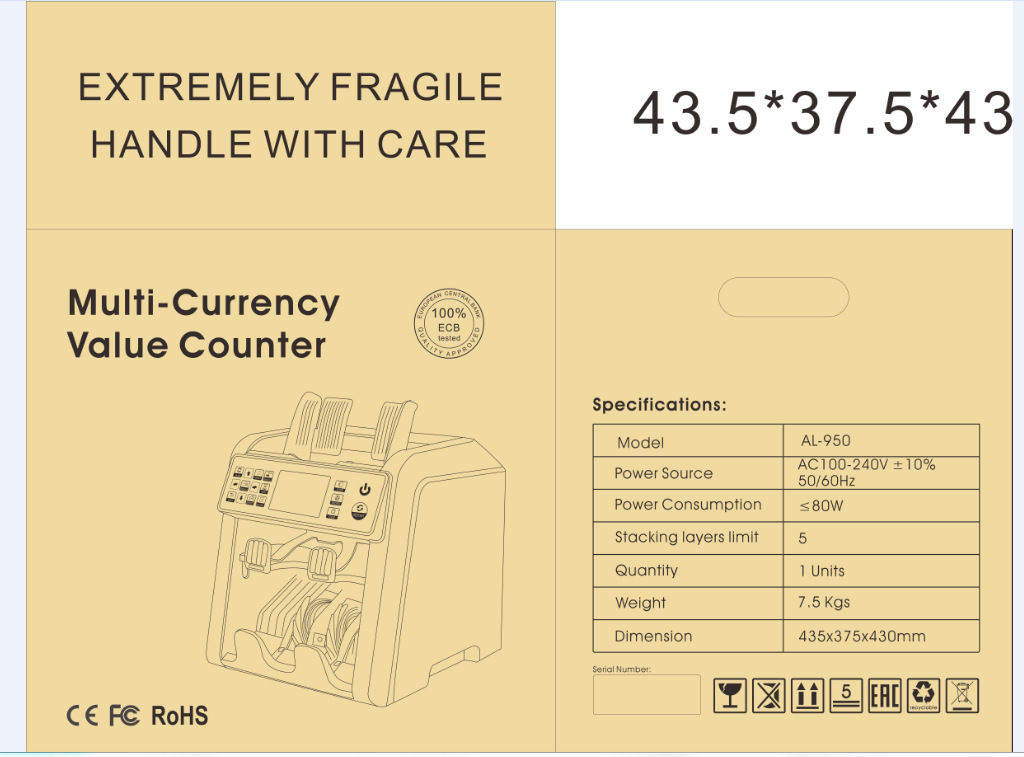

outer box (double-layer packaging is more firm)



undefined


physical picture display

undefinedundefined

undefined



undefined


features:

with dual CIS image scanning, multi-language switching, total amount, version clearing, facing clearing, facing clearing.

Multi-Currency Total one and a half score removal machine

automatic currency recognition

counterfeit money detect images, magnetism, infrared, ultraviolet, etc., automatic half-sheet, re-sheet, and continuous-sheet detection.

Currency selection: USD, EUR, GBP, RUB, CHF, THB, CAD, HKD, JPY, SGD, IDR, MXD, AED... Up to 60 currencies

interface: RS-232, USB, SD card

touch panel and large size TFT display



specifications:

Size: 260*230 * 240mm

weight: net weight: 6.5kg, Gross weight: 7.5kg

counting speed: CNT mode 800/1000/1200/1500 sheets/minute, SDC and MDC mode 800/1000 sheets/minute.

Note counting size range: 50*110-90*190mm note counting thickness range: 0.075-0.15mm

power supply: AC 100~240V ± 10%,50/ 60Hz current: maximum 1.8A (100 ~ 240vac)

environment temperature: 0℃ ~ 35℃ (working) working environment:-10℃ ~ 60℃ environment humidity: 20% ~ 90% (no condensation)





  detail picture

undefined



control panel introduction



undefined


Button A/M:Choose Auto or Manual Start

button A/M: select automatic or manual start



Button SN:Turn on serial number recognition function,in batch mode,press it to increase batch number by1,move cursor up in menu.

Enable the serial number recognition function. Press this key to increase the number by 1 under the button function and move the function up in the menu.



Button PRINT: When your value counter is connected with a printer, then in REPORT mode (press DETAIL to get in), press this PRINT button to print out the detail.

Button printing: when cash register is connected to the printer, press this print button to print out detailed information.



Button BATCH: Switch on/off batch mode.

Select preset number of sheets: on/off option



ButtonFACE:Face sorting function on/off in SDC mode,In BATCH mode,press it to increase batch number by 10,move cursor left in menu

in SDC mode, the switch is oriented to the function. In preset mode, press this key to increase the number to a multiple of 10 and move the function to the left in the menu.



Button menu: Enter in to Menu while in main interface

enter the main menu on the main interface to confirm the function.



Button ORJ:Orient sorting function on/off in SDC mode,In BATCH mode,press it to decrease batch number by 10,move cursor right in menu.

In SDC mode, the switch is oriented. In preset mode, press this key to add a multiple of the number minus to 10 and move the function to the right in the menu.



Button REJ:Show the rejected bills and reason,long press to set the capacity of reject pocket (max.100bills).

Display the rejected bill and its reason, and press long to set the capacity of the rejected pocket (up to 100 bills).



Button ESC: The default function is to clear the input or back to upper level.

Return Button: returns the parent button.



Button ADD: The default function is to switch on/off ADD function

accumulated quantity: the default function is to enable/disable the ADD function.



Button SPEED: The default function is to select different available counting speeds.

Button speed: select different cash counting speed



buttonREC:View the counting result report

view count results report



Button CUR: Show up the available currency names in your machine and press corresponding numeric button to select the currency you want.

  Select CUR: displays the currency names available on the machine, and then press the corresponding number button to select the desired currency.



Button MODE:Choose CNT mode (Count), SDC mode (Single Denomination Count) & MDC mode (Mixed Denomination Count).

Select CNT mode (count),SDC mode (single-sided count), and MDC mode (mixed denomination count).



Button CFD: Choose different Counterfeit Detection Sensitivity level

select CFD: select different detection sensitivity levels



Button↑→ ↓←:When BATCH is on, then use ↑→ ↓←buttons to input the batch number. And in Menu to choose currency type.

Arrow keys: select different directions and adjust the required national currency through the up, down, left and right arrow keys.



Button RESTART: This button is used to start counting, or back to upper level in MENU.

Button restart: cash register restart the initial state.



AL-950 color pages

undefined





undefined

inner box
undefined

outer box (double-layer packaging is more firm)
