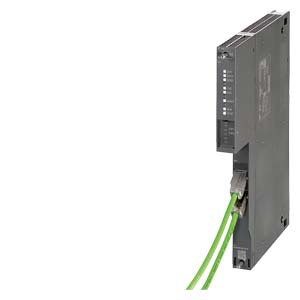

COMMUNICATION PROCESSOR CP 443-1

product information details

technical data

CAx data
technical data
product Type name CP 443-1
Communications processor CP 443-1; 2x 10/100 Mbit/s (IE switch); RJ45 ports; ISO; TCP; UDP; PROFINET IO controller; S7 communication; Open communication (SEND/ RECEIVE); S7 routing; IP configuration via DHCP/ Block; IP Access Control List; Time synchronization; extended web diagnostics; Fast Startup; Support for PROFIenergy;
transmission rate
transmission rate
● At the first interface 10 ... 100 Mbit/s
interface
number of interfaces/compliant with industrial Ethernet 2
number of electrical connections
● At the first interface/conforming to industrial Ethernet 2
electrical Connection specifications
● At the first interface/conforming to the industrial Ethernet RJ45 port
removable storage media specification/C-PLUG
power supply voltage, current consumption, power loss
voltage type/supply voltage DC
supply Voltage/1/5V from backplane bus
relative symmetry tolerance/DC
● 5% at 5V
consumption current
● from backplane bus/DC/5V/typical 1.4 A
loss Power [W] 7.25W
permitted environmental conditions
ambient temperature
