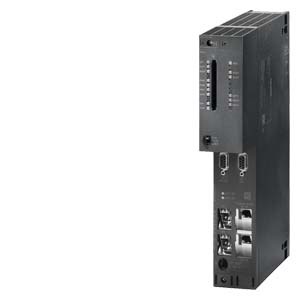

		SIMATIC S7-400H,CPU 412-5H, central component, used for S7-400H and S7-400F, 5 interfaces: 1x MPI/DP,1x DP,1x PN and 2 synchronization module interfaces, 1MB memory (512 KB data/512 KB program)
general information
product Type mark		CPU 412-5H PN/DP
hardware function status		1
firmware version		V6.0
with package
● engineering system		STEP 7 V5.5 SP2 or above, with HF1
CiR configuration in operation
CiR synchronization time, basic load		100 ms
CiR synchronization time, the time of each input/output byte		0 µs
power supply voltage
rating (DC)
● DC 24V		no; Voltage supply through system voltage
input current
DC 5V from backplane bus, typical value		1.6 A
DC 5V from backplane bus, maximum		1.9 A
DC 24V from backplane bus, maximum		150 mA; 150 mA per DP interface
from DC 5V Interface, maximum		90 mA; At each DP interface
power loss
power loss, typical		7.5W
memory
memory Type		other
working memory
● integration		1 Mbyte
● integration (for programs)		512 kbyte
● integration (for data)		512 kbyte
● scalable		no
loading memory
● scalable FEPROM		yes; With memory card (flash memory)
● scalable FEPROM, maximum		64 Mbyte
● integrated RAM, maximum		512 kbyte
● scalable RAM		yes
● scalable RAM, maximum		64 Mbyte
buffer
● existence		yes
● with battery		yes; All data
● Without battery		no
battery
buffer battery
● buffer current, typical value		180 & micro;A; Applicable below 40°C
● buffer current, maximum		1 000 µA
● buffer time, maximum		describe boundary conditions and influence coefficients in the module data sheet.
● power supply from external buffer voltage on CPU		5V DC to 15V DC
CPU-processing time
for bit operations, typical values		31.25 ns
typical values for word operations		31.25 ns
for fixed-point operations, typical values		31.25 ns
for floating-point operations, typical values		62.5 ns
CPU-component
DB
● quantity, maximum		6 000; Number bar: 1 to 16000
● capacity, maximum		64 kbyte
FB
● quantity, maximum		3 000; Number bar: 0 to 7999
● capacity, maximum		64 kbyte
FC
● quantity, maximum		3 000; Number bar: 0 to 7999
● capacity, maximum		64 kbyte
OB
● quantity, maximum		see actions list
● capacity, maximum		64 kbyte
● number of available loops OB		1; OB 1
● Number of time alarm OB		4; OB 10-13
● number of delayed alarms OB		4; OB 20-23
● Number of OBS for wake-up warnings		4; OB 32-35
● number of process alarms OB		4; OB 40-43
● Number of DPV1 alert OB		3; OB 55-57
● Number of OBS started		2; OB 100, 102
● Number of asynchronous errors OB		9; OB 80-88
● Number of synchronization errors OB		2; OB 121, 122
nesting Depth
● Each priority level		24
● additional levels in error OB		1
counter, timer and its remanence
S7 counter
● quantity		2 048
remanence
-Adjustable		yes
-Lower limit		0
-Upper limit		2 047
-Preset		Z 0 to Z 7
counter range
-Lower limit		0
-Upper limit		999
IEC counter
● quantity		unlimited (limited only by RAM)
S7 time
● quantity		2 048
remanence
-Adjustable		yes
-Lower limit		0
-Upper limit		2 047
-Preset		no time remaining
time range
-Lower limit		10 ms
-Upper limit		9 990 s
IEC timer
● existence		yes
● type		SFB
● quantity		unlimited (limited only by RAM)
data range and its remanence
data range can be retained, all		entire working and loading memory (with buffer battery)
mark
● quantity, maximum		8 192 byte
● residual magnetism exists		yes
● preset remanence		MB 0 to MB 15
● Number of timing marks		8; In 1 marker byte
local data
● adjustable, maximum		16 kbyte
● preset		8 kbyte
address range
peripheral address range
● input		8 kbyte
● output terminal		8 kbyte
distributed
-MPI/DP interface, input		2 kbyte
-MPI/DP interface, output		2 kbyte
-DP interface, input		4 kbyte
-DP interface, output terminal		4 kbyte
-PROFINET interface, input		8 kbyte
-PROFINET interface, output terminal		8 kbyte
process Image
● input, adjustable		8 kbyte
● output terminal, adjustable		8 kbyte
● input, preset		256 byte
● output, preset		256 byte
● consistent data, maximum		244 byte
● continuously access data in the process Image		yes
Component process Image
● number of component process images, maximum		15
digital channel
● input		65 536
-Centralized		65 536
● output terminal		65 536
-Centralized		65 536
analog Channel
● input		4 096
-Centralized		4 096
● output terminal		4 096
-Centralized		4 096
hardware extension
number of extended supports, maximum		21
connectable OP		47
multi-value calculation		no
interface Module
● number of plug-in IM (total), maximum		6
● number of plug-in IM 460, maximum		6
● number of plug-in IM 463, maximum		4; Only in separate operations
number of DP Master stations
● integration		2
● about CP		10; CP 443-5 Extended
● Allow IM + CP mixed mode		no
● about the interface module		0
number of IO controllers
● integration		1
● about CP		0
number of FM and CP that can be run (recommended)
● FM		see S7-400H high availability automation system operation manual. Limit the number of slots and connections
● CP, PtP		see S7-400H high availability automation system operation manual. Limit the number of slots and connections
● PROFIBUS and Ethernet CP		14; The maximum 10 CP is used as the DP Master Station.
Slot
● required slots		2
time
clock
● hardware clock (real-time clock)		yes
● buffering and synchronization		yes
● resolution		1 ms
● Daily deviation (cache), maximum		1.7 s; Power off
● Daily deviation (not cached), maximum		8.6 s; Power on
runtime counter
● quantity		16
● Digital/digital bar		0 to 15
● Value range		SFC 2.3 and 4:0 to 32767 hours (SFC 101): 31 power-1 hour from 0 to 2
● remaining		yes
time Synchronization
● support		yes
● On MPI, the main station		yes
● On MPI, The Slave station		yes
● On DP, the main station		yes
● On The DP, the slave station		yes
● In AS, the main station		yes
● In AS, the slave station		yes
● use NTP over Ethernet		yes; As a client
synchronize the time difference in the system in the following ways
● Ethernet, maximum		10 ms; NTP
● MPI, maximum		200 ms
interface
number of RS 485 interfaces		2
number of other interfaces		2; Optical fiber interface
1. Interface
interface Type		integration
physical composition		RS 485/PROFIBUS + MPI
potential isolation		yes
power supply at the interface (15 to 30V DC), maximum		150 mA
number of connection sources		MPI: 32,DP: 16
functionality
● MPI		yes
● PROFIBUS DP Master Station		yes
● PROFIBUS DP slave station		no
MPI
● number of connections		32; Install a diagnostic repeater on the branch, and reduce the number of connection sources on the branch by 1
● transmission rate, maximum		12 Mbit/s
service
-PG/OP communication		yes
-Route		yes
-Global Data Communication		no
-S7 basic communication		no
-S7 communication		yes
-S7 communication as client		yes
-S7 communication, as a server		yes
DP Master Station
● number of connections, maximum		16; Install a diagnostic repeater on the branch, and reduce the number of connection sources on the branch by 1
● transmission rate, maximum		12 Mbit/s
● Number of DP slave stations, maximum		32
service
-PG/OP communication		yes
-Route		yes
-Global Data Communication		no
-S7 basic communication		no
-S7 communication		yes
-S7 communication as client		yes
-S7 communication, as a server		yes
-Equal distance		no
-Isochronous mode		no
-SYNC/FREEZE		no
-Activate/disable DP slave		no
-Direct data exchange (horizontal connection)		no
-DPV1		yes
address range
-Input terminal, maximum value		2 kbyte
-Output terminal, maximum		2 kbyte
valid data for each DP slave
-Valid data for each DP slave, maximum		244 byte
-Input terminal, maximum value		244 byte
-Output terminal, maximum		244 byte
-Number of slots, maximum		244
-Each slot, maximum		128 byte
DP slave station
● number of connections		no CPU configuration as DP slave
2. Interface
interface Type		PROFINET
physical composition		ethernet RJ45
potential isolation		yes
automatic calculation of transmission rate		yes; Autosensing (automatic sensing)
automatic negotiation		yes
automatic crossover		yes
support for changing IP addresses for runtime		no
number of connection sources		48
physical interface
● number of ports		2
● integrated switch		yes
gas-liquid redundancy
● support		yes
● Switching time when the line is interrupted, type		200 ms
● number of users in the loop, maximum		50
functionality
● PROFINET IO controller		Yes
● PROFINET IO devices		no
● PROFINET CBA		no
● PROFIBUS DP Master Station		no
● PROFIBUS DP slave station		no
● Open IE communication		yes
● Network Server		no
● point-to-point connection		no
PROFINET IO controller
● transmission rate, maximum		100 Mbit/s
service
-PG/OP communication		yes
-S7 route		yes
-S7 communication		yes
-Isochronous mode		no
-Open IE communication		yes
-Share devices		yes; Only in separate operations
-Start by priority		no
-The maximum number of I/O devices that can be connected.		256; Redundant operation through two interfaces
-Number of connected IO devices for RT, maximum		256
-On-line, maximum		256
-Activate/cancel IO devices		no
-I/O devices (Partner-Ports) that are being replaced.		No
-Instrument exchange without removable storage media		yes
-Send cycle		250 µs, 500 µs, 1 ms, 2 ms, 4 ms
-Update time		250 & micro;s to 512 ms, the minimum value depends on the number of valid data configured and the single or redundant operation mode of the configuration.
Address range
-Input terminal, maximum value		8 kbyte
-Output terminal, maximum		8 kbyte
-Valid data consistency, maximum		1 024 byte
open IE communication
● number of connections, maximum		46
● Local port number used by the system		0, 20, 21, 25, 102, 135, 161, 34962, 34963, 34964, 65532, 65533, 65534, 65535
● maintain the active state and provide support		yes
3. Interface
interface Type		integration
physical composition		RS 485 / PROFIBUS
power supply at the interface (15 to 30V DC), maximum		150 mA
number of connection sources		16
functionality
● PROFIBUS DP Master Station		yes
● PROFIBUS DP slave station		no
DP Master Station
● number of connections, maximum		16
● Number of DP slave stations, maximum		64
service
-PG/OP communication		yes
-Route		yes
-Global Data Communication		no
-S7 basic communication		no
-S7 communication		yes
-S7 communication as client		yes
-S7 communication, as a server		yes
-Equal distance		no
-Isochronous mode		no
-SYNC/FREEZE		no
-Activate/disable DP slave		no
-Direct data exchange (horizontal connection)		no
-DPV0		yes
-DPV1		yes
address range
-Input terminal, maximum value		4 kbyte
-Output terminal, maximum		4 kbyte
valid data for each DP slave
-Valid data for each DP slave, maximum		244 byte
-Input terminal, maximum value		244 byte
-Output terminal, maximum		244 byte
-Number of slots, maximum		244
-Each slot, maximum		128 byte
4. Interface
interface Type		plug-in synchronization module (LWL)
plug-in interface module		synchronization module
5. Interface
interface Type		plug-in synchronization module (LWL)
plug-in interface module		synchronization module
agreement
SIMATIC communication
● S7 route		yes
open IE communication
● TCP/IP		yes; By integrating PROFINET interfaces and loadable FB
-Data length, maximum		32 kbyte
-Multiple passive connections on each port to provide support		yes
● ISO-on-TCP (RFC1006)		yes; Through the integrated PROFINET interface or CP 443-1 and loadable FB
-Data length, maximum		32 kbyte; 1452 bytes about CP 443-1 Adv.
● UDP		yes; By integrating PROFINET interfaces and loadable FB
-Number of connections, maximum		46
-Data length, maximum		1 472 byte
isochronous mode
beat synchronization (Application to Port synchronization)		no
equidistant		no
communication function
PG/OP communication		yes
● Number of connectable ops without message processing		47
● The number of connected ops with message processing		47; When using alert_S/SQ and alert_D/DQ
dataset routing		yes
global Data Communication
● support		no
S7 basic communication
● support		no
S7 communication
● support		yes
● as a server		yes
● as a client		yes
● valid data for each task, maximum		64 kbyte
● valid data for each task (consistency), maximum		462 byte; 1 variable
S5 compatible communication
● support		yes; (maximum about 10 CP and FC AG_SEND and FC AG_RECV)
● valid data for each task, maximum		8 kbyte
● valid data for each task (consistency), maximum		240 byte
● The number of AG-SEND/AG-RECV tasks completed simultaneously by each CPU. Maximum value		64/64
standard Communication (FMS)
● support		yes; Pass CP and loadable FB
network Server
● support		no
number of connections
● All		48
● applicable to PG communication
-Reserved for PG communication		1
-Adjustable for PG communication, maximum		0
● can be used for OP communication
-Reserved for OP communication		1
-Adjustable for OP communication, maximum		0
● can be applied to S7 basic communication
-Reserved for S7 Basis communication		0
-Adjustable for S7 basic communication, maximum		0
● can be applied to S7 communication
-Reserved for S7 communication		0
-Adjustable S7 communication, maximum		0
● available for routing
-Reserved for routing		0
-Adjustable routing, maximum		0
S7 message function
the maximum number of registrable sites for the message function.		47; Maximum 47, with alarm_S/SQ and alarm_D/DQ(OP); Maximum 8, with alarm, alarm_8, alarm 8p, Report and Report_8 (for example, WinCC)
symbol-related information		no
SCAN method		no
program Message		yes
process diagnosis message		yes
alarm S component active at the same time, maximum value		250; Colleagues activate alarm S/SQ component or alarm D/DQ component
alarm 8 components		yes
● number of instances of alarm 8 and S7 communication components, maximum		600
● preset, maximum		300
transmission Technology message		yes
number of files that can be registered at the same time (SFB 37 AR_SEND)		16
debugging function test
component Status		yes
each step		yes
number of stop points		16
status/control
● variable status/control		yes; Up to 16 variable tables
● variable		input/output terminal, Mark, DB, peripheral device input/output terminal, timer, counter
● number of variables, maximum		70
mandatory
● mandatory		yes
● force, variable		input/output, Mark, peripheral input/output
● number of variables, maximum		256
diagnostic buffer
● existence		yes
● number of entries, maximum		3 200
-Adjustable		yes
-Preset		120
maintenance data
● readable		yes
EMV
suppress radio interference radiation according to EN 55 011 standard
● limit value Grade A is suitable for industrial applications		yes
● limit value level B is applicable to applications in residential areas		no
configuration
configuration software
● STEP 7		yes
programming
● operate the standby device		see actions list
● Clamp layer		7
● continuously access data in the process Image		yes
● system function (SFC)		see actions list
● system function components (SFB)		see actions list
programming language
-KOP		yes
-FUP		yes
-AWL		yes
-SCL		yes
-CFC		yes
-GRAPH		yes
-HiGraph®		yes
number of SMCs active at the same time
-RD_REC		8
-WR_REC		8
-WR_PARM		8
-PARM_MOD		1
-WR_DPARM		2
-DPNRM_DG		8
-RDSYSST		8
-DP_TOPOL		1
number of SFBS active at the same time
-RDREC		8
-WRREC		8
technical Protection
● user program protection/password protection		yes
● module encryption		yes; Equipped with S7-Block Privacy
size
width		50 mm
height		290 mm
depth		219 mm
weight
weight, about		995 g

Update time：20240917144215
