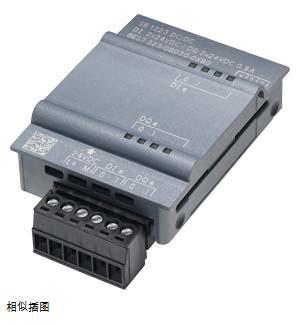

SIGNAL BOARD SB1222, 4 DQ 24VDC 200KHZ

technical data

		SIMATIC S7-1200, digital output SB 1222,4 digital output, 24V DC 200kHz
general information
product Type mark		SB 1222,DQ 4x24 VDC 200 kHz
input current
DC 5V from backplane bus, typical value		35 mA
power loss
power loss, typical		0.5W
digital Output
number of digital outputs		4; Electronic MOSFETs (consumption current/current supply)
● In the component		4
short circuit protection		no
on-off capability of output terminal
● maximum value of resistance load		0.1 A
load resistance range
● upper limit		11?
Output voltage
● rating (DC)		24V
● maximum value for signal "0"		1V; With 10 kOhm load
● For signal "1", minimum value		L+ (-1.5 V)
output Current
● For the allowable range of signal "1", the maximum value		0.1 A
wire Length
● shielding, maximum		50 m
alarm/diagnosis/status information
diagnostic display LED
● used for output status		yes
protection level and protection category
protection level in accordance with EN 60529
● IP20		yes
environmental requirements
open Air
● maximum drop		0.3 m; Five, in the shipping package
operating ambient temperature
● minimum		-20°C
● maximum value		60°C
● horizontal installation, minimum		-20°C
● horizontal installation, maximum		60°C
● vertical installation, minimum		-20°C
● vertical installation, maximum		50°C
ambient temperature during transportation/storage
● minimum		-40°C
● maximum value		70°C
air pressure meets IEC 60068-2-13 standard requirements
● storage/transportation, minimum		660 hPa
● storage/transportation, maximum		1 080 hPa
relative air humidity
● non-condensing operation at 25°C, maximum		95%
machinery/materials
shell material (front)
● Plastic		yes
size
width		38 mm
height		62 mm
depth		21 mm
weight
weight, about		35g
