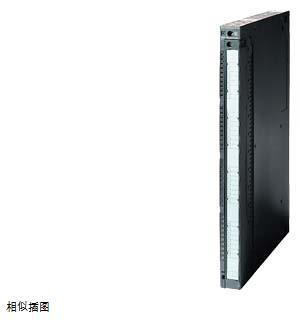

SM422, 16DO, AC5-230V, 5A RELAY

		SIMATIC S7-400, digital output SM 422, potential isolation 16 digital outputs; 5 .. 230V AC,5A relay
power supply voltage
load voltage L +
● rating (DC)		60V
● allowable range, lower limit (DC)		1v
● allowed range, upper limit (DC)		60V
load voltage L1
● rating (AC)		230V
● allowable range, lower limit (AC)		2v
● allowed range, upper limit (AC)		264V
input current
DC 5V from backplane bus, maximum		1 A
power loss
power loss, typical		4.5W
digital Output
number of digital outputs		16; Relay
on-off capability of output terminal
● maximum lighting load		60W
output Current
● For the rating of signal "1"		5 A
switching frequency
● maximum value of resistance load		10Hz
total current at the output terminal (each group)
all installation locations
-Up to 60 ℃, maximum		5 A; 10 A with fan bar
relay output
● maximum number of operation cycles		100 000; 100000 (AC-15 / DC-13);3000000 machinery
on-off capability of contacts
-Maximum value of inductive load		5 A; 5 A (30V DC),5 A (230V AC)
-Maximum value of resistance load		5 A; 5 A (30V DC),5 A (230V AC),1.2 A (60V DC),0.2 A (125V DC)
wire Length
● shielding, maximum		1 000 m
● unshielded, maximum		600 m
alarm/diagnosis/status information
diagnostic function		no
potential isolation
digital output potential isolation
● group points between channels		2
● between the Channel and the backplane bus		yes
insulation
insulation Test, use		AC 1500V
size
width		25 mm
height		290 mm
depth		210 mm
weight
weight, about		700g
