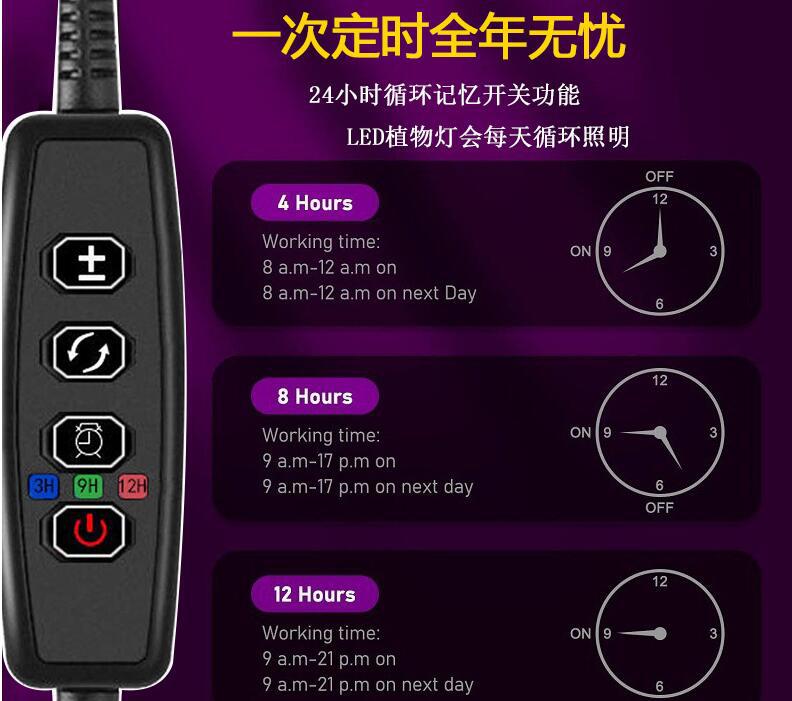

【Product Timing]: Can be set to 3 hours, 9 hours, 12 hours (press once for 3 hours! Press again for 9 hours! Press the third time for 12 hours! (After setting the hours, the device will cycle the timing switch daily, without the need to set it every day).

【Product Power Supply】: Use a 1-3A adapter, one end uses a 1A adapter, two ends uses a 2A adapter, and three or four ends uses a 3A adapter.

【Power Lumen】: One head 5W, two heads 8W, three heads 12W, four heads 16W

360ml wavelength red 625-630 blue 455-460

【Product Lamp Shade】: The lamp shade is 26cm long, and the flexible tube is 38cm long.

【Access Voltage】: 5v (Can be connected to a voltage range of 110-240v)

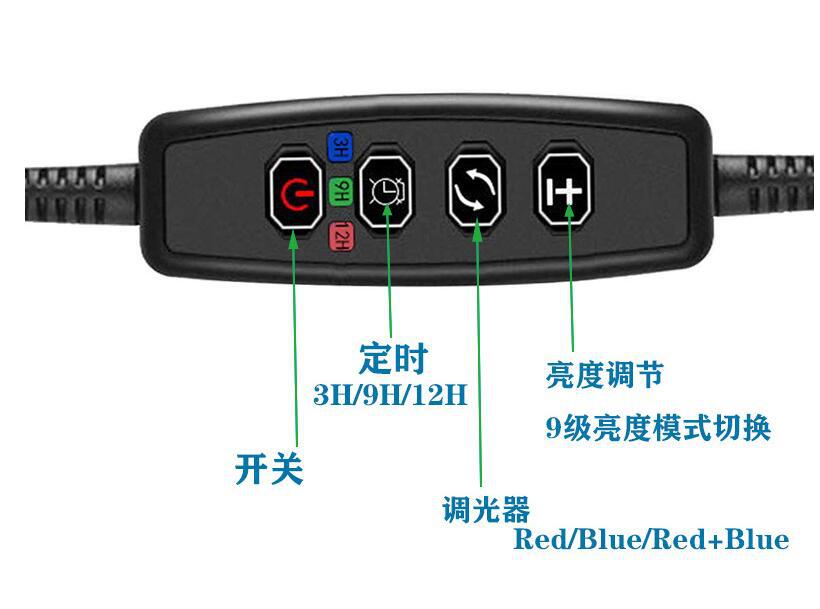

【Product dimming】: 9-stage cyclic dimming.

【Product Light Source】: Switchable in three colors, single bright red light, single bright blue light, and full bright mixed light.

【Service Policy】: Warranty for two years, damage caused by human is not covered by the warranty.

【Number of LED beads】: Chip light emitting, LED bead brand (Sanan), single head 20 pieces, 13 red and 7 blue.

【 Wire 】: USB controller uses MOSFET 3400 5.8A, wire 3A, total length 1.8 meters

Product Usage:
★ High-efficiency energy saving: only consumes 2 degrees of electricity after 1000 hours
★ Light Health: The light does not contain ultraviolet or infrared rays, and does not produce radiation.
★ Eco-friendly and green, without mercury and lead and other harmful elements, easy to recycle and utilize.
★ Eye Protection USB Port, No Strobe

1. Color box size: Length 35CM * width 14.3CM * height 4.3CM * height 8.5CM, 1-5 heads universal

2. Outer Box Size: 44*44*38, 1-5 heads universal.

3. A single product weighs 0.45KG, 18PCS per box, and the total weight of one box is 8.9KG.

Each weight of two heads is 0.5KG, and one box contains 18pcs, weighing 9.7KG.

Three heads with a total weight of 0.62KG per box, 18 pieces per box, with a total weight of 13KG per box.

Four pieces with a total weight of 0.8KG per box, 18 pieces in a box, with a total weight of 15.3KG per box.

Five heads with a total weight of 0.86KG per piece, 18 pieces per box, with a total weight of 16.3KG per box.

4. This product is certified with CE and ROHS, making it convenient for export. The certificate is as shown in the figure.。

Red and Blue Light Function:

Blue light: Preventing plant stem elongation (plant stems becoming too long or not robust)

Red light: Can help plants grow, bear fruit, and color.

Red and blue light: Normal plant growth, flowering, and preventing runaway growth

As is widely known, sunlight is composed of a variety of light waves of different wavelengths, and only about 5% of the solar radiation spectrum is responsible for photosynthesis. Among these, blue light with a wavelength of 400 to 520 nanometers and red light with a wavelength of 610 to 720 nanometers contribute the most to photosynthesis.
Experiments have shown that red light is beneficial for the synthesis of sugar and carbohydrates, accelerating the development of plant stem nodes. Excessive energy is converted into thermal energy, causing water evaporation. Blue light is beneficial for the synthesis of protein, which has a significant impact on plant growth and the formation of young buds. It can inhibit plant elongation and make plants form short and strong shapes, and also can control cell differentiation, which is beneficial for the synthesis of anthocyanin and vitamins. Therefore, blue light and red light are known as light fertilizers, which are a new type of environmental-friendly "physical fertilizers" after the "chemical fertilizers".
Therefore, the spectra that simulate the effects of plants have the functions of fertilization and medicine, which gives new significance to the development of efficient and eco-friendly agriculture.
Artificial plant lighting sources can avoid the waste of light and electricity, and can quickly improve the growth efficiency of plants.

Red and Blue Light Plant Growth ChamberBasic Parameters:
① Floor height: 470-610mm for double-layer, 960-1240mm for single-layer (height of the net structure for holding goods is adjustable).
Monochromatic: Red light at 650nm, blue light at 450nm.
③ Red and blue light ratio adjustment range: 1:9—9:1 continuous adjustable. Infinite dimming.
④ Light intensity adjustment range: 0-5000 LX (at a distance of 100mm below the light panel).

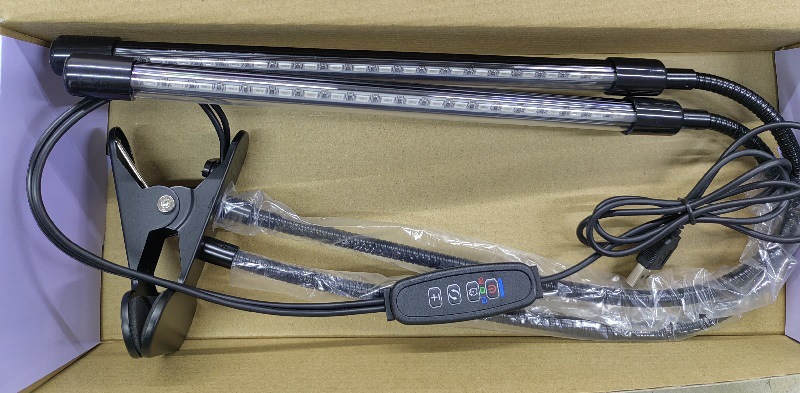

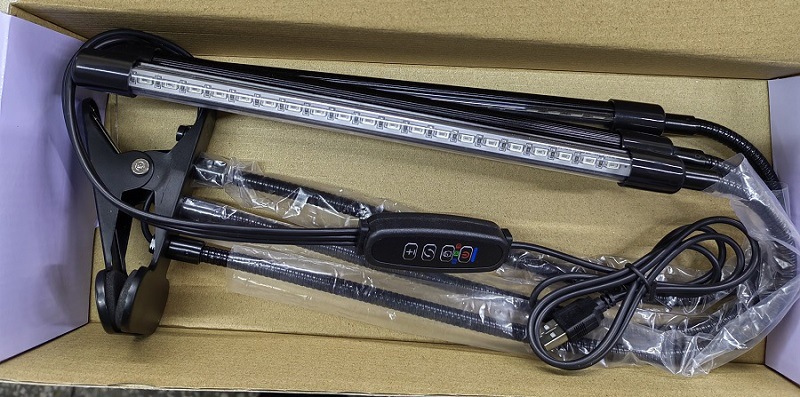

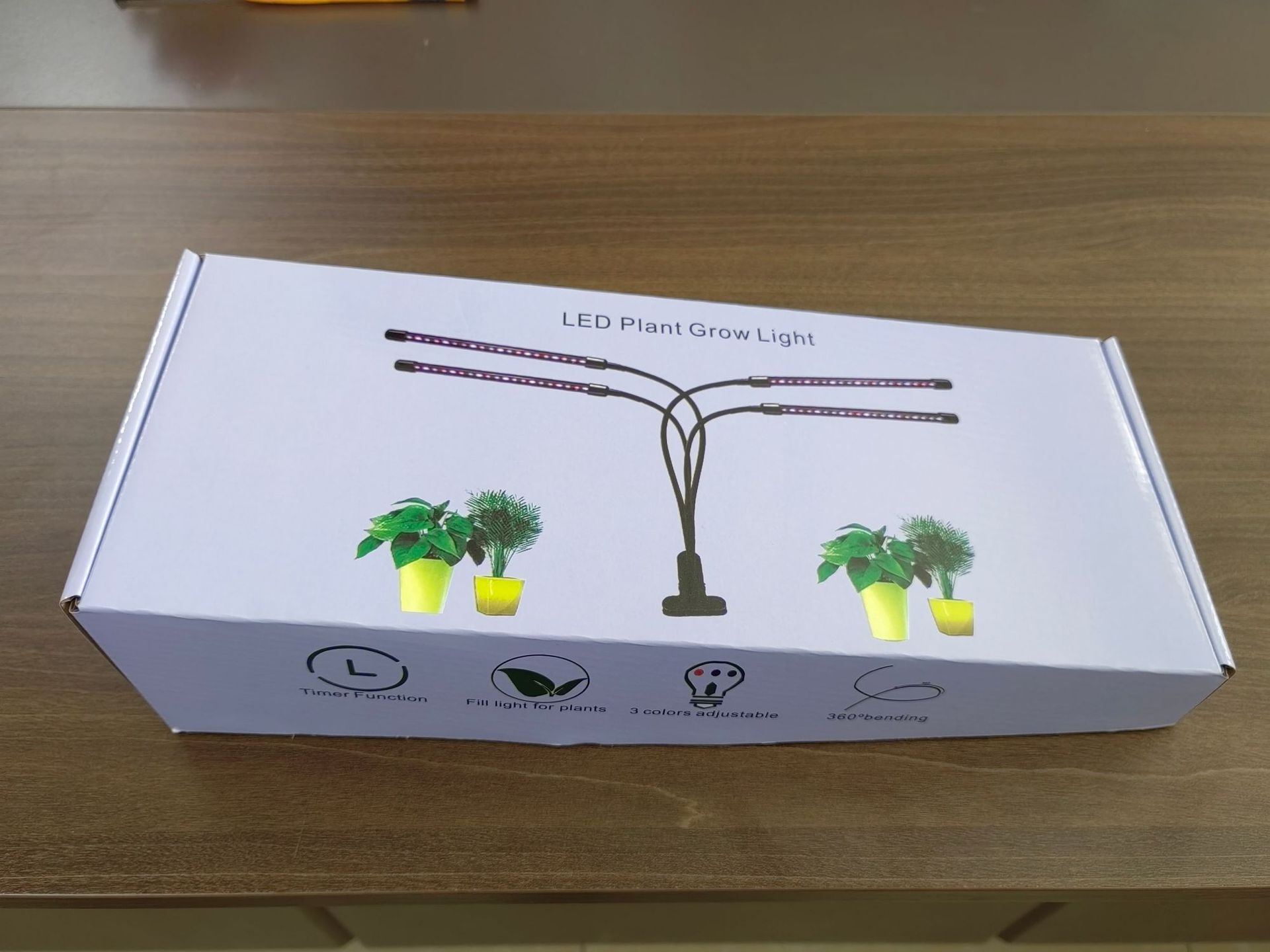

1. Color Box Physical Image

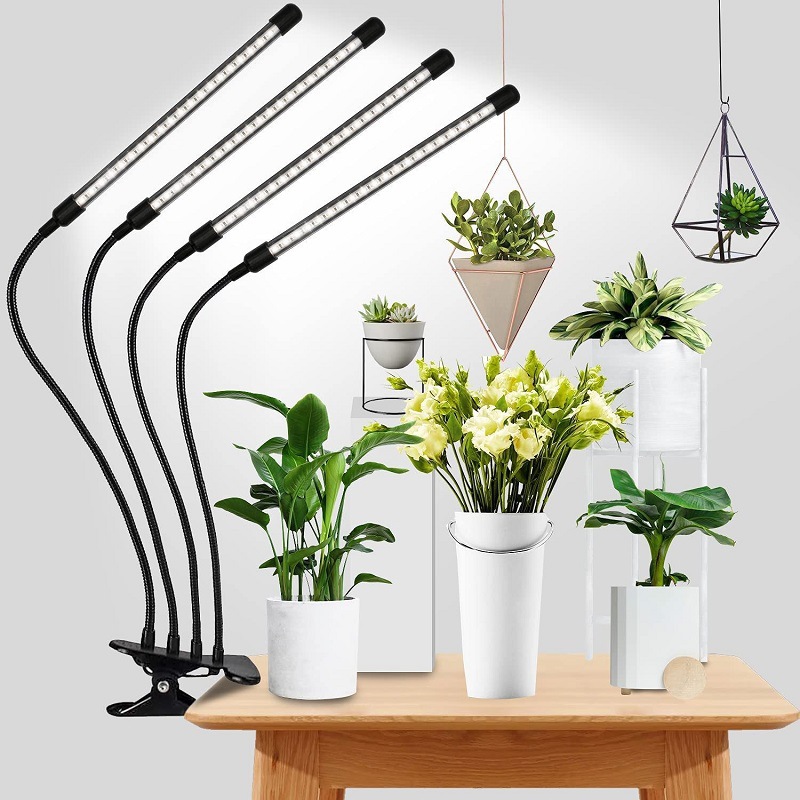

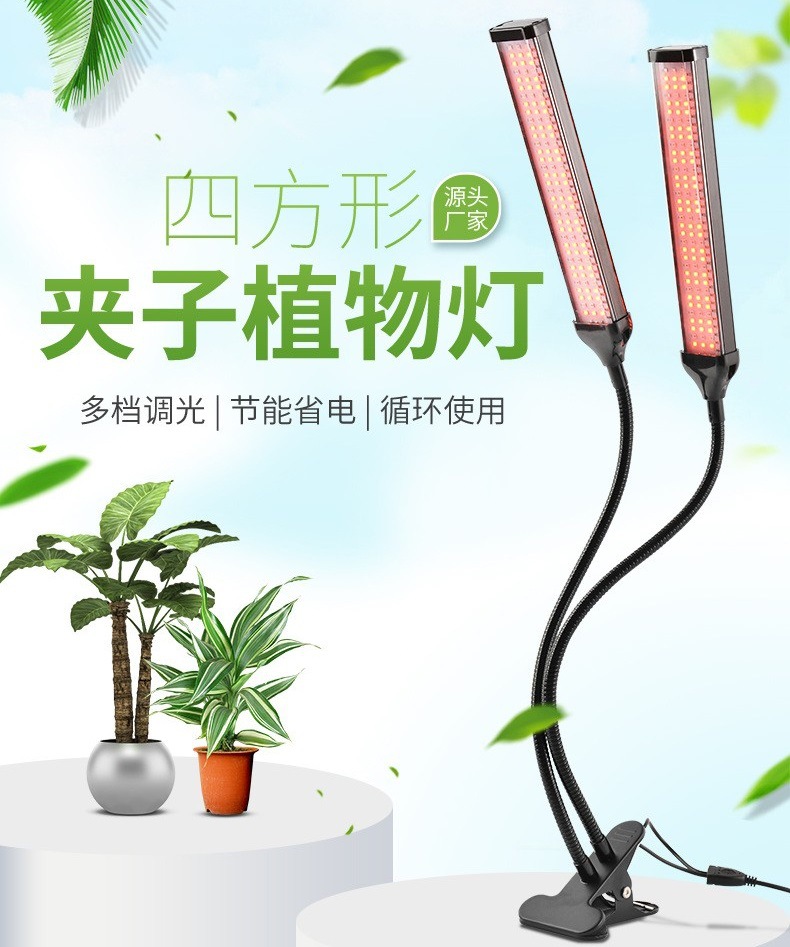

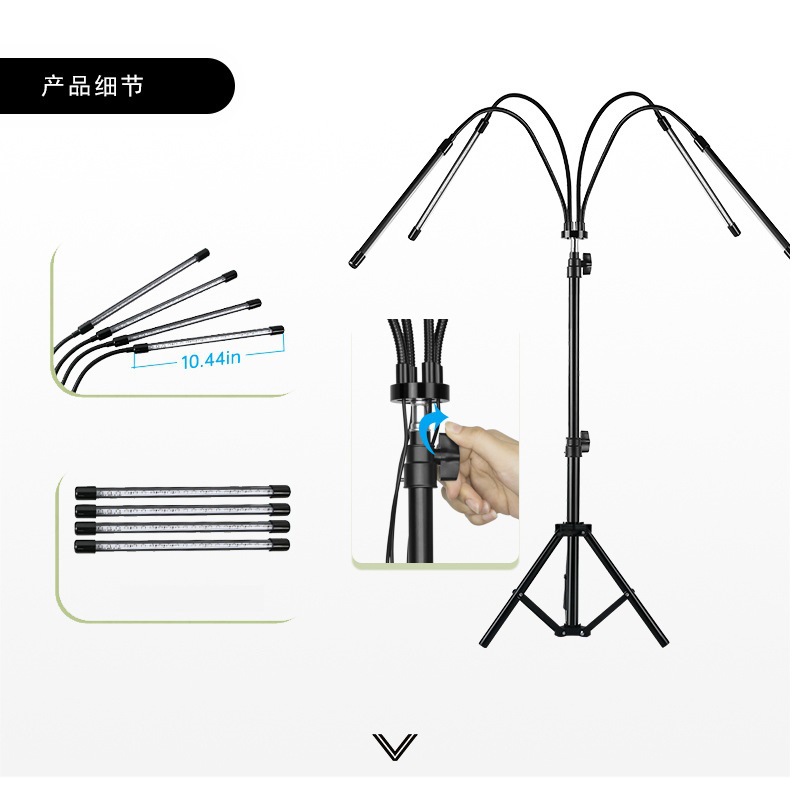

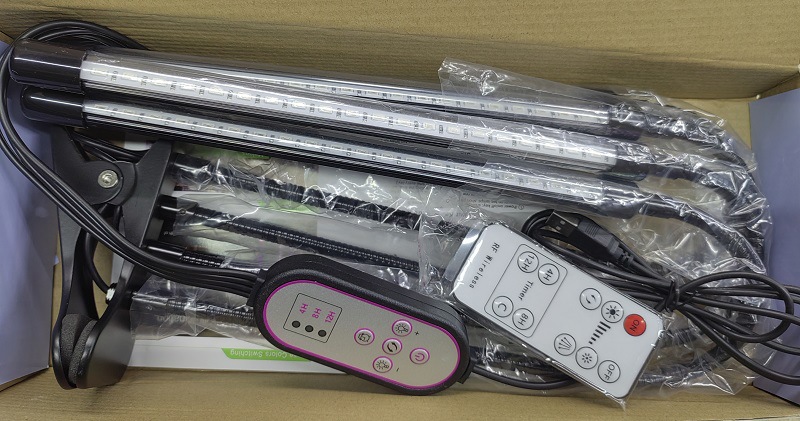

II. Product Physical Image

one

二头

three heads

四头

Two-head, Three-head, Four-head Remote Controller Style

Section Three: Product Dimensions
