XBOX X 2.4g wireless handle function description

note: This handle can only use 2 handles on the host at the same time

handle specifications:

1) length, width, height 154.5mm * 110mm * 65mm

2) working voltage: 3.7-4.2V

3) work Current: 80 mA

4) charging current: 350 mA

receiver specifications:

1) length, width, height 47.5mm * 16mm * 7.9mm

2) working voltage: USB5.0V

3) work Current: 30 mA

product Application

this product belongs to the XBOX X Bluetooth 2.4g handle and is used for XBOX ONE host series and computer host series. The working frequency is 2.4GHz, long-distance wireless remote control, easy to operate, can be applied to the control of various games such as racing, fighting, competition, etc., so that you can experience the immersive feeling during the game of XBOX ONE host/computer host.
Product features:
(1) Bluetooth 2.4GHz wireless technology, effective distance of about 10 meters (comes with receiver, does not support external receiver)

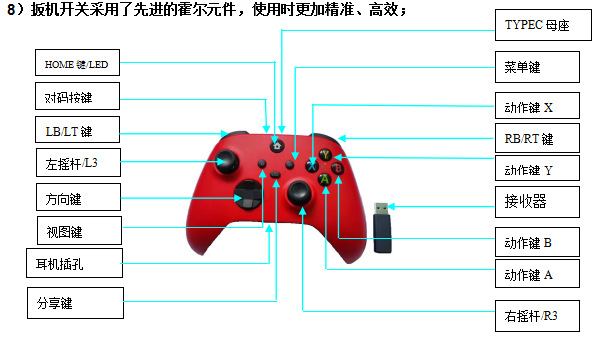

(2) the "menu", "View" and "share" buttons on the handle can quickly and conveniently navigate,
(3) This wireless handle is used on Xbox one host series and is compatible with PC WIN10 system host games (WIN7 system needs to install drivers)

(4) sensitive joystick and enhanced Arrow keys bring better accuracy

(5) the trigger vibration motor adopts a new design, and the finger touch feedback is accurate, which makes the weapon, impact and vibration experience realistic and creates a real game experience.

(6) long-lasting life, rechargeable battery/No. 5 dry battery dual-use design, a single charge can be used for 20-30 hours
(7) the handle adopts the headphone jack design, which can be plugged in while playing games to communicate with people with a more humanized design;

the operation of the wireless handle is as follows:

1) wireless connection with XBOX ONE host: plug the receiver into the USB port of the host, the light of the receiver will flash, and the light of Chang'an code button receiver will flash quickly, entering the code matching status; after the battery is loaded into the battery compartment of the handle, press the HOME button of the handle, the light of the handle will flash, and then press the code button of the handle, the light of the handle will flash quickly, after flashing for a few seconds, the receiver will be connected. The light of the handle and the light of the receiver will always be on, indicating that the connection is successful and can be used normally on the host; (Wired connection is for the attached USB cable TYPEC USB with one end inserted into the handle. After one end inserted into the USB port of the host, the light of the handle will be on, indicating that the connection with the host is successful, it can be used normally on the host);(it is the same as the host operation when connecting to the computer)

2) charging operation: When the handle is equipped with No. 5 dry battery, the handle will not be charged. Only when the rechargeable battery (lithium battery) is installed, the handle will detect charging. When the handle voltage is low, the light under the HOME button on the handle will flash, reminding you to charge the handle. At this time, insert the attached USB cable head into the handle TYPEC USB head into the + DC5.0V voltage, and the light will flash slowly under the HOME button, indicates that the light is on/off when fully charged; Indicates that the charging is completed.
