NI-MH battery: 4800mWh equals 2000mah

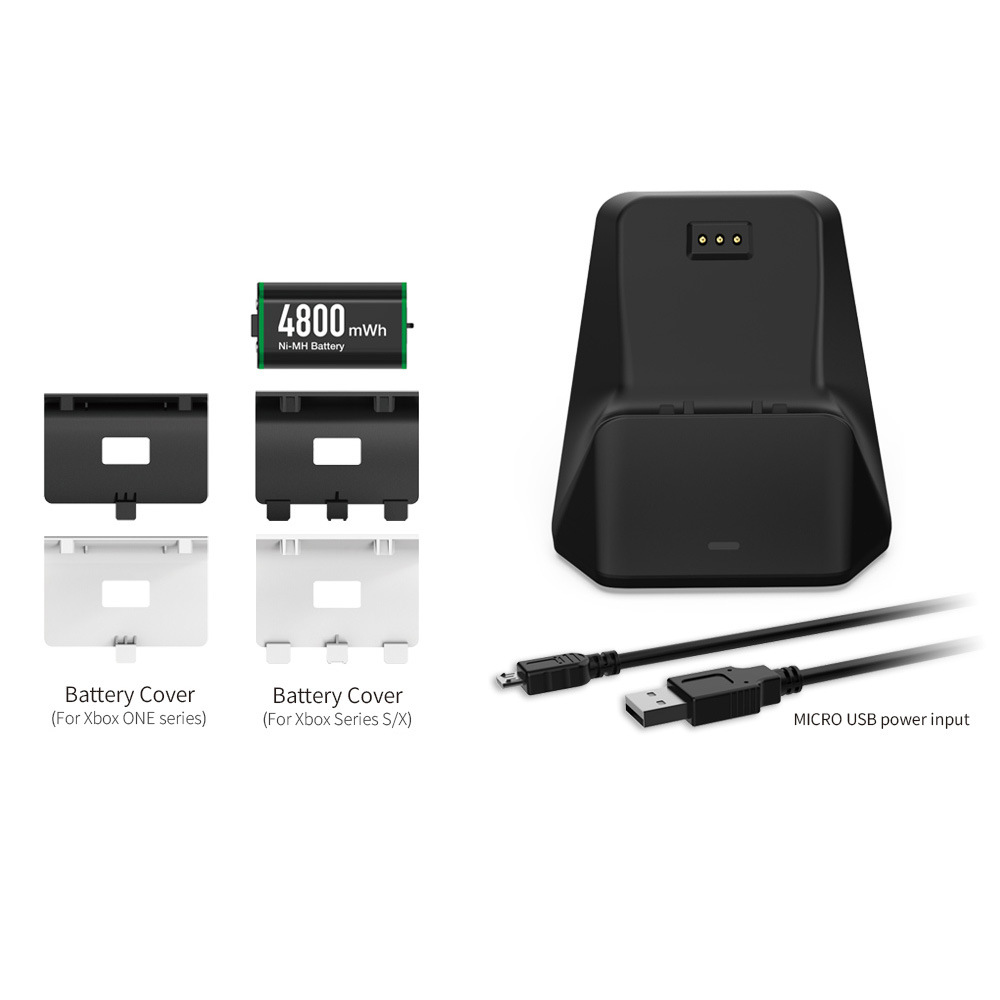

the difference between TYX-0607 and TYX-0607X is: battery pack capacity increased from 1200mah to 2000mah, with 2 more white battery covers

suitable for Xbox One S, Xbox One X handle, Xbox Series X/S handle.

This product is also equipped with a USB charging cable, which can be connected to the standard DC 5.0V USB output power supply or the USB interface of the adapter to connect to the fixed charger MICRO Interface for charging.

(Battery and back cover not delivered by this product cannot be charged by this fixed charger)

charging procedure description:

1. There is a power supply port behind the fixed charger, which is connected by USB to MICRO charging cable, and powered by DC 5V 1A power adapter or USB interface power adapter. When charging, you need to use the special charging cable delivered by this product to connect the power supply.

2. Turn on the power supply and flash the traffic lights once each. If there is a handle on the fixed charger, the red light will be displayed. If there is no handle, the green light L will be on for a long time.

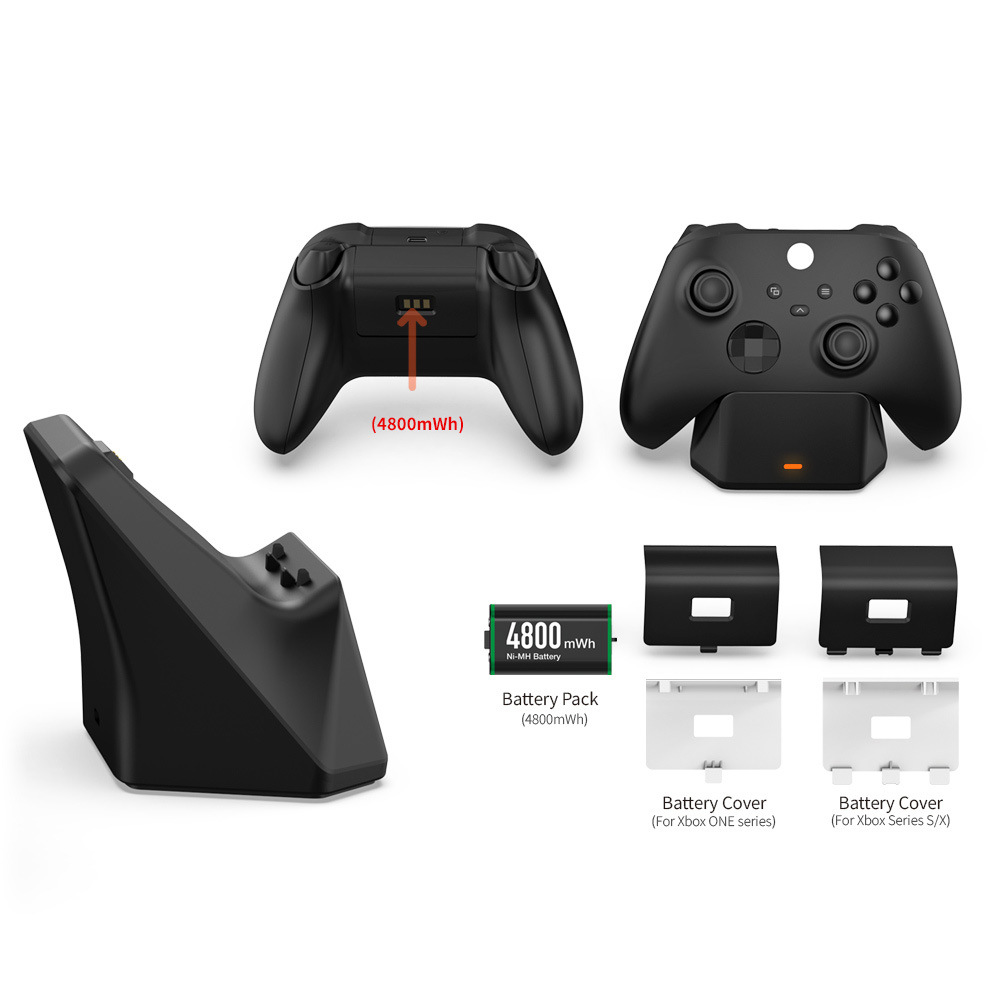

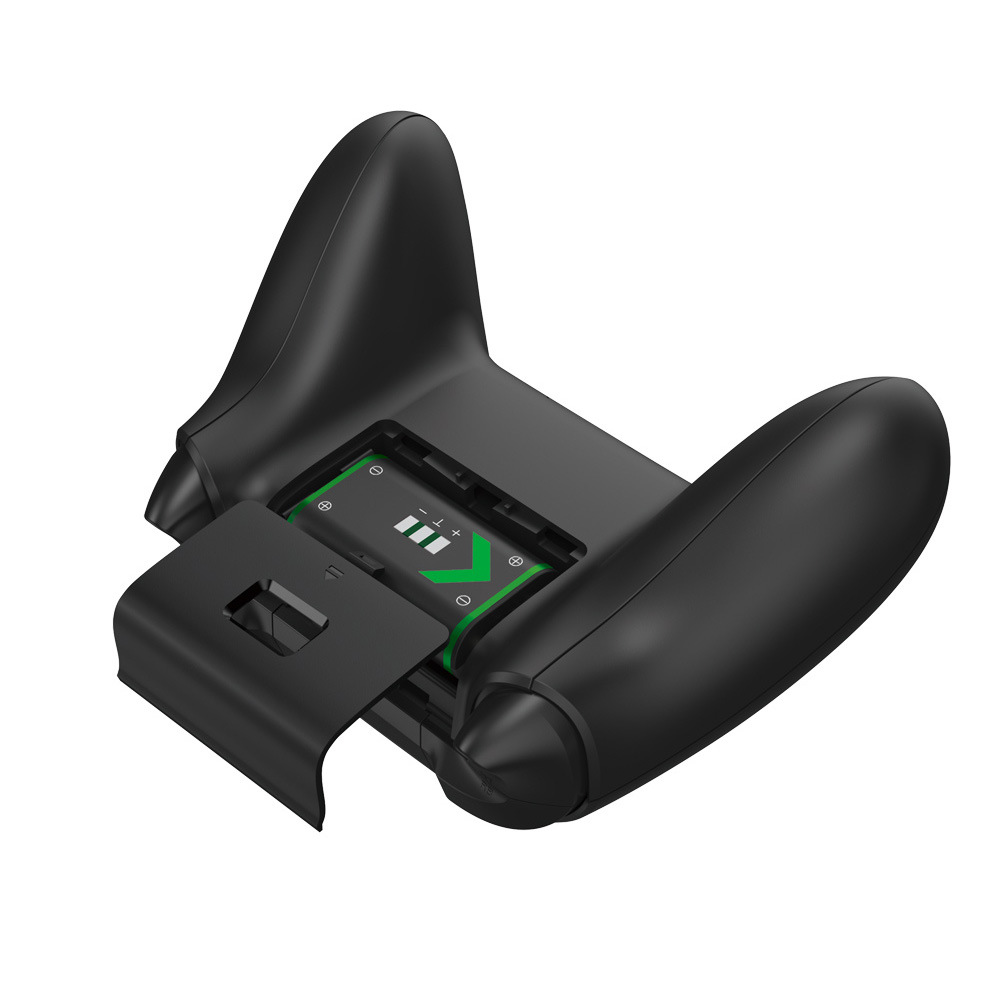

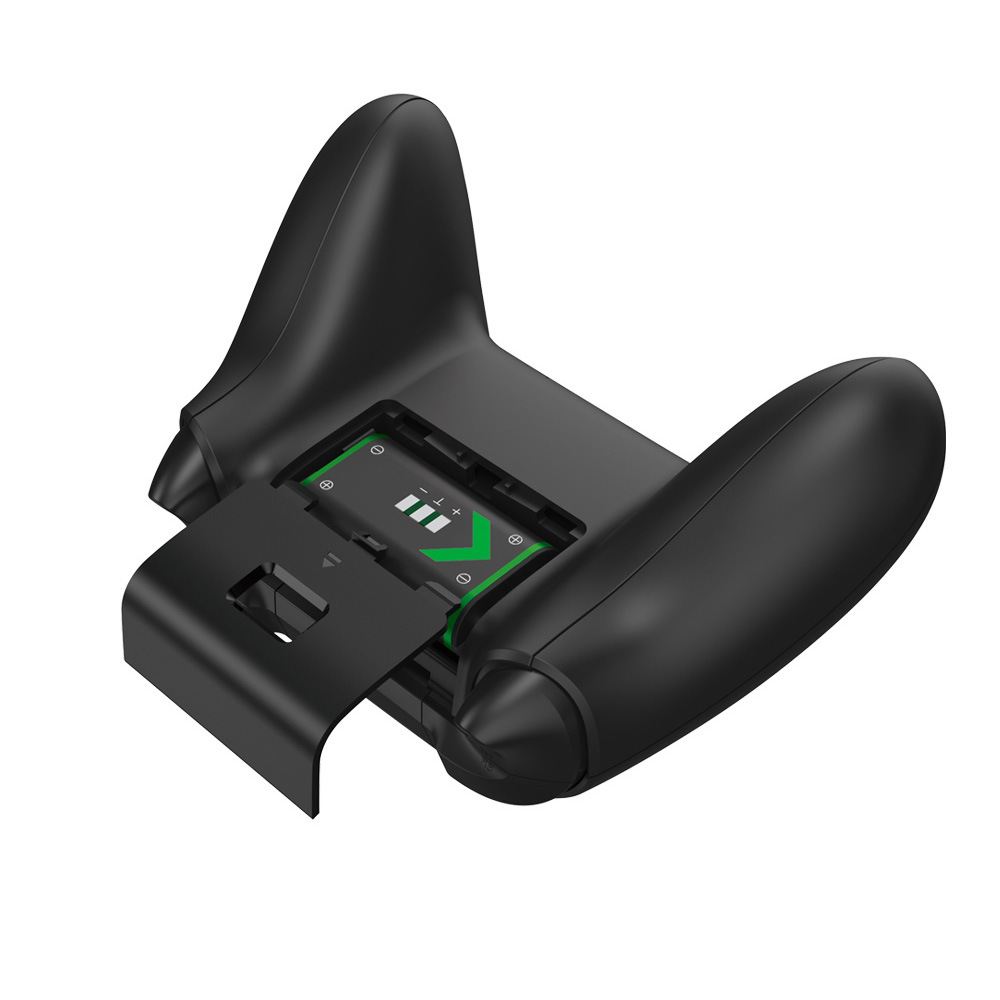

3. As shown in the attached figure of product function diagram and usage diagram above, first install the TYX-0608 battery into the battery compartment of the handle, and then select the corresponding battery cover from the two battery covers delivered, then put handle on the charging card position of fixed charger for charging;

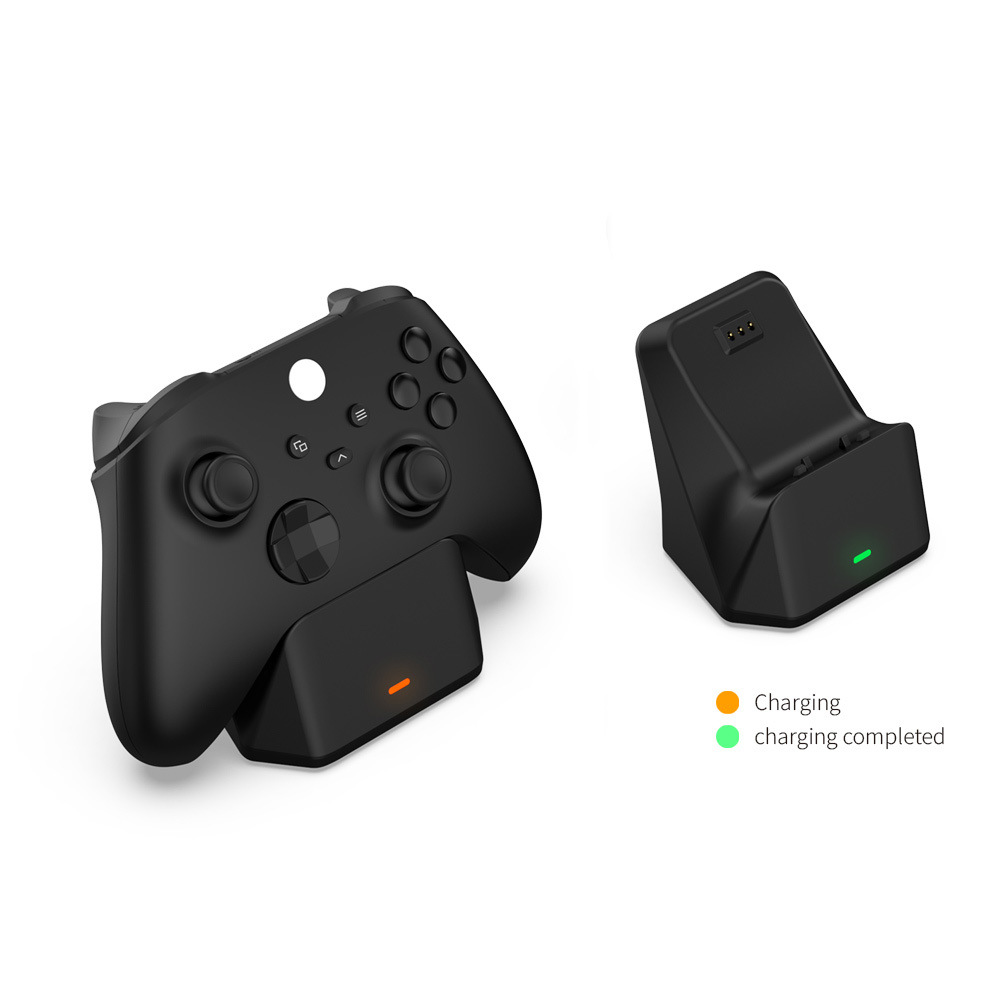

4. When charging the handle, the charging indicator light will show red long light; When fully charged or not charged, it will show green light.

Note: when charging, if the red light of the charging indicator light is flashing all the time, it means that the battery wafer of the handle has not fully contacted with the charging contact flicking needle, if the red light keeps flashing during charging, it is likely that the surface temperature of the battery is too high. Please remove the handle battery to check whether the temperature is too high, or whether the product is close to the heat source (heating or sun exposure). If it is close to the heat source, please move charging set away from the heat source to charge. After the temperature returns to normal, turn on the power again to charge normally.

5. Battery capacity: 2000mah

TYX-0607X

box gauge

quantity: 60PCs

box gauge size: 58*39 * 31.5CM
