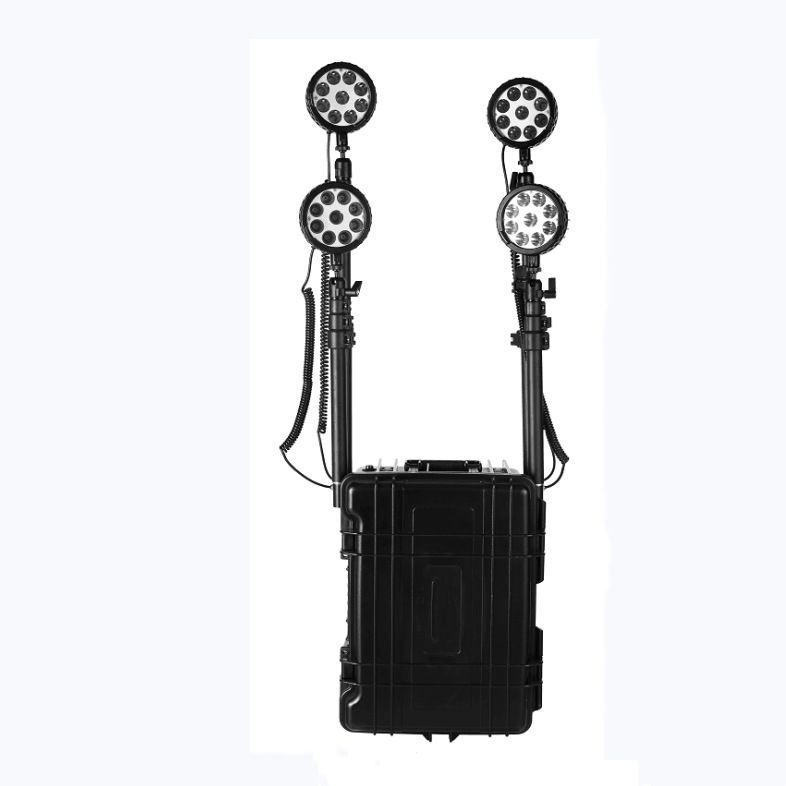

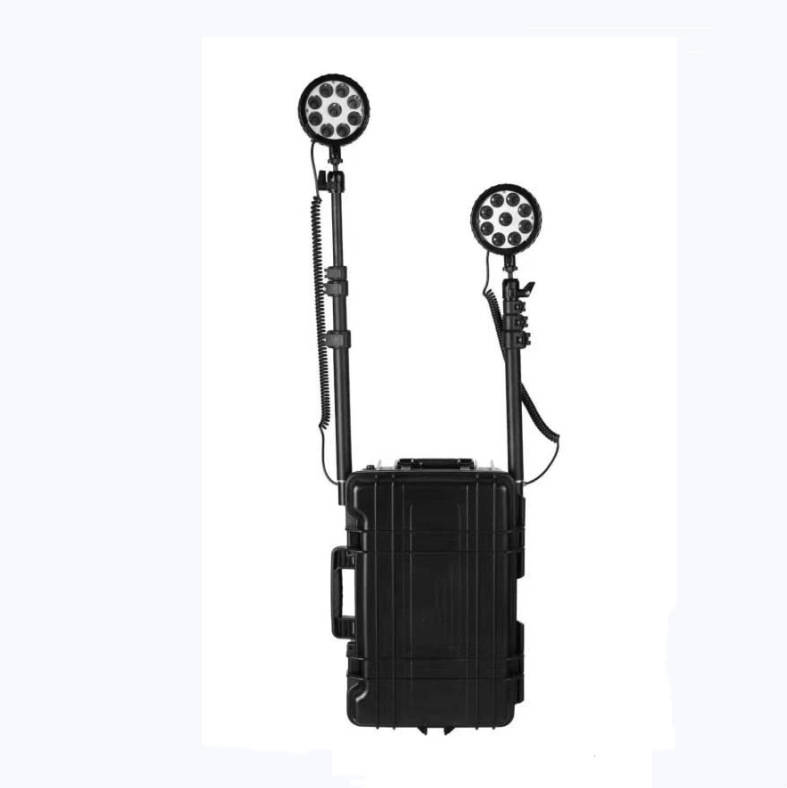

139 portable mobile lighting system

1. Scope of Application:

it is applied to field training, construction operations, emergency maintenance, flood control and flood control, medical rescue, film and television shooting, accident handling and other work sites required for large-area high-brightness lighting (industry scope: electric power, railway, J team, police, fire fighting, industry, exploration, construction, safety rescue, etc.

II. Performance characteristics:

lamps adopt a new box-type structure design, which can be disassembled and assembled simply and quickly, and is convenient to store and carry.

The light source adopts green and environment-friendly high-power and high-brightness white LED, which consumes less energy and has a service life of up to 100000 hours.

Equipped with telescopic rod, height adjustable, lamp cap beam angle 360 degrees, no lighting blind area.

The box is made of engineering plastic, which is heat and cold resistant and can resist strong impact.

The lamp cap adopts high hardness alloy as the shell to ensure that it can withstand strong impact; It is waterproof and has good high and low temperature resistance, and can withstand various harsh conditions.

Use high-energy memoryless battery, large capacity, long service life, low self-discharge rate, no generator, energy saving without WL, no noise, easy to carry.

The internal circuit design of the lamp has protection installation to prevent overcharge, overdischarge and short circuit.

III. Technical parameters:

rated voltage 12V

rated capacity 24Ah

light source power LED Round 4*27W

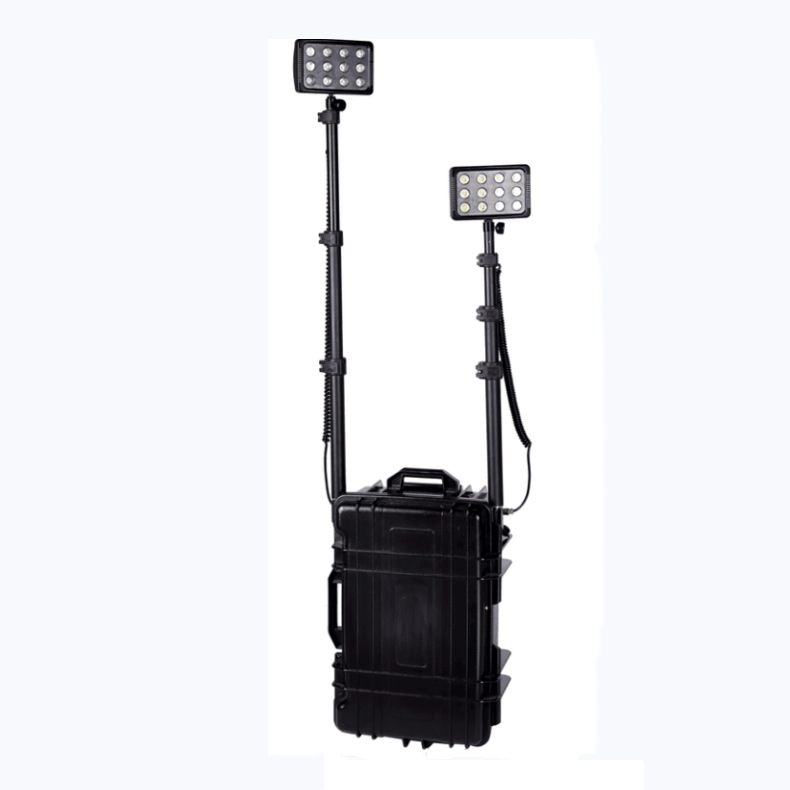

square 4*36W

working voltage 12V

current strong light 1.7A working light 1.1A

luminous flux strong light 11500lm

working light 5400lm

average service life: 100000h

continuous discharge time strong light 6h

working light 12h

low light 20h

charging time <10h

battery life is about 1000 cycles

dimensions length width height 60*44 * 28.5cm
weight 28kg
