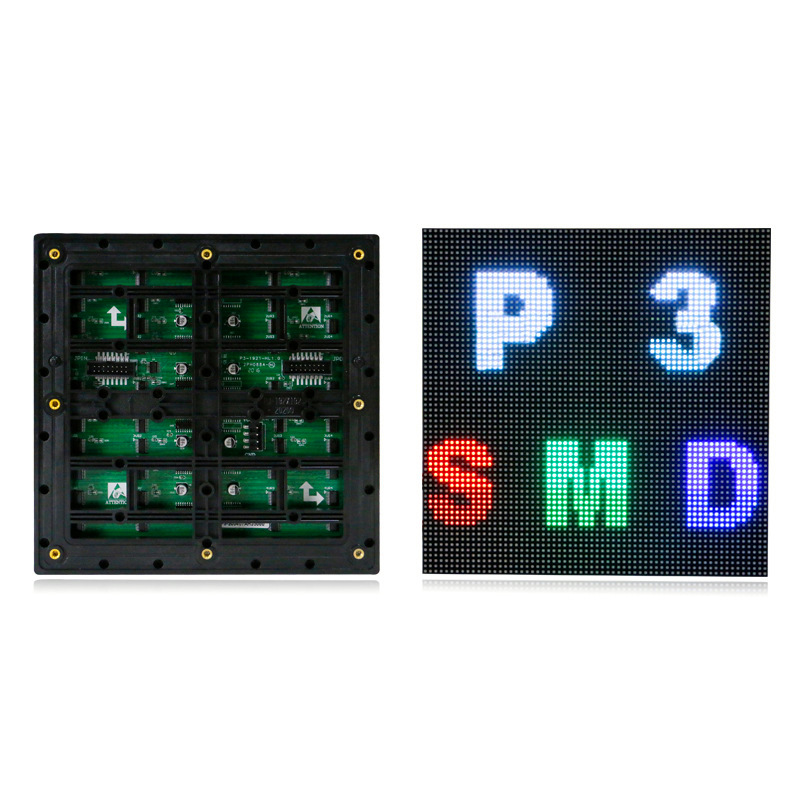

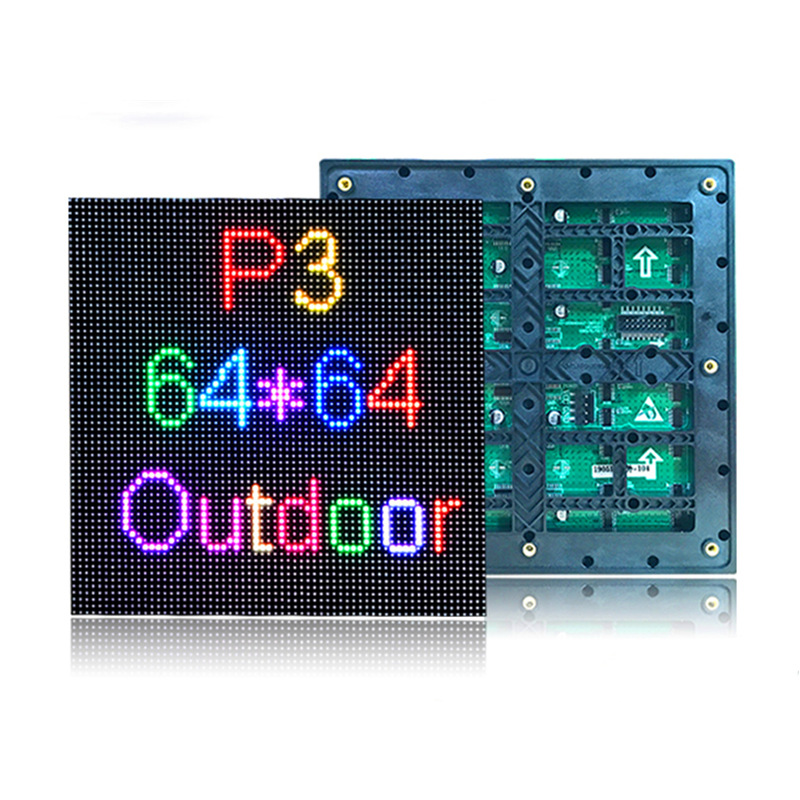

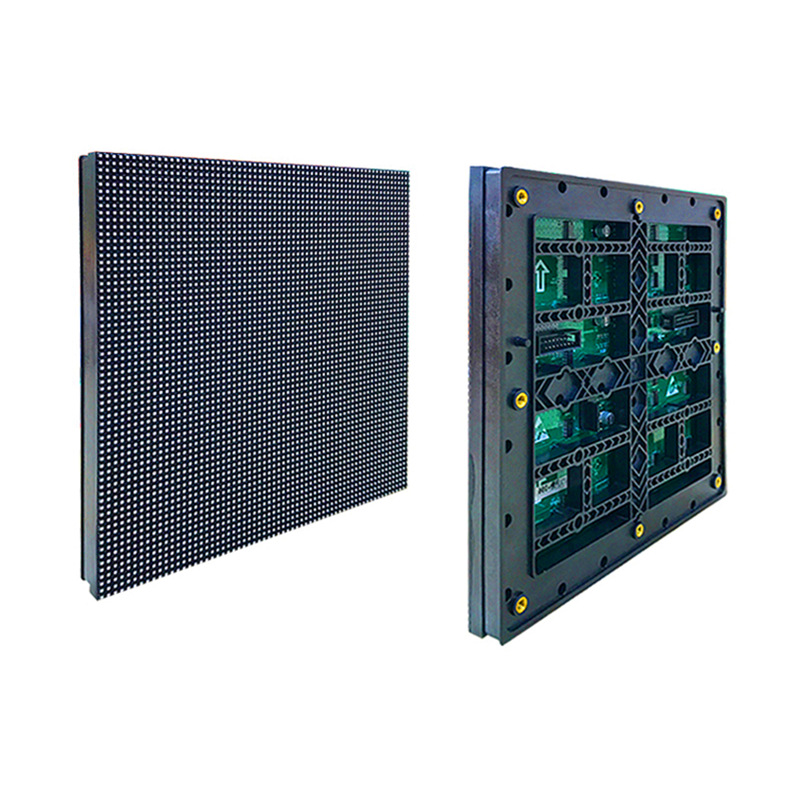

Outdoor P3-16S LED display main technical parameters
Module main parameters
Physical point spacing: 3mm Physical density: 111111 points per square meter Luminescent point color: 1R1G1B
Module board size: 192X192mm Module board resolution: 64*64=4096 DOTS Module board weight: 0.37kg
Driver IC: FM6126/MBI5124 Driving Mode: 1/16 Scan Module Maximum Power Consumption
Main Parameters of Unit Compartment
The unit box size is 576×576mm, the box resolution is 192*192, and the box area is 0.332m2.
The weight of the die-cast aluminum box is 10.5KG ± 0.05KG
Display screen main technical parameters
Optimal viewing distance: 3m to 60m Horizontal viewing angle: ≥140° available Vertical viewing angle: ≥120° available
White balance brightness ≥ 4000cd/m² Maximum power consumption
Working Voltage (AC110/220V optional) Frame Rate: 50/60Hz Refresh Rate: 1000~1920Hz
System Control Mode: Synchronous Control Display Card: DVI Graphics Card
Brightness Adjustment Method
Automatic brightness adjustment: 16 levels adjustable Software manual adjustment: 100 levels adjustable
Computer Operating System
WIN98、WINXP、WIN2000, Win7/8, etc.
Video signal
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION
Control System
PCTV card (optional) + DVI graphics card + main control card + optical fiber transmission (optional)
Average Mean Time Between Failures ≧5000 hours Life: 75000～100000 hours Pixel Failure Rate ＜0.0002 pieces
Project Classification: PH3-16S Package Form: Triple Combination LED Packaging Method: 1919
