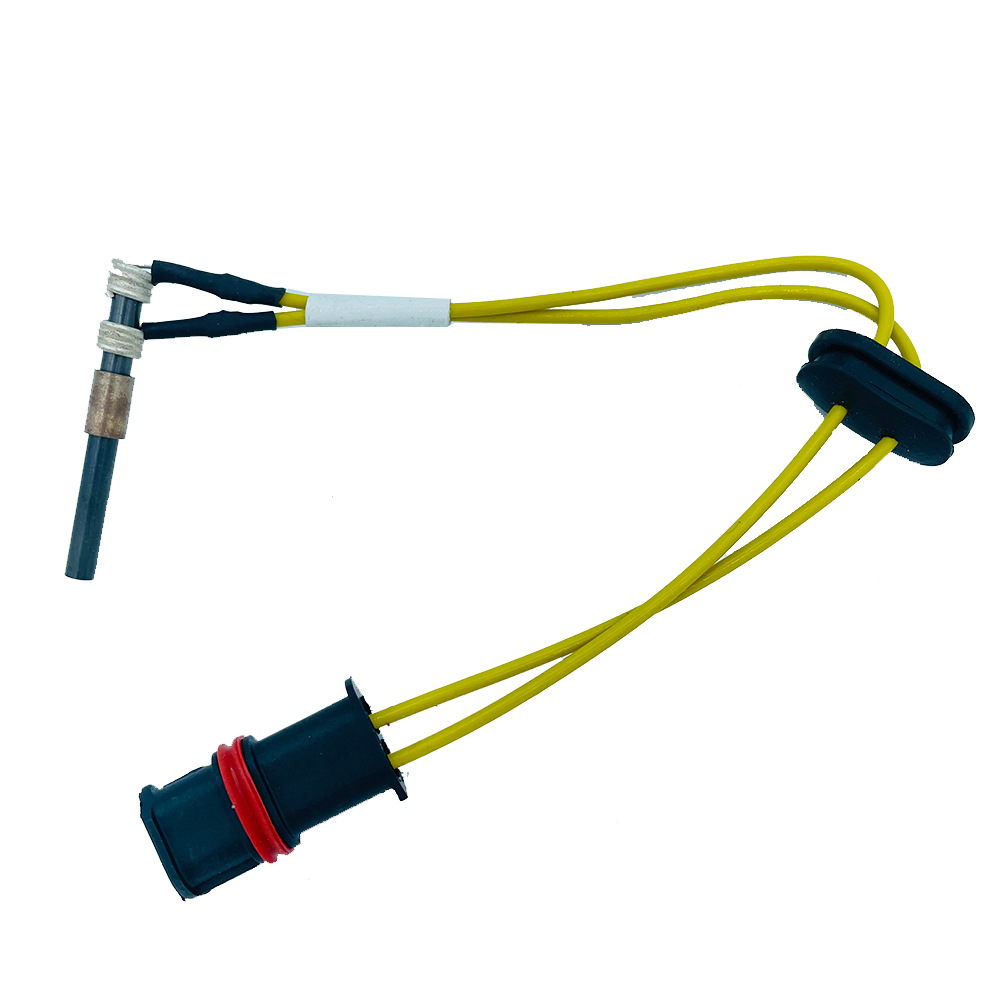

Product Name: heater plug

size: Regular

material: silicon nitride ceramic

process: this kind of product uses silicon nitride ceramics as The Matrix, tungsten wire as the heating source, tungsten wire is buried in the silicon nitride matrix, formed by hot pressing sintering process, and then processed by grinding, welding lead, thus, the ignition element is made.

Application: suitable for parking heater. In cold areas, the heating element and spark sensor used for ignition of vehicle-mounted auxiliary heating can quickly vaporize, ignite and burn the fuel by using silicon nitride heating element. Therefore, the temperature inside the vehicle can also rise rapidly shortly after the engine starts and when the idle speed stops.

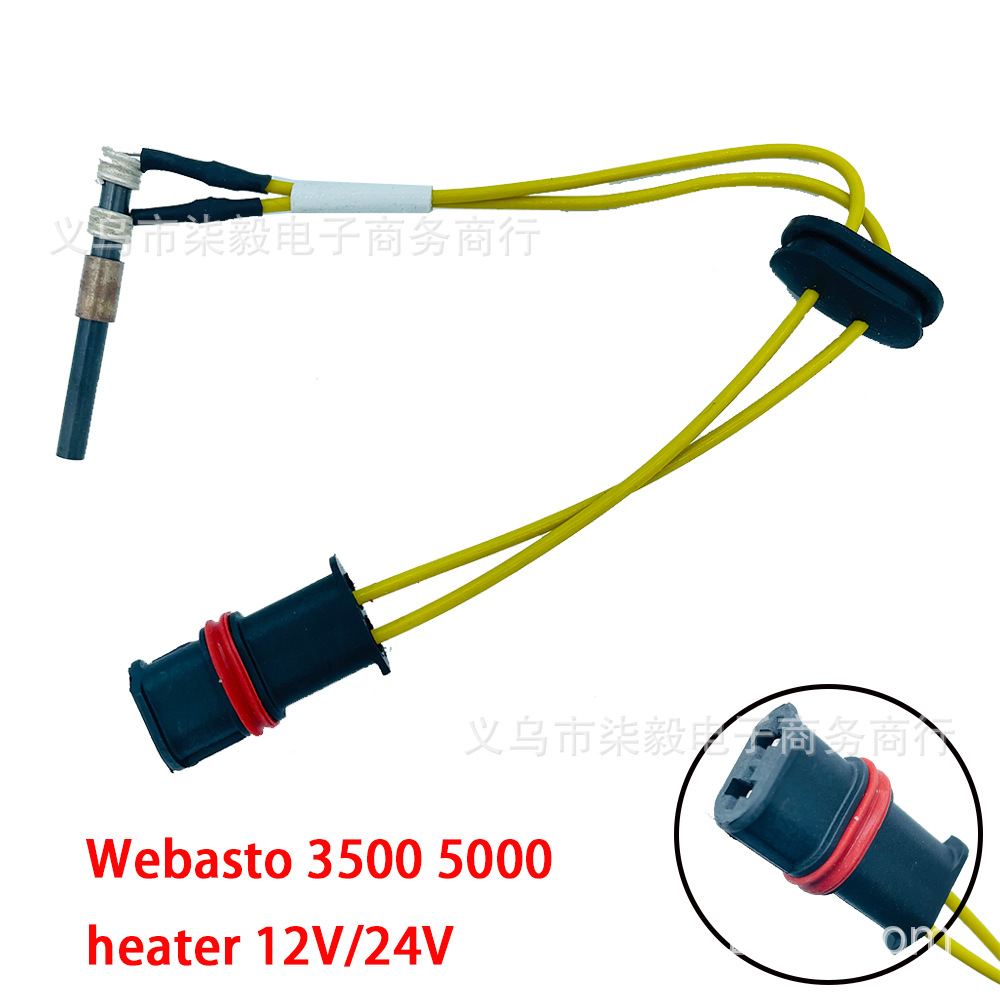

For Webasto 3500,5000 heater 12V

rated voltage (V):8

current (A):5.2-6.9

power (W):42-55

weight: 18g

for Webasto 3500,5000 heater 24V

rated voltage (V):18

current (A):3-3.6

power (W):42-55

weight: 18g

advantages: 1. Long service life

2. Compact, light weight, energy saving

3. Fast heating and high temperature resistance

4. High Watt density and excellent thermal efficiency

5. Excellent chemical resistance

6. No electric noise

7. Physical manufacturing, safe and environmentally friendly, no radiation to human body
