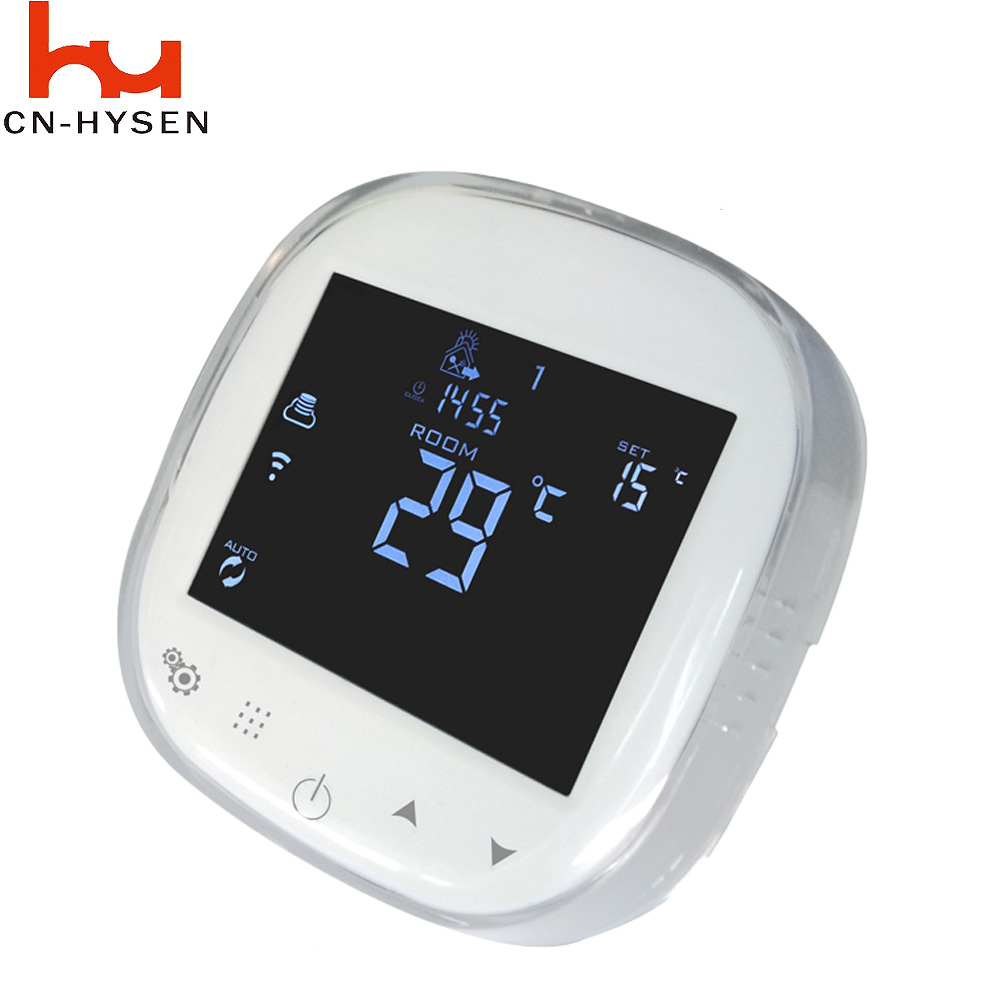

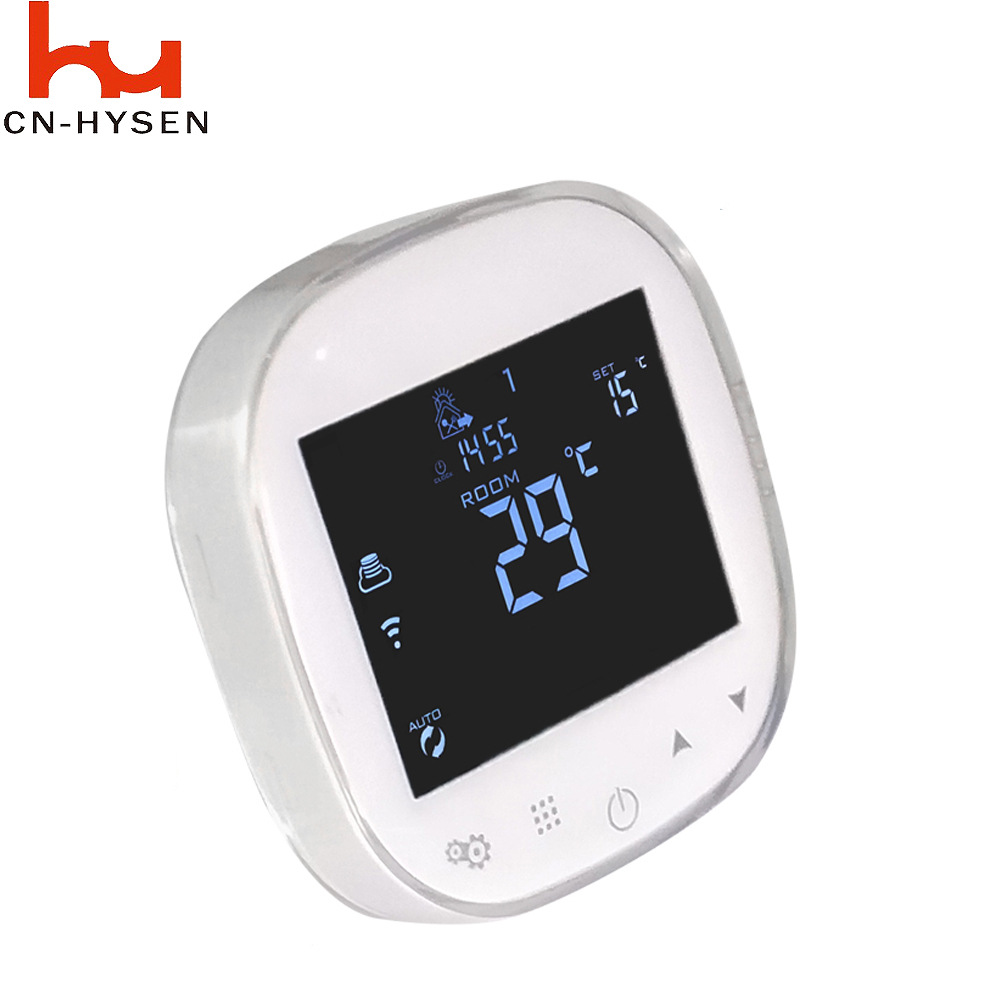

HY311WE-2-WiFi Electric Heating Temperature Controller with LCD Display, a programmable temperature controller specially designed for heating, is a multi-functional and large-screen LCD display indoor temperature controller. It uses microcomputer control technology to compare the indoor temperature with the set temperature, and then controls the start and stop of the heating equipment through relays to achieve the purpose of constant indoor temperature and energy saving. Touch button operation, LCD display indoor temperature, equipment temperature, day of the week, clock, timer switch-on and switch-off indication, and working state indication. This controller is a new development based on market demand, with a large LCD screen. It is simple to operate and has complete functions. It can control: electric ball valves, electric valves, electric heating valves, electromagnetic valves, heaters, electric heating films, carbon crystal, etc. Mobile phone WiFi control.

1. Beautiful appearance and elegance.
2. Lightly touch the button for operation
3. Control the electric ball valve, electric valve, electric heating valve, electromagnetic valve, heater, electric heating film, carbon crystal

4. High-reliability microcontrollers are used, with strong anti-interference capabilities.
5. Set different working modes through button operation.
6、Relay Output
7. Temperature calibration feature
8、With anti-freezing function

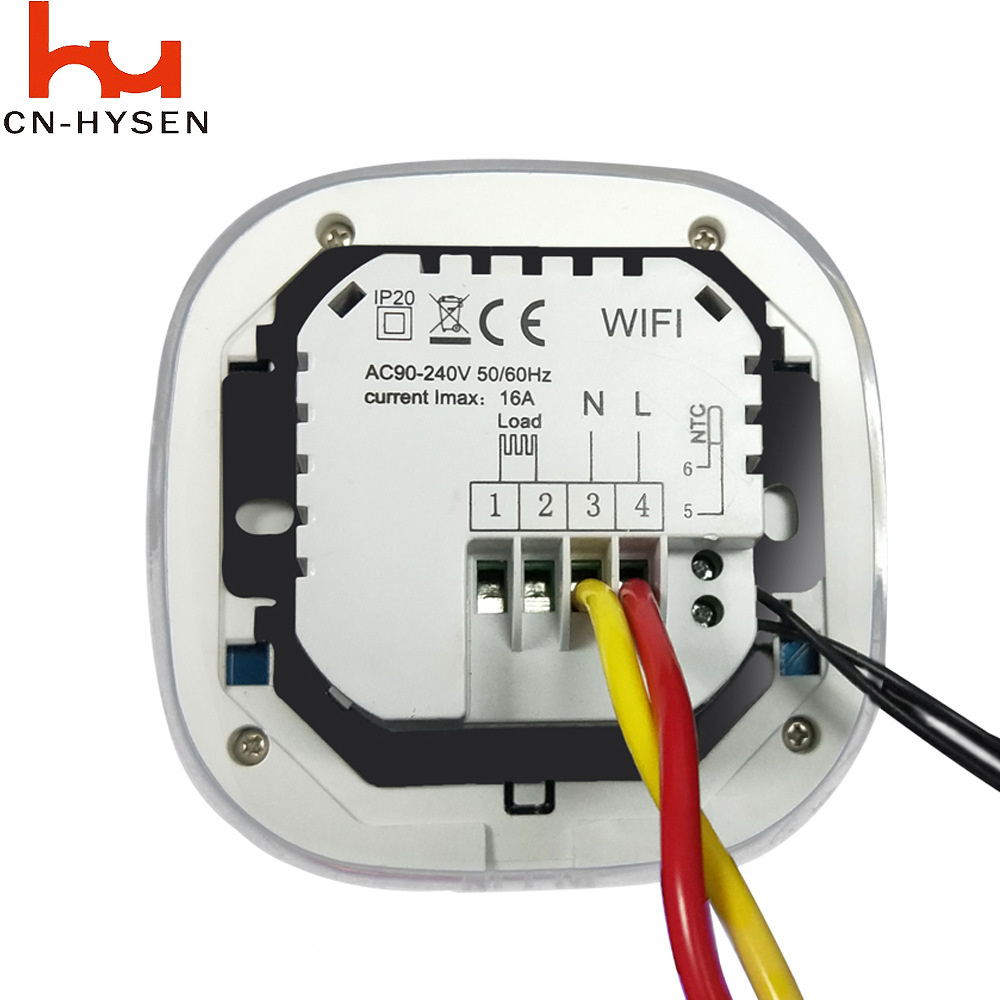

9. Use terminal wiring
10. Optional timer switch-off and on, 5+2 four-time period settings, etc.
11. Shell flame-retardant material PC+ABS
12、Large-screen LCD display
13、Optional Dual Temperature and Dual Control Functionality
14. Can be equipped with a clock, remote control, and blue backlight.
15. Passed the safety and high reliability tests

☆ Working Voltage: AC100~240V, 50/60Hz

Load Current: 3A (Water Heating)、16A (Electric Heating)

Temperature control precision: ±0.5℃

Temperature setting range: 5°C - 35°C

Temperature Range: 5-99°C

Self-consumption power: <0.3W

Temperature Sensor: NTC

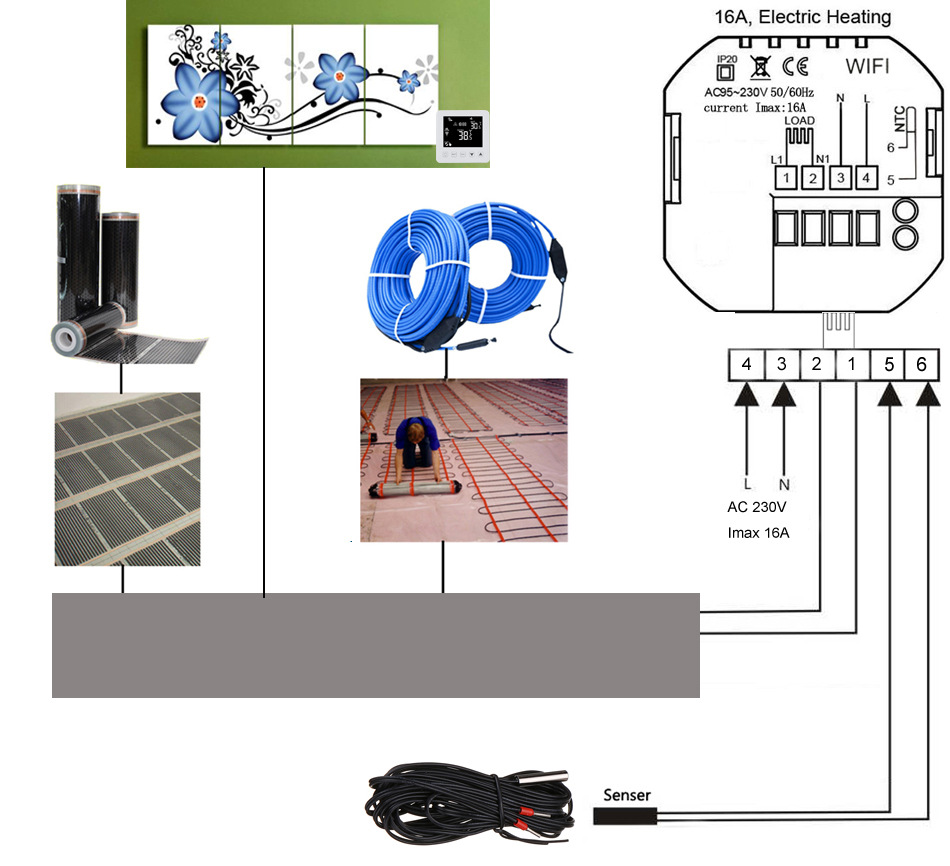

WarningPlease wire correctly according to the wiring diagram, and do not allow water, mud, or other contaminants to enter the temperature controller, or it may cause damage to the temperature controller!
