Parameter Description

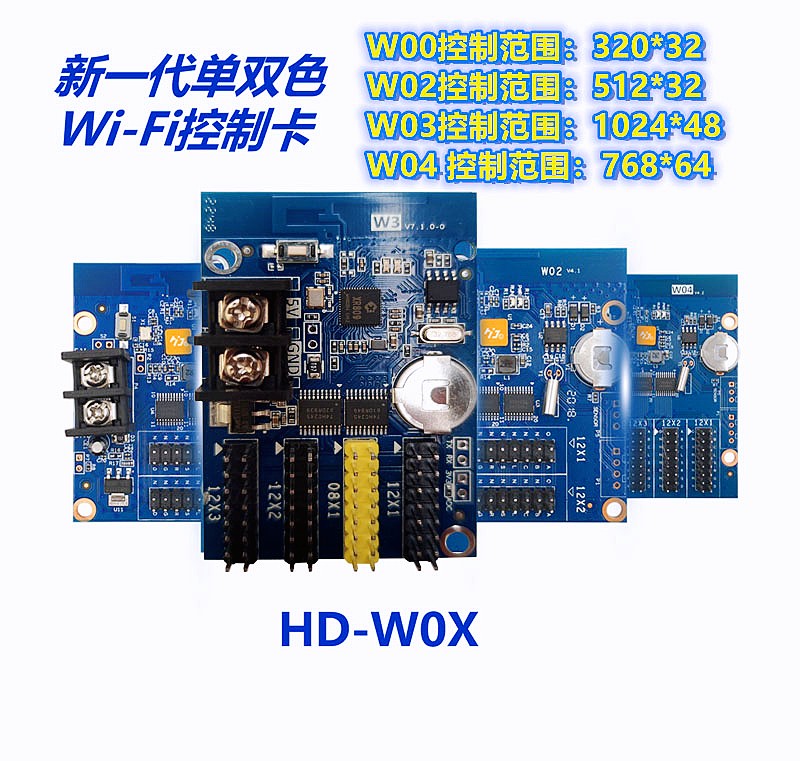

Control Card Type: Monochrome/Twin-color Control Range:

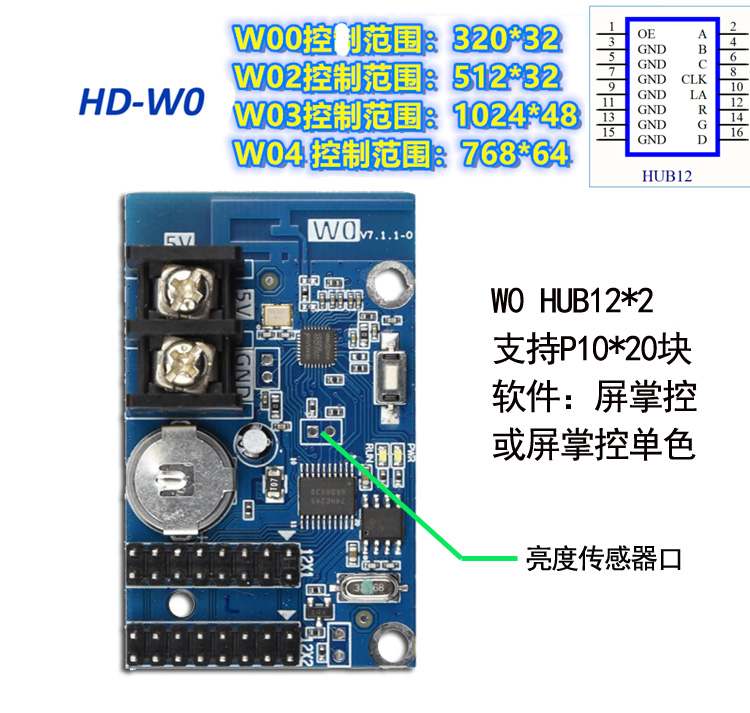

: "HD-W0 32*320 dots, with two 12

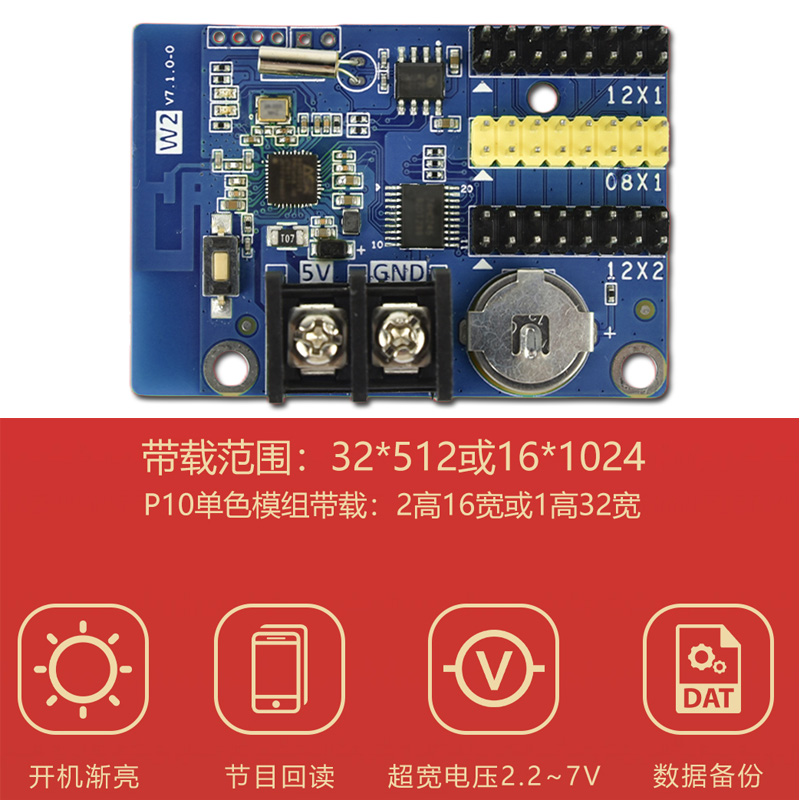

HD-W2 with 32*512 points, one 08 and two 12

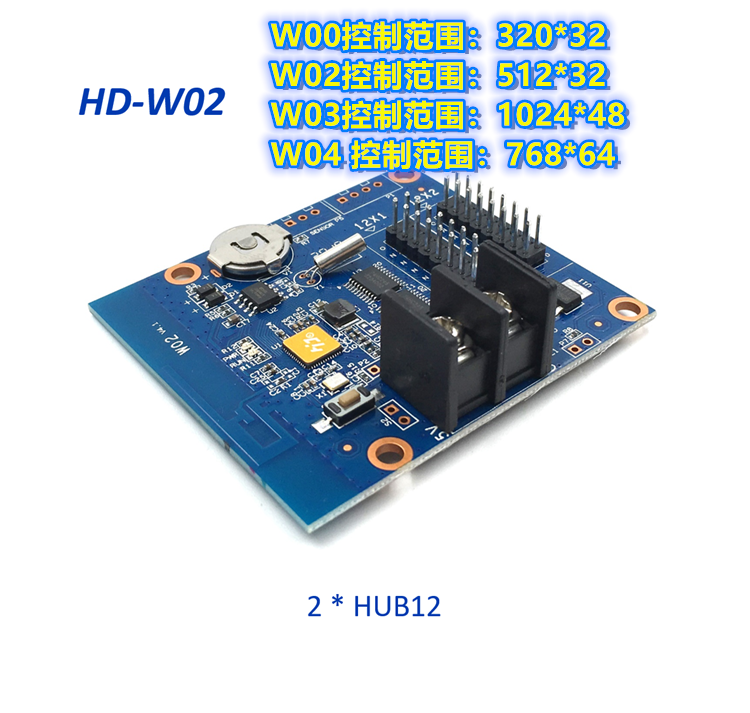

HD-W02 supports 32*512 points with two 12-port connections.

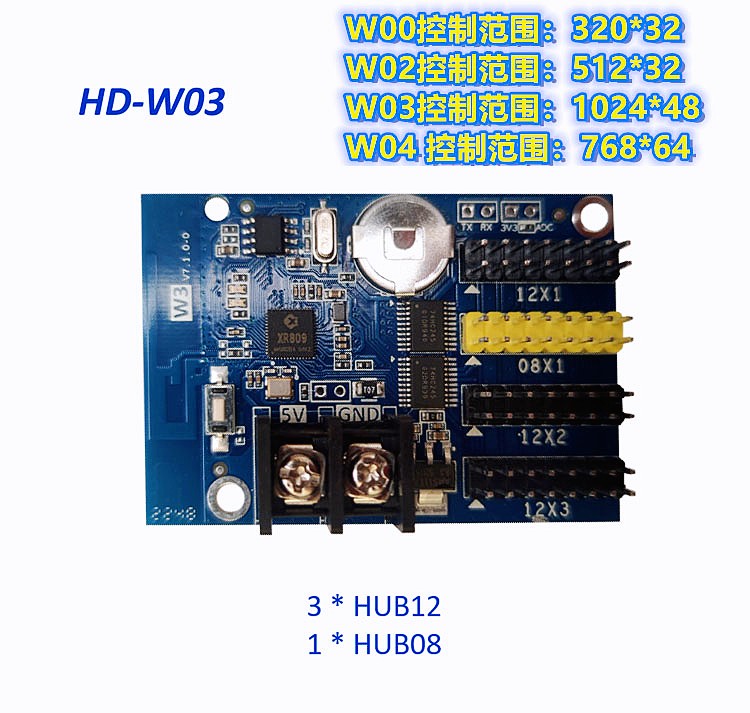

W3 supports 48*1024 points and supports three 12-pin and one 08-pin ports.

HD-W04 supports 64*512 points and 32*1536 points.

\Scanning methods: static, 1/2, 1/3, 1/4, 1/5, 1/6, 1/8, 1/16 and other conventional scanning methods.
Communication type: WiFi
Supply Range: +4.2V to 5.5V
Power consumption: ≤0.5W
Working environment: -20℃ to 75℃
Installation dimensions: 55.0 (H) * 77.0 (W) (mm)


Program number: 128, supports button switching, remote control switching.
Display content: Text, images, SWF, time, dials, temperature (humidity), timing, animated characters, Excel, etc.
Display mode: Sequential display, button switching, remote control
1. Text, images, time, timing, temperature, or temperature and humidity (requires external modules) display;
Supports infrared remote control requires external infrared probe.
2. Support program border and region border setting, and supports custom border;
3. Multiple action display methods;
Display effect
4、40+ text effects display;
5. Supports simple animation characters.
6. Supports settings for hollow fonts, outline fonts, etc.
7. Support regional language background settings.
8. Supports direct addition of Excel spreadsheets.
1. Support for the lunar calendar, a simulated clock, and the lunar calendar; clock functions.
2. Countdown and countdown display;
3. The font, size, color, and position can be set freely.
