This product does not contain batteries and is non-magnetic.
To help you understand this product more quickly, please refer to the MF-3S Chinese version; it is the same product.
Application
It is compatible with all types of 12V / 24V batteries.
For example: lead-acid battery, water battery, maintenance-free battery, dry battery charging. GEL battery, OPZV, VRLA battery, solar battery, etc., and 1.2–2.6 V lithium battery
Applicable to: scooters, motorcycles, cars, SUVs, small trucks, tractors, outdoor lighting batteries, any vehicle batteries, etc.
Features:
Model: MF-3S, Core Function
1) Automatic identification 12V24V
2) One-button automatic mode; full power stops
3) Both regular and lithium batteries are suitable
4) 400W high power, maximum current of 18A; the current can be adjusted manually
5) Compatible with 1.6V lithium battery charging
6) Digital display showing power, voltage, and current. Displays the charging status in stages
Detailed parameters
|
Model |
XW-30S/MF-3S |
power |
600W |
|
Input voltage |
110V – 250V |
Frequency |
50-60HZ |
|
Output voltage |
1 2V 2 4V |
Protection function |
Multiple protections |
|
Peak current |
12V/18A 2.4 V / 1.5 A |
Voltage Identification |
12V Peak (8–14.5V); 24V Peak (18–29V) |
|
Work Temperature |
-30℃ to +50℃ |
Product size |
210*160*87 (mm) |
|
Battery type |
1. 1₂V₂₄V battery: Lead-Acid battery; Maintenance-free battery; Dry battery, Water battery; Gel battery; Solar battery, etc. 2. 1.26 V lithium battery |
||
|
Net weight |
1 kg |
Gross weight |
1.2 kg |
|
Packing quantity |
15 Pcs |
Carton size |
60X29X49.5CM |
|
Packing Weight |
19.4 KG |
Plug |
Optional |
|
input line |
150 CM |
output line |
60 CM |
Charging time reference (Model: MF-3S)
|
battery (AH) |
Charging Time (H) |
battery (AH) |
Charging time (H) |
|
6AH-12AH |
0.5–1 |
12AH-20AH |
1-2 |
|
32-36AH |
2-3 |
45-55AH |
3-4 |
|
60AH-80AH |
6-8 |
105AH |
8-10 |
|
120AH |
8-14 |
150AH |
9-13 |
|
200AH |
10-15 |
300AH |
1 2 - 1 9 |
|
400AH |
14-22 |
|
|
TIP: The larger the actual capacity of the battery, the longer it will take to charge.

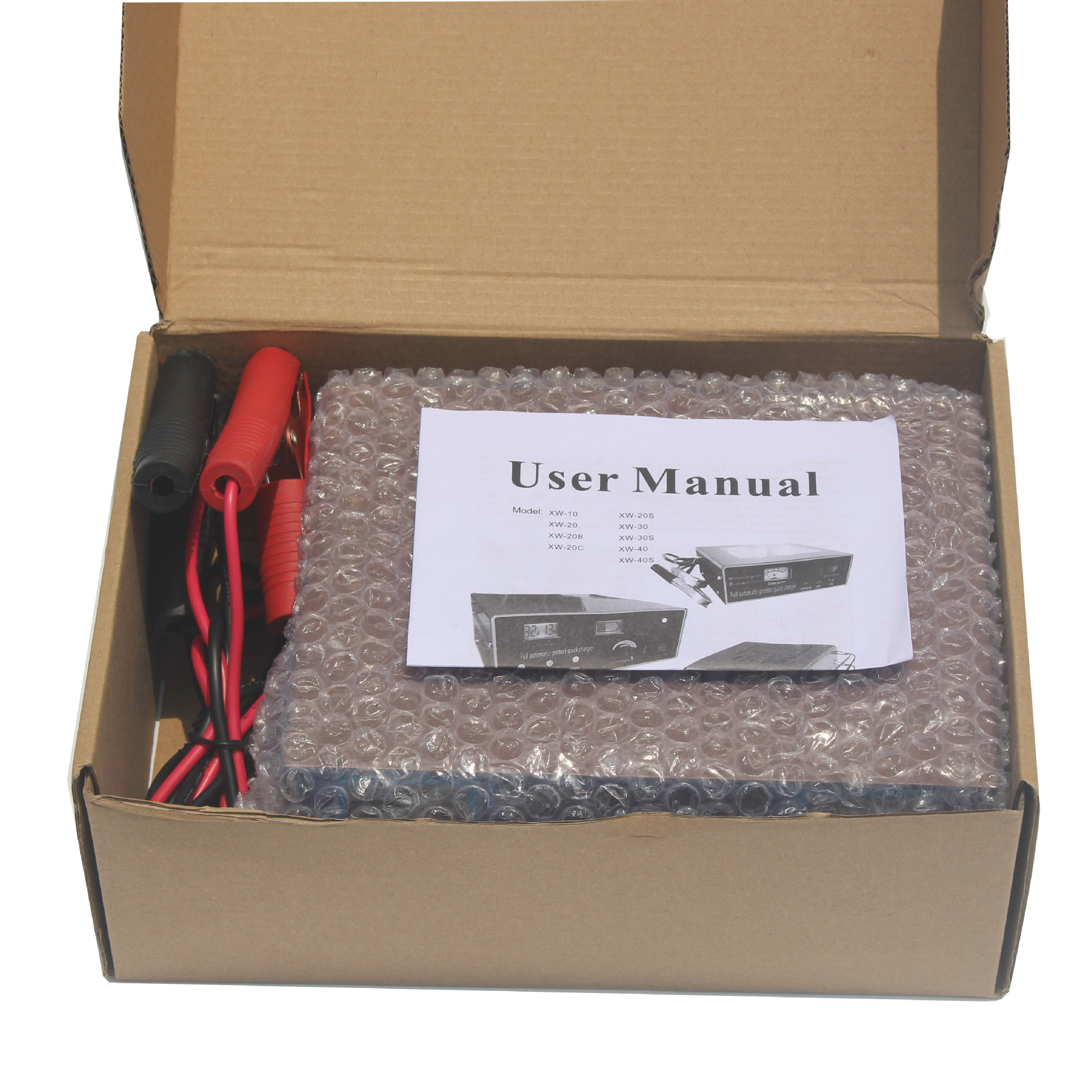

Package List:
1 * Charger
1 * User Manual
Four-stage charging, protects the battery no overcharging
Adaptive electricity charging
Charging at constant voltage
Full charge will be achieved soon, and a floating charge will be implemented.
Microcurrent power supply / Full charge
SIX Protections – Ensure safe charging
Short Circuit Protection
Polarity error protection
Overheating protectionn
Overcurrent Protection
low-voltage protection
Overvoltage Protection
Note:
1. The charger is only suitable for charging batteries that match the listed voltage range.
2. Please do not block the cooling fan or use the charger while the cooling fan is turned off.
3. Please protect the charger from rain or water to prevent damage.
