Product Introduction

   HDMI to VGA converter is a device that can convert high-definition video HDMI digital signals to VGA analog signals and AUDIO analog audio signals. HDMI signals can be connected to PS3, XBOX360, Blu-ray DVD, high-definition set-top boxes, etc. The output VGA can be connected to home CRT/LED displays, HD TV TV VGA-IN, projectors VGA-IN, etc. It can be convenient for friends who do not have HD TV high-definition television to solve the temporary concern.

  HDMI to VGA High-Definition Video Converter, using a digital conversion chip, converts HDMI digital signals into VGA analog video signals without any technical processing such as scaling or amplification. The HDMI output supports a maximum resolution of 1080P/1.3, and the output is completely consistent (point-to-point output)

【Product Features】

1. No software support required, plug and play.

2. Full hardware conversion processing, with high image clarity, good brightness, high contrast, and good picture quality features.

3. Supports HDMI 1.3 version (compatible with 1.0/1.1/1.2), automatically detects HDCP

4. Compact size, high mobility

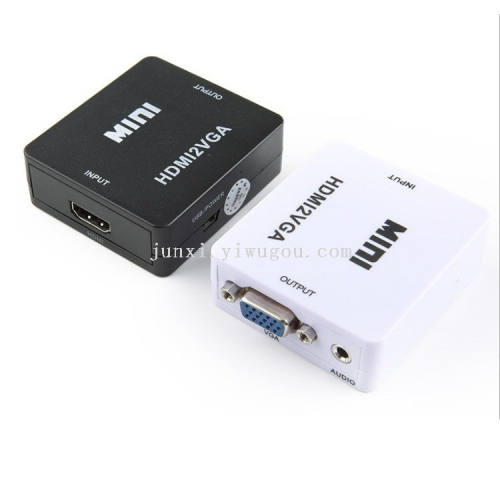

Mini HDMI to VGA Converter MINI HDMI2VGA Converter hdmi to vga 1080P

The product size is approximately 61(L)x55(W)x20mm.

Packing Size: 47*32*28.5cm QTY: 100pcs

【Whole Box Weight】7.3KG/8.3KG (G.W/N.W)

【Technical Parameters】
1. HDMI Input ---- HDMI Input Format: 480P/720P/ 1080I/1080P/60Hz
2. VGA Output: ----- VGA Output Resolution: Changes with the input HDMI signal
640x480@60/72/75/85Hz;800x600@60/72/75/85Hz,
1024x768@60/70/75/85Hz;1152x864@75Hz,1280x720@60Hz,
1280x768@60Hz, 1280x800@60Hz
1280x960@60Hz, 1280x1024@60Hz,
1360x768@60Hz, 1440x1050@60Hz,
1440x900@60Hz, 1680x1050@60Hz
1600x1200@60Hz, 1920x1080@60Hz,
This resolution requires support from the backend display device, with output and input synchronization.
HDMI and VGA corresponding resolutions
HDMI InputVGA Resolution
480P640X480
720P1280X720
1080P1920X1080

【Product Features】

1. HDMI input interface, connect PS3/XBOX360/PC graphics card/high-definition player/Blu-ray DVD/high-definition set-top box/laptop computer, etc.

2. VGA signal input interface, connect to a projector (three-gun, Samsung, SONY, NEC, etc. projectors) or LCD monitor

3. Audio Output Interface: Connect to a stereo amplifier or headphones.

4. No external power source required
