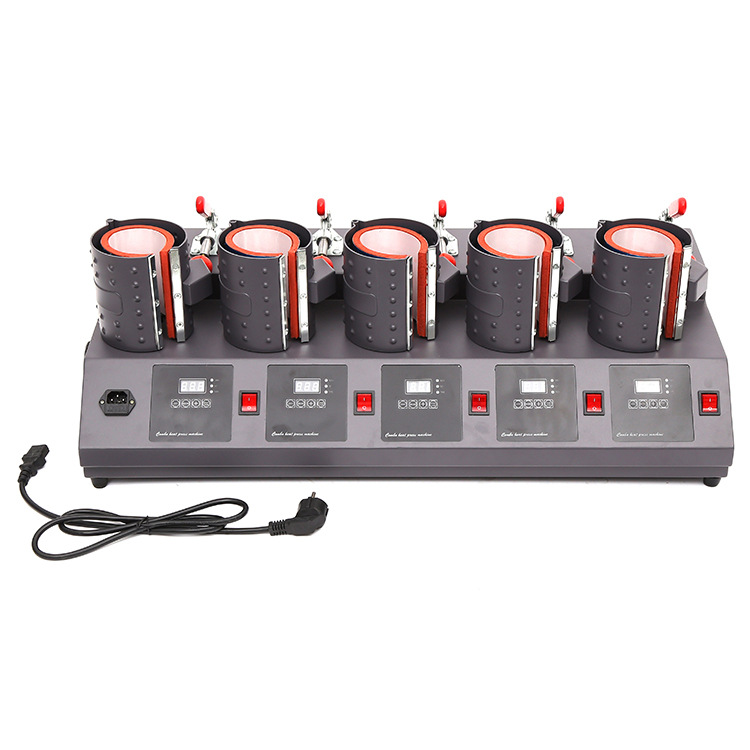

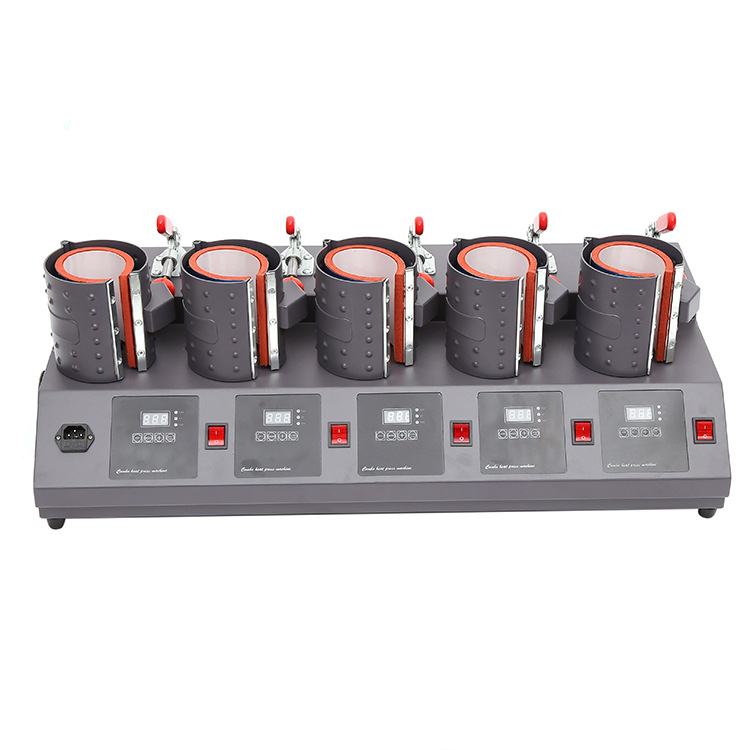

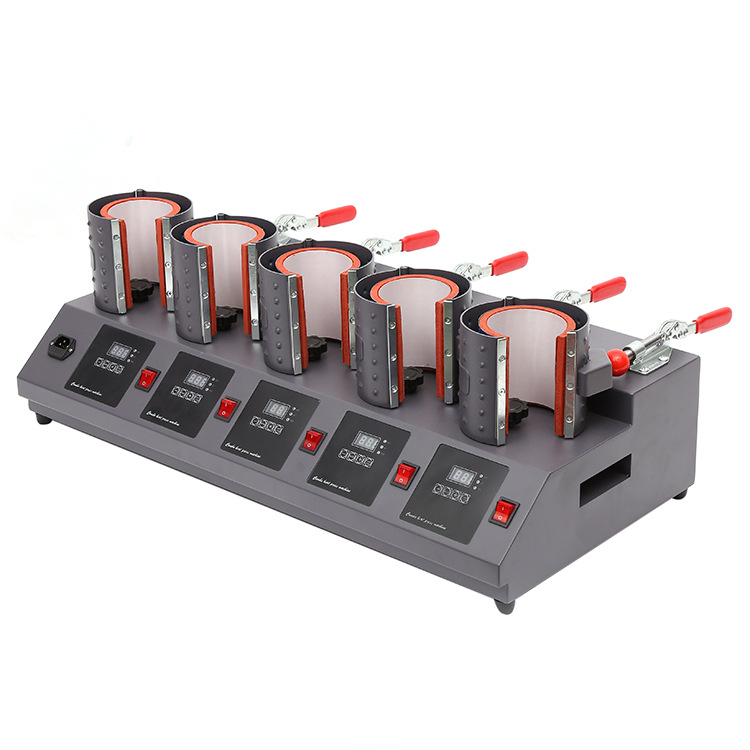

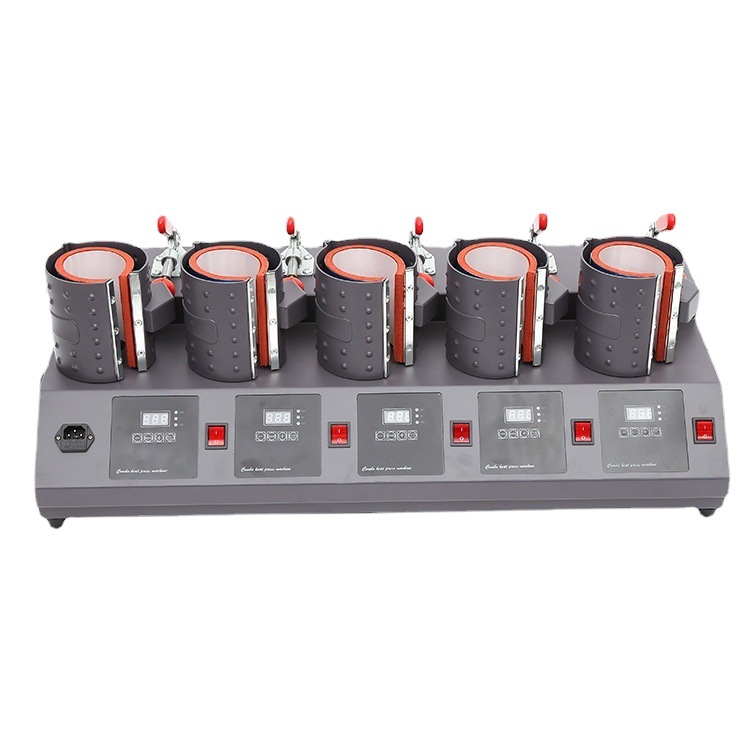

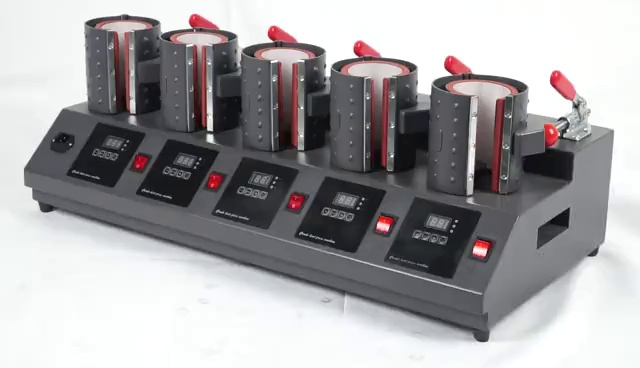

This machine can bake any colored labels, human portraits, landscape patterns, etc. onto porcelain cups, making it particularly suitable for advertising, gifts, and promotional activities. It can also be used as a personalized item, combining artistic appreciation with practical use.

Features:

Multiple work positions, capable of baking 5 cups at the same time.

Can start 1-5 heating molds at will.
Easy to operate, high efficiency;

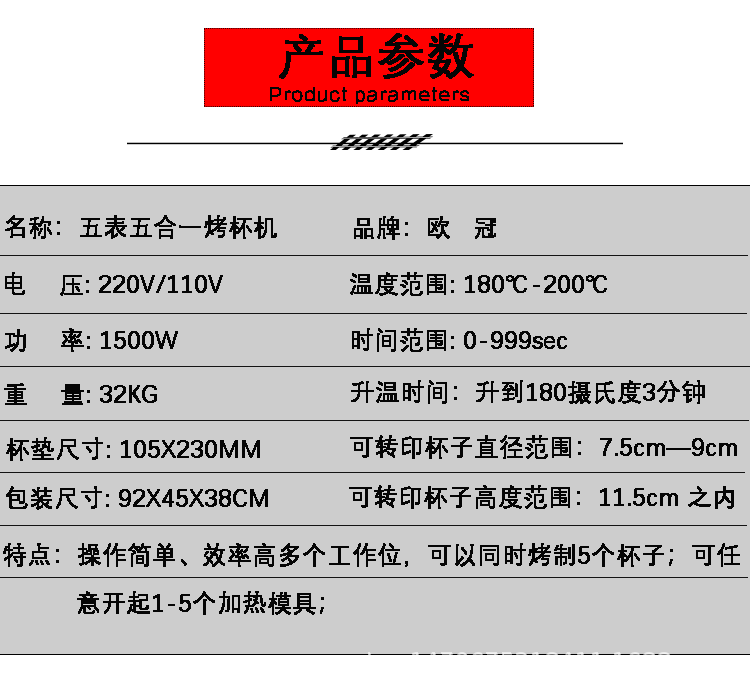

Technical parameters:

Voltage: 220V/110V

Power: 1500W
Temperature range: 180℃-200℃
Time range: 0-999sec
Cup mat size: 105X230MM
Packing Size: 92X45X38CM
Weight: 32KG
Heating time: 3 minutes to reach 180 degrees Celsius
Cup diameter range for transfer printing: 7.5cm—9cm
The range of mugs that can be transferred: within 11.5cm

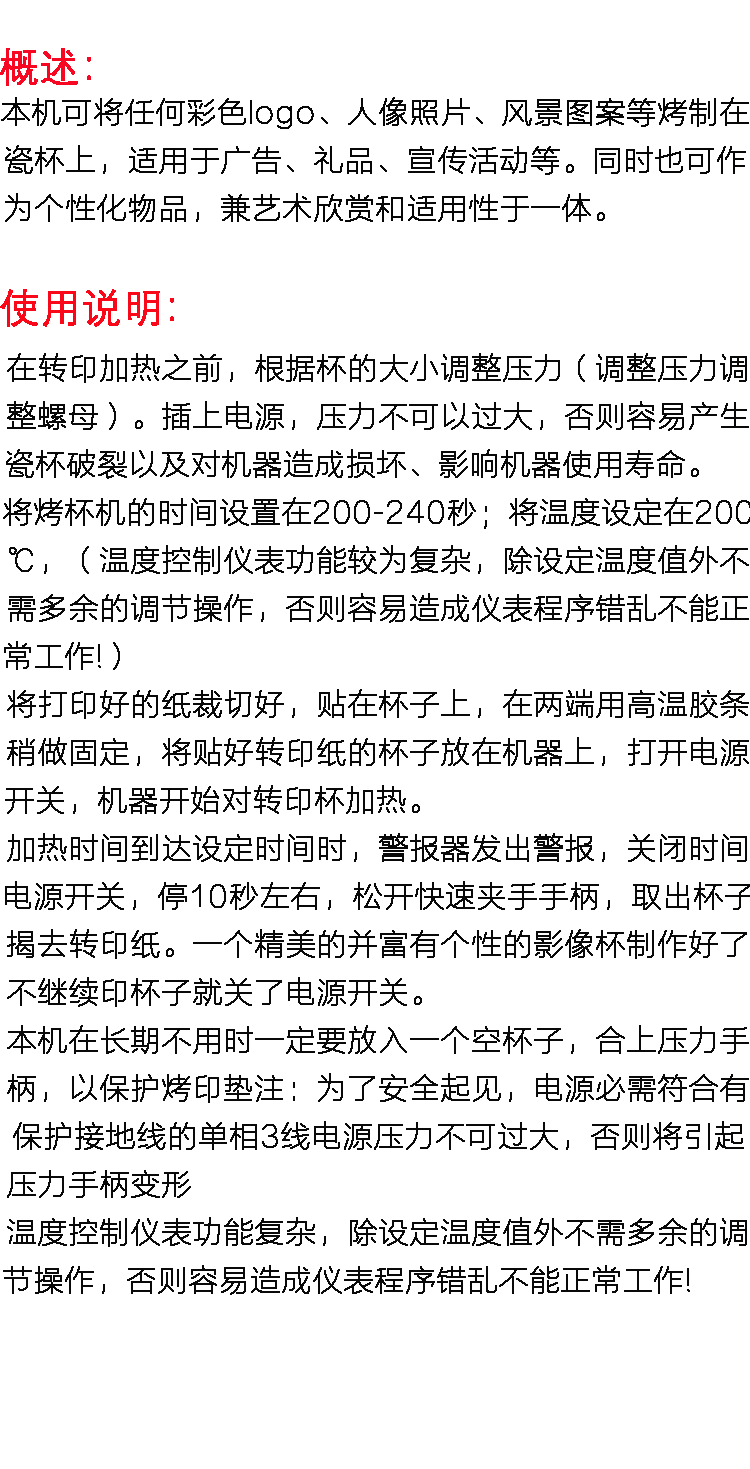

Instructions:

Before the transfer heating, adjust the pressure according to the size of the cup (adjust the pressure adjusting nut). Plug in the power, the pressure cannot be too large, otherwise it is easy to damage the machine.
Set the baking cup machine time to 200-240 seconds; set the temperature to 200°C. (The temperature control instrument has a more complex function; besides setting the temperature value, there is no need for additional adjustment operations, otherwise it is easy to cause the instrument program to be confused and not work normally!)
Cut the printed paper to size and adhere it to the cup, slightly fix the ends with high-temperature tape, place the cup with the transfer paper on the machine, turn on the power switch, and the machine begins to heat the transfer cup.

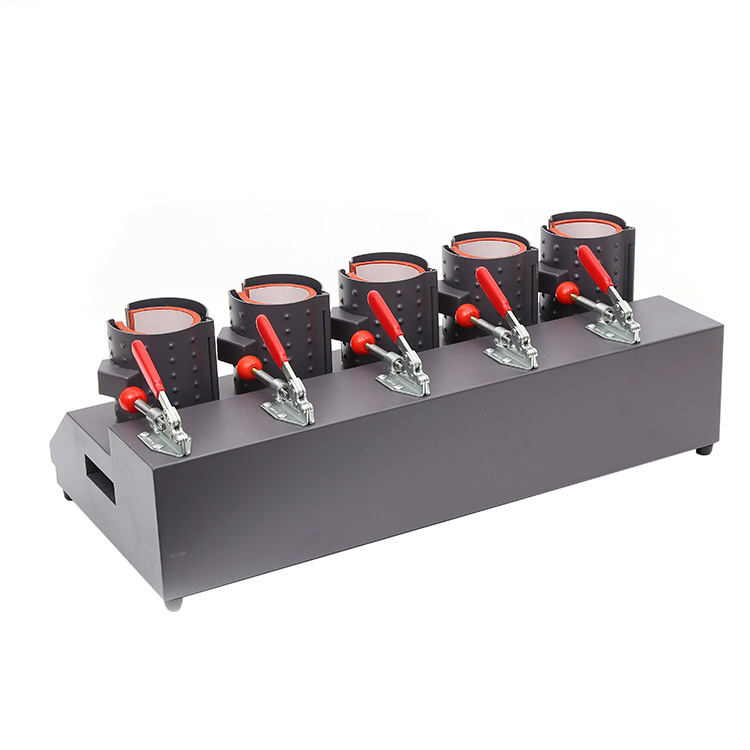

When the heating time reaches the set time, the alarm will sound, turn off the power switch for a few seconds, then release the quick clamp handle and remove the cup to reveal the transfer paper. A beautifully personalized image cup is ready. If you are not printing more cups, turn off the power switch.
This machine must be placed in an empty cup and the pressure handle closed when not in use for a long time to protect the printing pad.
Note: For safety reasons, the power source must comply with a single-phase three-wire power supply with a protected ground line.
The pressure should not be too great, otherwise it will cause the pressure handle to deform.
Temperature control instruments have relatively complex functions. Apart from setting the temperature value, there is no need for additional adjustment operations, otherwise it is easy to cause the instrument's program to become disordered and fail to operate normally!!
