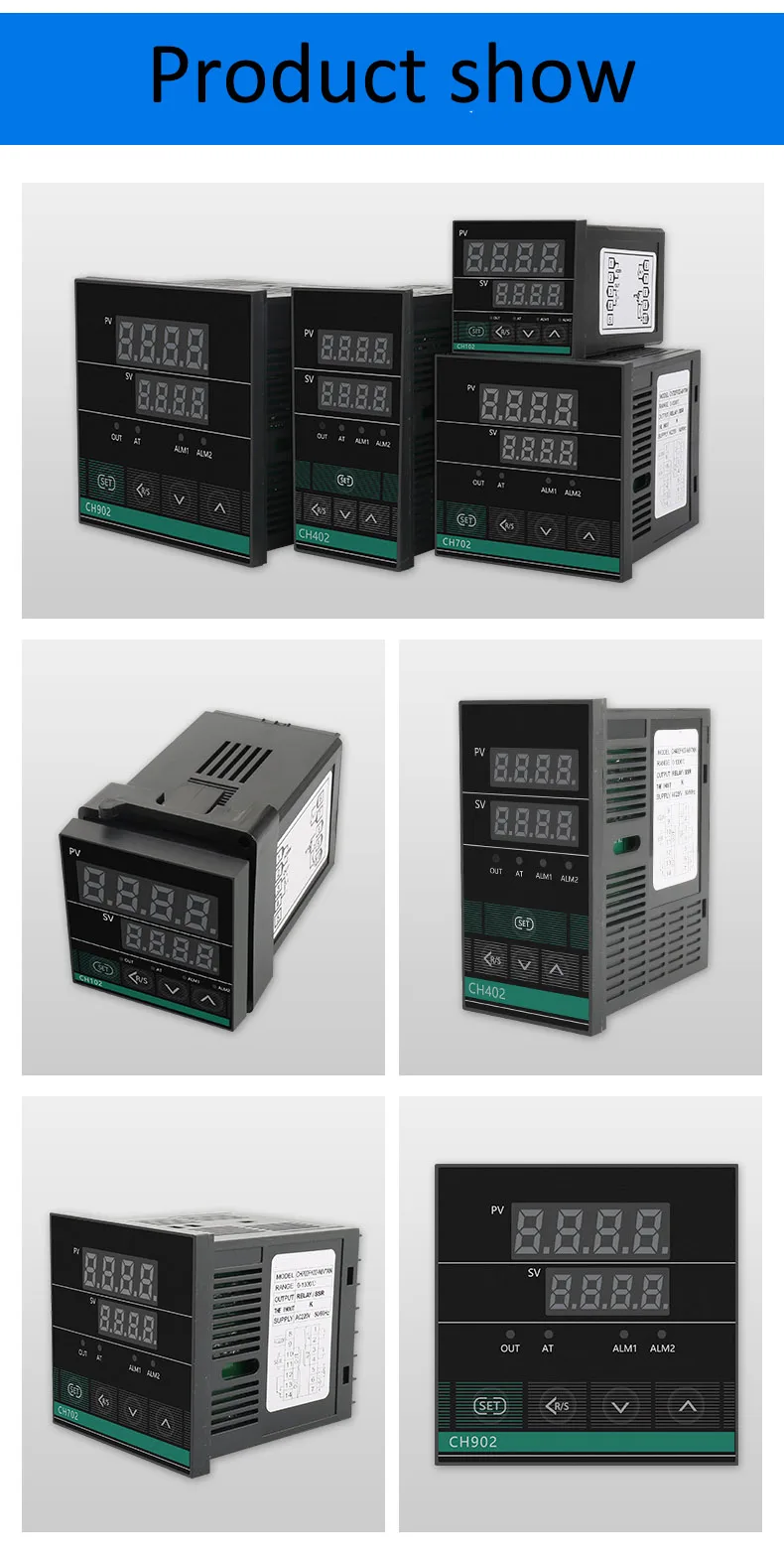

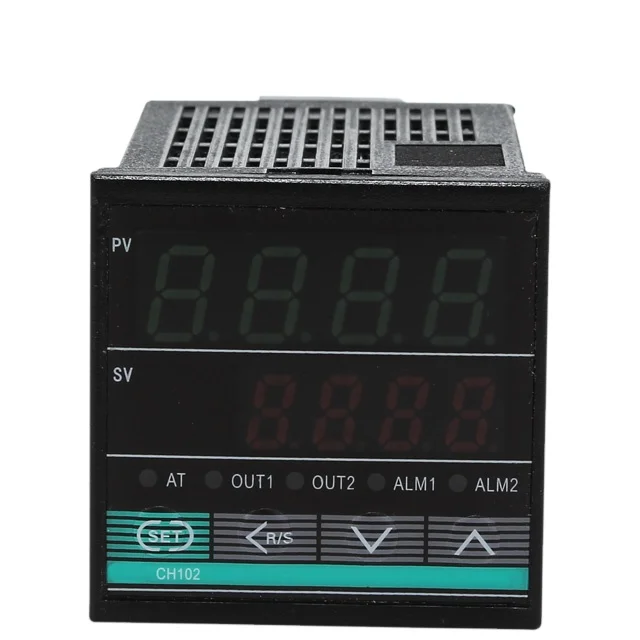

RKC Digital PID temperature controller CH102

Main functions:

1) Selft-tuning;

2) Universal input;

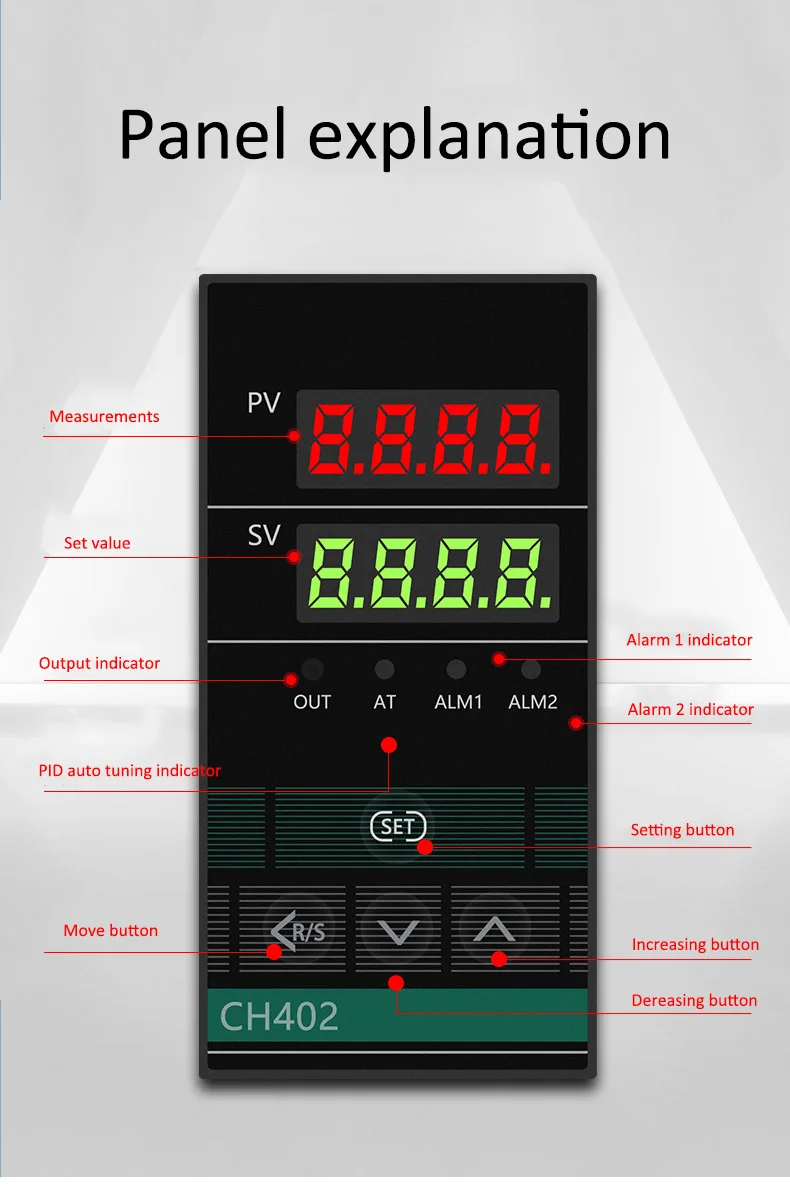

3) LED screeen display;

4) Heating,cooling,alarm;

General electrical data:

Rated voltage: 180-240VAC 50/60Hz or 85-260VAC 50/60Hz

Power consumption: ≤5W

Accuracy: 0.5%FS

Display accuracy: 1°c

Ambient temperature: 0°c - 50°c

Relative humidity: 35% - 85% (no condensation)

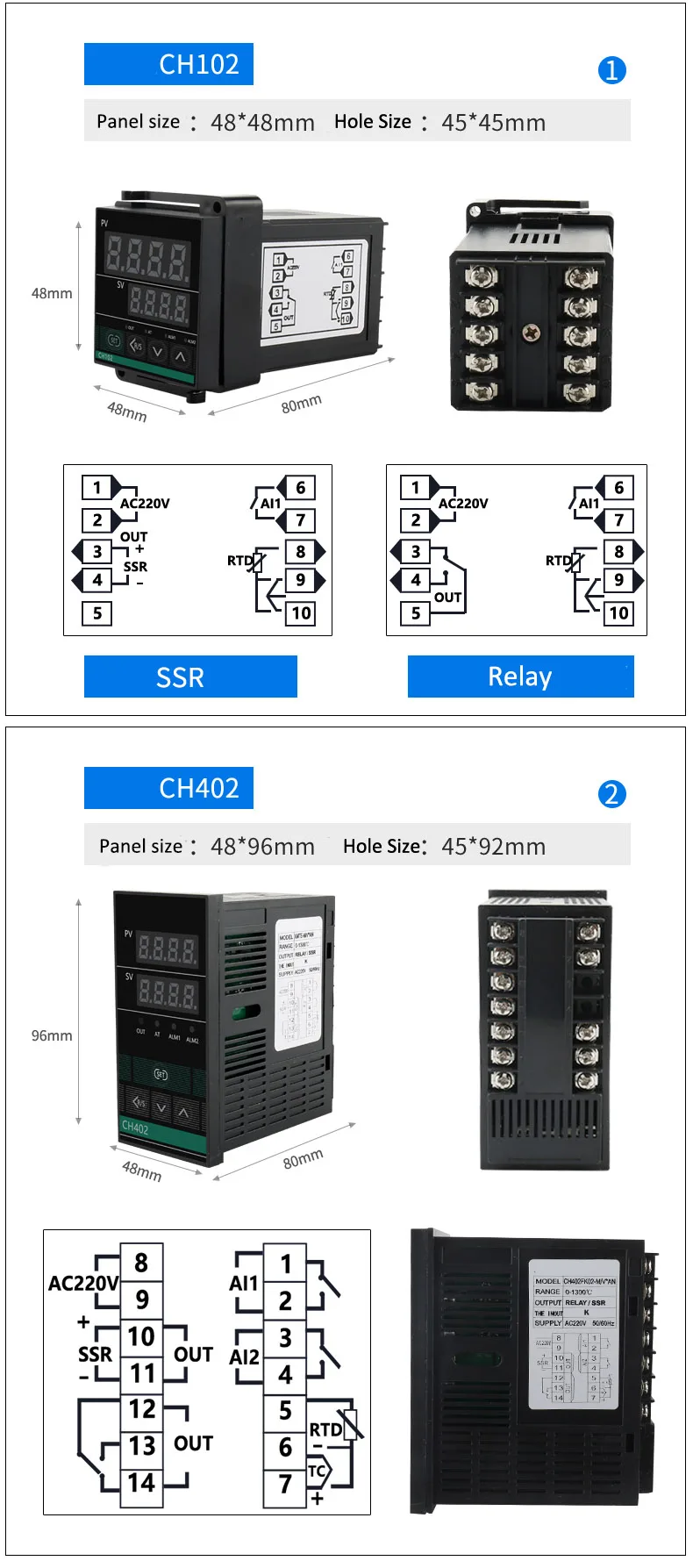

Connection type: terminals

RKC digital PID temperature controller thermostat CH102,pid controller

S/N	Name	Descriptions

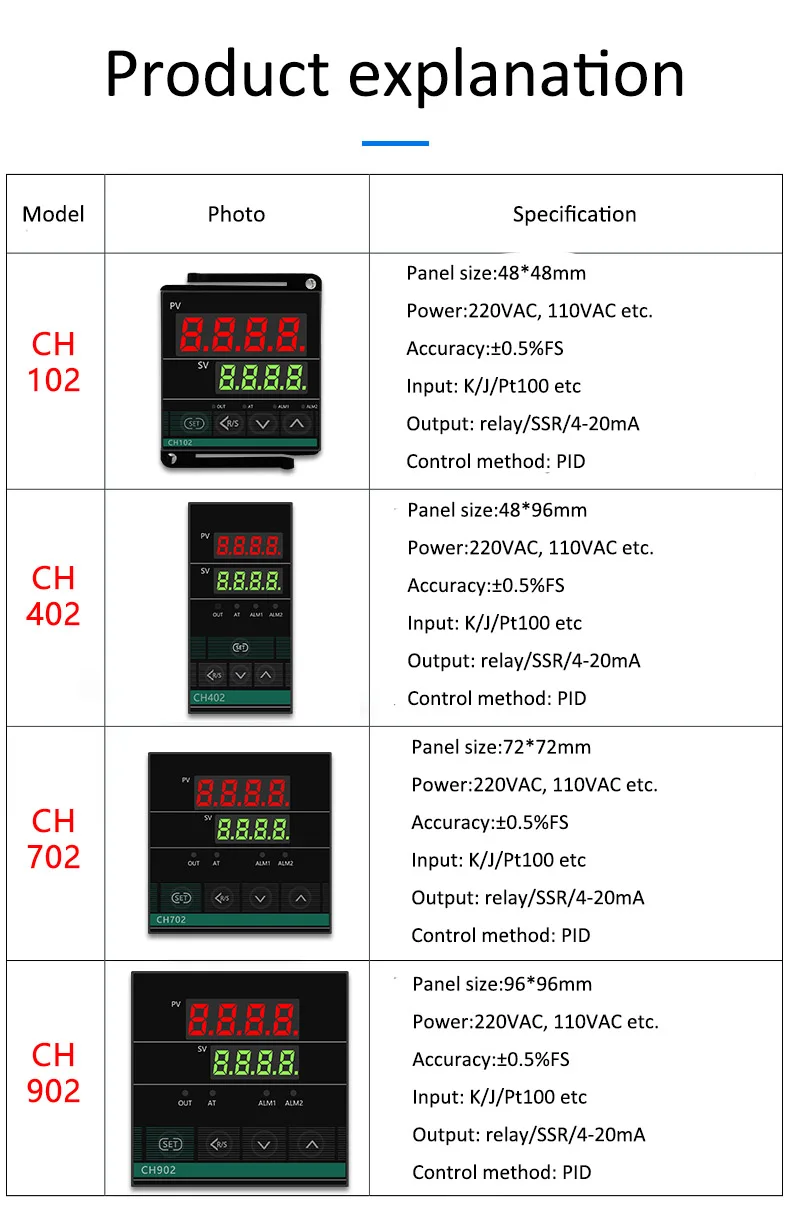

1	Outline(mm)	102:4848 402:4896 501:9648 702:7272 902:96*96
2	Control type	0:PID control 1: step control
3	Input type	1:thermocouple input 2:RTD input
4	Output type	1: break output
5	Refrigerating type	0:no refrigerating 1: step refrigerating 2:proportional refrigerating
6	Alam type	0:no alarm 1:upper limit alarm 2:low limit alarm
7	Input type	1:K 2:E 3:Pt100 4:Cu50 6:J

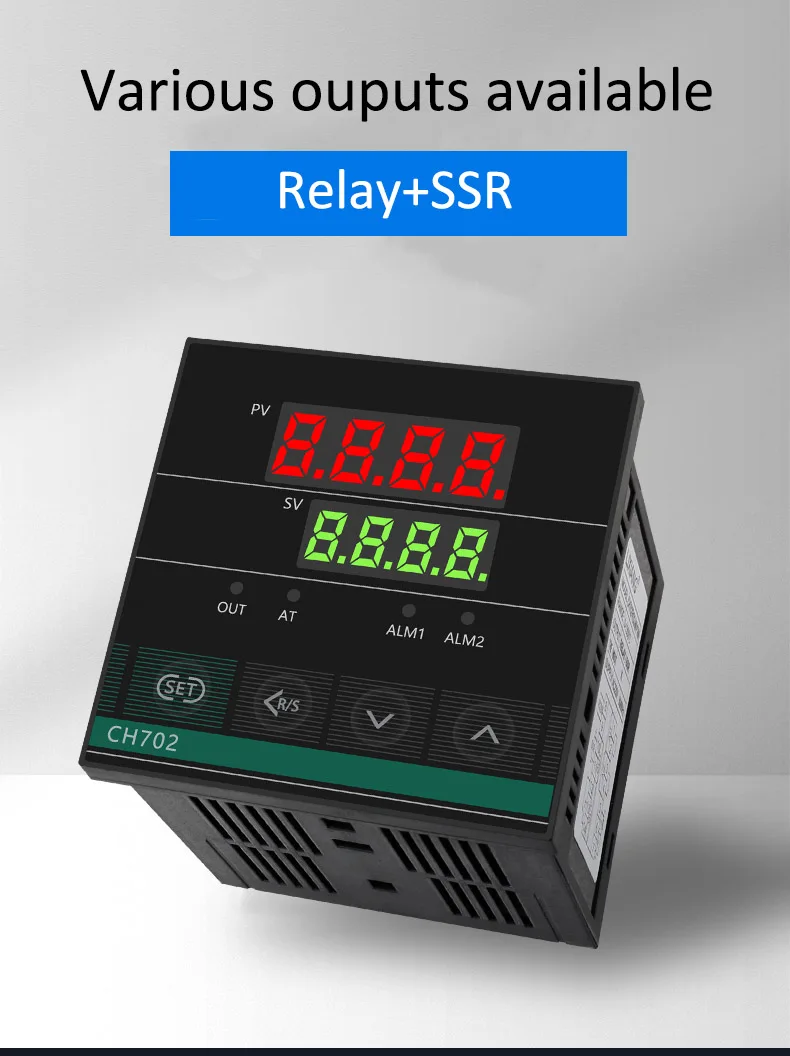

8	Output type	1:relay contact switch output 2:logic level output(used to control SSR) 3:4-20mA
9	Alam mode	Deviation high alarm Deviation low alarm Deviation high/low alarm Band alarm Process high alarm Process low alarm
10	Alam output	1: 1 alarm output 2:2 alarm output
11	Temperature range	1: 0°c-100 °c 2: 0 °c-150 °c 3: 0 °c-400 °c 4:0 °c-600 °c 5: 0 °c-800 °c 6: 0 °c-999 °c
12	Power supply	90-260VAC or 24VDC
