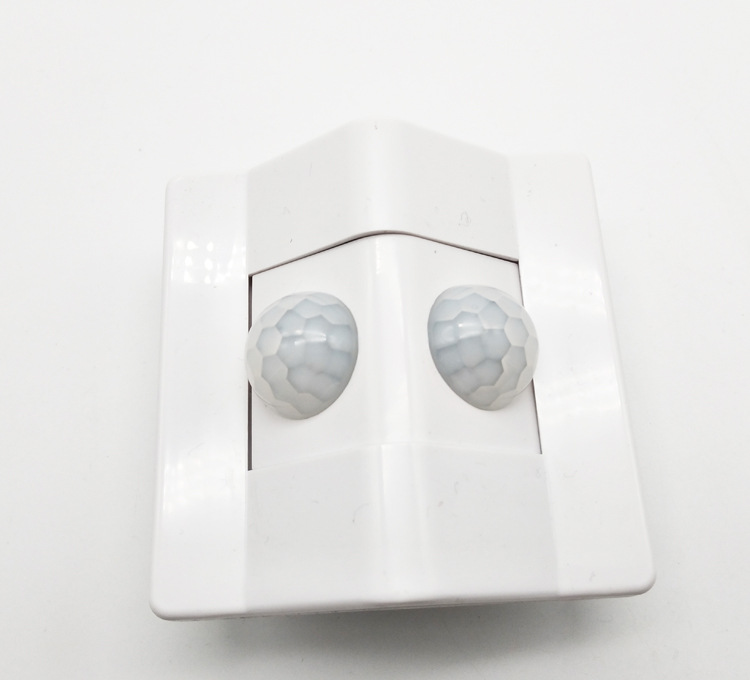

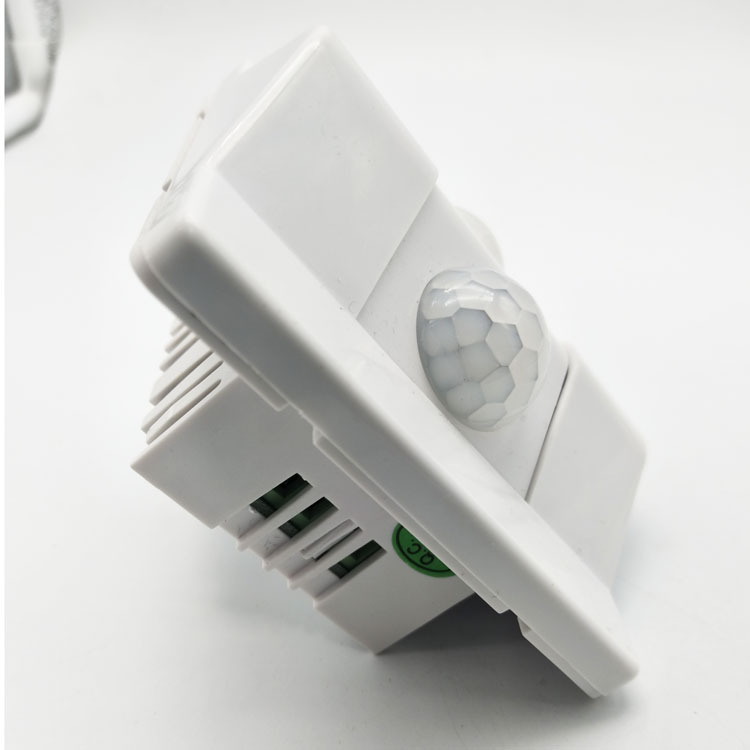

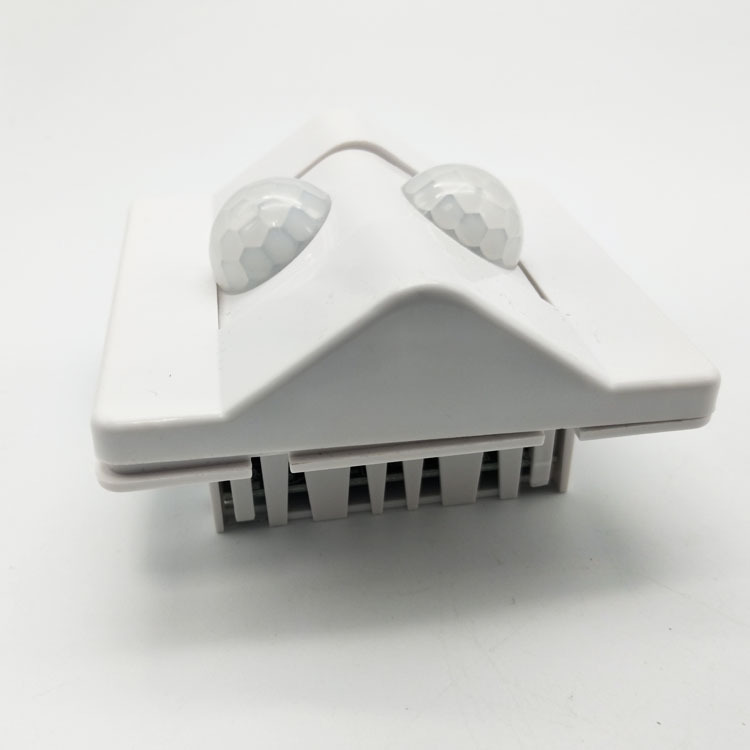

Model: 208A (Two-wire)

1. Product Features:

The sensing angle is greater than 180 degrees in both left and right directions, with a sensing distance exceeding several tens of meters, making it particularly suitable for automatic lighting control in places such as corridors, warehouses, and hallways.

When pedestrians enter the sensing range, it will automatically turn on (light up), and it will automatically delay the shutdown when they leave. It has the following features:

1. Energy-saving and environmental protection, low static power consumption, strong anti-interference ability, safer and reliable.

2. The product uses photocontrol and has an automatic light measurement function. It will only work when the default light is relatively dark, but it can be adjusted to work during the day as well.

3. All components have undergone strict testing and screening, and they have all undergone full-load aging tests before leaving the factory. Please rest assured to use them.

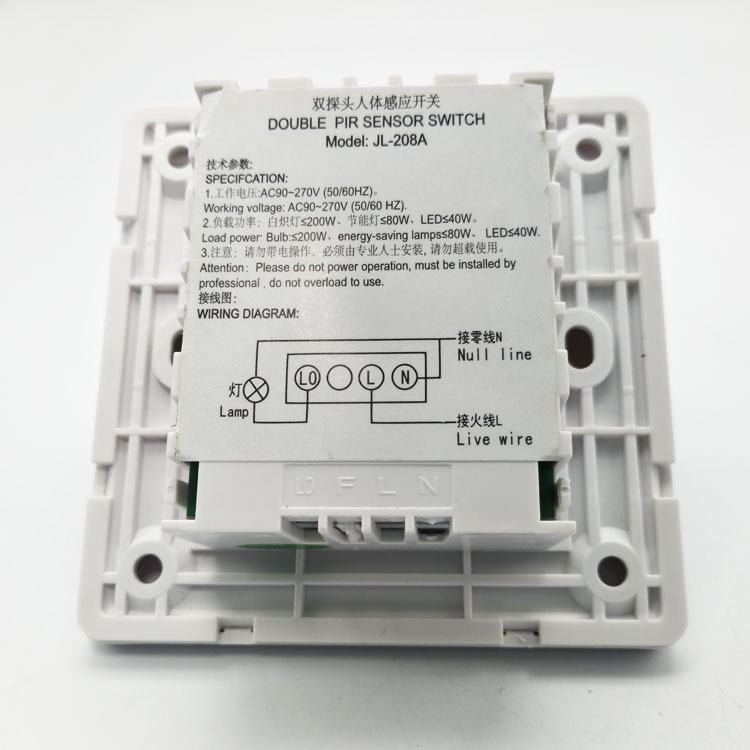

4. If your base does not have a ground wire, but you have purchased a 208A (three-wire) model, you can also connect it according to the JL-208 (two-wire) wiring method.

Electrical Parameters:

Working voltage: AC90V~270V, 50/60Hz.

Load power: LED ≤ 40W, energy-saving lamp ≤ 80W, incandescent lamp ≤ 200W, exhaust fan ≤ 50W.

Standby Power: 0.0088W.

Delay time: Default about 20 seconds, adjustable from 15 to 300 seconds.

Sensitivity: Default 5LUX, Adjustable from 5LUX to 5000LUX.

Sensing distance: Default 5~8 meters, adjustable to 2~10 meters.

Sensing angle: ≥180 degrees.

III. Scope of Application:

Automatic lighting in corridors, stairwells, restrooms, basements, warehouses, garages, and other locations; automatic ventilation with exhaust fans; and automatic control of other electrical appliances.

and can be used for anti-theft purposes.
