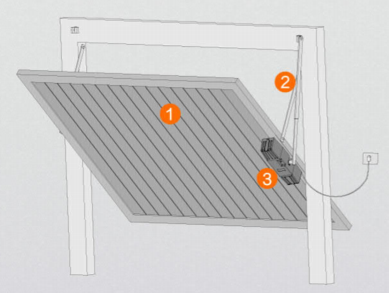

1.Garage Door

2.ROD SHEATH & SLIDING ROD

3.DOOR OPENER

1.Garage door

2. PolesheathWith the joystick

3. Door opener

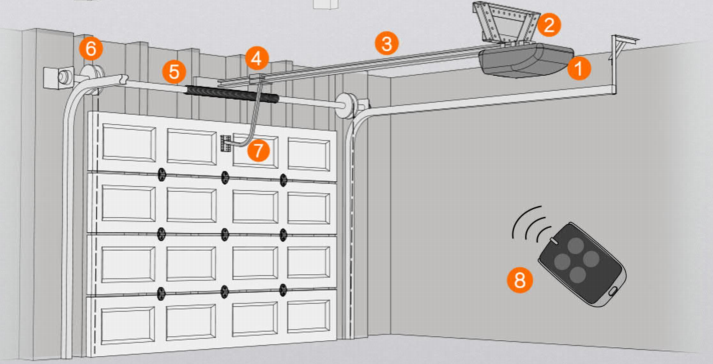

1.door opener

2.Support Frame

3.guide rail

4.pulley

5.Torsion spring

6.Cable Reel

7.connecting arm

8.Remote control

1.DOOR OPENER

2.SUPPORT BRACKET

3.GUIDE RAIL

4.PULLEY

5.Torsion Spring

6.CABLE DRUM

7. REMOTE CONTROL

1.Built-in control unit with a 433.92 MHz receiver.

2.Built-in LED courtesy light.

3.Keypad/single button interface.

4.Alarm lamp, photo beam & safety beam interface.

5.Mechanical limit switch.

6.Emergency manual key release design.

7.Installation accessories with pull rod and bush.

8.Available for two door openers mounted on each side for larger doors.

Main technical parameters

Unit Model: CK300AC

Power Supply:AC220V/50HZ;AC110V/60HZ

Motor Power: 260W

Output Torque: 350N.m

Door Area: 9 Sq.m

Limit Switch: Mechanical Limit Switch

Gate Moving Speed: 1.8±0.2 r/min

Remote Control Range: ≥ 30m

Up Remotes:25

Frequency: 433.92Hz

Work Duty:S2 15min

Working Temperature: -20°C to 70°C

Package Weight: 14.00KG
