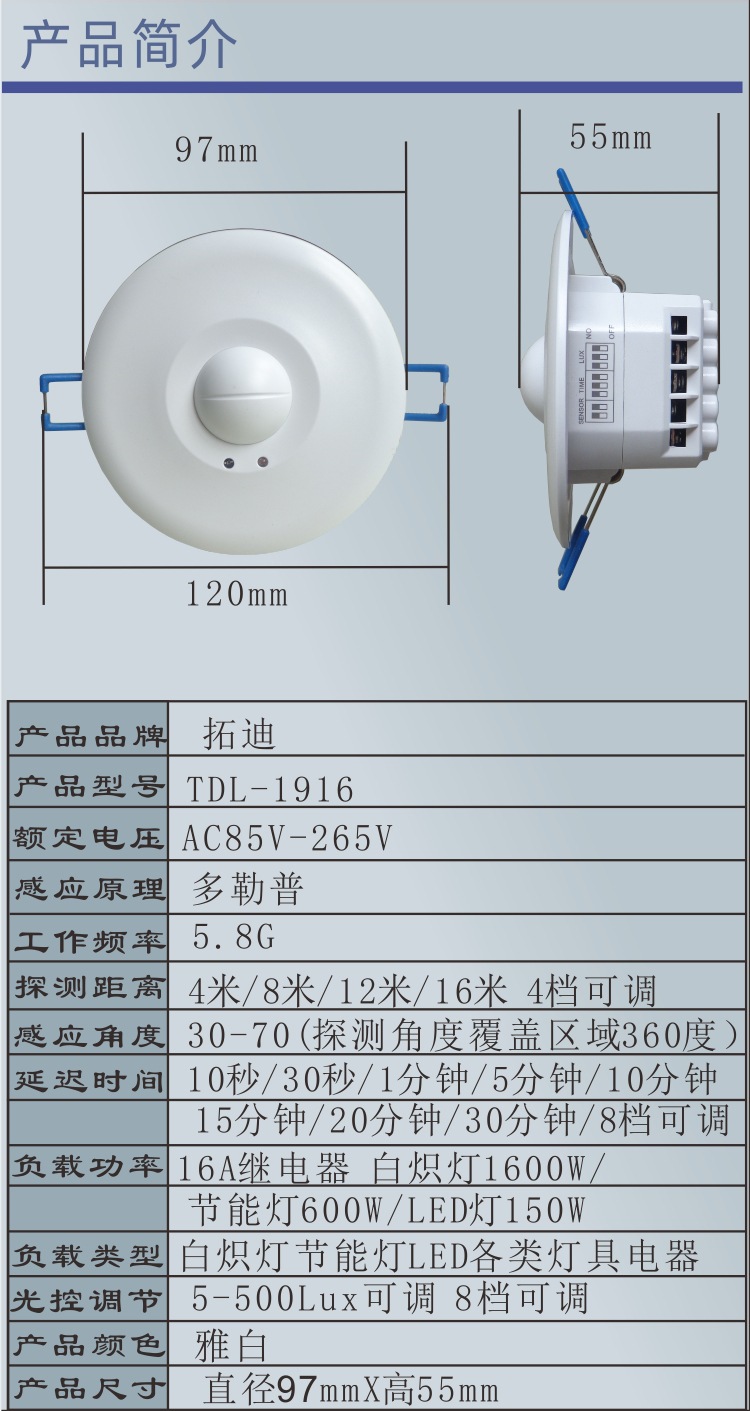

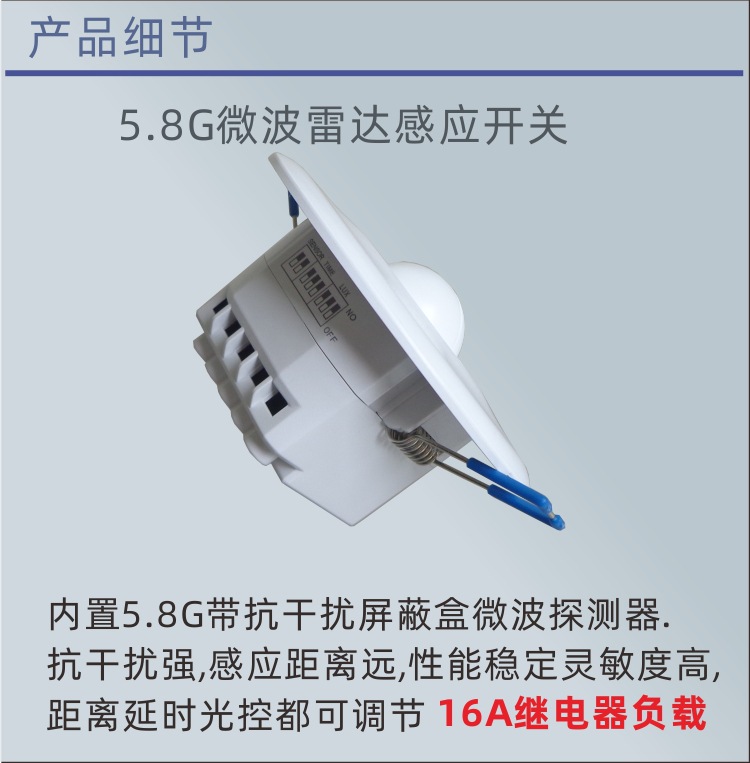

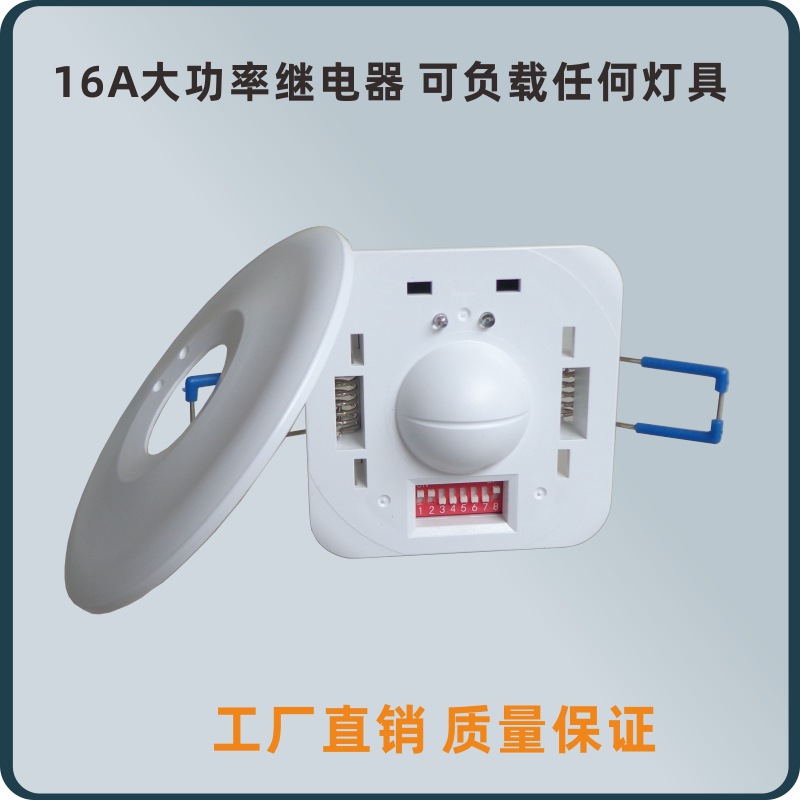

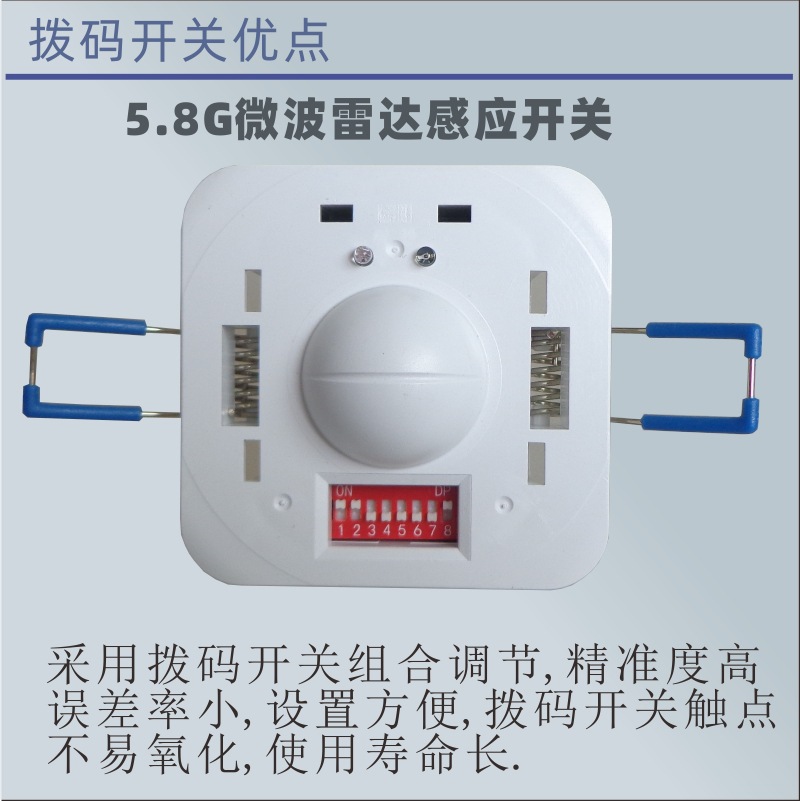

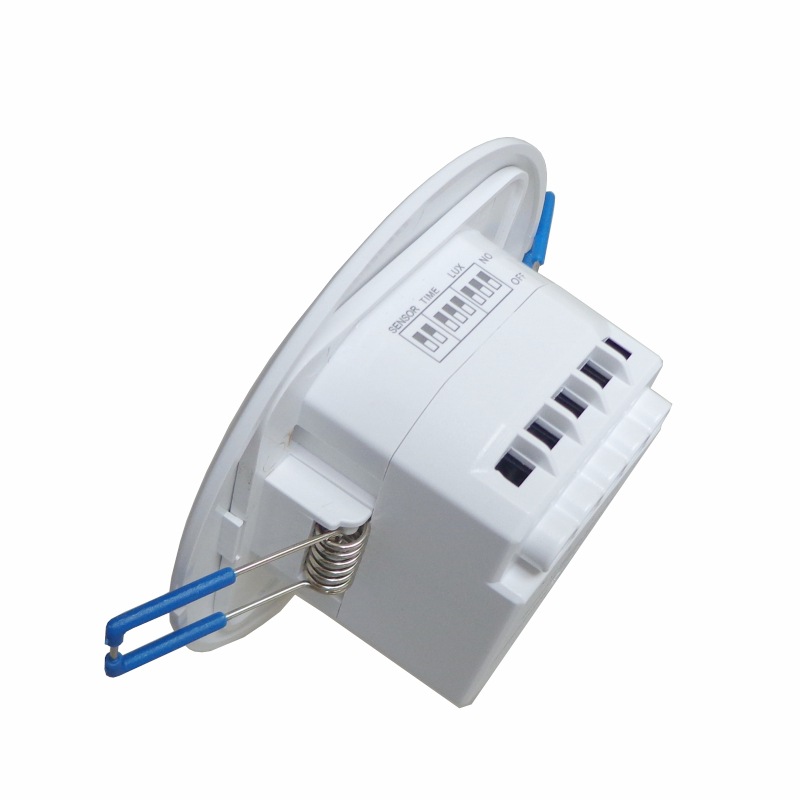

The product installation hole size is square 62X59mm with square hole spacing.

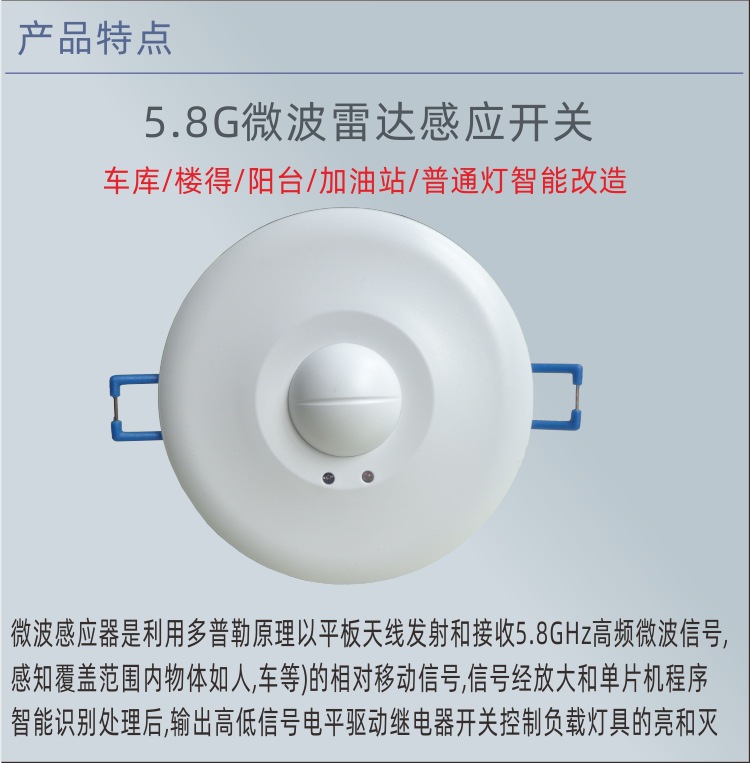

A product overview:

When someone enters the sensor area and meets the lighting requirements, the microwave switch automatically turns on, and the load appliance starts working, along with the start of the delay system. As long as the human body remains within the sensor area, the load appliance will continue to operate. After the human leaves the sensor area, the sensor begins to calculate the delay. When the delay ends, the sensor switch automatically turns off, and the load appliance stops working. This truly achieves safety, convenience, intelligence, and energy saving.

Two Product Features

1. Sensitive to detection, accurately distinguishes between the movement of biological entities and non-biological entities, minimizing the rate of false actions.

2. Strong anti-interference: Operates at 5.8GHz, with minimal impact from external natural factors, ensuring stable and reliable performance.

3. Auto Exposure: Automatically identifies the intensity of ambient light to meet the lighting requirements and turn on the lights when someone is present. Otherwise, the lights will not be turned on.

4. Fully automatic sensing: The light will turn on automatically when someone is detected, and it will turn off when they leave. This is safe and energy-saving, and it is not affected by sounds or objects from the outside.

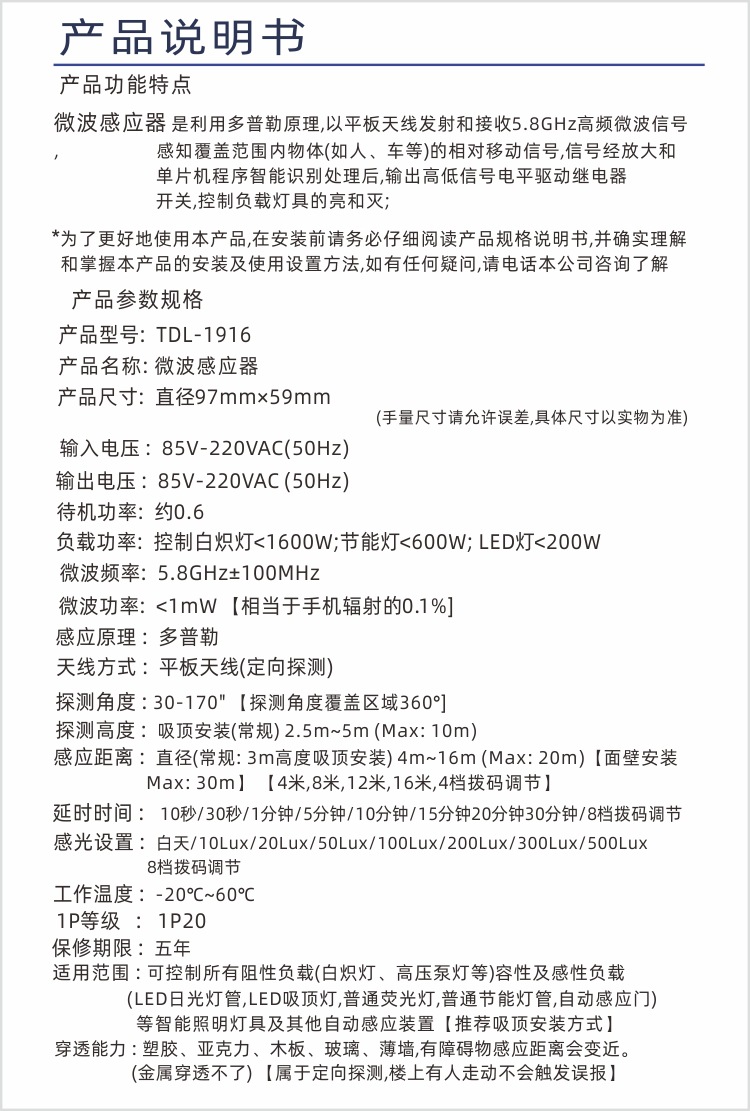

Three technical parameters:

Product model: TDL-1916

Working Voltage: AC85-250V

Standby Power Consumption: 0.07W

Launching power:

Working Frequency: 5.8GHz

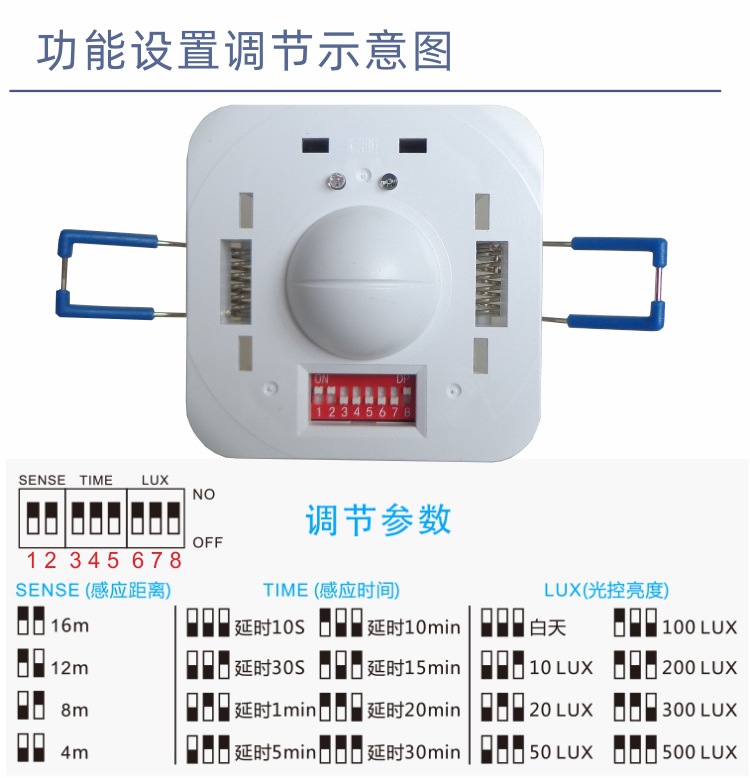

Detection Range: 4-16 meters (adjustable)

Work delay: Adjustable from 10 seconds to 30 minutes

Light control illumination: Daytime -10 to 500 LUX adjustable

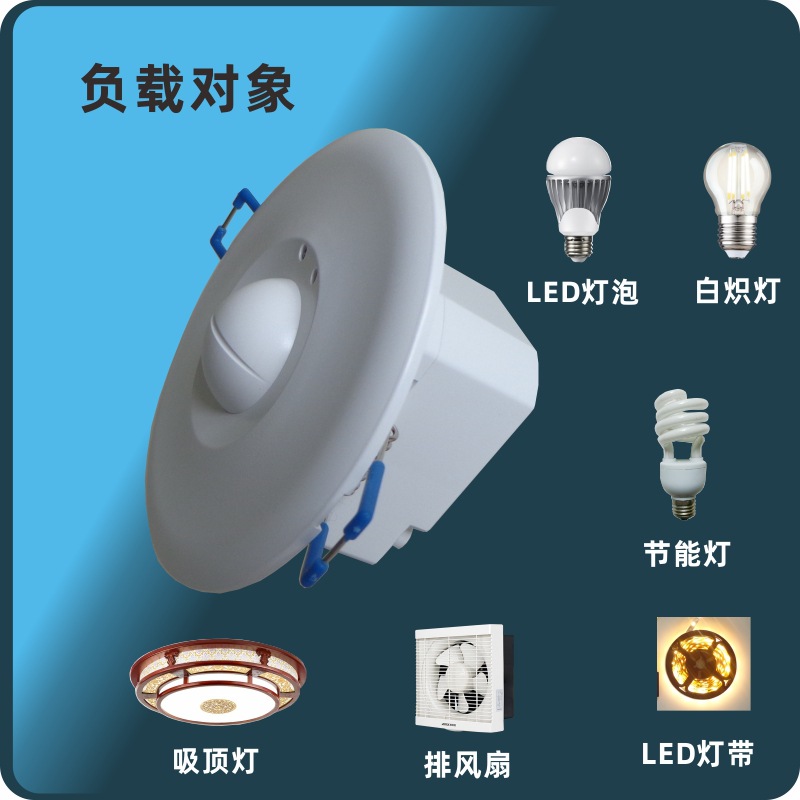

Load power: 1600W (resistive load), 300W (reactive load)

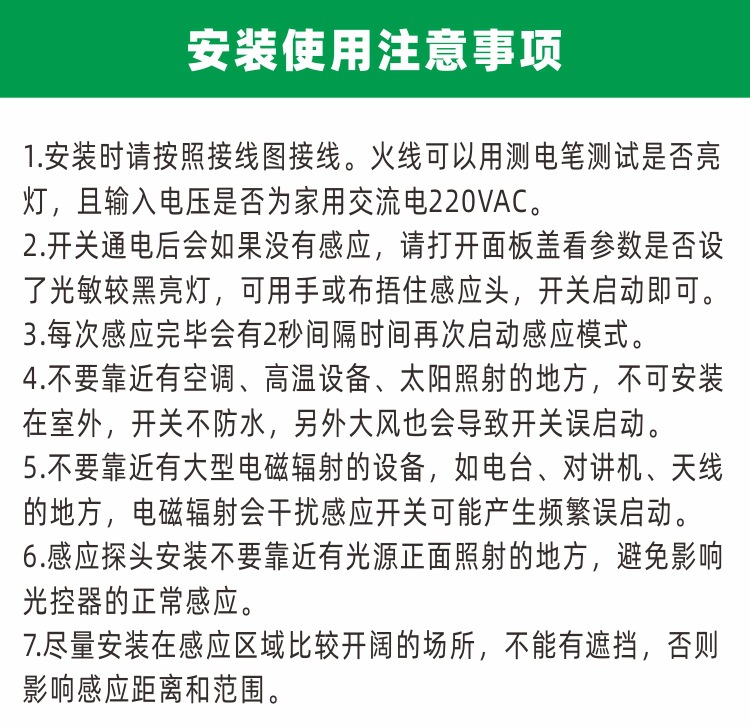

Four Points to Note:

1. Please disconnect the power before installation to avoid any danger.

2. The product is not waterproof, please note to prevent moisture and water.

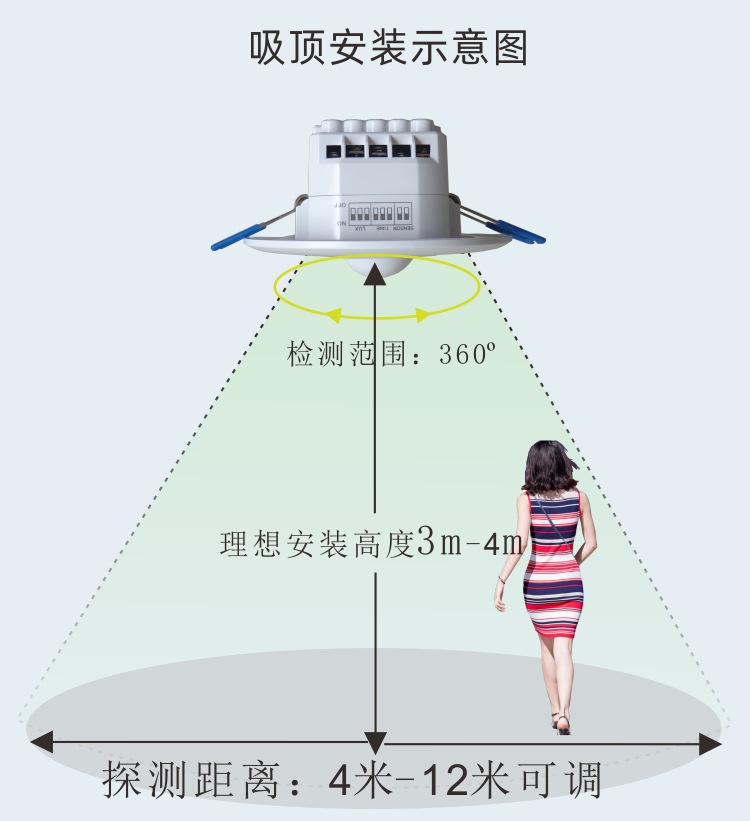

3. Microwave sensor angle is 360 degrees, please note the installation method.

4. The product contains high voltage, please do not disassemble or repair it unless you are a professional, as any damage caused will be at your own risk.
