Ronsz

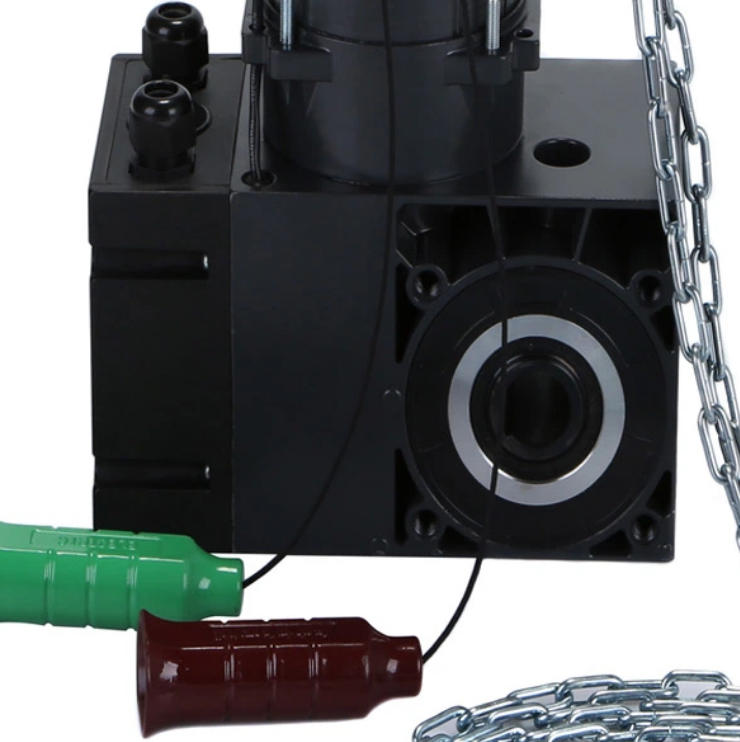

Product Features
1. A wide range of specifications, covering almost all the driving requirements of small and medium-sized industrial profile doors in the current mainstream market.
2. Upgrade the motor design without frames, with a high-end appearance and reasonable structure.
3. Aluminum alloy surface spray treatment, improving quality, making the entire unit durable and reliable.
4. Alarm light, beam and safety beam interface.
5. Convenient manual/automatic switching mechanism, enhancing safety in use.
6. High-end new-type control boxes showcase exceptional quality.
Product Parameters:
Main Technical Parameters:
Single-phase AC 220V
Model: GK40 GK100
Rated Power: 300W 550W
Start Torque: 40N.m 100N.m
Max。Crate Door Area: 20㎡ 45㎡
Uninstall continuous operation: 15 minutes 8 minutes
Heat protection temperature: 120°C
Reduction Mechanism: 1:58
Unload standard speed: 24r/min
Lubrication Method: Oil Lubrication
Running noise: ≤55 dB
Power off quick release: manual zipper
Quick-release clutch: optional
Maximum travel: Output shaft rotates 20 times
Output shaft: φ25.4 mm
Working temperature: -20℃ to +45℃
Duty: S2-15min
Protection Level: IP54
Machine Size (mm): 220x110x350
Weight (kg): 13
