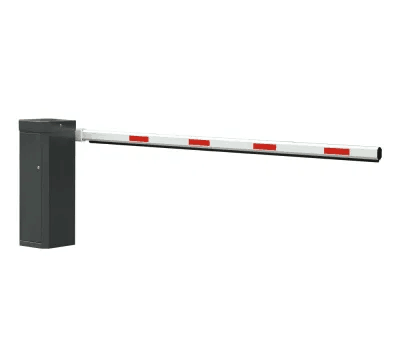

RONSZ Servo Brushless DC Motor Gate Barrier

Main Product Parameters:

Model: BC3015

Switch time: 1.5S

Maximum Power: 140W

Voltage: 110V-240V

Protection rating: IP45

Product performance characteristics:

Adopting a DC brushless motor with a 24V safe operating voltage, it breaks the traditional 220V power supply method. The operation is safer and the noise is lower; it is often used under low heating conditions; the motor power is 140W, which is energy-saving and environmentally friendly.

Integrated movement, compact size, high energy; wall-mounted installation, easy to disassemble and assemble.

Adopting a four-bar linkage mechanism, the moving arm performs soft start, slow stop, and smooth operation with no impact, effectively reducing arm vibrations and motor load, thereby extending the service life of the gate machine.

Adjustable intelligent running speed (1.5s-6s), realizing intelligent speed change, effectively reducing arm tremor, meeting the requirements of different environments.

It has an automatic reverse function. When the barrier arm encounters an obstacle, it will automatically open to reduce damage caused by mistakes during the closing process.

In order to activate the priority collision prevention function, once the obstacle arm receives an opening signal during the closing process, it will execute the opening action.
