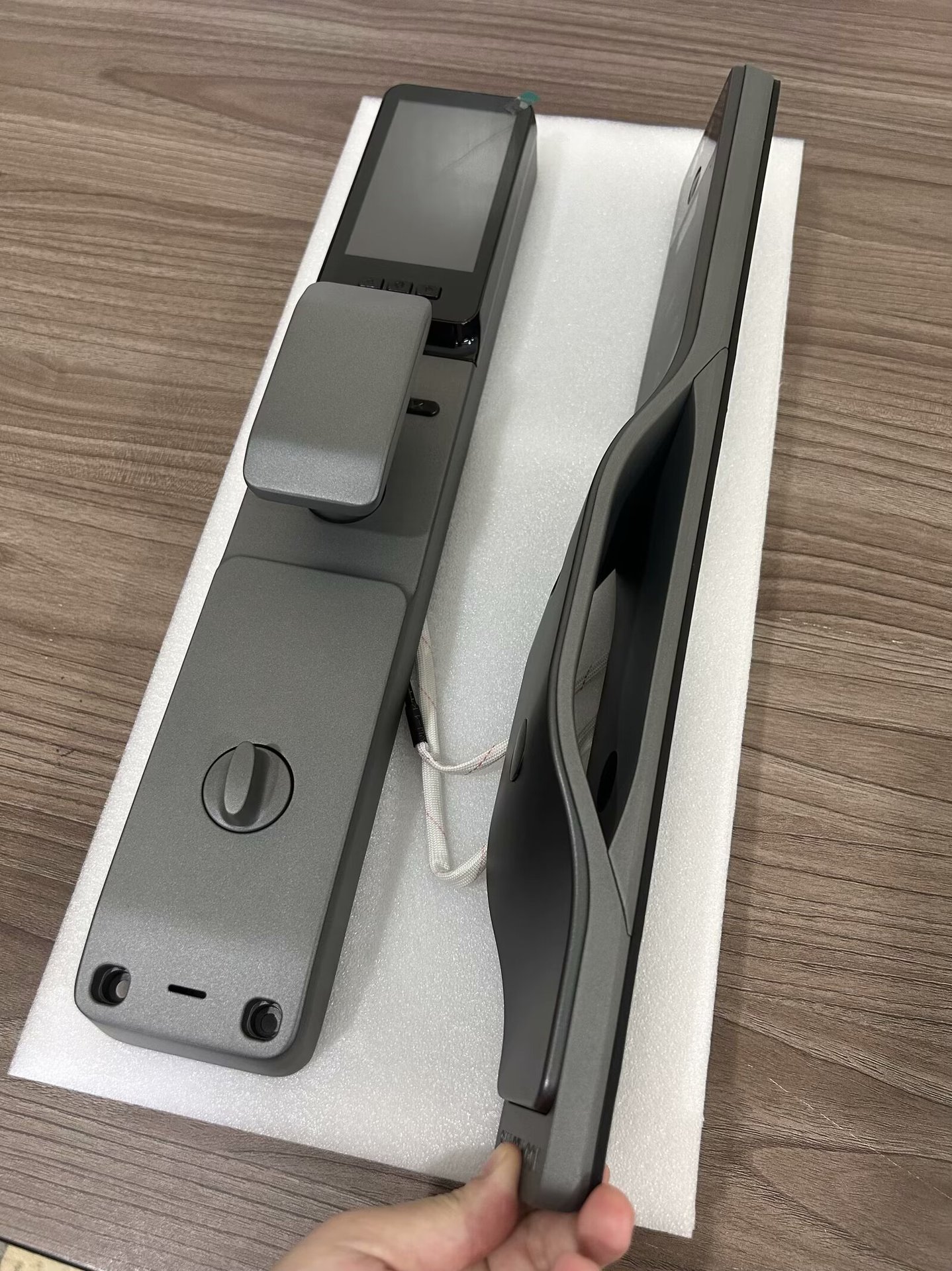

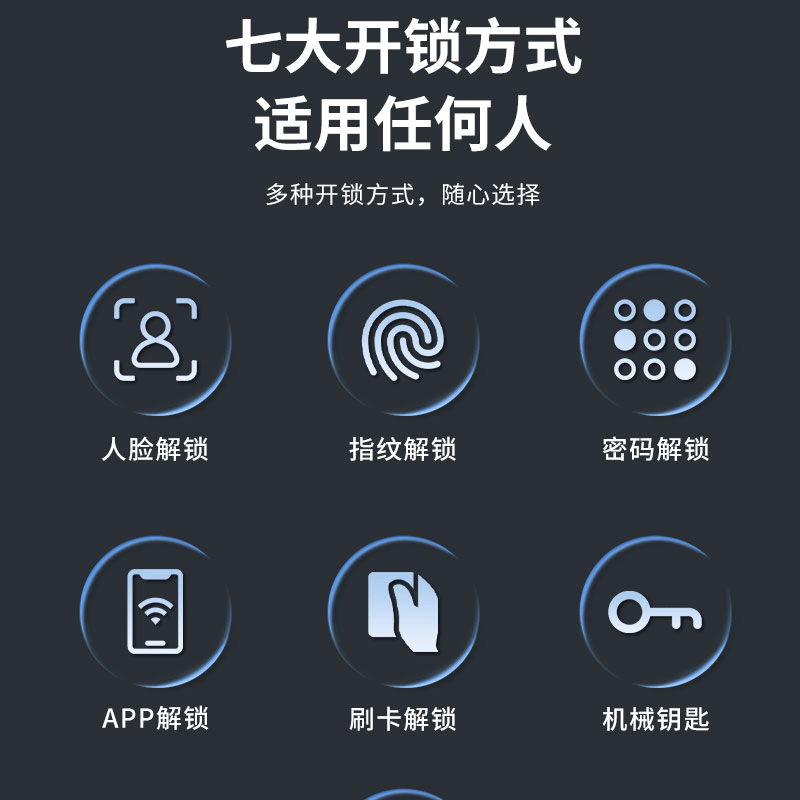

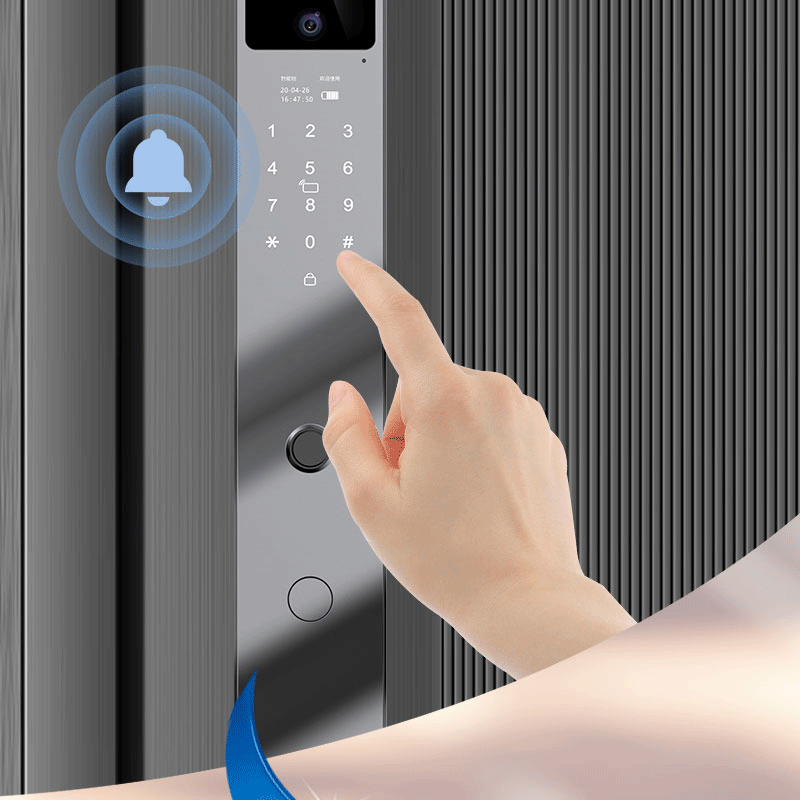

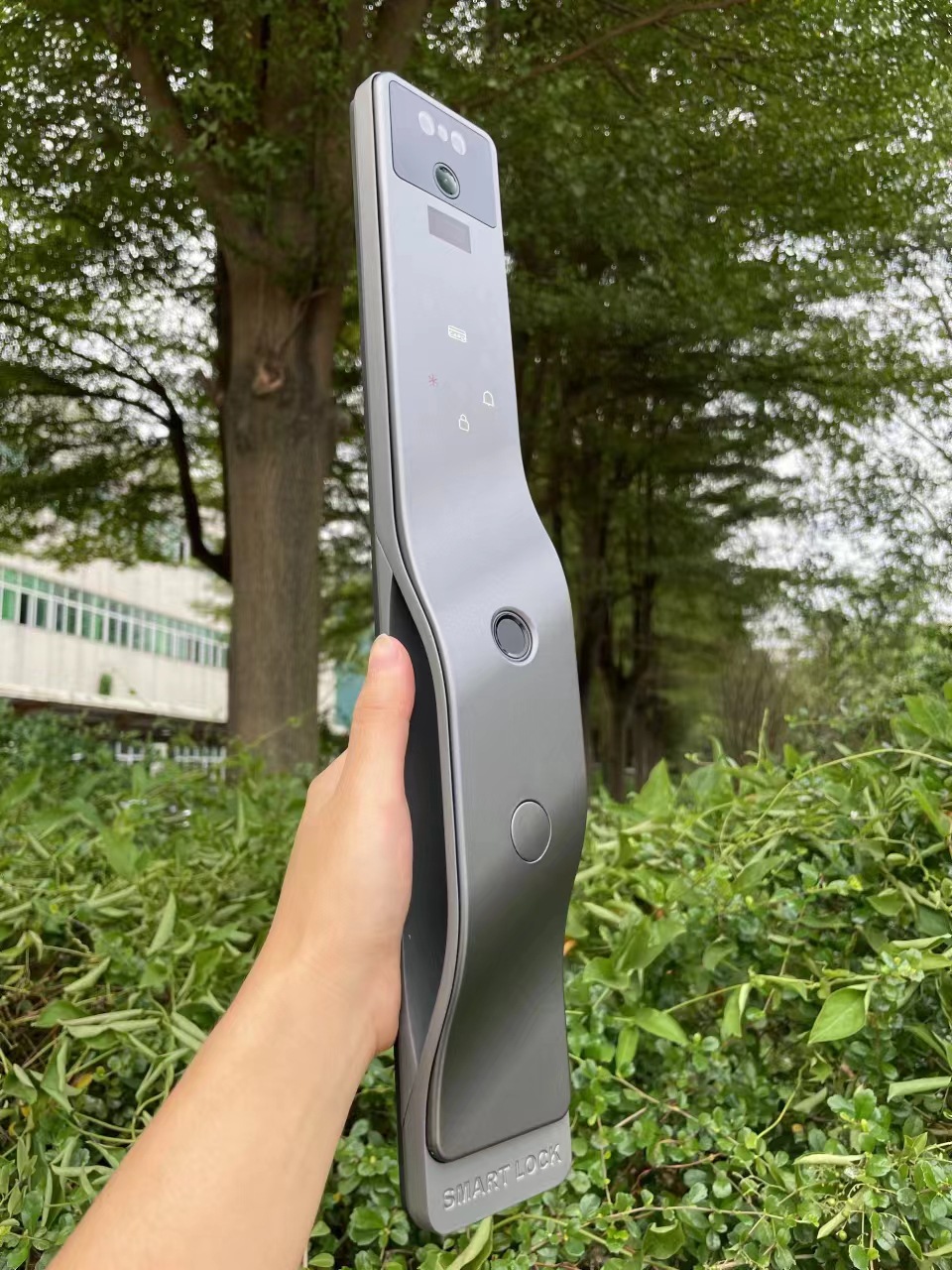

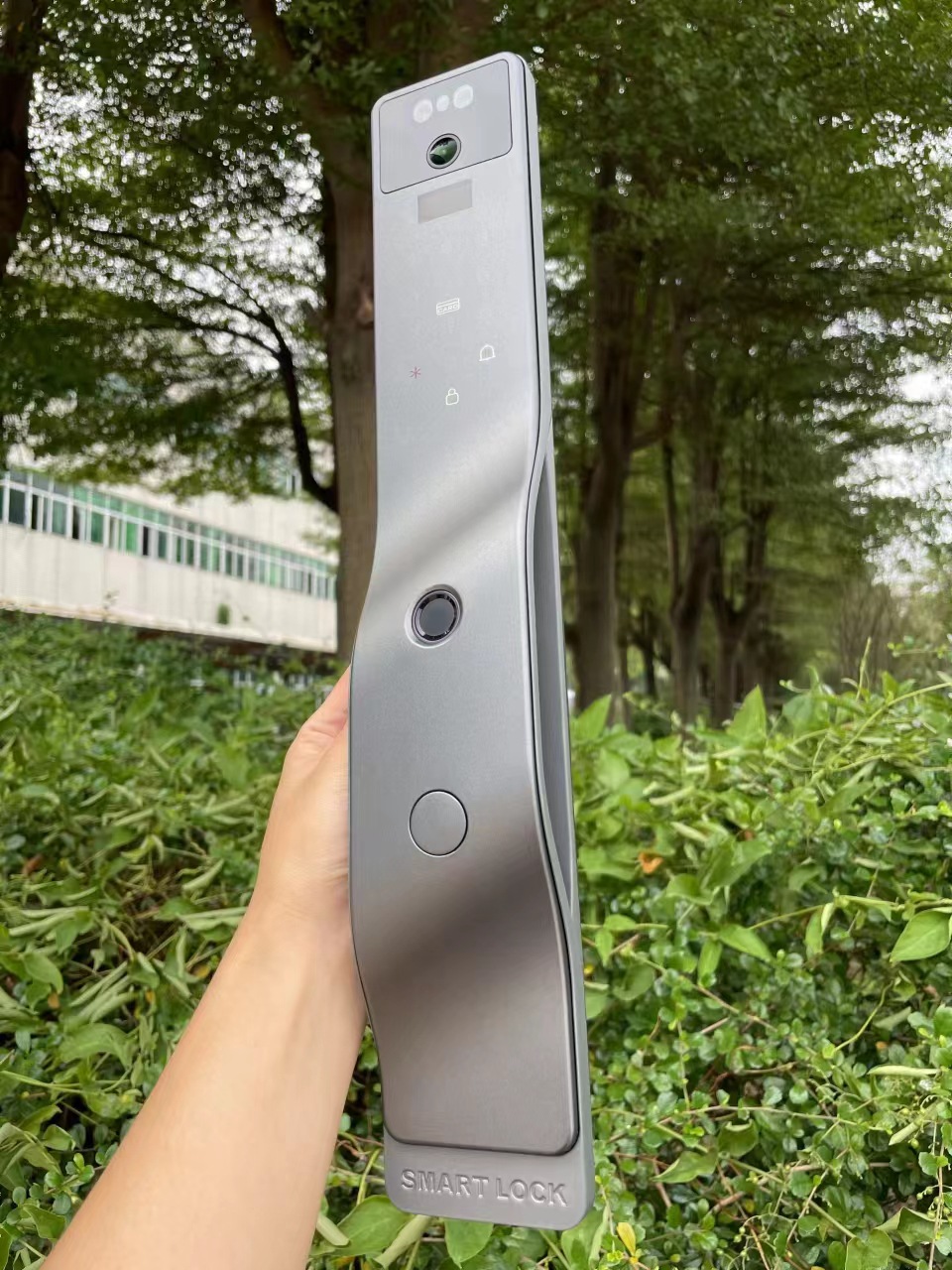

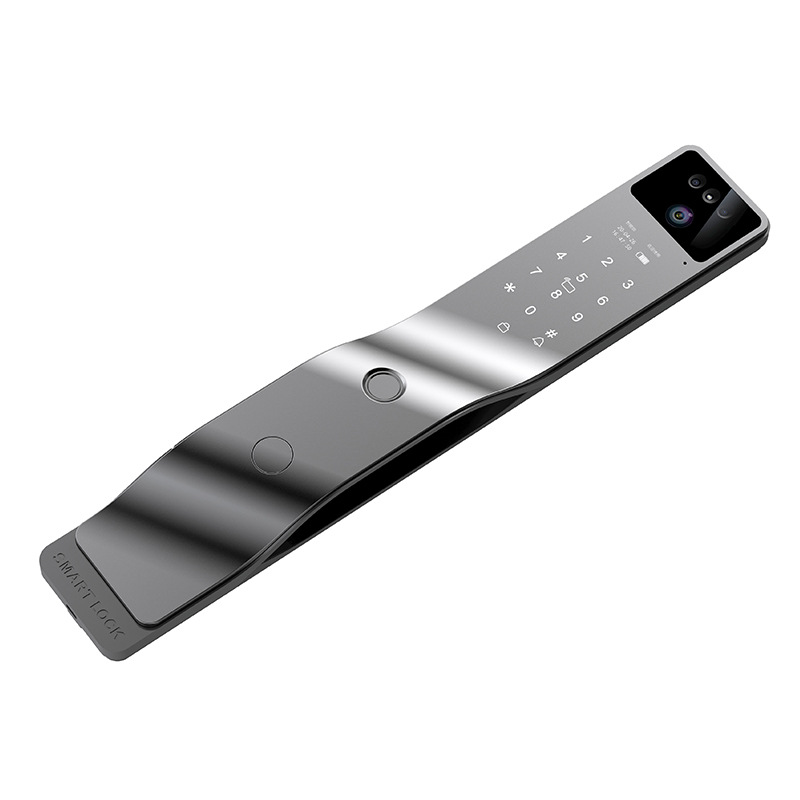

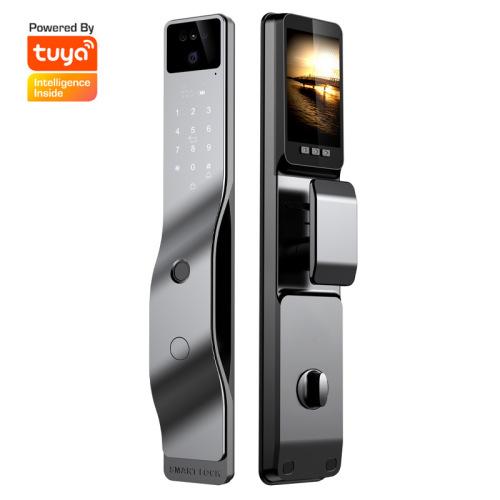

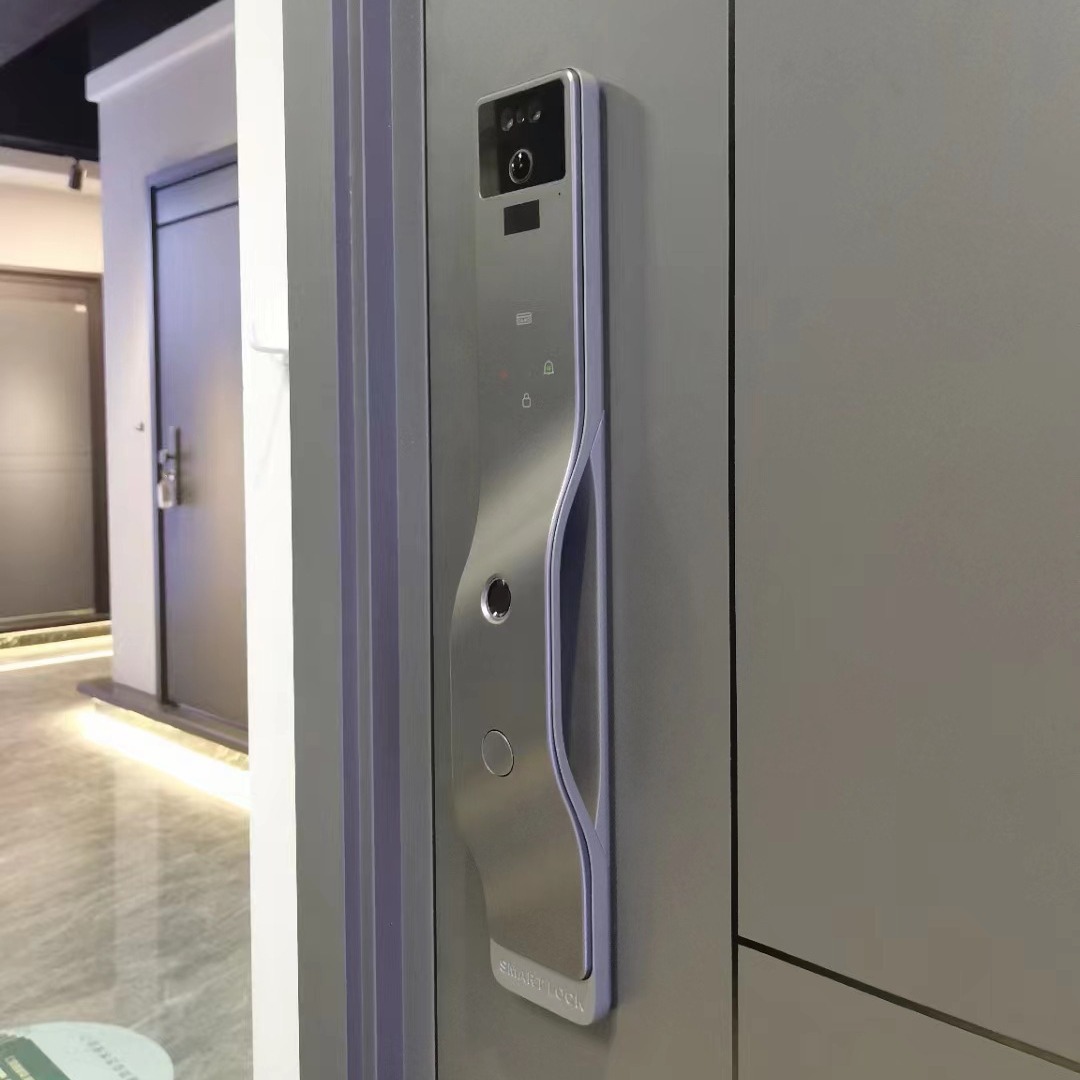

| 3d face + cat's eye + graffiti wifi capture + fingerprint + password + card + key (no lock body) | ¥0.0 | 99782 set available |
|
A new item has been added to your Shopping Cart. You now have items in your Shopping Cart.
YIWU SHUANGLI HARDWARE COMPANY 14yr.
Contacts:lemenChat
Mobile:86-13506587772
E-mail:2859664980@qq.com

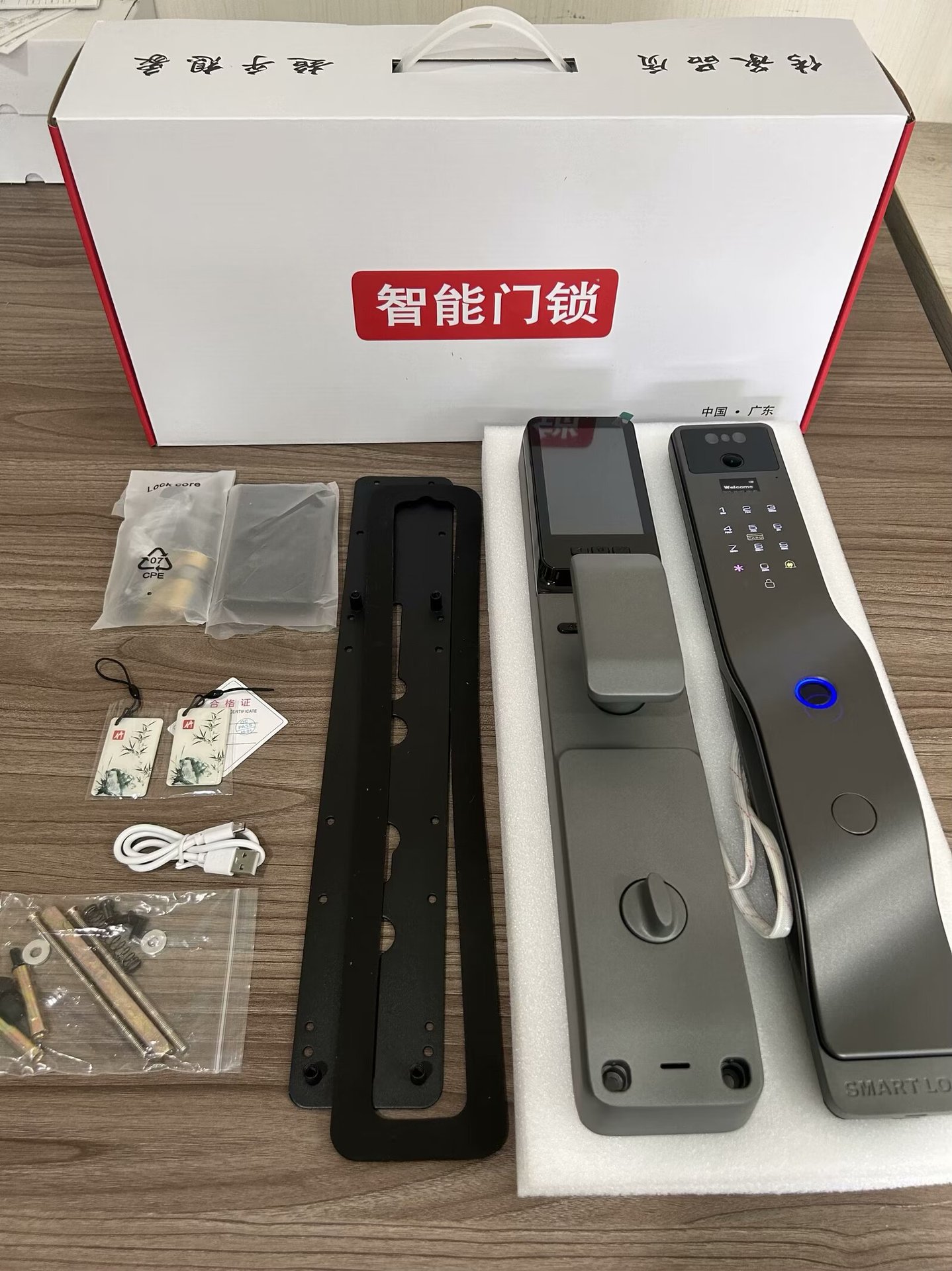

Packing Specification: (Including National Standard Lock Body)
Unit weight: 4KG/1PCS, Length: 495MM*Width: 235MM*Height: 125MM; Weight without locks: 3.5kg
Case: 24KG/6PCS, Length: 510MM*Width: 410MM*Height: 500MM;

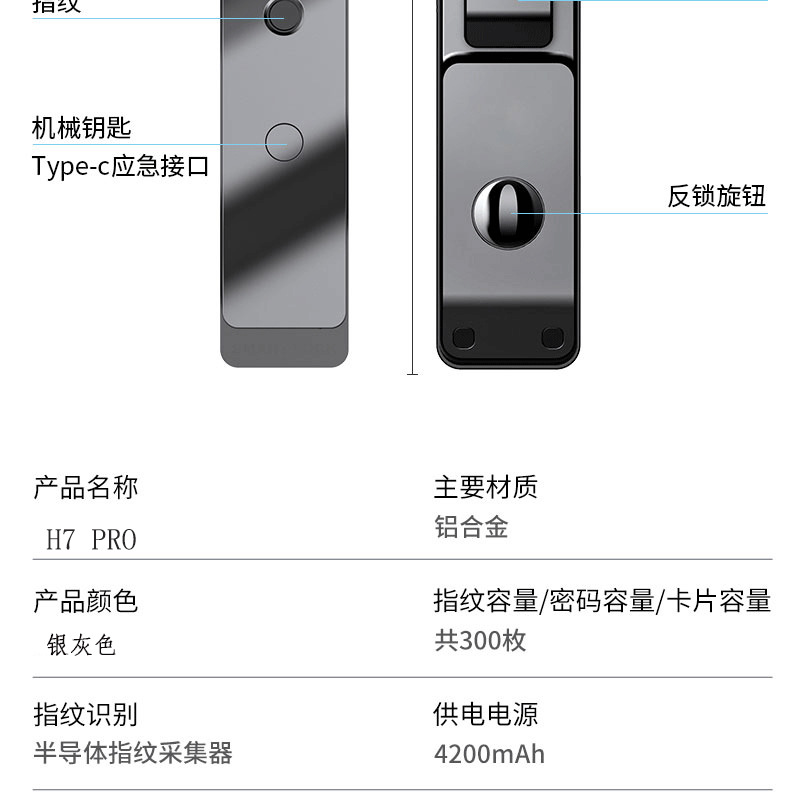

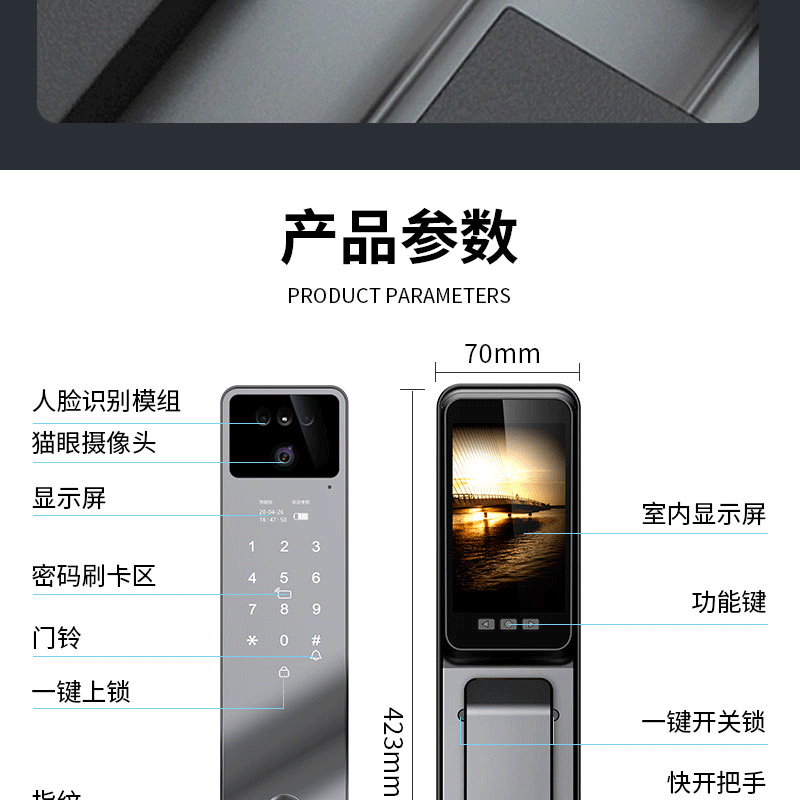

Product Parameters:
|
Serial Number |
Project |
Technical Description |
|
1 |
Working Voltage |
7.0V – 8.4V |
|
2 |
Alarm Voltage |
7.2V |
|
3 |
Suspend static current |
< 80uA (Only for the lock board, not including modules) |
|
4 |
Motor Stalling Current Range |
2.5A–4.5A (battery current must be greater than 5A) |
|
5 |
Emergency Interface |
USB port (requires battery charging) |
|
6 |
Manage the number of users |
5 (Fingerprint/Card/Password) |
|
7 |
Number of Regular Users |
295 (Fingerprint/Card/Password) |
|
8 |
"电机方向"可以翻译为 "motor direction"。 |
Support Switch |
|
9 |
Motor rotation angle (time) |
Support modification |
|
10 |
Locking time (slant tongue does not rebound) |
Support modification |
|
11 |
Card Type |
Mifare-1 and ISO/IEC 14443-A compatible |
|
12 |
doorbell |
Support |
|
13 |
One-Click Lock (Front Panel) |
Support |
|
14 |
One-click Lock (Rear Panel) |
Support |
|
15 |
One-Click Unlock (Rear Panel) |
Support
|
