★ Product Introduction:
The nebulizer is used to atomize the test solution. As an important component of the atomization system, the performance of the nebulizer has a significant impact on the measurement accuracy and chemical interference. Therefore, it is required that the nebulizer spray be stable, the droplets be small, uniform, and that the atomization efficiency be high.
It is mainly used for various upper and lower respiratory system diseases, such as colds, fever, cough, asthma, sore throat, pharyngitis, rhinitis, bronchitis, pneumoconiosis, etc. The diseases occur in the trachea, bronchi, alveoli, and thoracic cavity. Atomization inhalation is an important and effective method in respiratory system treatment. It uses an atomization inhaler to turn the drug into tiny particles, and the drug enters the respiratory tract and lungs through inhalation to achieve the purpose of painless, rapid and effective treatment. Please use atomization to administer under the doctor's instructions.

Product Name: YM-3R9 Grid-type Atomizer

★ Product Features:

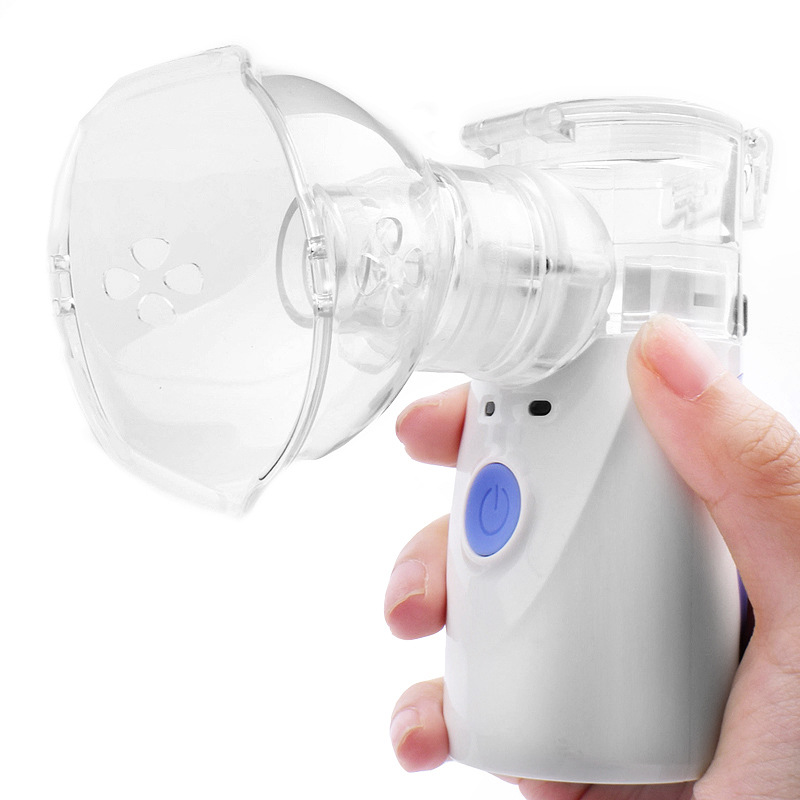

1. Scientific design: Portable hand-held nebulizer, compact and lightweight, convenient for carrying, anytime and anywhere, easy to vaporize.
2. Fine particles: Large mist output, fine and delicate atomization particles with a diameter less than 5μm, leading to more complete drug absorption.
3. Fast speed: Micro-porous spray film, atomization speed ≥ 0.2ml/min
4. Quieter: Low noise design with piezoelectric components for quieter operation.
5. Atomization Mode: There are two atomization methods available depending on the situation, namely mask atomization (adult and child masks available) and mouthpiece atomization.
6. Flashlight Indicator: The light is on to represent normal operation, and the light flashes to indicate that the battery is empty or the voltage is insufficient.
Energy saving: The mask is skin-friendly, and the main material of the mask is PVC.
8. Independent Components: The independent atomization component is simple to clean, with one-button disassembly for easy cleaning and disinfection, preventing cross-infection.
9. Auto Shut-off: The device will automatically turn off when the cup is empty or the voltage is insufficient.
10. Power Configuration: Use a USB power cable, or AAA dry batteries.
11. Advantages: Miniature, quiet, portable, fine particles, large fog, less residue, fast speed

★ Product Parameters:
Product Name: Handheld Portable Vaporizer
Atomization Speed: ≥ 0.2 ml/min
Atomized particles: particle diameter < 5 μm
Dosing Cup Capacity: About 0.5mL to 8mL
Normal operating noise of the complete machine: ≤50dB (A)
Ultrasonic vibration frequency: 110 kHz ± 10%
Power Configuration: Battery (2 AA alkaline batteries) supply: Voltage 3V, Current: 1A USB cable supply: Voltage 5V, Current: 1A

Packing Parameters:
Product size: 140*110*60MM
Crate Size: 585*300*350MM
Color Box Packaging: 235G (excluding batteries)
Packing Quantity: 50 pieces
A box weight: 13KG/50PCS

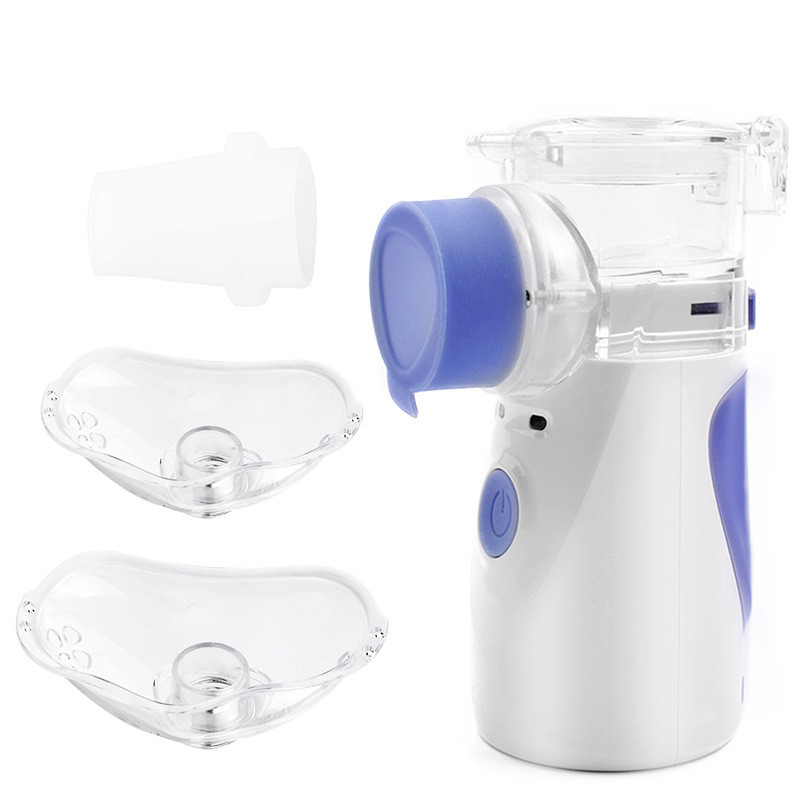

★ Packaging Contents (Standard Equipment):
- 1 x Atomizer
- 1 x Adult Mask
- 1 x Child Mask
- 1 x Atomizing Nozzle
- 1 x USB Power Cable
- 1 x English User Manual
- 1 x Color Box
