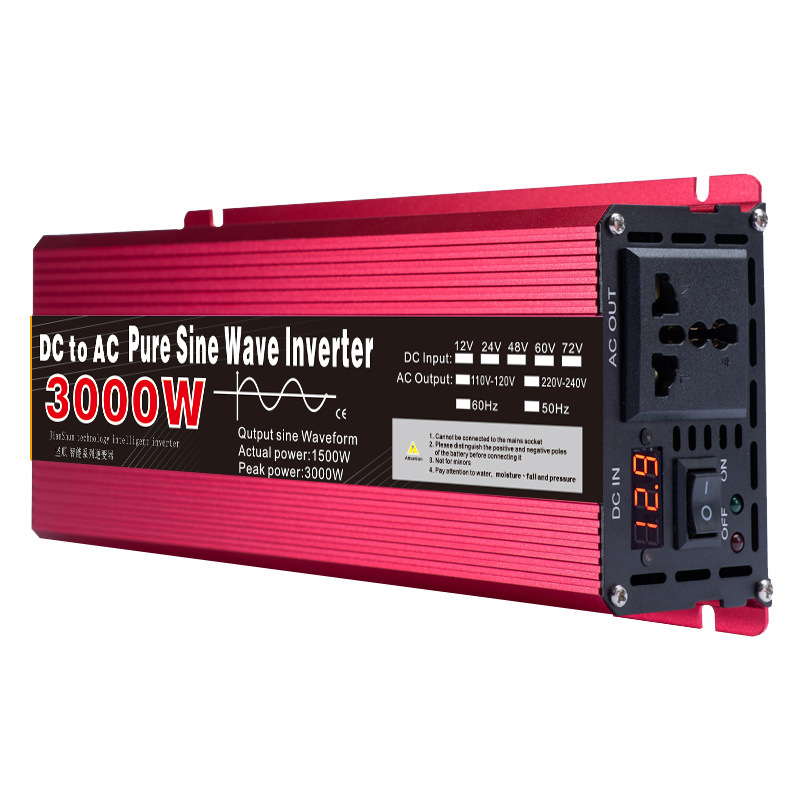

pure sine wave inverter photovoltaic 12v24v to 220v110v1000w1600w2200w3000w optional 纯正弦波逆变器光伏12V24V转220V110V1000W1600W2200W3000W可选

Note:
1. It cannot be used connected to a household power outlet.
2. Before connecting the battery, please first identify the positive and negative terminals of the battery.
3. Minors are not allowed to use
4. Pay attention to water resistance, moisture resistance, drop resistance, and pressure resistance

When using 12V/24V connections for the vehicle ignition wire, please do not exceed 120W (12V for vehicles) or 200W (24V for trucks).

(For 24V input, inverters with a voltage below 20V or above 30V will automatically protect and disconnect the power supply)
(<t_XXXXXXXX> When the voltage is below 10.5V or above 15V, automatic protection will be activated and the power supply will be disconnected)</t_XXXXXXXX>

Note:

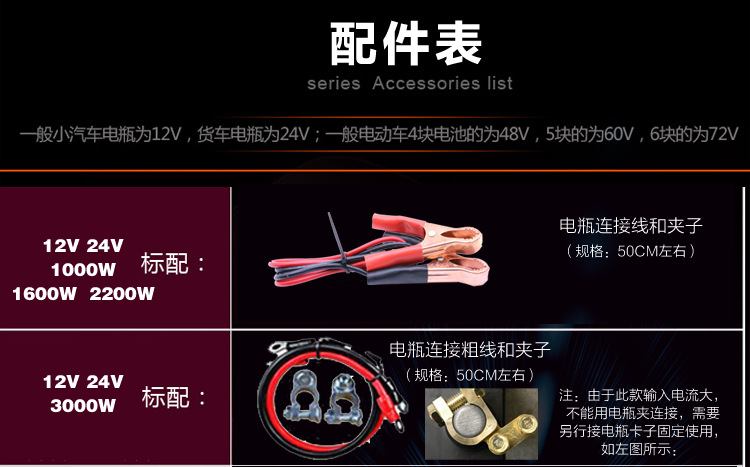

1 battery clip

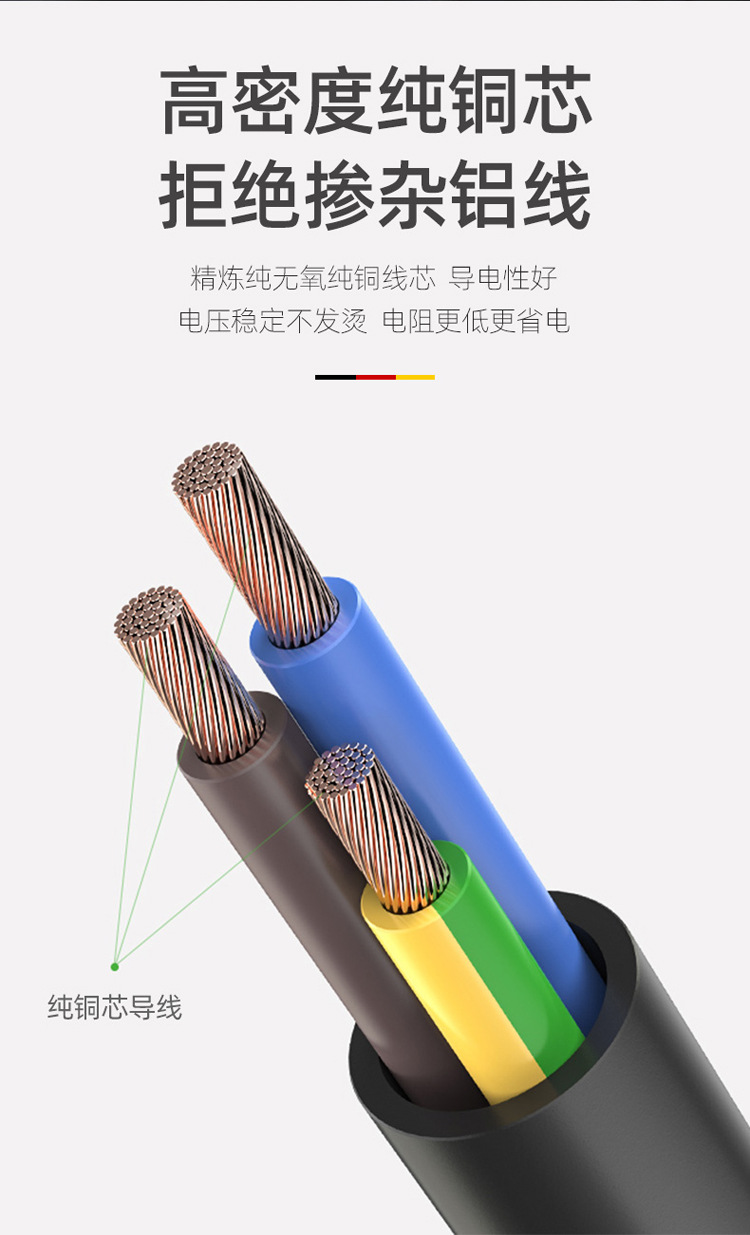

1 X battery thick line

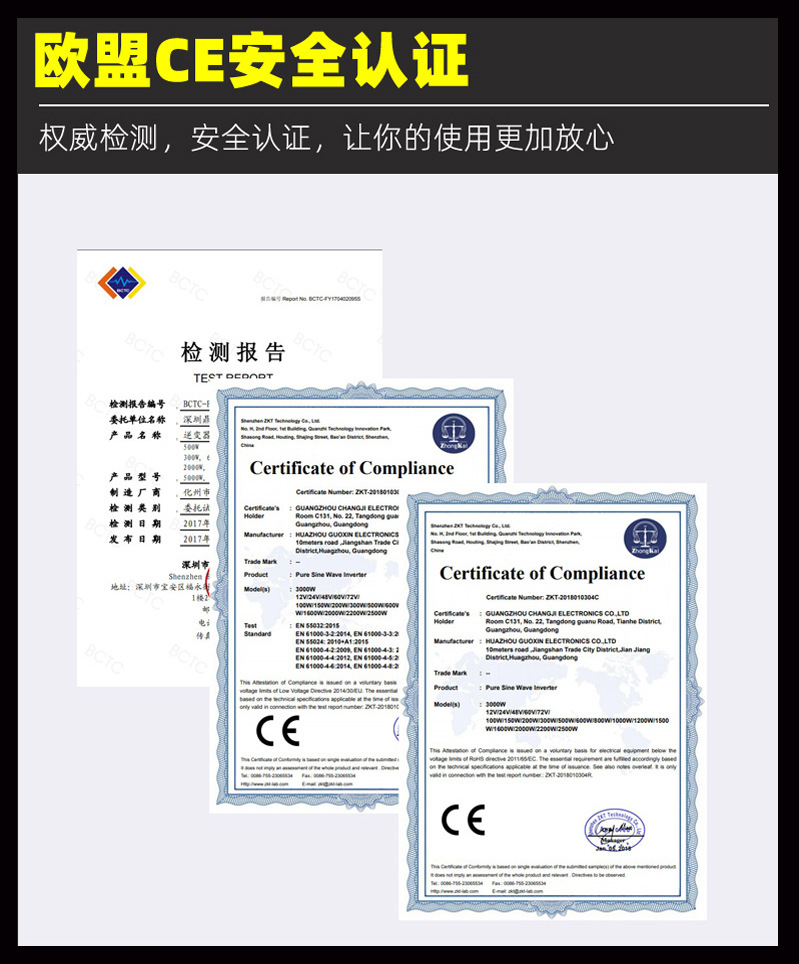

1 x qualification certificate
1 User Manual
1 X pure sine wave inverter
Packaging includes:
Socket: Universal type (commonly used in sockets across all countries/regions)
Power: 1600W/2200W/3000W
Output frequency: 50 Hz
Input voltage: 12V/24V/48V/60V/72V available
Output voltage: 220V

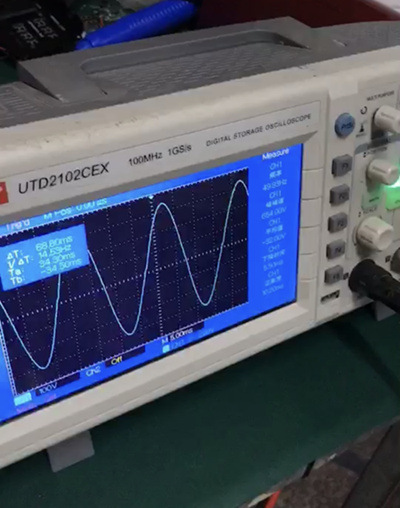

Output voltage waveform: pure sine wave
Type: Pure sine wave inverter

1000W inverter, continuous power of 500W, startup power of 1000W.

1600W inverter, continuous power of 800W, startup power of 1600W.

2000W inverter, continuous power of 1000W, startup power of 2000W.

3000W inverter, continuous power of 1500W, startup power of 3000W.

4000W inverter, continuous power of 2000W, startup power of 4000W.

It is 2000W, capable of carrying ordinary resistive devices up to 1000W; 3000W can support electrical appliances up to 1500W, such as computers, TVs, fans, and lights—all of these can be paired with resistive devices.

Nevertheless, the starting power of the sensitive load device is 3-12 times higher, and the continuous power meets the requirements; the starting power must also meet the conditions in order to operate.

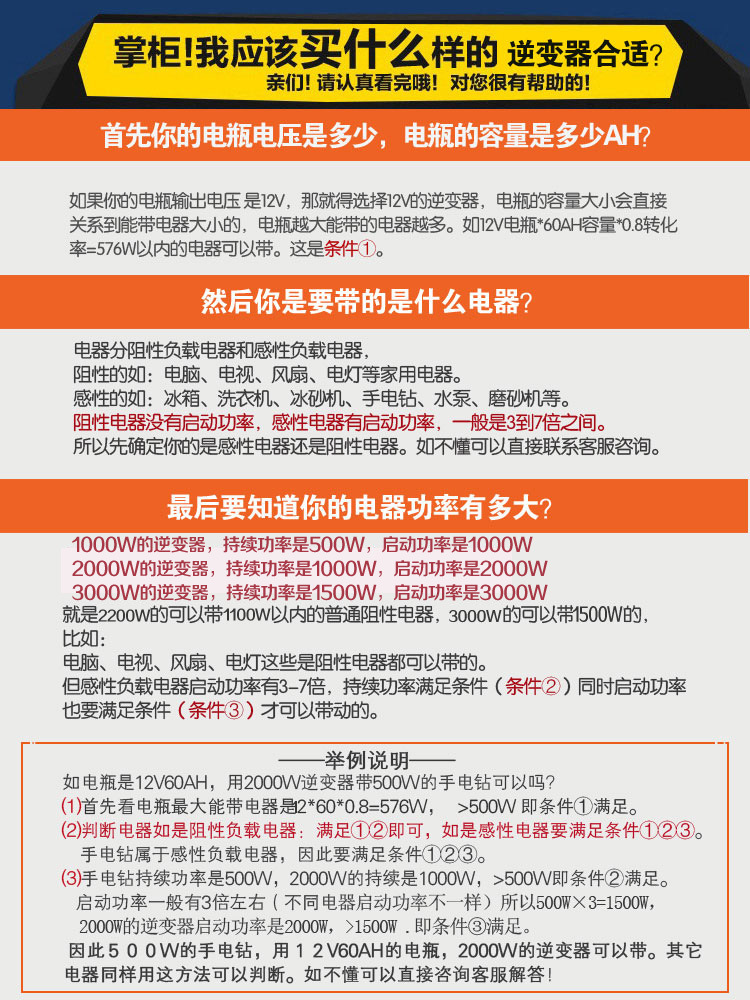

For example

If the battery is 12V / 60AH, can a 2000W inverter and a 500W hard drill be used?

1. First, the maximum battery charger is: 1.2 * 60 * 0.8 = 576W, which is >500W.

2. Determine whether the electrical device is a resistive type or inductive type: the hand drill is an inductive drill.

3. The continuous power of the hand drill is 500W; the duration at 2000W is 1000W; and for powers >500W.

The starting power is generally about 3 times the value (it varies depending on the Dolce vita appliances). Therefore, 500W × 3 = 1500W. The starting power of a 2000W inverter is 2000W. Since it exceeds 1500W, a 500W hand drill can be used together with a 12V / 60AH battery and a 2000W inverter.

Other electrical devices can also be checked using this method.

If you encounter any issues or don’t understand the procedures, you can also consult customer service. Thank you!

How to choose the right battery for an inverter

Working time = U (voltage payment) × I (battery capacity) × 0.8 × 0.9 ÷ power

Example: 12V 50AH battery with a 220V 100W bulb

Working time = 12V × 50Ah × 0.8 × 0.9 ÷ 100W = 4.32 (hours)

Note: 0.8 is the battery discharge factor (constant), and 0.9 is the inverter conversion efficiency (constant).

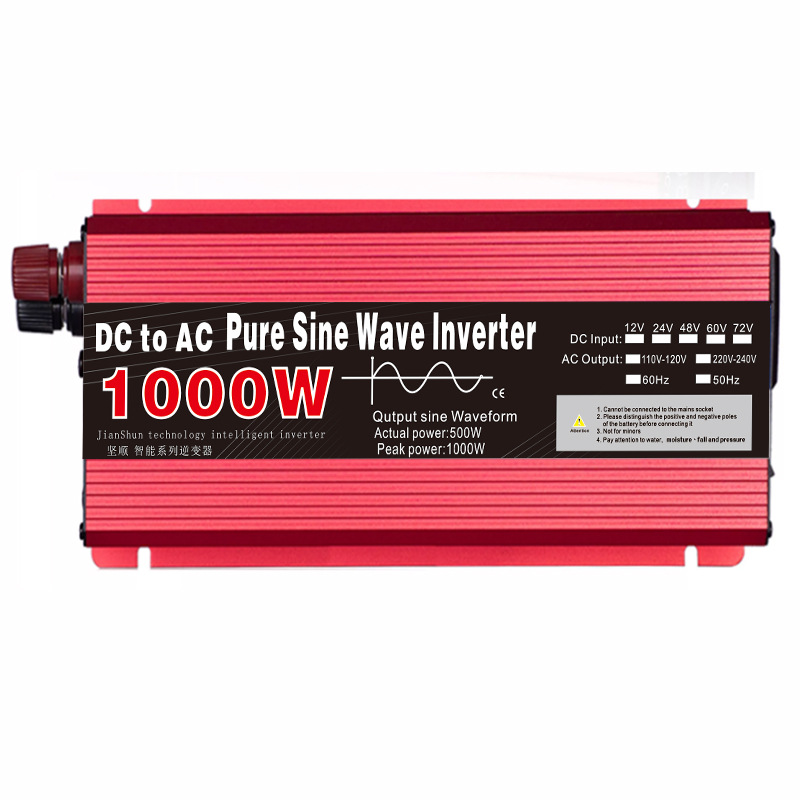

Model: 1000W Output Waveform: Pure sine wave
Rated Power: 500W
Packaging dimensions: 24*16*7 cm; Total product weight: 0.9 KG
Note: Measured manually, with slight error.

Model: 1 600W Output Waveform: Pure sine wave
Rated Power: 800W
Packaging dimensions: 26.5 * 15.5 * 7 cm; Total product weight: 1.5 KG
Note: Measured manually, with slight error.

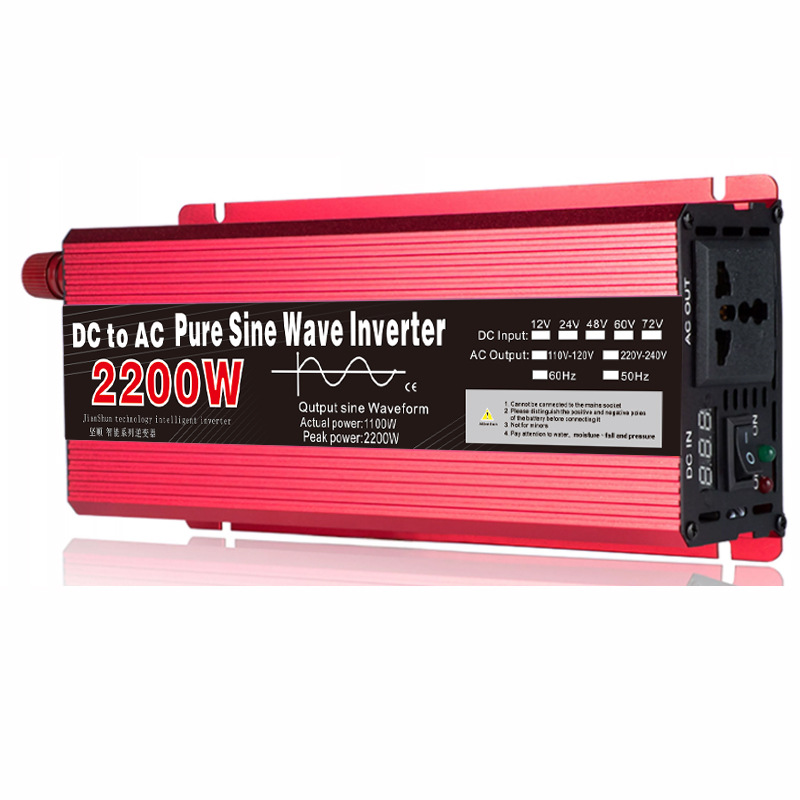

Model: 2 200W Output Waveform: Pure sine wave
Rated Power: 1100W
Packaging dimensions: 30*17.5*7 cm; Total product weight: 1.5 KG
Note: Measured by hand, with slight error.

Model: 3000W Output Waveform: Pure sine wave
Rated Power: 1500W
Packaging dimensions: 35*18*8 cm; Total product weight: 1.7 KG
Note: Measured manually, with slight error.
