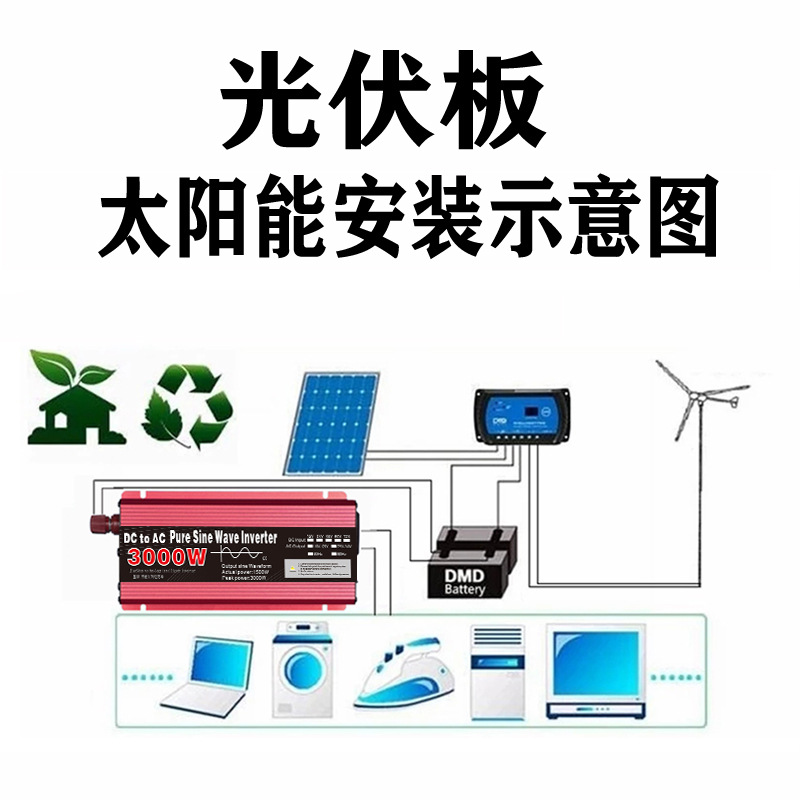

source manufacturer photovoltaic solar high-power pure sine wave inverter 12 v24v48v72v96 vehicle-mounted home use 源头厂家光伏太阳能大功率纯正弦波逆变器12V24V48V72V96车载家用

Note:
1. It cannot be used connected to a household power outlet.

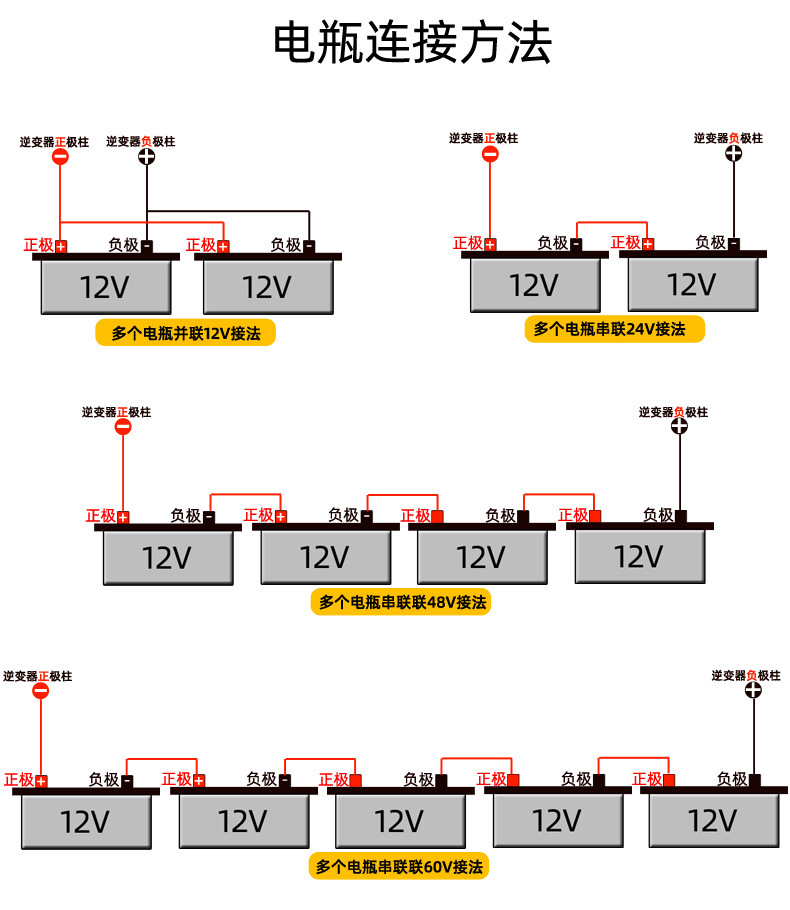

2. Before connecting the battery, please first identify the positive and negative terminals of the battery.
3. Minors are not allowed to use
4. Pay attention to water resistance, moisture resistance, drop resistance, and pressure resistance

When using 12V/24V connections for the vehicle ignition wire, please do not exceed 120W (12V for vehicles) or 200W (24V for trucks).

(For 24V input, inverters with a voltage below 20V or above 30V will automatically protect and disconnect the power supply)
(<t_XXXXXXXX> When the voltage is below 10.5V or above 15V, automatic protection will be activated and the power supply will be disconnected)</t_XXXXXXXX>

Note:

1 battery clip
1 X battery thick line
1 x qualification certificate
1 User Manual
1 X pure sine wave inverter
Packaging includes:
Socket: Universal type (commonly used in sockets across all countries/regions)
Power: 1600W/2200W/3000W
Output frequency: 50 Hz
Input voltage: 12V/24V/48V/60V/72V available
Output voltage: 220V

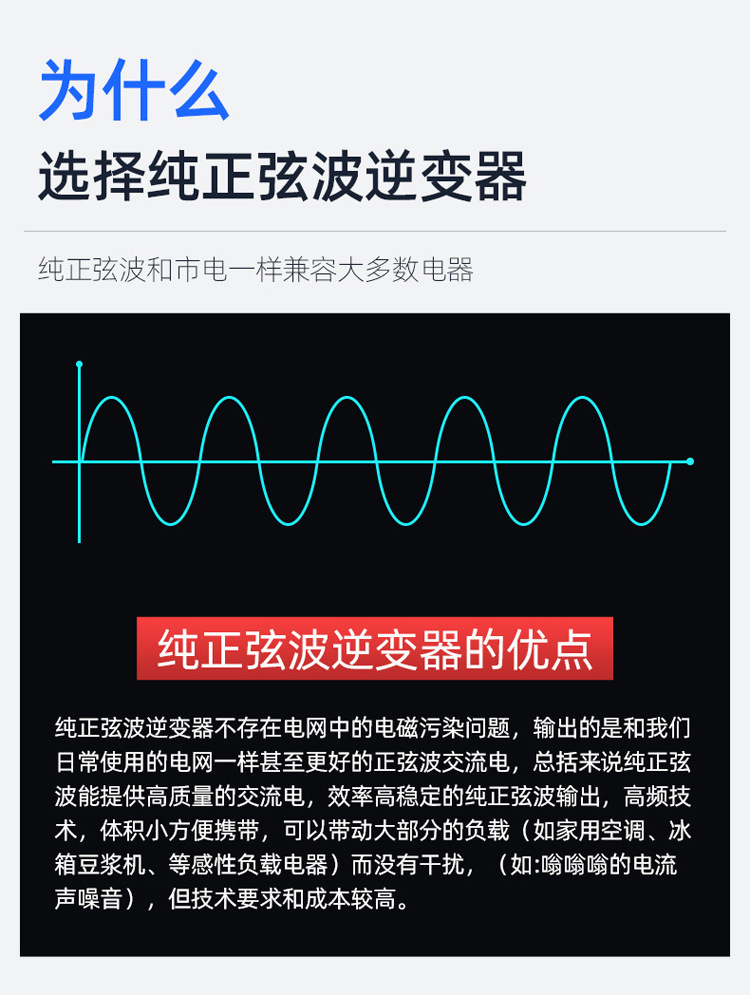

Output voltage waveform: pure sine wave
Type: Pure sine wave inverter

1000W inverter, continuous power of 500W, startup power of 1000W.

1600W inverter, continuous power of 800W, startup power of 1600W.

2000W inverter, continuous power of 1000W, startup power of 2000W.

3000W inverter, continuous power of 1500W, startup power of 3000W.

4000W inverter, continuous power of 2000W, startup power of 4000W.

It is 2000W, capable of carrying ordinary resistive devices up to 1000W; 3000W can support electrical appliances up to 1500W, such as computers, TVs, fans, and lights—all of these can be paired with resistive devices.

Nevertheless, the starting power of the emotional load device is 3-12 times higher, and the continuous power meets the requirements; the starting power must also meet the conditions in order to operate.

For example

If the battery is 12V / 60AH, can a 2000W inverter and a 500W hard drill be used?

1. First, the maximum battery charger is: 1.2 * 60 * 0.8 = 576W, which is >500W.

2. Determine whether the appliance is a resistive appliance or an inductive appliance: the hand drill is an inductive drill.

3. The continuous power of the hand drill is 500W; the duration at 2000W is 1000W; and for powers >500W.

The starting power is generally about 3 times the value (it varies depending on the Dolce vita appliances). Therefore, 500W × 3 = 1500W. The starting power of a 2000W inverter is 2000W. Since it exceeds 1500W, a 500W hand drill can be used together with a 12V / 60AH battery and a 2000W inverter.

Other electrical devices can also be checked using this method.

If you encounter any issues or don’t understand the procedures, you can also consult customer service. Thank you!

How to choose the right battery for an inverter

Working time = U (voltage payment) × I (battery capacity) × 0.8 × 0.9 ÷ power

Example: 12V 50AH battery with a 220V 100W bulb

Working time = 12V × 50Ah × 0.8 × 0.9 ÷ 100W = 4.32 (hours)

Note: 0.8 is the battery discharge factor (constant), and 0.9 is the inverter conversion efficiency (constant).

Model: 5000W Output Waveform: Pure sine wave
Rated Power: 2500W
Product dimensions: 28*18.5*10.5 cm; net weight: 2.5 KG
Note: Measured manually, with slight error.
.....................................................................................
Model: 6000W Output Waveform: Pure sine wave
Rated Power: 3000W
Product dimensions: 30*19*10.5 cm; net product weight: 3.2 KG
Note: Measured by hand, with slight error.

.....................................................................................
Model: 8000W Output Waveform: Pure sine wave
Rated Power: 4000W
Product dimensions: 34.7 * 21.2 * 10.5 cm; Net weight: 4.3 KG
Note: Measured by hand, with slight error.

.....................................................................................

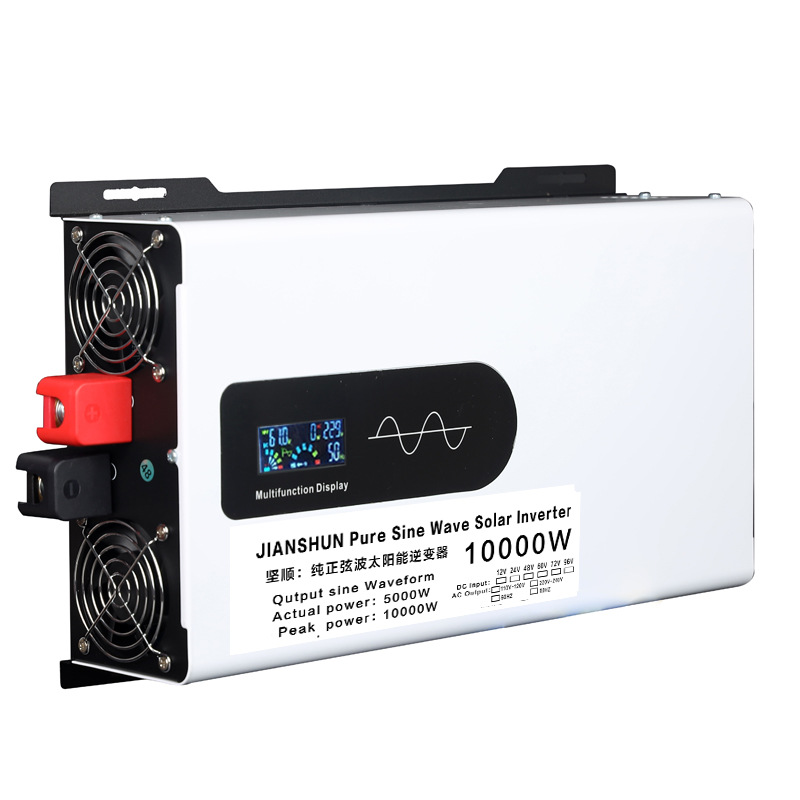

Model: 10000W Output Waveform: Pure sine wave
Rated Power: 5000W
Product dimensions: 40*21.5*10.5 cm, 24V48V. Net weight of the product: 5.2 KG, 60V72V. Net weight: 4.5 KG
Note: Measured manually, with slight error.

.....................................................................................

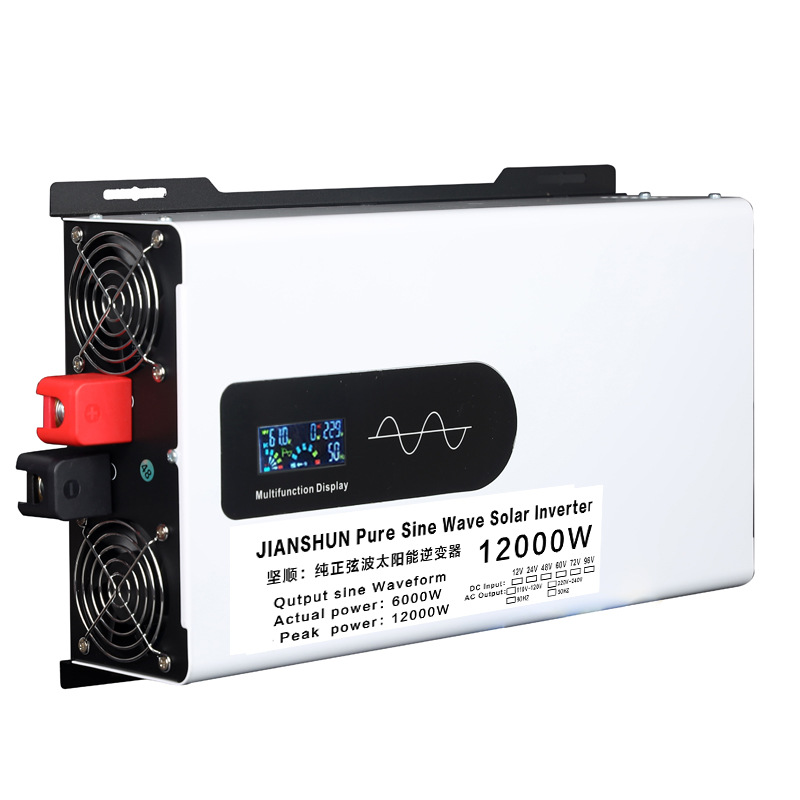

Model: 1 2000W Output waveform: Pure sine wave
Rated Power: 6000W
Product dimensions: 40*21.5*10.5 cm, 24V48V. Net weight of the product: 5.3 KG, 60V72V. Net weight: 4.6 KG
Note: Measured manually, with slight error.
