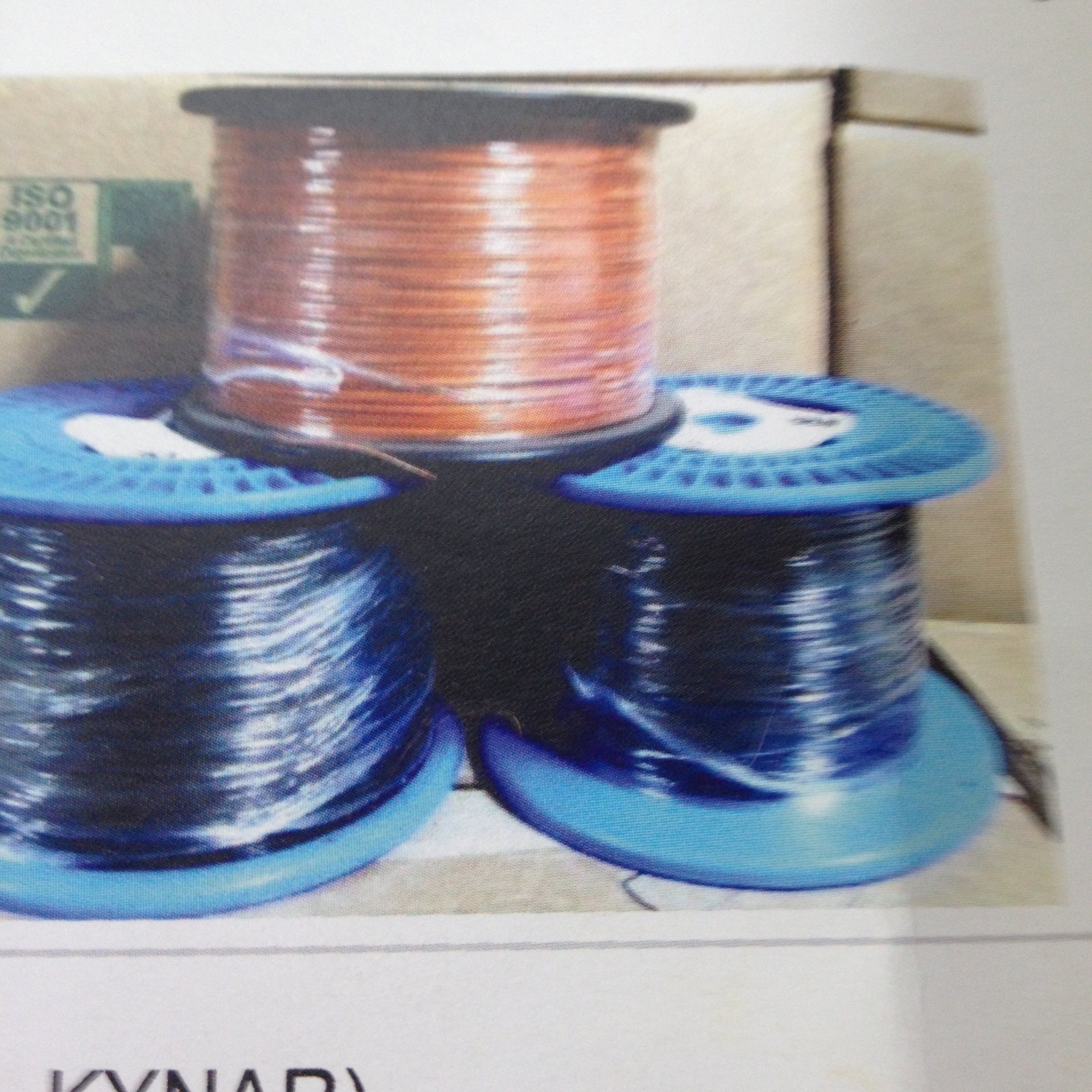

txxl825/44rubadue wire tca3 awg32 awg29 triple insulated wire temperature resistance 300 °

Specifications		Stock	Quantity
tca3 awg29	¥0.0	17349 rice available

Zhejiang Yiwu Guangsheng New Materials Technology Co., Ltd 2yr.

Contacts:

Mr LIChat

Mobile:

86-15190285910

E-mail:

813776278@qq.com

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email： yiwubuy@yiwugo.com

Description

Packaging information

CTN Size: 600 × 200 × 100 cm

G.W./CTN:2000 kg

QTY/CTN:1000 rice/carton










10
Supplementary (2 layer) Insulation, Litz wire, FEP Insulation, Double Insulated Wire
Product Information
Temperature Rating:
155°C
Wire Category:
Litz
Insulation:
DuPont™ Teflon® FEP
Compliances:
RoHS Compliant
UL OBJT2 File No. E206198
UL/IEC 60950-1 (Ed. 2), am1 Annex U.
IEC 61558-1
"VDE License Nr. 6715: Class F
Voltage Rating:
600 V
UL 1446 Electrical System Approvals:
RXT-2 Class F
TCA Class F
Conductor:
Litz, 825 strands of 44 AWG, MW-80
Litz, 120 strands of 38 AWG, MW-80
Litz, 550 strands of 44 AWG, MW-80
Litz, 100 strands of 38 AWG, MW-80
Litz, 7 strands of 28 AWG, MW-80
Litz, 66 strands of 38 AWG, MW-80
Litz, 360 strands of 44 AWG, MW-80
Litz, 20 strands of 34 AWG, MW-80
Litz, 7 strands of 30 AWG, MW-80
Litz, 19 strands of 36 AWG, MW-80
Litz, 7 strands of 32 AWG, MW-80
Litz, 40 strands of 40 AWG, MW-80
Litz, 230 strands of 44 AWG, MW-80
Litz, 5 strands of 32 AWG, MW-80
Litz, 19 strands of 34 AWG, MW-80

Insulation Information
Insulation Type:
Fluoropolymer
Thermal:
Continuous Operating Temperature, 200°C
UL Flammability Rating:
V-0
Dielectric Constant:
2.03
Tensile Strength (psi):
3000+
Elongation(%):
300
Abrasion Resistance:
Good
Bondability:
Poor
UV Resistance:
Excellent
Chemical Resistance:
Excellent
Water Resistance:
Excellent
地下抵抗
Excellent
Long Term Stability:
Excellent
FEP is a Fluoropolymer compound with exceptional dielectric properties, heat resistance, chemical resistance, and flexibility. Commonly used in winding wires, UL AWM wires, and cable jacketing.
绝缘导线信息:
Part Number	"Equiv. AWG" 可以翻译为 "Equivalent American Wire Gauge"，即 "等效美国线规"。	Core O.D. (in)	Circular Mils.	No. Strands	AWG of Strands	Nominal Outside Diameter (in)	建议的操作频率
DXXL825/44FXX-3 (MW80)	11	0.0844	3300	825	44	0.0964	400 - 850 kHz
DXXL120/38FXX-2 (MW80)	15	0.0567	1920	120	38	0.0647	50 - 100 kHz
DXXL120/38FXX-3(MW80)	15	0.0567	1920	120	38	0.0687	50 - 100 kHz
DXXL550/44FXX-2 (MW80)	13	0.0689	2200	550	44	0.0769	400 - 850 kHz
DXXL550/44FXX-3 (MW80)	13	0.0689	2200	550	44	0.081	400 - 850 kHz
DXXL100/38FXX-2 (MW80)	16	0.0518	1600	100	38	0.0598	50 - 100 kHz
DXXL100/38FXX-3 (MW80)	16	0.0518	1600	100	38	0.0638	50 - 100 kHz
DXXL07/28FXX-2 (MW80)	18	0.0413	1110	7	28	0.0493	60 Hz - 1 kHz
DXXL07/28FXX-3 (MW80)	18	0.0413	1110	7	28	0.0533	60 Hz - 1 kHz
DXXL66/38FXX-2 (MW80)	18	0.042	1056	66	38	0.05	50 - 100 kHz
DXXL66/38FXX-3 (MW80)	18	0.042	1056	66	38	0.054	50 - 100 kHz
DXXL360/44FXX-2 (MW80)	15	0.0557	1440	360	44	0.0637	400 - 850 kHz
DXXL360/44FXX-3 (MW80)	15	0.0557	1440	360	44	0.0677	400 - 850 kHz
DXXL20/34FXX-2 (MW80)	19	0.036	794	20	34	0.044	20 kHz
DXXL20/34FXX-3 (MW80)	19	0.036	794	20	34	0.048	20 kHz
DXXL07/30FXX-2 (MW80)	20	0.0331	700	7	30	0.0411	1 - 10 kHz
DXXL07/30FXX-3 (MW80)	20	0.0331	700	7	30	0.0451	1 - 10 kHz
DXXL19/36FXX-2 (MW80)	21.5	0.0281	475	19	36	0.0361	20 - 50 kHz
DXXL19/36FXX-3 (MW80)	21.5	0.0281	475	19	36	0.0401	20 - 50 kHz
DXXL07/32FXX-2 (MW80)	21.5	0.0267	448	7	32	0.0347	10 kHz
DXXL07/32FXX-3 (MW80)	21.5	0.0267	448	7	32	0.0387	10 kHz
DXXL40/40FXX-2 (MW80)	22	0.0254	385	40	40	0.0334	100 - 200 kHz
DXXL230/44FXX-2 (MW80)	17	0.0445	920	230	44	0.0525	400 - 850 kHz
DXXL05/32FXX-2 (MW80)	23	0.0226	320	5	32	0.0306	10 kHz
