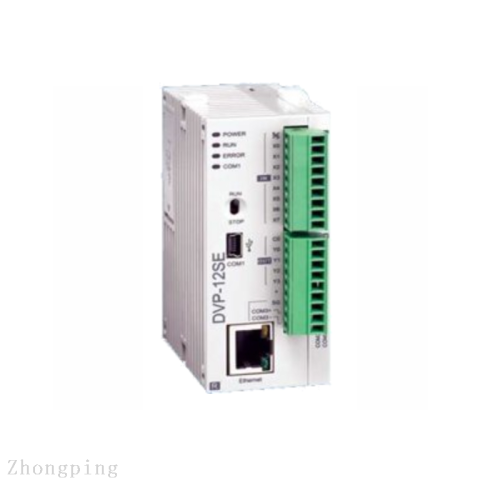

Original Delta DVP PLC Module  Controller DVP12SE11R

DVP12SE11R
CPU, program capacity 16k steps, 24VDC, 8-point digital input and 4-point digital output-relay.
Power supply (Volts)
24V DC
PLC module type
CPU
Output mode
Relay
Digital input (points)
eight
Digital output (points)
four
Analog inputs (points)
0
Analog output (points)
0
Pulse input (points)
2
Pulse output (points)
0
Thermocouple input (points/pins)
0
RTD inputs (points)
0
Pulse input frequency (kHz)
100
Pulse output frequency (kHz)
0
Analog input resolution (bits)
0
Analog output resolution (bits)
0
Analog input specification

Analog output specification

Maximum digital input and output count
480
Maximum number of analog input and output modules
eight
Extended direction
Not Applicable
Number of left modules
eight
Right module count
14
RIO support
Available
Pulse output type
Not Applicable
LoadCell resolution (bits)
0
LoadCell points
0
LoadCell sensitivity
Not Applicable
Universal input
Not Available
Program memory (K steps)
16
Maximum RIO station
four
Expand the number of racks
0
Backplane type
Not Applicable
Backplane slot
0
number of axles
one
High speed counting
0
Current consumption (mA)
0
Pulse output frequency 2 (kHz)
0
Pulse output 2 (point)
0
Pulse input frequency 2 (kHz)
10
Pulse input 2 (point)
six

Overall dimension (W x H x D) (mm)
37.4 x 96 x 60
fix
DIN Rail Mount
