Product Parameter Instruction

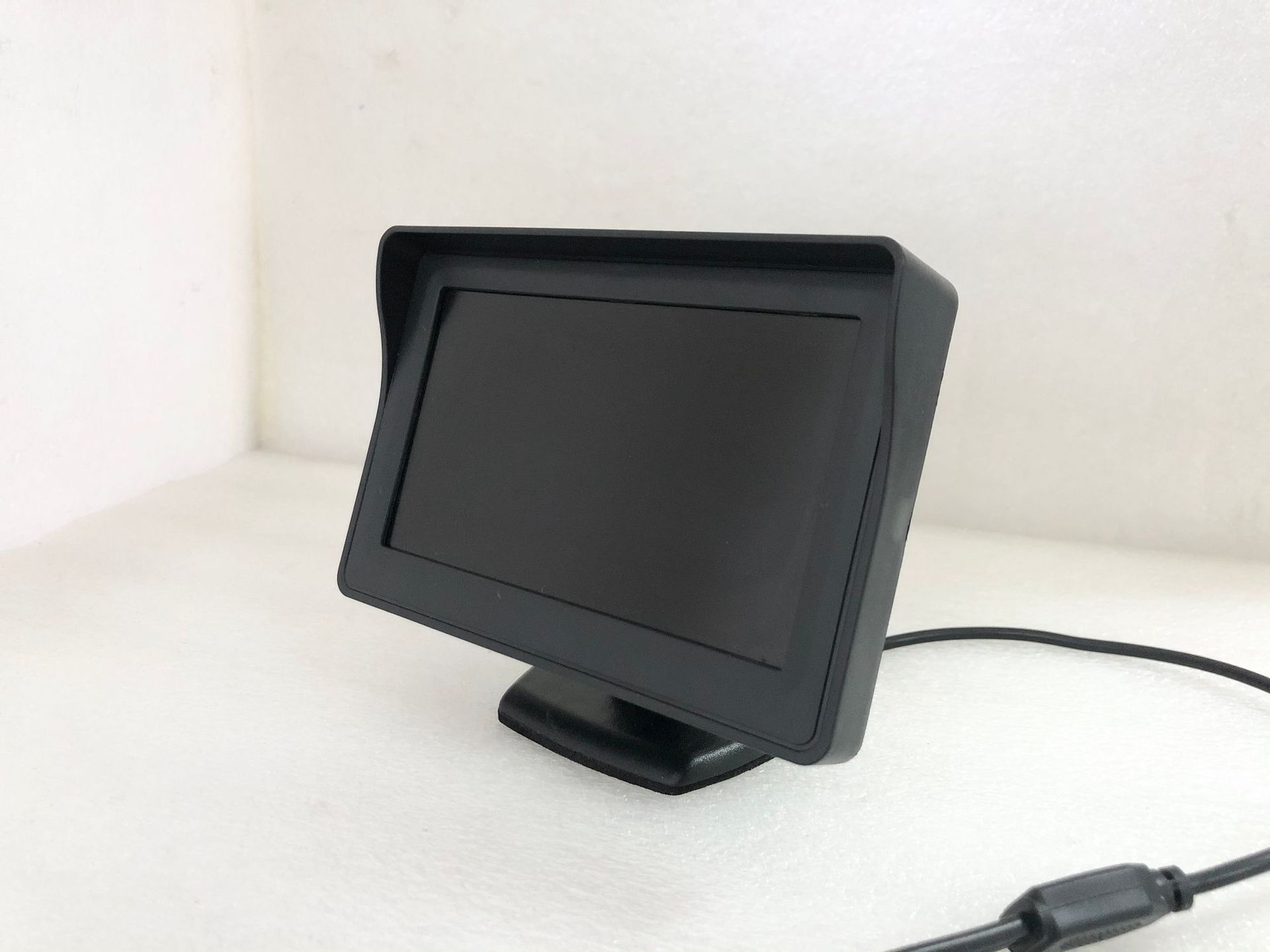

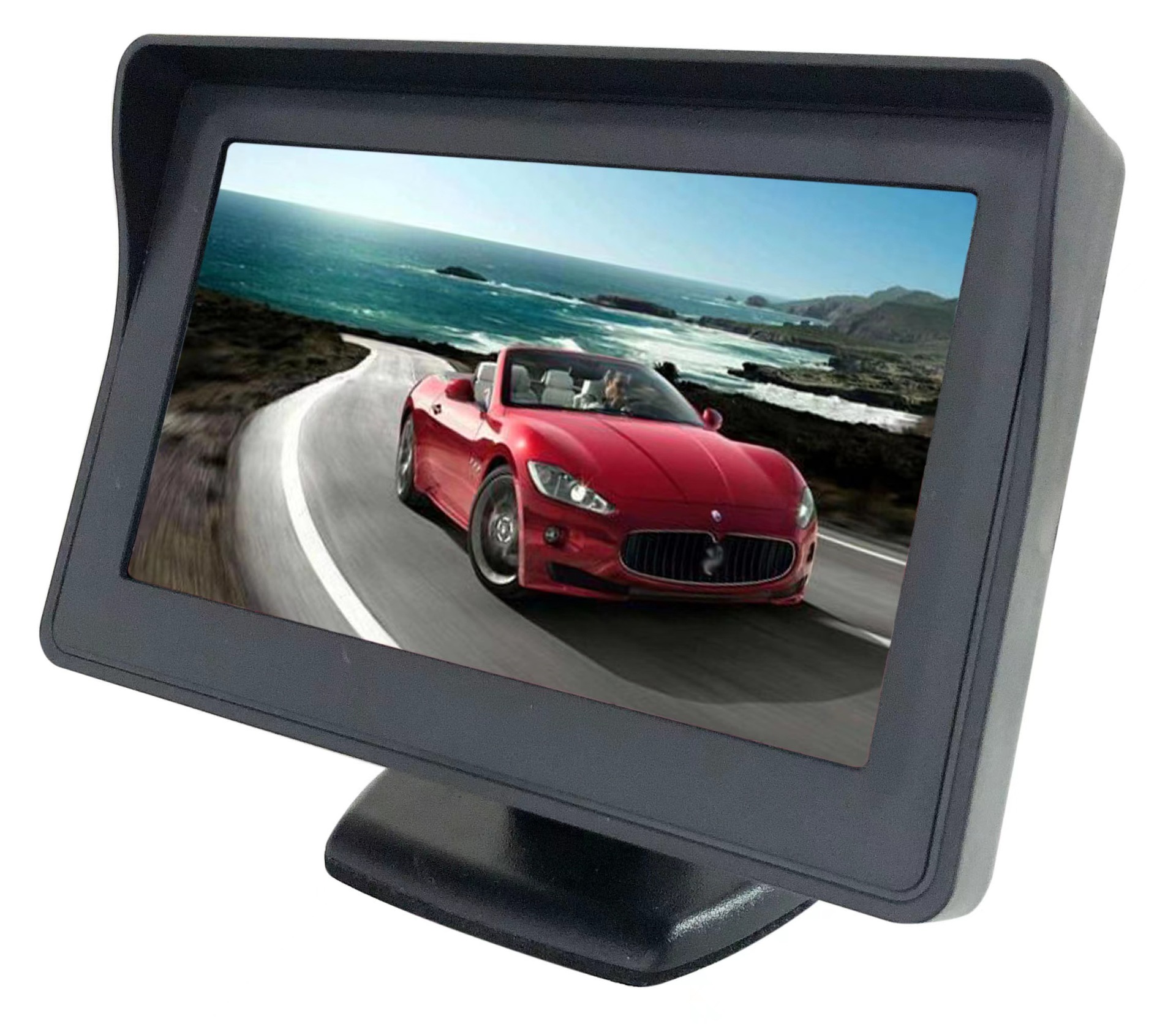

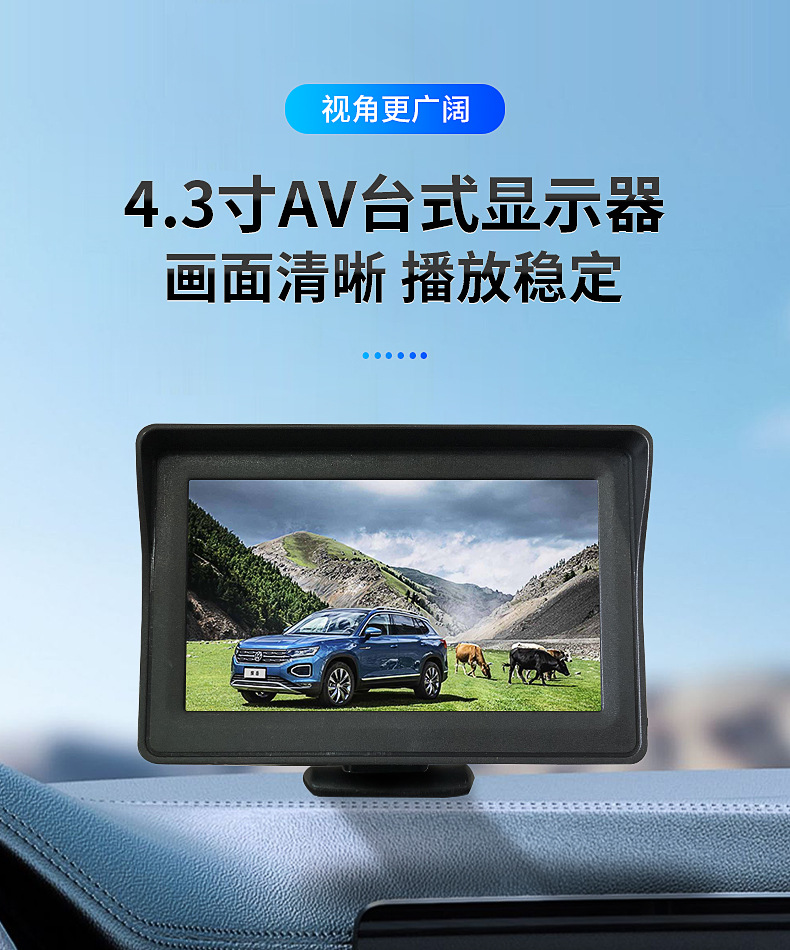

Ultra-thin 4.3-inch display with camera function parameters:

Type: TFT-LCD

Display Size: 4.3 inches

Appearance dimensions: length 11.7CM * width 7.8CM * thickness 1.2CM

Power: About 3W

Power supply: DC=9V-35V wide voltage range

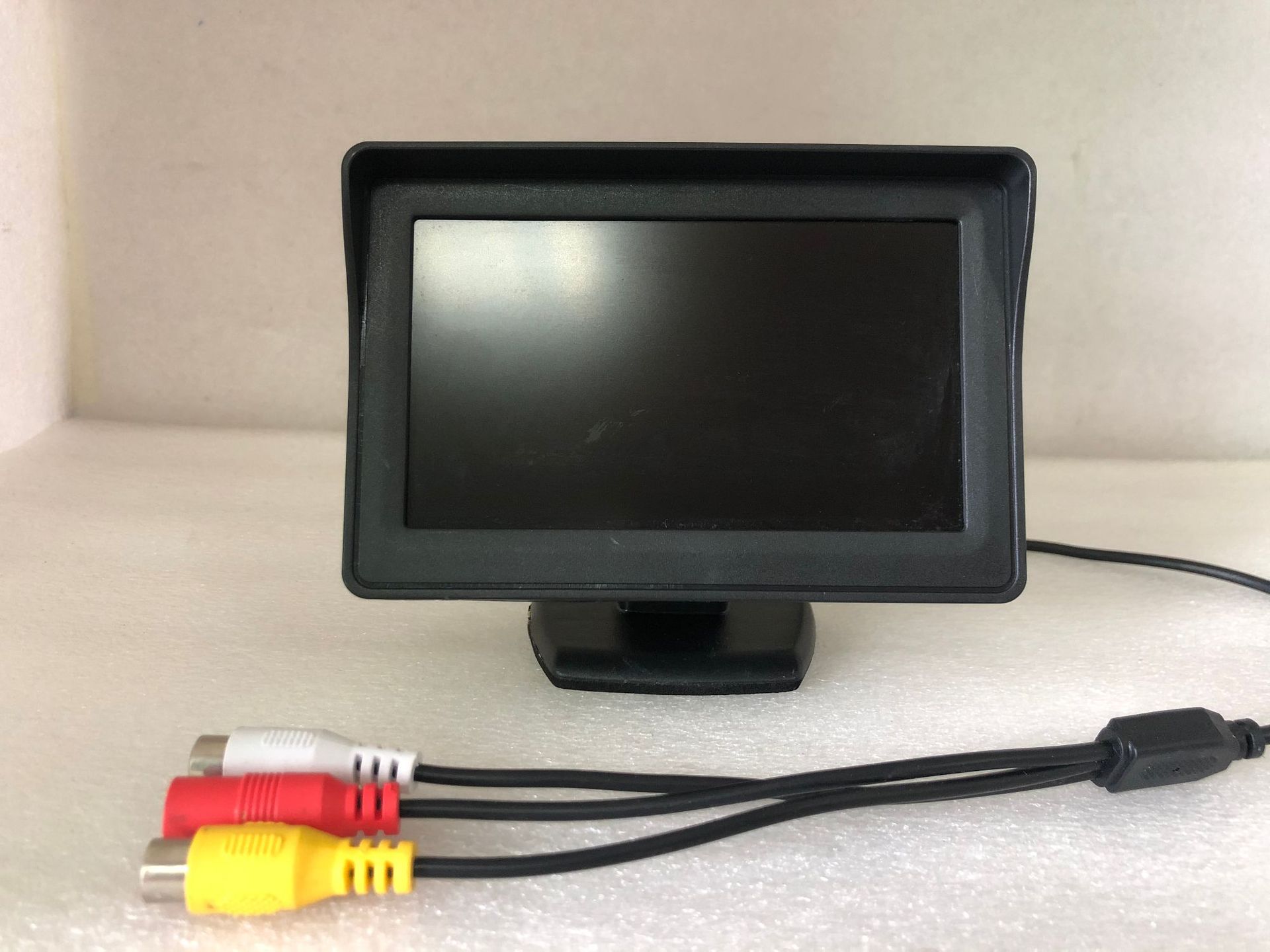

Video: Rearview camera input, DVD video input

Format: PAL/NTSC dual-format automatic switching

Contrast ratio: 350:1

Brightness: 300cd/m2

Pixel number: 480*RGB*272

Functional Features:

1. Two video input channels, no signal input results in a black screen.

2. Can connect to the reverse system, when reversing, the display will automatically wake up when receiving the signal, and the display will automatically turn off after the rear image of the car is completed. It is more humanized.

3. Adjustable in the menu: contrast, brightness, color saturation, and modes (16:9/4:3).

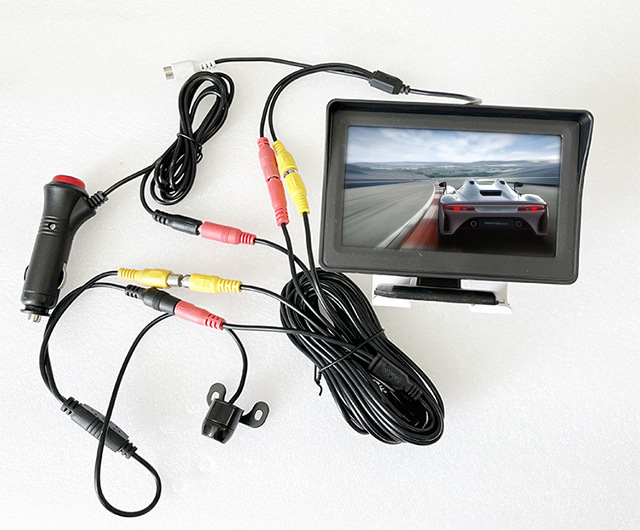

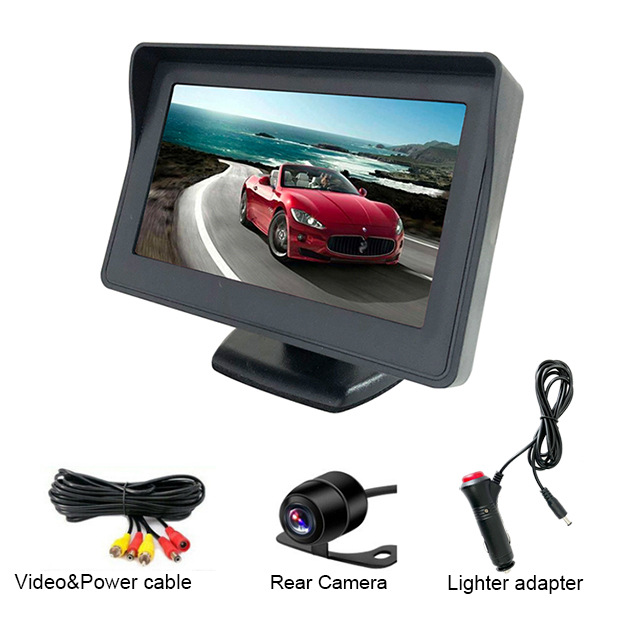

4. Specialized lighter, specialized power video cable, connect the lighter and the cable to complete the wiring installation, which is very simple to install.

Reverse Gear Function:

1. When the machine is on: During driving, when reversing, the system will automatically switch from the video AV1 (VCD/DVD) playback screen to the AV2 (rear view camera) screen. After the reverse is completed, it will automatically return to the video AV1 (VCD/DVD) playback screen, enabling the compatibility of driving entertainment and reverse safety; 2. When the machine is off: When parking and reversing, the system will automatically turn on to detect the AV2 (rear view camera) signal and display the AV2 rear view screen. After the reverse is completed, the system will automatically turn off to save power.

3. Optional camera: Enables visible reverse parking function
