Function Features:

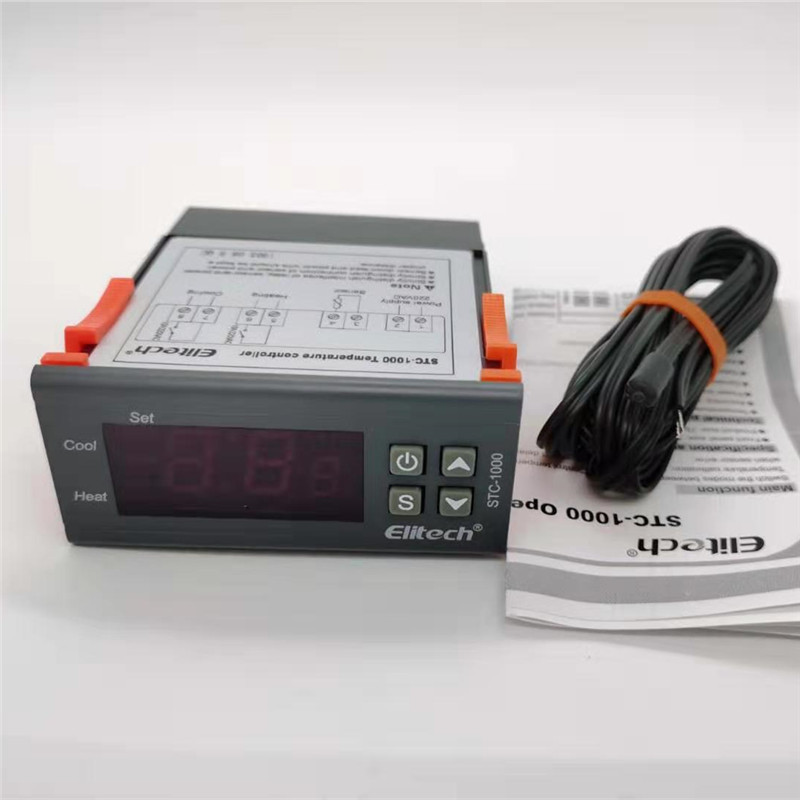

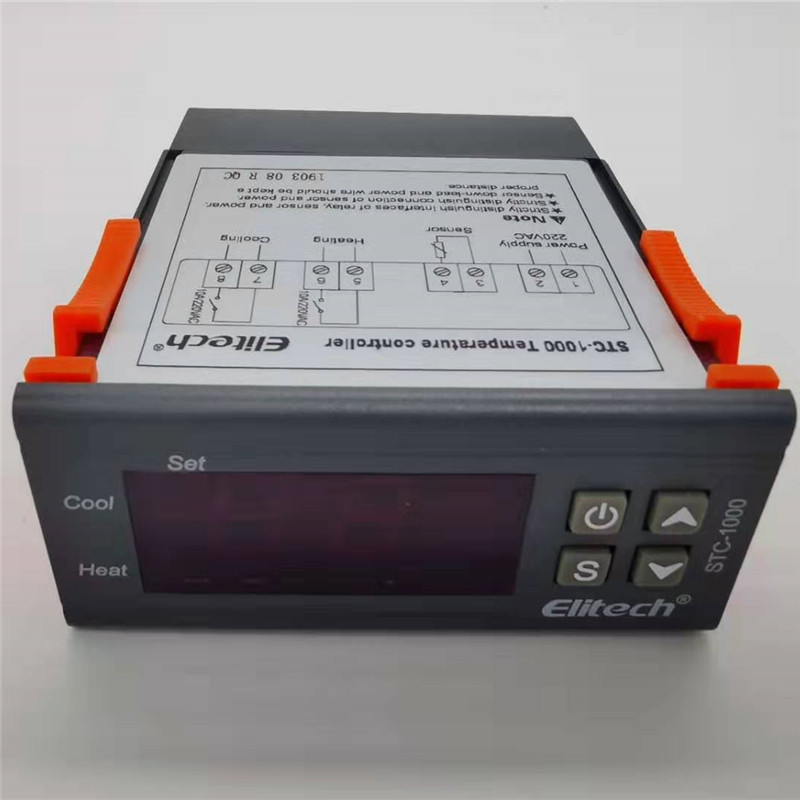

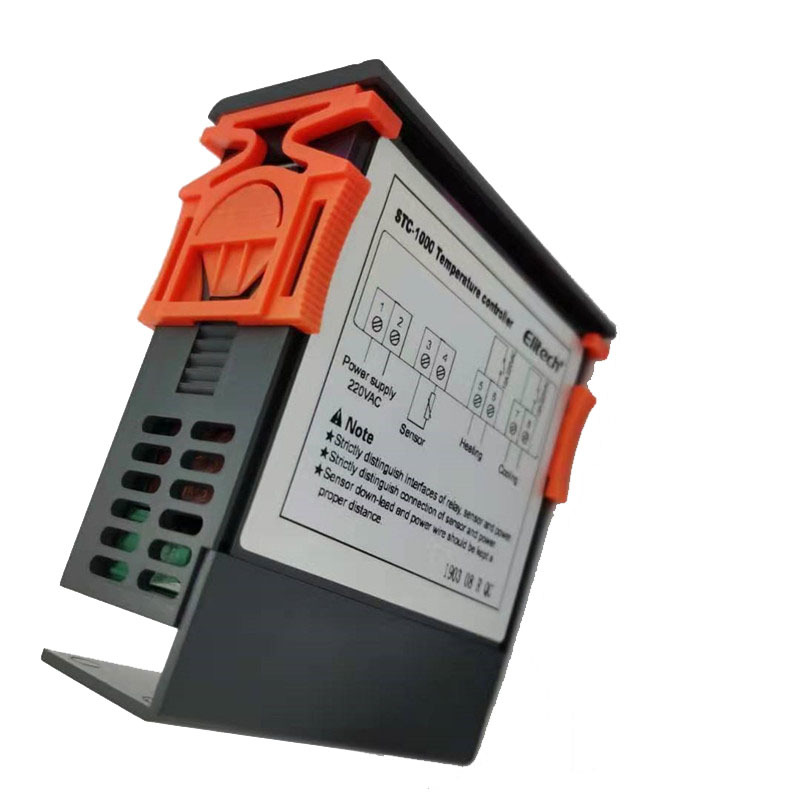

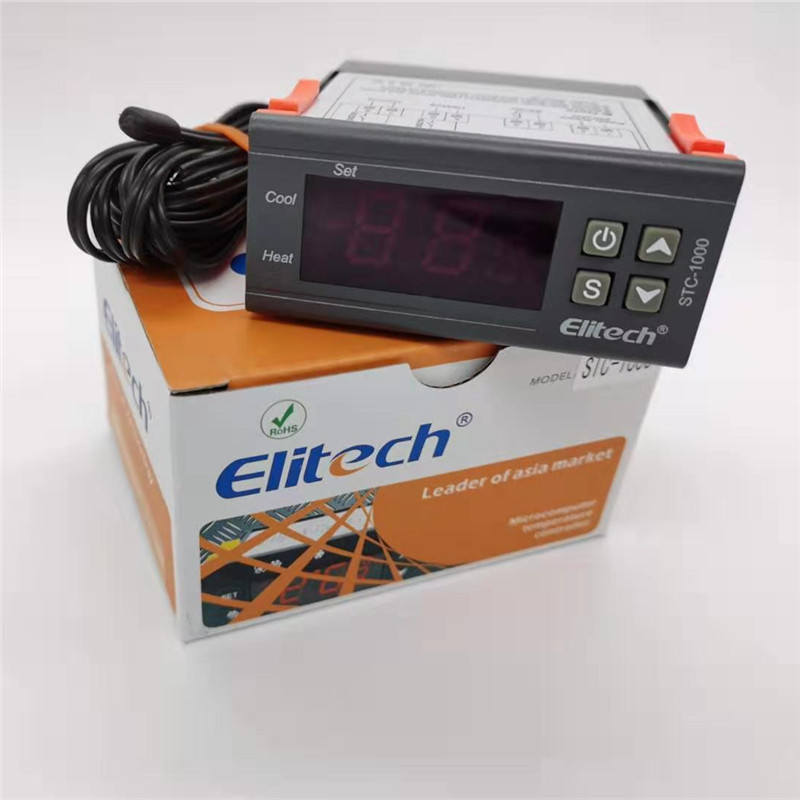

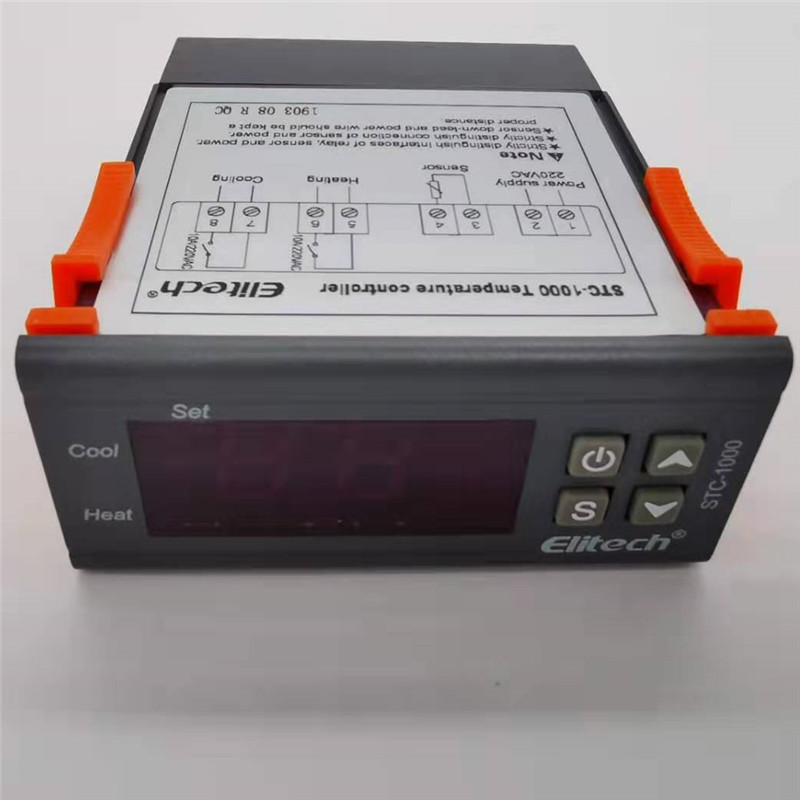

This is a temperature controller product primarily developed for seafood machines and temperature-controlled equipment. It features automatic cooling and heating conversion, using a hysteresis control method, making it a high-value and highly versatile product.

Specifications:

Measurement range: -50℃～99℃
Temperature resolution: 0.1℃
Temperature measurement accuracy: ±1℃ (-50℃～70℃).
Sensor fault delay: 1 minute;
Power supply: 220VAC±10%, 50/60Hz;
Sensor: 1 piece of NTC sensor, length 2M, 10KΩ/25℃, B value 3435K/(25℃～85℃).

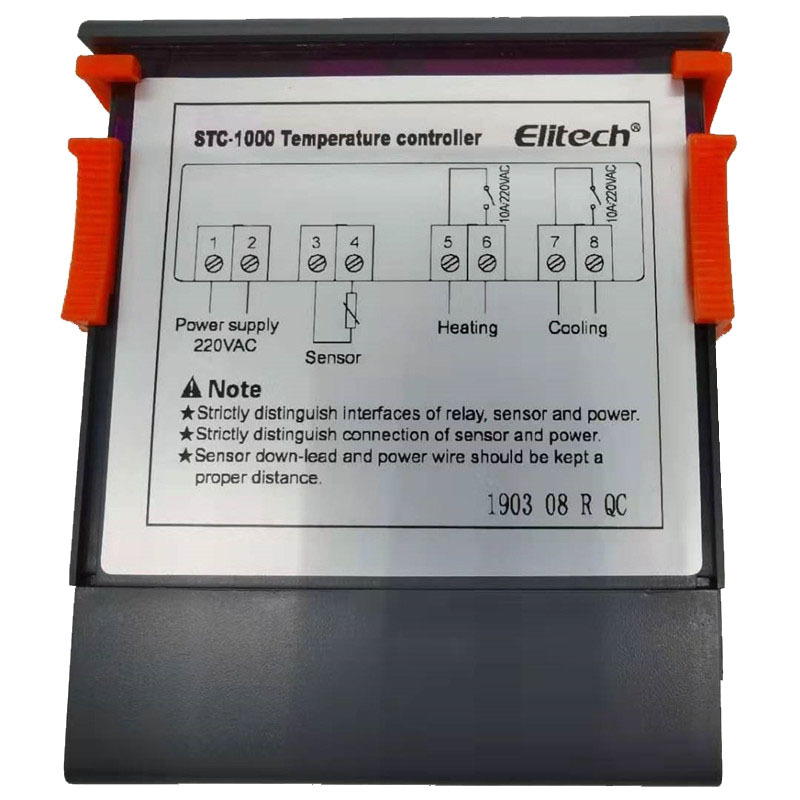

Relay output capacity: cooling (10A/250VAC), heating (10A/250VAC);
The front panel size: length 75×width 34.5 (millimeters);
Installation hole size: length 71×width 29 (mm);
The overall dimensions are: length 75×width 34.5×depth 85 (millimeters).
