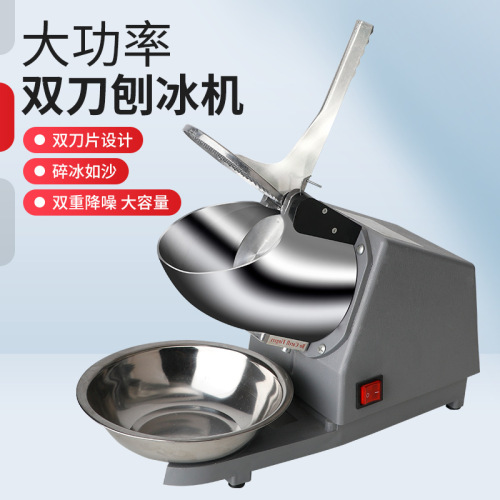

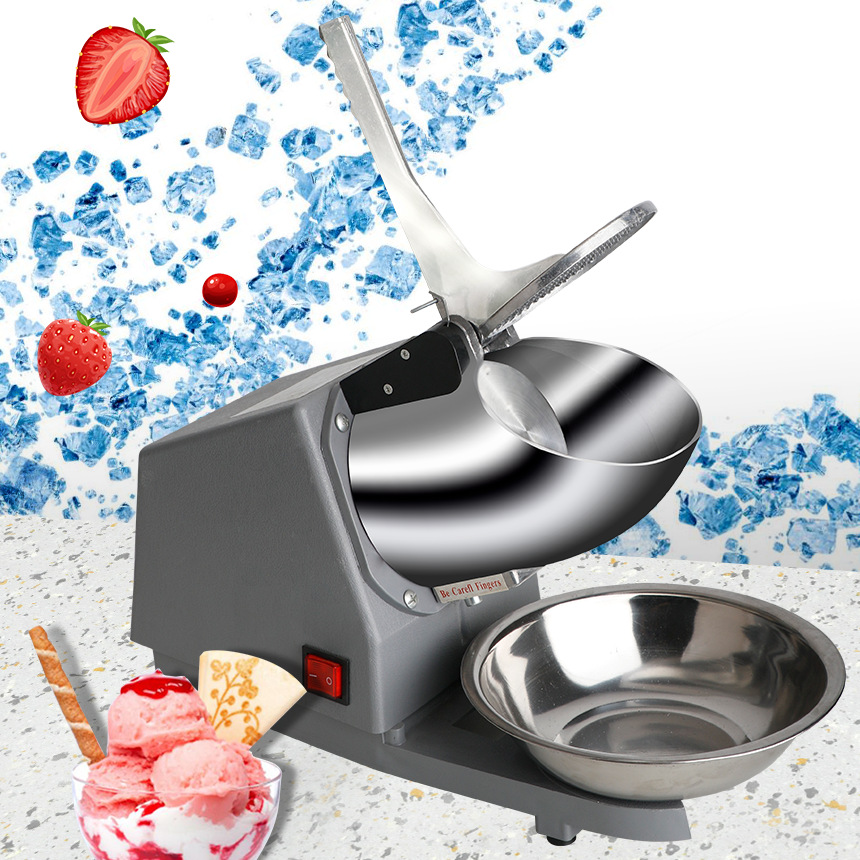

Product Name: Ice Crusher

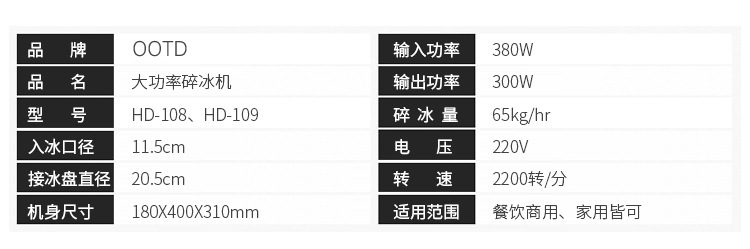

Technical parameters:

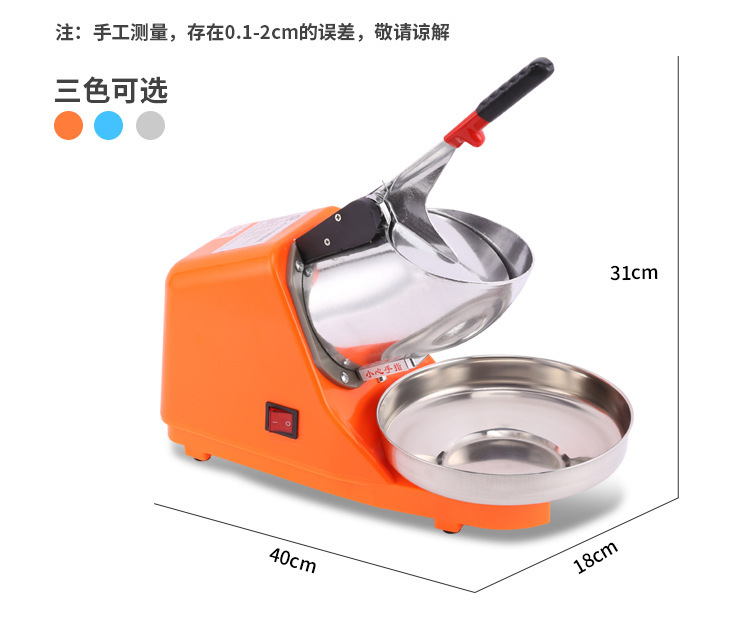

Voltage: 220V~Dimensions: 400*180*310mm

Power: 380WBody weight: 5.5KG

Frequency: 50HzPacking Size: 425*205*320mm

RPM: 2200 RPM/minIce shattering quantity: 65kg/hr

Material: ABS plastic + aluminum

Instructions:

1: Operation Instructions

1. Check if the power supply voltage matches the label indicated voltage, and ensure that the power supply is connected to a reliable ground line.

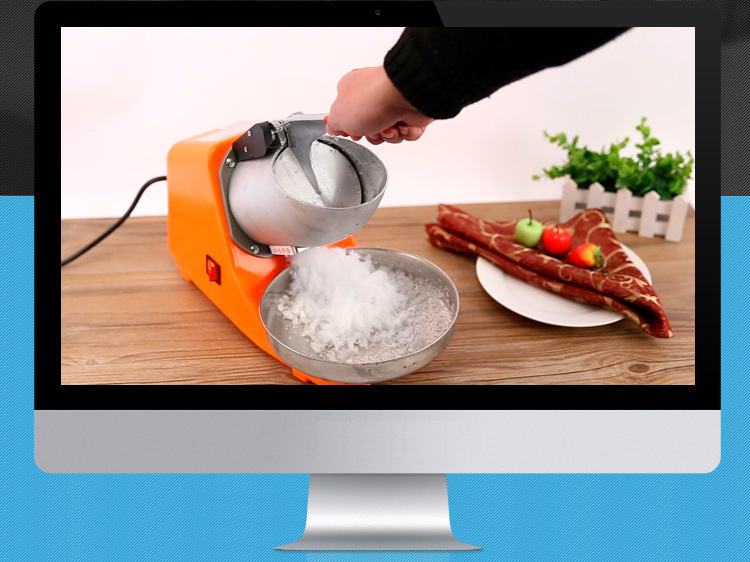

2. Lift the ice press handle to the upper stop point, plug in the power, turn on the main switch, place the ice basin on the base frame, and put the ice granules into the ice crusher. (Note: The amount of ice cannot exceed the plane of the ice crusher) Then press the ice press handle. Make the protective switch automatically open to achieve the effect of crushing ice. After the work is completed, please lift the ice press handle to the upper stop point, please repeat the above operation procedure.

Section Two: Cleaning and Maintenance

After using the ice crusher, turn off the switch, remove the power plug, and dry the water droplets on the machine with a dry towel. Then place it in a dry place.

Three: Cautionary Notes

When in use, the outlet of the ice particle cannot be blocked, otherwise it may cause the disk to jam or damage the motor. If any of the above phenomena occur, please immediately investigate the cause, turn off the power, and lift the handle.

Note: This machine is designed to place appropriate-sized ice cubes into the bend (the ice cubes should not be too small or too large, with the size being just enough to fit into the bend and not exceeding 20mm beyond the bend). The electric ice crusher uses aluminum alloy as the main material, with a special surface treatment process. The blades are made of high-quality stainless steel, which is durable and resistant to wear. This machine also has advantages such as beautiful appearance, high ice-crushing efficiency, easy operation, and safety and durability.
