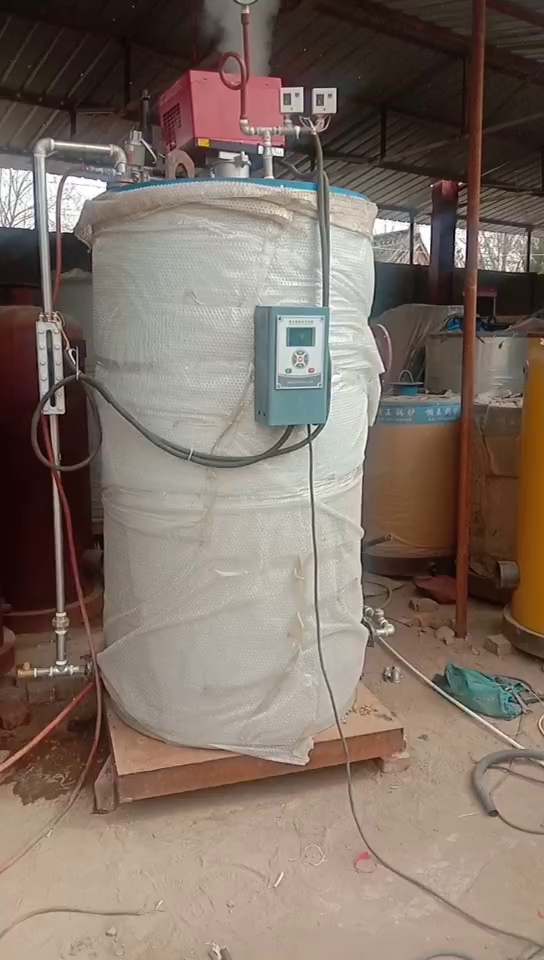

Gas Steam Generator

The gas steam generator developed and produced by Lazy King Boiler Factory currently covers device model parameters from 50kg to 500kg. This product is energy-saving and environmentally friendly, and it solves the headache problem of users -- it avoids the trouble of applying for boiler operation permits, as the product's volume is less than 30L, which is outside the scope of boiler inspection.
Product Description:
The fuel gas steam generator with a water volume less than 30L falls within the scope of national exemption from boiler operation permit, meaning it does not require a boiler operation permit. The furnace is equipped with an internal steam-water separator, solving the problem of steam with water, further ensuring the quality of the steam. It has high automation and personalized design, with all procedures concentrated on the buttons for extraordinary fool-proof fuzzy control, which is convenient for each operator. The fuel gas steam generator is safer than conventional gas boilers, has low operating costs, fast start-up speed, and does not require registration or annual inspection. It takes three to five minutes to produce steam after ignition.

Product Features:
1. Unique internal structure design that does not require a boiler operation permit.
The water capacity of this series of products is less than 50L, which falls within the scope of the national exemption from boiler use certificates, meaning there is no need to obtain a boiler use certificate. The furnace is equipped with an internal steam-water separator, solving the problem of steam carrying water, thereby ensuring the quality of the steam.
2. High-efficiency boiler inner vessel structure
The inner cylinder adopts an internationally advanced three-pass vertical water pipe impinging flow structure, which allows for full scrubbing heat exchange between the flue gas and the finned tubes, achieving a thermal efficiency of over 92%. By designing the steam boiler and the burner as a single unit, this tailored design, which is in line with the characteristics of the boiler, is a tradition that our factory has always adhered to. This ensures that the combustion system of the boiler achieves the optimal ratio, combining energy saving with environmental protection technology.
3. Advanced fully automatic control features
The boiler operating system is fully automatic, and all operating states are clearly visible on the LCD screen. You can observe the working state of the burner, the boiler water level, the current temperature, the operation state of the feed pump, and the fault alarm state on the display, allowing you to always master the running status of the boiler, making your use more reassuring. With a foolproof one-button control, you can enter the fully automatic operation state with just one press, and all safety protection devices will start working, requiring no special personnel on duty, making the operator more at ease and worry-free.
4. Structural Design of Safety Science
Equipped with multiple interlocking protection devices such as safety valves, pressure controllers, and level control protectors, it is safe and reliable. The finned pipe-type water tube flow furnace structure effectively compensates for thermal expansion and prevents the generation of thermal stress, making the boiler structure safe and reliable and extending its service life.
5. High-quality and fast steam
The unique design of the small water volume and large steam cellar allows you to obtain steam in the shortest time. It is equipped with a steam and water separation device to ensure high-dryness high-quality steam.Usage Range:

Washing and ironing:

Dry cleaning machine, water washing machine, horizontal water washing machine, dehydrator, washing and drying machine, laundry room, dry cleaning room, drying room, dry cleaning store, water washing machine, large-scale washing machine, steam drying machine, dry cleaning sterilization, ironing machine (portrait machine), ironing machine, washing and drying machine, steam flat machine, iron, clothing ironing, washing and drying, external steam heating dry cleaning machine, roller flat machine, single roller flat machine, double roller flat machine to be used together.

Food industry:

Food factories, beverage factories, meat products factories, brewing factories, bakeries, baking machines, dishwashers, high-temperature pasteurization of milk, emulsifiers, emulsification pots, sugar-converting pots, wok for stir-frying, soup pots, stone pot fish, congee making, beverages, steaming steamed buns, steamed buns, steamed vegetables, steamed rice, steamed rice cakes, steamed soy milk, boiling tea, boiling meat, steaming oven, steaming basket, heating of tofu machines, soy milk machines, single-door steaming rice oven, double-door steaming rice oven, triple-door steaming rice oven, canteen disinfection, tableware, disinfection cabinet, single-door disinfection cabinet, packaging machines, double-layer pots, storage tanks for oil thawing and other supporting uses.

Biomedical Equipment Industry:

Fermenter, fermenter disinfection, fermenter empty disinfection, horizontal fermenter, beer fermenter, reactor, jacketed kettle, emulsifier, coating equipment, school laboratory, high-temperature carbonization experiment, thermal energy experiment test, aviation kerosene heating, flower essential oil extraction and other supporting uses;

Chemical Industry

Reaction kettle heating, electroplating plant recommendation, electrolyte insulation, electroplating trough heating use, cable heating and humidification, fiber tank heating and humidification, activated carbon heating and disinfection, nozzle plate humidification, acid washing tank heating, phosphoric acid heat exchanger heating, high-temperature electroplating, valve flow rate testing.

Packing Industry:

Sealing machine heating, packaging machine heating, label-applying machine heating, printing machine heating, dryer, heat-setting machine, corrugator, press machine, shrink-curing oven heating, and automatic packaging for tableware and utensils flow line.

Pharmaceutical industry:

Hospital-specific, hospital disinfection, hospital heating, hospital disinfection cabinet, hospital canteen, hospital bathing, pharmaceutical equipment heating, pharmaceutical equipment purification, pharmaceutical environmental protection, medical machinery disinfection, pharmaceutical engineering support, pure
Water system heating, steaming and cooking medicinal materials, medicinal material extraction, hospital dry-cleaning machines, hospital laundry room disinfection.清洗:

High-temperature steam cleaning, oil and grease cleaning, seamless pipe cleaning, kitchen oil and grease cleaning, airport stain cleaning, dryer cleaning, oilfield equipment cleaning, aluminum alloy mold cleaning, industrial machine cleaning, engine cleaning, oil pipeline filter cleaning, stainless steel coating cleaning, tempered glass sealing cleaning, food mold cleaning, food machinery cleaning, oven baking tray cleaning, transport vehicle cleaning, oil tanker cleaning, factory material box and rack cleaning, conveyor belt and chain cleaning, automotive parts cleaning.

Concrete curing:

Bridge maintenance, bridge road maintenance, railway maintenance, concrete column maintenance, concrete curing kiln, concrete curing pool, heating and humidification maintenance, concrete steam curing, concrete insulation, steam curing room, beam factory steam curing, box beam steam curing, T beam maintenance, mixer, mixing station, cement plant, railway maintenance, wastewater treatment, building materials plant, hollow brick maintenance, process stone maintenance, artificial marble maintenance, wood drying, humidifier.

Greenhouse breeding:

Poultry heating, breeding temperature control, pig barn breeding, chicken shed breeding, aquaculture, vegetable greenhouse, flower greenhouse, fruit greenhouse maintenance, greenhouse heating and humidity, vegetable heating maintenance, flower heating maintenance, seedling greenhouse heating, greenhouse, constant temperature greenhouse, mushroom breeding, rare species anti-freezing;

Bath and heating:

Steam sauna, bath, bathroom, bath pool, public bath, club heating, private club, entertainment club, beauty club, barber shop, school bath, unit bath, factory construction site bath, hotel, hotel, inn, hot water heating, central air conditioning heating, hot water circulation steam heating, radiator circulation heating, centralized heating, steam heating, steam pipe heating, floor heating heating, heating and ventilation industry support, plate heat exchanger support.
Product Advantages

1. Safety and Convenience: This product is designed with multiple safety features and is easy to install, requiring no installation notification or annual inspection. There is no need to obtain a boiler operator's license.
2. Stable operation, long service life, good performance, and can produce high-quality steam in three minutes, with quality assurance.
3. Energy-saving and environmental protection: Under the same conditions, the Lazy King gas steam generator can save fuel by 30% compared to conventional gas generators, and by 60% compared to electric heating steam generators. The cost of the entire machine can be recovered after using 1000 hours, and the environmental protection meets the national standard PM2.5 value.
4. Control System - The system is equipped with a microcomputer control system, which features cycle control and fault alarm functions, offering simple and convenient operation.
5. High heat conductivity: The gravity heat conduction tube of the natural gas steam generator has a heat conductivity speed of 2 Mach per second, which is 8 times faster than the fire tube.
For specific details, please contact customer service via WeChat at 18538120969.The factory produces and sells gas integrated environmental protection and energy-saving boilers, horizontal pressure hot water boilers, horizontal oil (gas) pressure hot water boilers, vertical oil (gas) pressure hot water boilers, multi-function vertical pressure hot water boilers (coal-based boiler), and gas steam generators year-round.
For specific details, please consult the customer service manager, Mr. Qin, via WeChat at 18538120969.
