Realize integration through communication

Unidrive M200/Commander C200To achieve integration with the system through industrial Ethernet protocols and fieldbus.RFG-AApplication design of open-loop motor control.

Unidrive M200/ Commander C200Advantages:

Realize flexible system integration through communication accessories

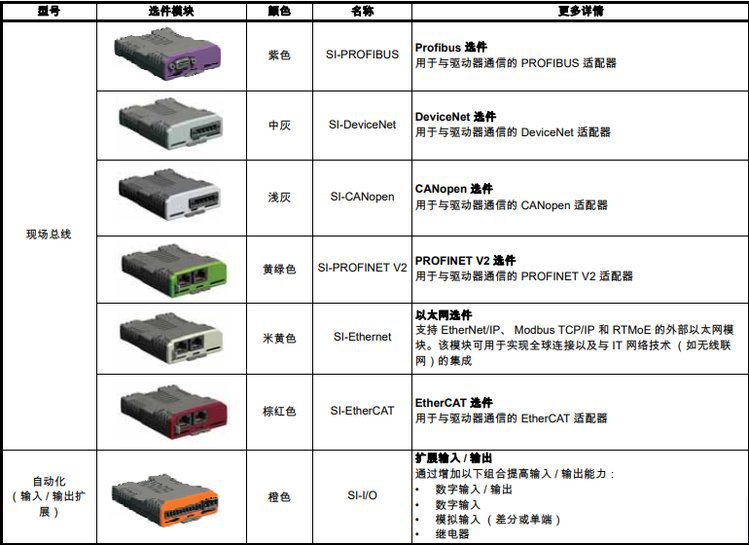

M200/C200ofSIThe interface can be compatible with industry standard fieldbus or be expanded.1/0Integration, such asSI-EthernetandSI-EtherCATandSI-PROFINET RTandSI-PROFIBUSandSI-CANopenandSI-DeviceNet

AI-485Adapter accessories allow throughModbus RTUConnect toRS485network

Algorithm controlled by open-loop motor

Rotor Flux ControlRFG-ARealizing the stability of induction motors under all power conditions by utilizing closed-loop current control.

Quick Install and Configuration

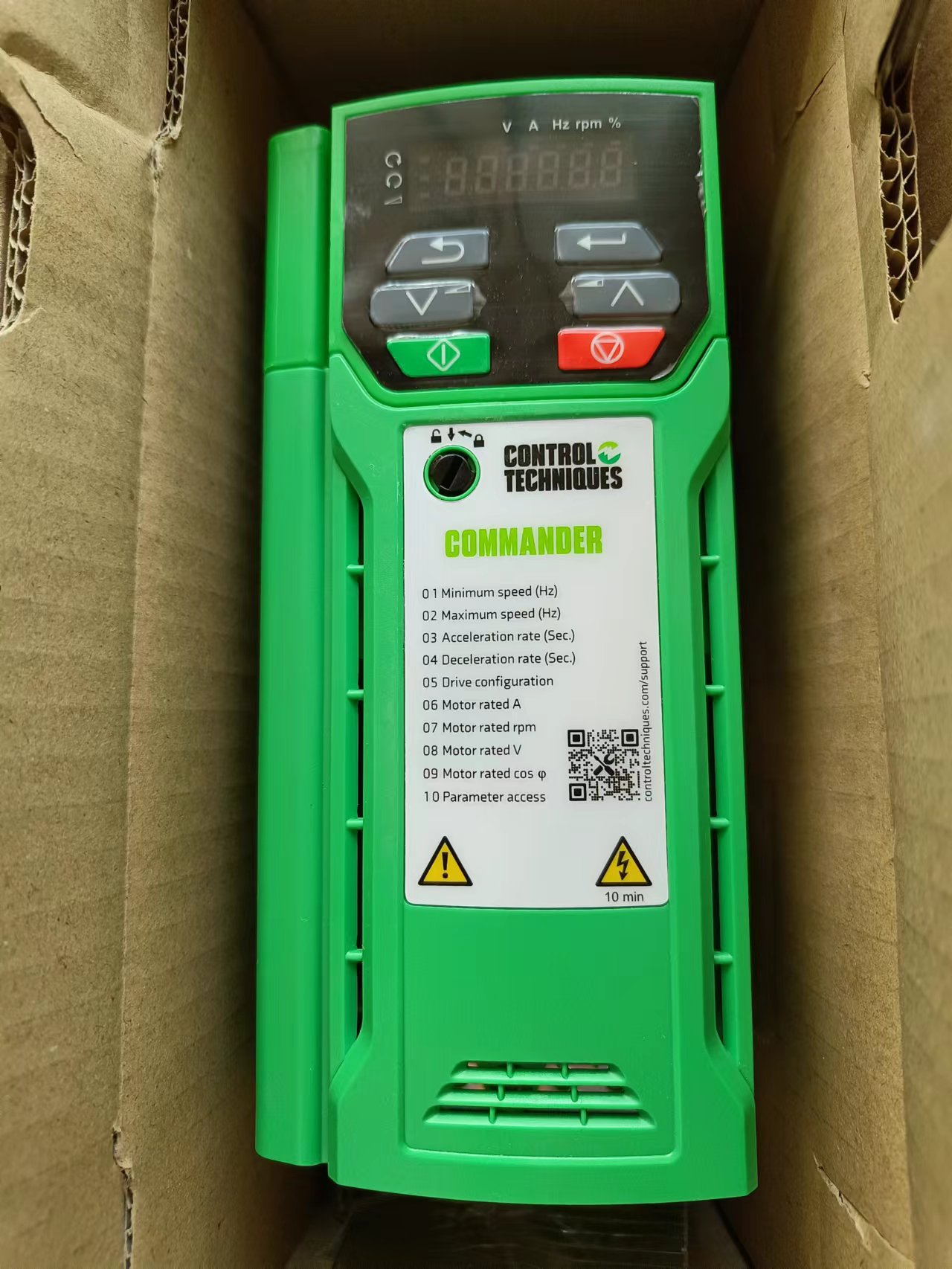

Easy-to-use fixtureLEDkeyboard

A useful parameter guide located at the front of the drive

UseUnidrive M Connect PCTool or BandAISpare AdapterSDCard Copy and Transmit Parameter Set

1.5kWThe following supports the rail installation

By designing to reduce downtime

Unidrive M200/ Commander C200Reliability can be provided.M200/C200With a series of functions, it can ensure that the system isIEC60721-3-3 3C3andEN60068-2-60Meth.4Standard operating under normal conditions in an environment.

·PCBCoated with three-defense paint, it can cope with various harsh environmental conditions.

·Obtaining an airflow system not only protects internal components but also cools the driver.

The power supply voltage tolerance is wide, which can ensure the stable operation of the driver in areas with easy power supply fluctuations.

Replaceable intelligent three-speed fan with fan fault detection circuit

The anti-tripping function can take wise measures at the right time to avoid interrupting critical processes.
