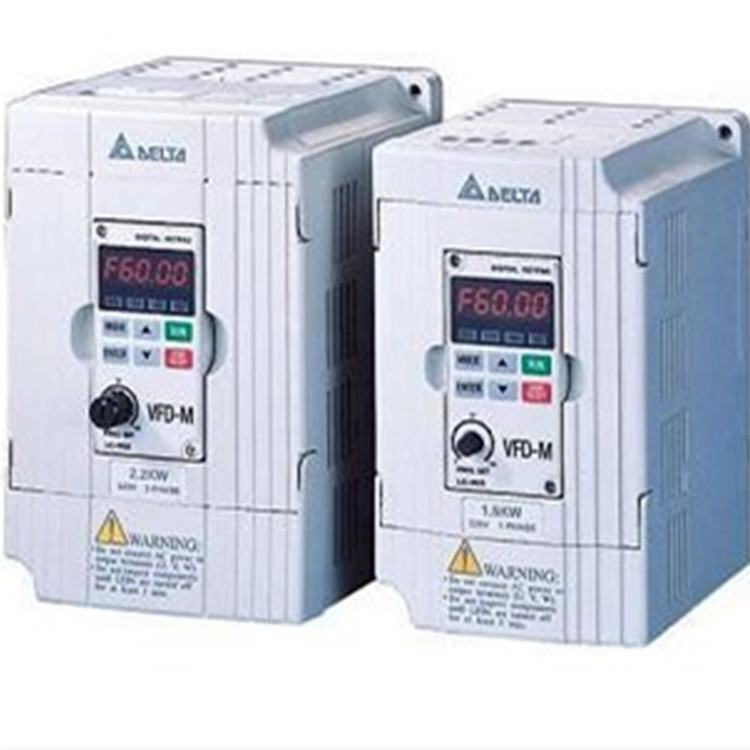

VFD-M Series Ultra-Low Noise Miniature
This series offers power for small and medium-sized motors, with the features of compact size and quiet operation; in addition, the product adopts multiple protection technologies, significantly improving the ability of the entire machine to resist interference.
▲ Adapter Motor: 230V: 0.4KW-2.2KW。380V-460V: 0.75KW-7.5KW
Output frequency: 0.1～400Hz
▲ Settable V/F curve and vector control
The carrier frequency can reach 15kHz.
▲ Automatic Torque Enhancement and Automatic Slip Compensation Function
▲ Built-in PID feedback control
▲ Built-in Modbus (RS-485 baud rate up to 38400bps)
▲ Zero-speed Hold Function
▲ Sleep/Wake Function
▲ Supported Communication Modules: DN-02, LN-01, PD-01
Technical Specification
Voltage Grade | Specification | Adapting motor power (KW) | Rated Current (A) | Dimensions (mm) |
Single-phase 220V | VFD004M21A-A | 0.4KW | 2.5 | Length: 141.5 Width: 85 Height: 113 |
Single-phase 220V | VFD007M21A-A | 0.75KW | 5.0 | |
Single-phase 220V | VFD015M21A-A | 1.5KW | 7.0 | |
Single-phase 220V | VFD022M21A | 2.2KW | 10 |
|
Three-phase 380V | VFD007M43A-A | 0.75KW | 3.0 | Length: 151 Width: 100 Height: 116 |
Three-phase 380V | VFD015M43B-A | 1.5KW | 4.0 | |
Three-phase 380V | VFD022M43B-A | 2.2KW | 5.0 | |
Three-phase 380V | VFD037M43A | 3.7KW | 8.2 | Length: 220 Width: 125 Height: 166.3 |
Three-phase 380V | VFD055M43A | 5.5KW | 13 | |
Three-phase 380V | VFD075M43A | 7.5KW | 18 |
