1. The communication socket is suitable for connecting between equipment and work areas to achieve signal transmission, meeting the EIA/TIA 568A/B transmission standard.

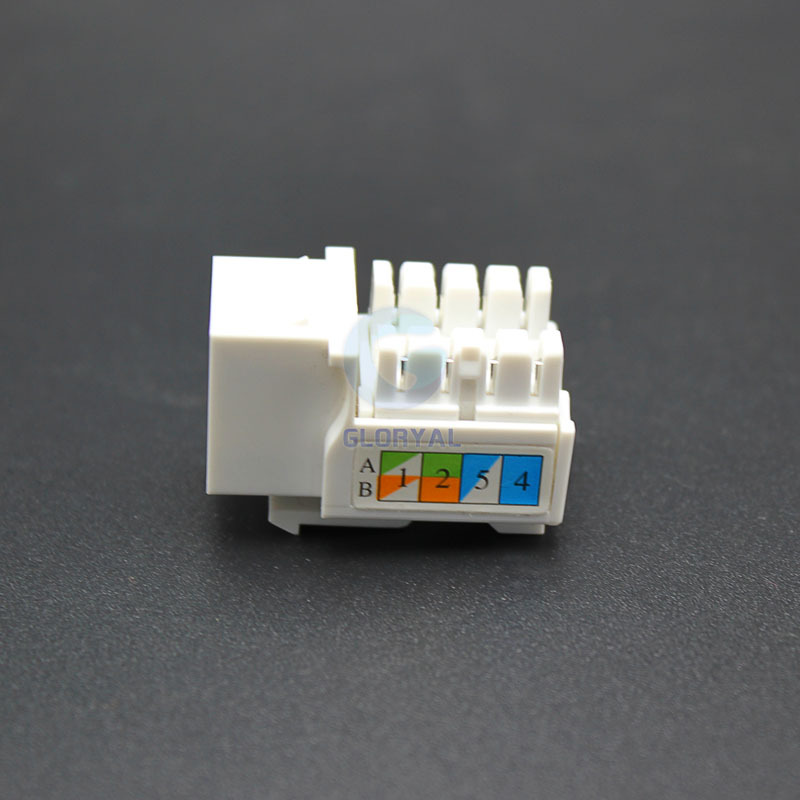

2. IDC ends are marked with color codes for quick and accurate threading.
3. Equipped with dust cover to protect the module, shielding against the entry of dust and contaminants.
4. Eight-core needle: Phosphor bronze plated with gold: 3-5μm
Contact resistance: Under normal atmospheric pressure, the contact resistance is less than or equal to 2.5 MΩ.
Insulation Resistance: Under normal atmospheric pressure, the insulation resistance is ≥1000MΩ
7. High-voltage resistance: 750V for 1 minute without breakdown or arc-firing phenomena
8. Plastic body raw materials: PC material
9. Terminal raw materials: Phosphor bronze plated with nickel, capable of connecting wires with 22-26 AWG, card connection can be repeated more than 1000 times.

10. Passed the FLUKE test, the test report is at the end of the details.

11. Packing data: 2000 pieces per box, 20kgs, 62*36*51cm
